HYDRULIC SYSTEM 2 GROUP - D400-T324A

Kioti TRACTOR | DK Series | DK45C

  • 1

    LEVER v

    • Part No. T2610-39351
    • Applied Dates Up to 2008-04-14
    • 1 shown on diagram
    $95.99
  • 2

    WASHER

    • Part No. T2610-39371
    • T1.6
    • 1 shown on diagram
    $1.09

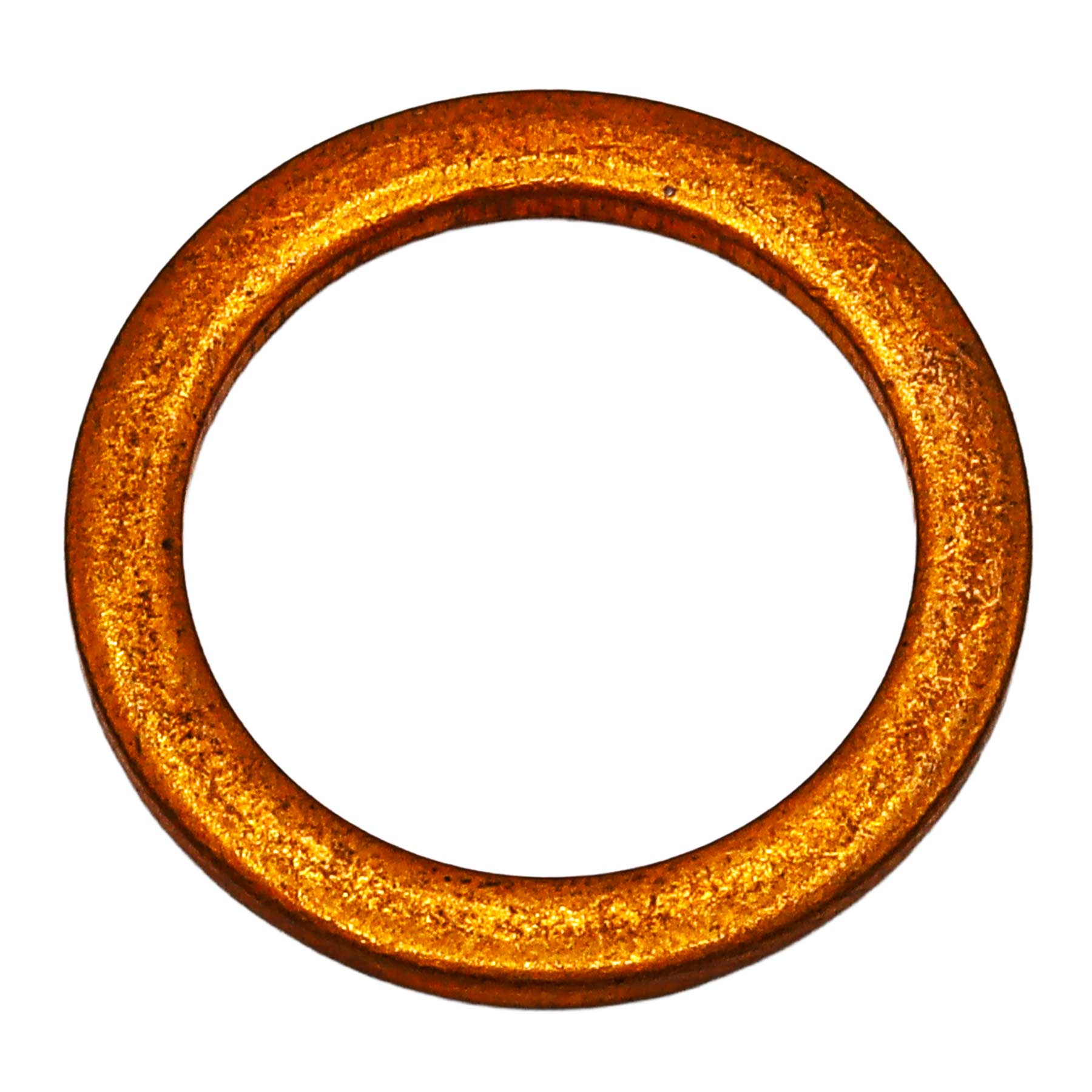

  • 3 PACKING

    PACKING

    • Part No. 04724-00180
    • Applied Dates 2011-01-25 and up
    • ??DIA18.1
    • 1 shown on diagram
    $4.49
  • 4

    PIN

    • Part No. T2610-39402
    • 1 shown on diagram
    $37.99
  • 5

    ROLLER 3

    • Part No. T2610-39411
    • 2 shown on diagram
    $8.99
  • 6

    SCREW, SET

    • Part No. T2610-39422
    • M8*P1.25
    • 1 shown on diagram
    $2.99
  • 7 SEAL, OIL

    SEAL, OIL

    • Part No. T2610-39431
    • Applied Dates 2002-12-13 and up
    • 1 shown on diagram
    $6.99
  • 8 Snap Ring 16mm

    Snap Ring 16mm

    • Part No. 04612-00160
    • Applied Dates 2002-12-13 to 2004-11-09
    • DIA16
    • 2 shown on diagram
    $.85
  • 9

    LINK 4

    • Part No. T2610-39441
    • T4.0
    • 1 shown on diagram
    $12.99
  • 10

    SHAFT

    • Part No. T2610-39451
    • 1 shown on diagram
    $25.99
  • 11 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • DIA6.4XL35
    • 1 shown on diagram
    $0.96
  • 12

    CAM, Replaced by T2610-39463

    • Part No. T2610-39462
    • Applied Dates Up to 2008-04-14
    • 1 shown on diagram
    $.00
  • 13

    CIR CLIP, EXTERNAL

    • Part No. 04613-50070
    • DIA07
    • 5 shown on diagram
    $0.61
  • 14 LINK 1 v, Replaced by T2610-39473

    LINK 1 v, Replaced by T2610-39473

    • Part No. T2610-39472
    • Applied Dates Up to 2008-04-14
    • 1 shown on diagram
    $.00
  • 15

    LINK 2

    • Part No. T2610-39481
    • 1 shown on diagram
    $28.99
  • 16

    ROLLER 4

    • Part No. T2610-39491
    • 1 shown on diagram
    $9.99
  • 17

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 1 shown on diagram
    $.67

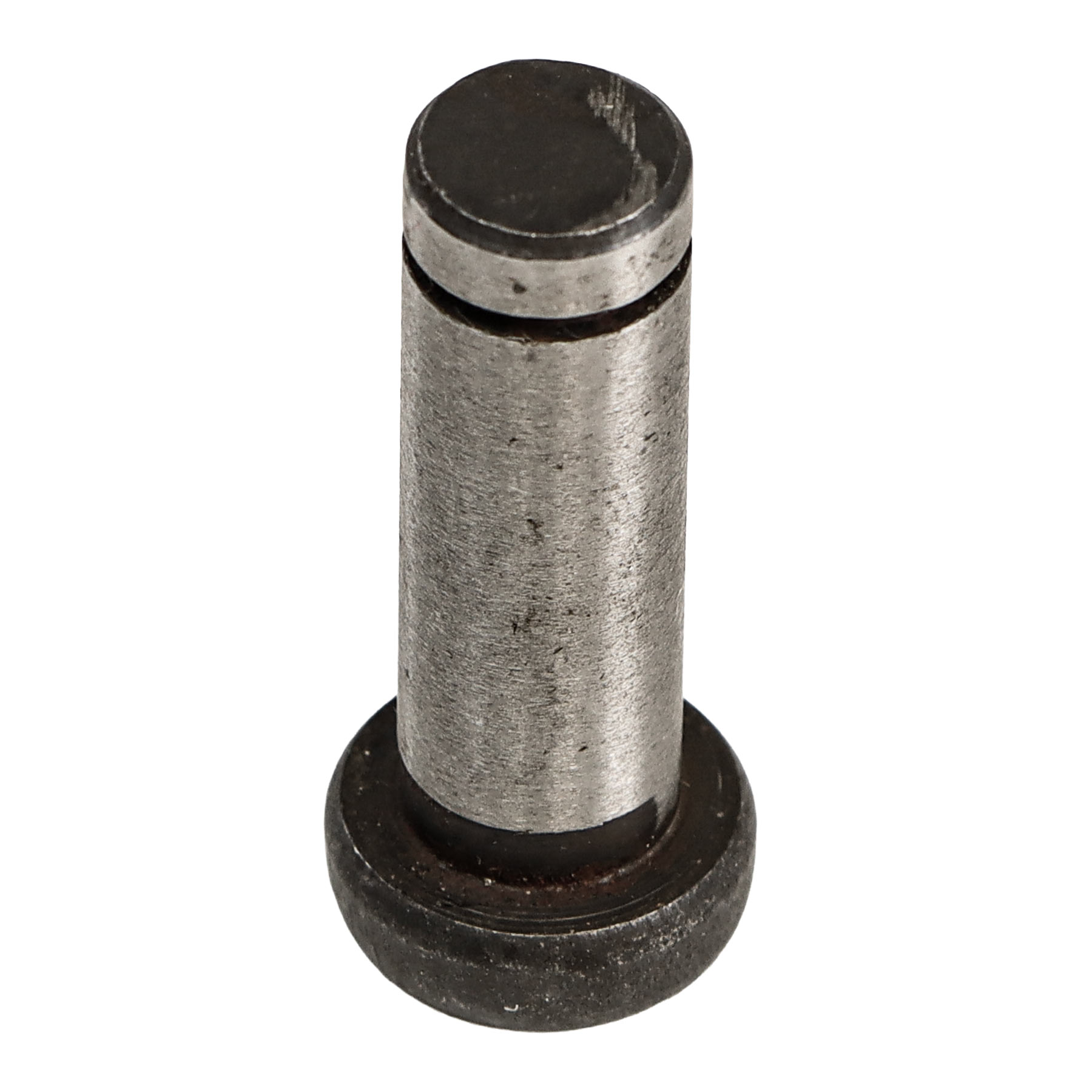

  • 18 PIN

    PIN

    • Part No. T2610-39511
    • DIA12
    • 1 shown on diagram
    $15.99
  • 19

    ROLLER 1

    • Part No. T2610-39521
    • 1 shown on diagram
    $9.99
  • 20

    ROLLER 2

    • Part No. T2610-39531
    • 1 shown on diagram
    $9.99

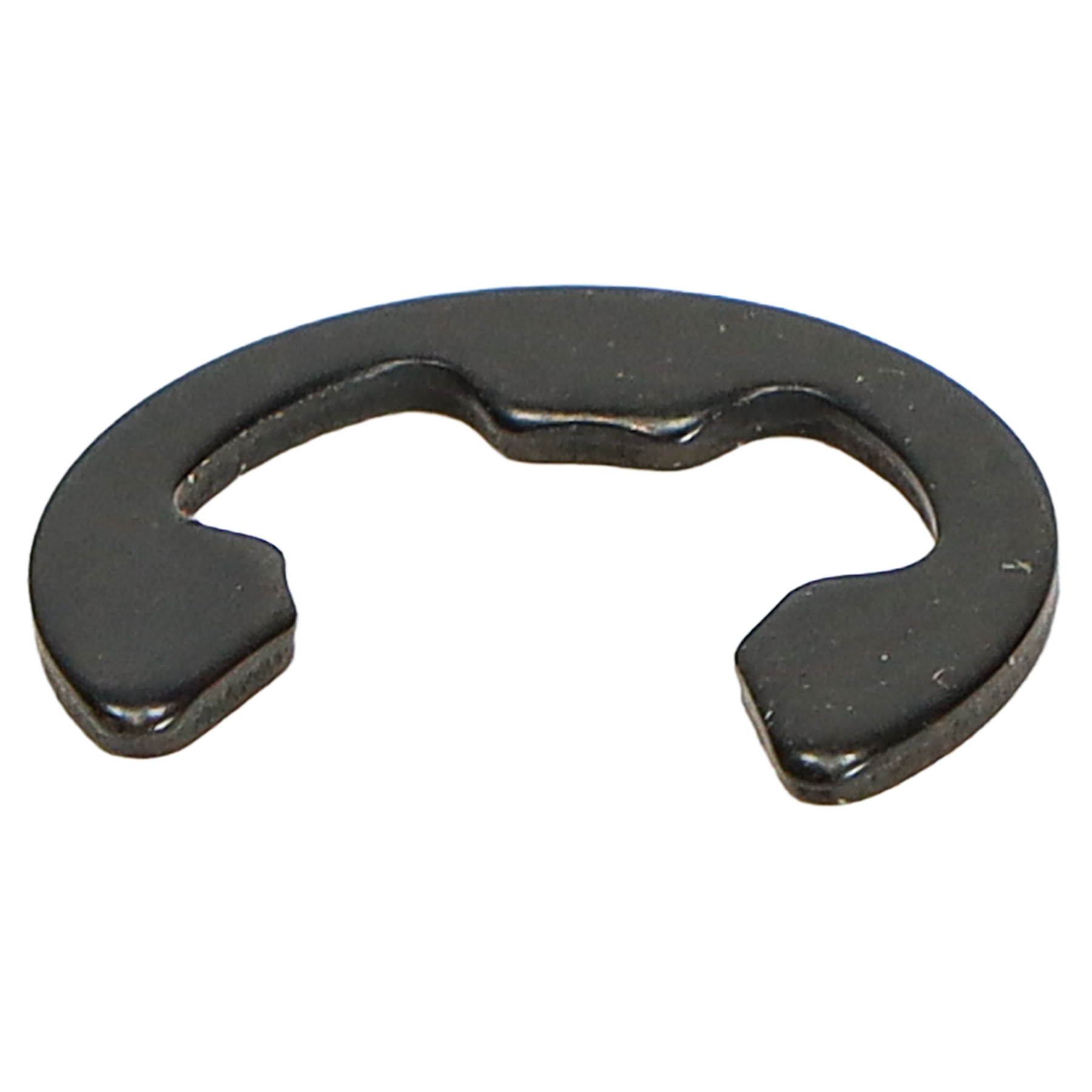

  • 21 RING SNAP

    RING SNAP

    • Part No. 04613-50060
    • Applied Dates 2011-01-25 and up
    • DIA06
    • 1 shown on diagram
    $0.67
  • 22

    LINK

    • Part No. T2610-39551
    • 1 shown on diagram
    $34.99
  • 23

    ARM

    • Part No. T2610-39562
    • 1 shown on diagram
    $23.99
  • 24

    CAM 1

    • Part No. T2610-39582
    • Applied Dates 2011-01-25 and up
    • 1 shown on diagram
    $75.99
  • 25

    ASSY,LINK

    • Part No. T2610-39641
    • Applied Dates 2011-01-25 and up
    • 1 shown on diagram
    $154.99
  • 26

    ARM

    • Part No. T2610-39621
    • Applied Dates 2011-01-25 and up
    • 1 shown on diagram
    $94.99
  • 27

    PIN

    • Part No. T2610-39661
    • Applied Dates 2011-01-25 and up
    • 1 shown on diagram
    $23.99
  • 28

    SPRING

    • Part No. T2610-39672
    • Applied Dates 2011-01-25 and up
    • DIA1.8
    • 1 shown on diagram
    $5.49
  • 29

    BOLT

    • Part No. T2610-39631
    • Applied Dates 2011-01-25 and up
    • M8*1.25
    • 1 shown on diagram
    $18.99
  • 30

    PIN

    • Part No. T2610-39601
    • Applied Dates 2011-01-25 and up
    • 1 shown on diagram
    $14.99

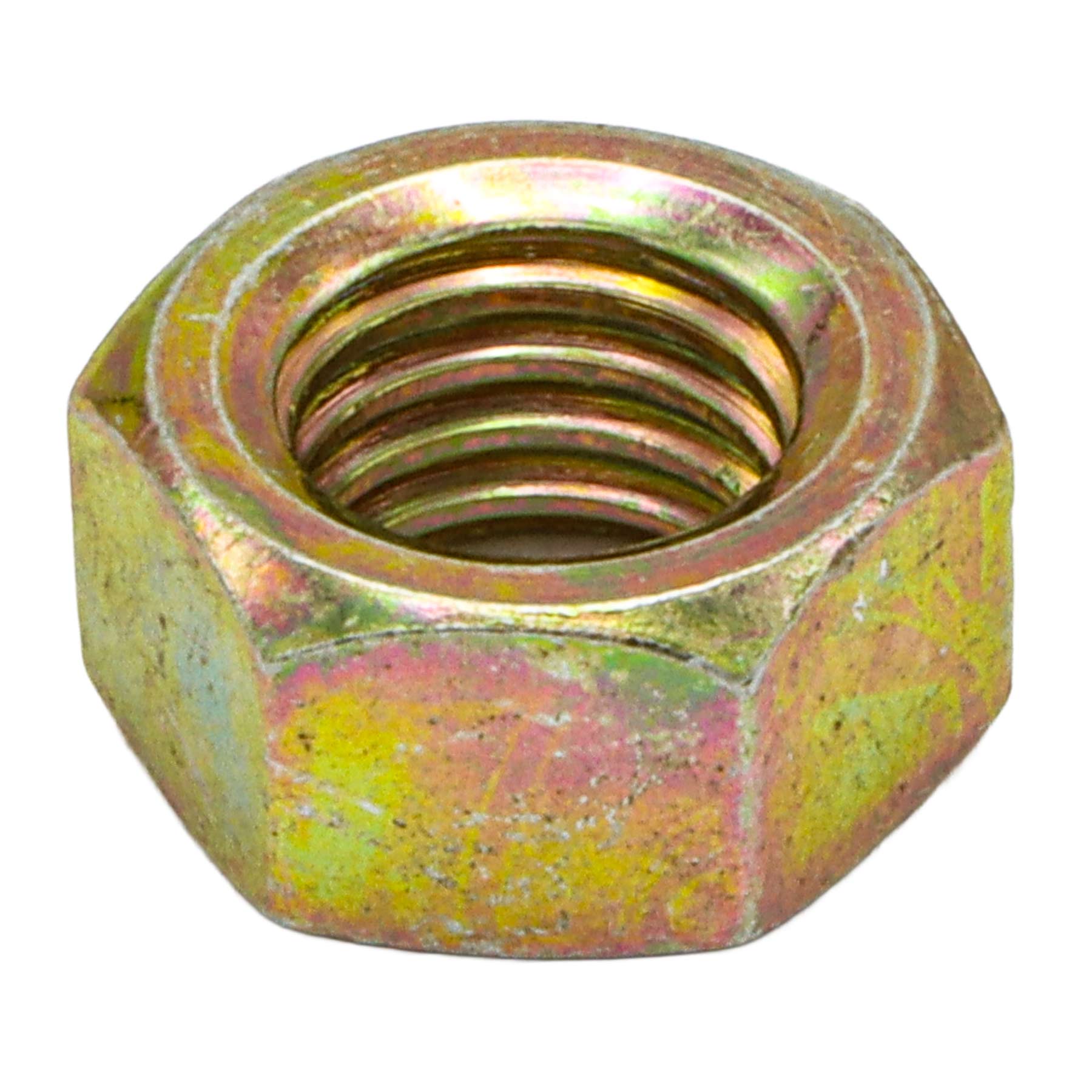

  • 31 NUT

    NUT

    • Part No. 02114-50080
    • Applied Dates 2011-01-25 and up
    • M8*P1.25
    • 1 shown on diagram
    $0.67
  • 32 RING SNAP

    RING SNAP

    • Part No. 04613-50060
    • Applied Dates 2011-01-25 and up
    • DIA06
    • 1 shown on diagram
    $0.67

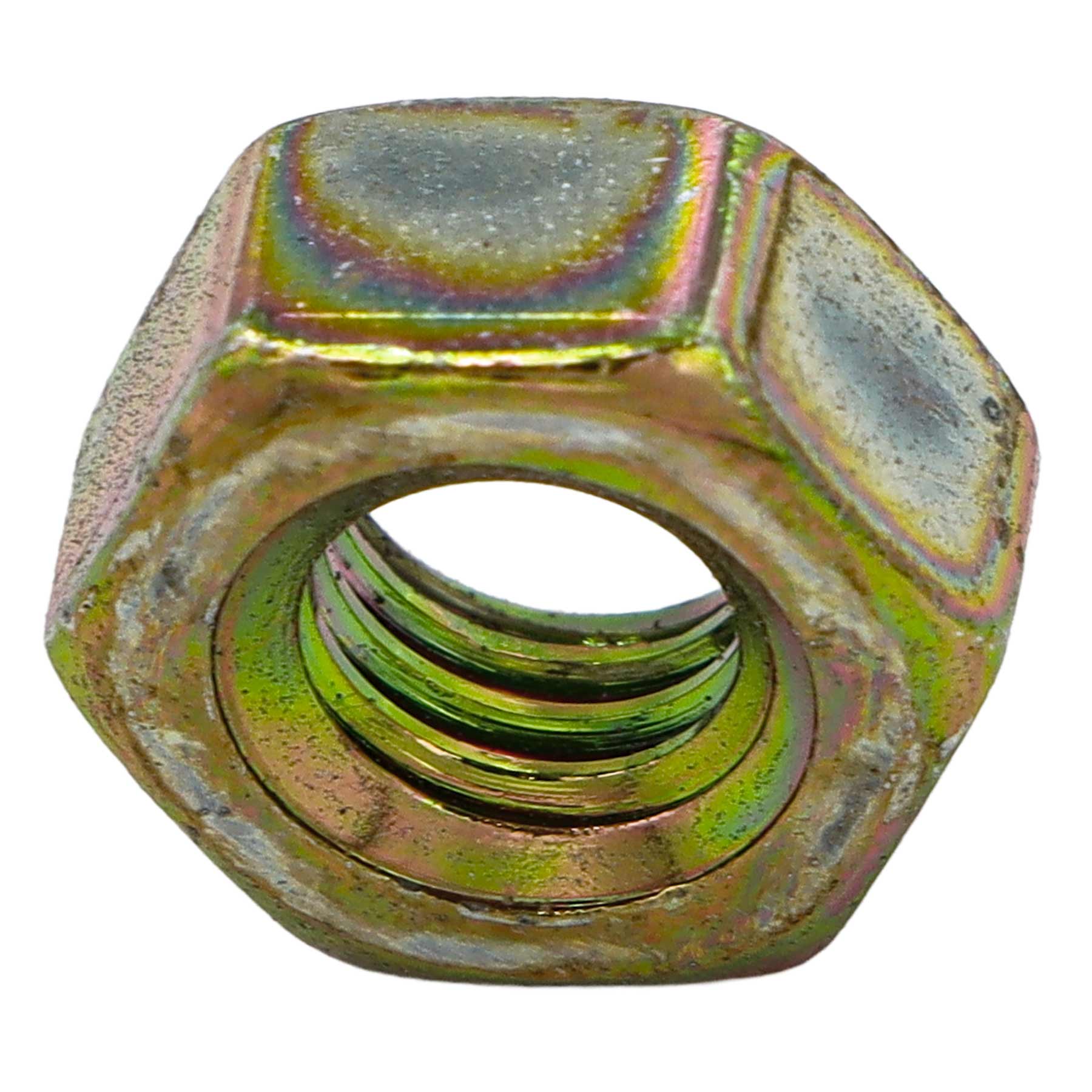

  • 33 NUT 02014-50060

    NUT 02014-50060

    • Part No. 02014-50060
    • Applied Dates 2011-01-25 and up
    • M6*P1.0
    • 2 shown on diagram
    $0.49
  • 34

    Flat Washer M6

    • Part No. 04014-50060
    • Applied Dates 2011-01-25 and up
    • 1 shown on diagram
    $.67
  • 35

    LINK 3

    • Part No. T2610-39611
    • Applied Dates 2011-01-25 and up
    • T6.0
    • 1 shown on diagram
    $19.99
  • 36

    PIN

    • Part No. T2610-39652
    • Applied Dates 2011-01-25 and up
    • 1 shown on diagram
    $36.99
  • 37 PACKING

    PACKING

    • Part No. 04724-00180
    • Applied Dates 2011-01-25 and up
    • ??DIA18.1
    • 1 shown on diagram
    $4.49
  • 38

    CIR CLIP, EXTERNAL

    • Part No. 04612-00150
    • Applied Dates Up to 2000-12-31
    • DIA15
    • 1 shown on diagram
    $0.73
  • 39

    LINK

    • Part No. T2610-39681
    • 1 shown on diagram
    $49.99
  • 40

    BEARING,NEEDLE

    • Part No. 08811-62216
    • Applied Dates Up to 2008-04-14
    • ??DIA16
    • 1 shown on diagram
    $25.99
  • 41

    SCREW, SET

    • Part No. T2610-39572
    • Applied Dates 2011-01-25 and up
    • M8*P1.25
    • 1 shown on diagram
    $2.99
