STEERING CYLINDER GROUP - DK45-T410A

Kioti TRACTOR | DK Series | DK45C

  • 1

    ASSY,STEERING CYLINDER v

    • Part No. T4625-31203
    • Applied Dates 2001-11-20 to 2003-05-03
    • Serial No. 256800001 and up
    • *multiple options for # 1
    • 2 shown on diagram
    $984.99
  • 1

    CYLINDER ASS’Y(LEFT) STEERING

    • Part No. T4625-31204
    • Compatibility New Replaces Old
    • Applied Dates 2003-05-03 to 2003-09-08
    • *multiple options for # 1
    • 1 shown on diagram
    $374.99
  • 1

    CYL. ASS’Y, STEERING(L) obs v

    • Part No. T4625-31205
    • Compatibility New Replaces Old
    • Applied Dates 2003-09-09 and up
    • Serial No. 356800001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $1019.99
  • 2

    PIN,SUPPORT v

    • Part No. T4625-31181
    • Applied Dates 2001-11-20 to 2006-06-11
    • 2 shown on diagram
    $18.99
  • 3

    PIN, SPLIT

    • Part No. 05511-50335
    • DIA3*35
    • 2 shown on diagram
    $0.68
  • 4

    BOLT,SET

    • Part No. T4520-43941
    • 2 shown on diagram
    $4.49

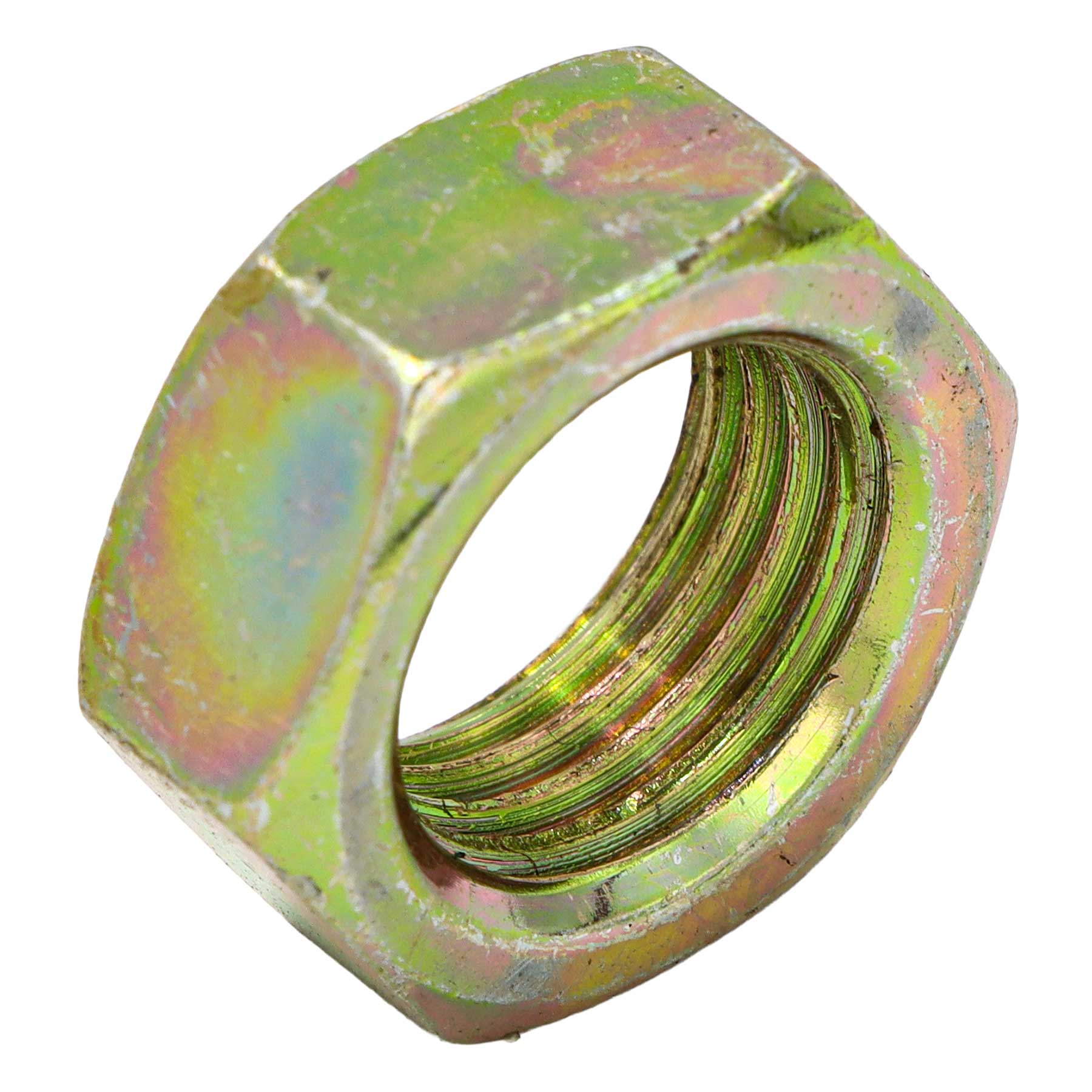

  • 5 NUT

    NUT

    • Part No. 02076-50140
    • M14XP1.5
    • 2 shown on diagram
    $1.79
  • 6 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51220
    • Applied Dates Up to 2002-06-02
    • M12*P1.25
    • 2 shown on diagram
    $2.99
  • 7

    Flat Washer M12

    • Part No. 04011-50120
    • Applied Dates Up to 2002-06-02
    • M12
    • 6 shown on diagram
    $.73
  • 8

    SUPPORT, CYLINDER, Replaced by T4625-31172

    • Part No. T4625-31171
    • Applied Dates Up to 2002-12-30
    • *multiple options for # 8
    • 2 shown on diagram
    $.00
  • 8

    SUPPORT, CYLINDER

    • Part No. T4625-31172
    • Compatibility New Replaces Old
    • Applied Dates 2003-01-01 and up
    • Serial No. 356800001 and up
    • *multiple options for # 8
    • 2 shown on diagram
    $78.99
  • 9

    SPACER

    • Part No. T4625-31151
    • 4 shown on diagram
    $8.99
  • 10

    PIN,CYLINDER SUPPORT dnr v

    • Part No. T4625-31162
    • Applied Dates 1999-03-04 to 2006-06-11
    • 2 shown on diagram
    $24.99
  • 11

    BOLT, Replaced by 01123-50814

    • Part No. 01120-50814
    • 2 shown on diagram
    $.00
  • 12 TIE ROD ASSY dnr v, Replaced by T4625-31131BB

    TIE ROD ASSY dnr v, Replaced by T4625-31131BB

    • Part No. T4625-31131
    • 1 shown on diagram
    $344.99
  • 13 Grease Zerk 45� 1/8″ BSPT

    Grease Zerk 45� 1/8″ BSPT

    • Part No. 06613-20010
    • 2 shown on diagram
    $4.49
  • 14 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 8 shown on diagram
    $0.95
  • 15 BOLT, Replaced by 01176-51240

    BOLT, Replaced by 01176-51240

    • Part No. 01173-51240
    • M12*1.25*40
    • 8 shown on diagram
    $.00
  • 16

    NUT

    • Part No. T4520-63771
    • Applied Dates 2001-11-20 and up
    • M18*1.5
    • 2 shown on diagram
    $9.49
  • 17

    SPACER

    • Part No. T4625-31451
    • Applied Dates 2001-11-20 and up
    • 2 shown on diagram
    $14.99
  • 18

    TIE ROD

    • Part No. T4625-31141
    • DIA20
    • 1 shown on diagram
    $134.99
  • 19

    ASSY,TIE ROD END

    • Part No. T4625-31191
    • 1 shown on diagram
    $149.99
  • 20

    TIE ROD END ASS Y

    • Part No. T4620-31051
    • 1 shown on diagram
    $149.99
  • 21

    NUT(LH)

    • Part No. T4625-63701
    • HEX27
    • 1 shown on diagram
    $6.99
  • 22

    NUT v

    • Part No. T4520-63701
    • M20*1.5
    • 1 shown on diagram
    $7.49
  • 23

    NUT v

    • Part No. 02372-50180
    • 2 shown on diagram
    $3.49
  • 24

    CYLINDER COVER LH v, Replaced by T2630-31331BB

    • Part No. T2630-31331
    • Applied Dates 2001-11-20 to 2008-11-18
    • 1 shown on diagram
    $.00
  • 25

    CYLINDER COVER RH v, Replaced by T2630-31341BB

    • Part No. T2630-31341
    • Applied Dates 2001-11-20 to 2008-11-18
    • 1 shown on diagram
    $.00
  • 26

    WASHER BOLT

    • Part No. 01025-50614
    • Applied Dates 2001-11-20 and up
    • M6*P1.0
    • 4 shown on diagram
    $1.89
  • 27

    BOLT

    • Part No. 01173-51445
    • M14XP1.5
    • 8 shown on diagram
    $7.99
  • 28

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 8 shown on diagram
    $0.9

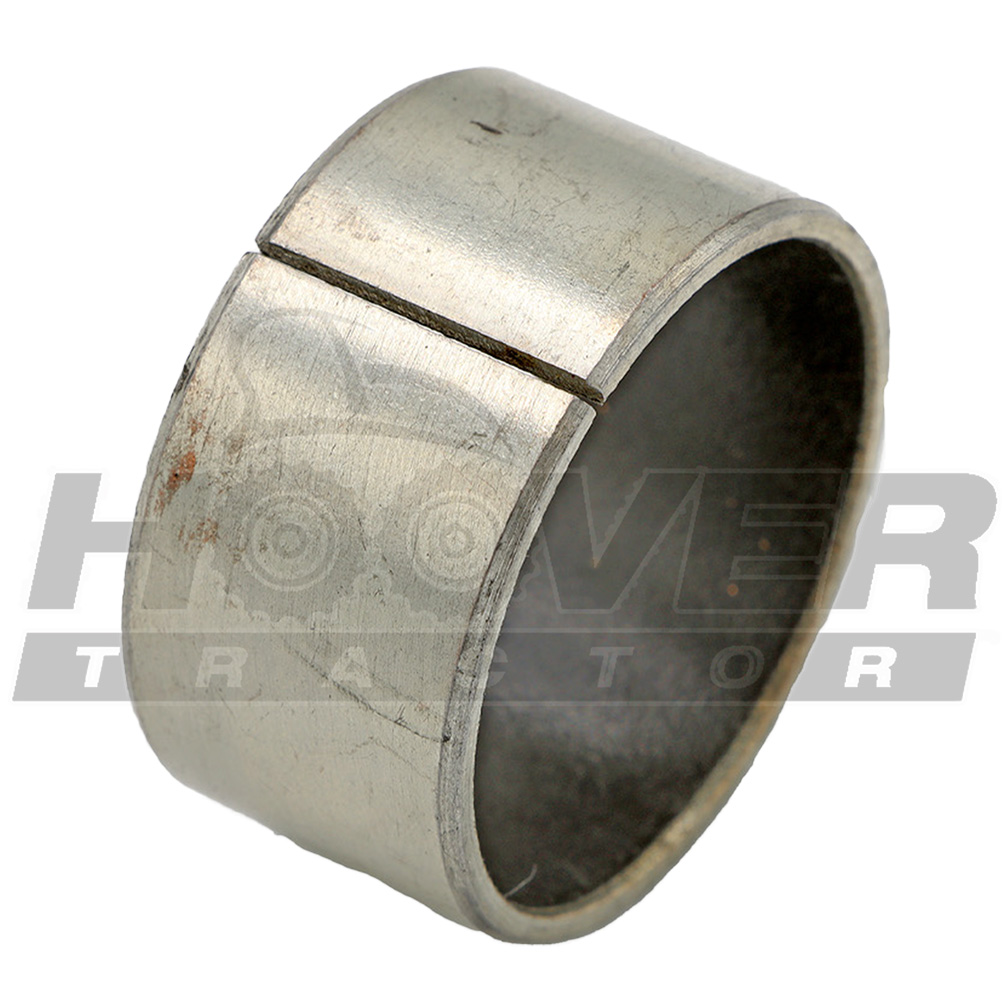

  • 29 BUSH

    BUSH

    • Part No. 08511-03520
    • MB3520DU
    • 2 shown on diagram
    $23.99

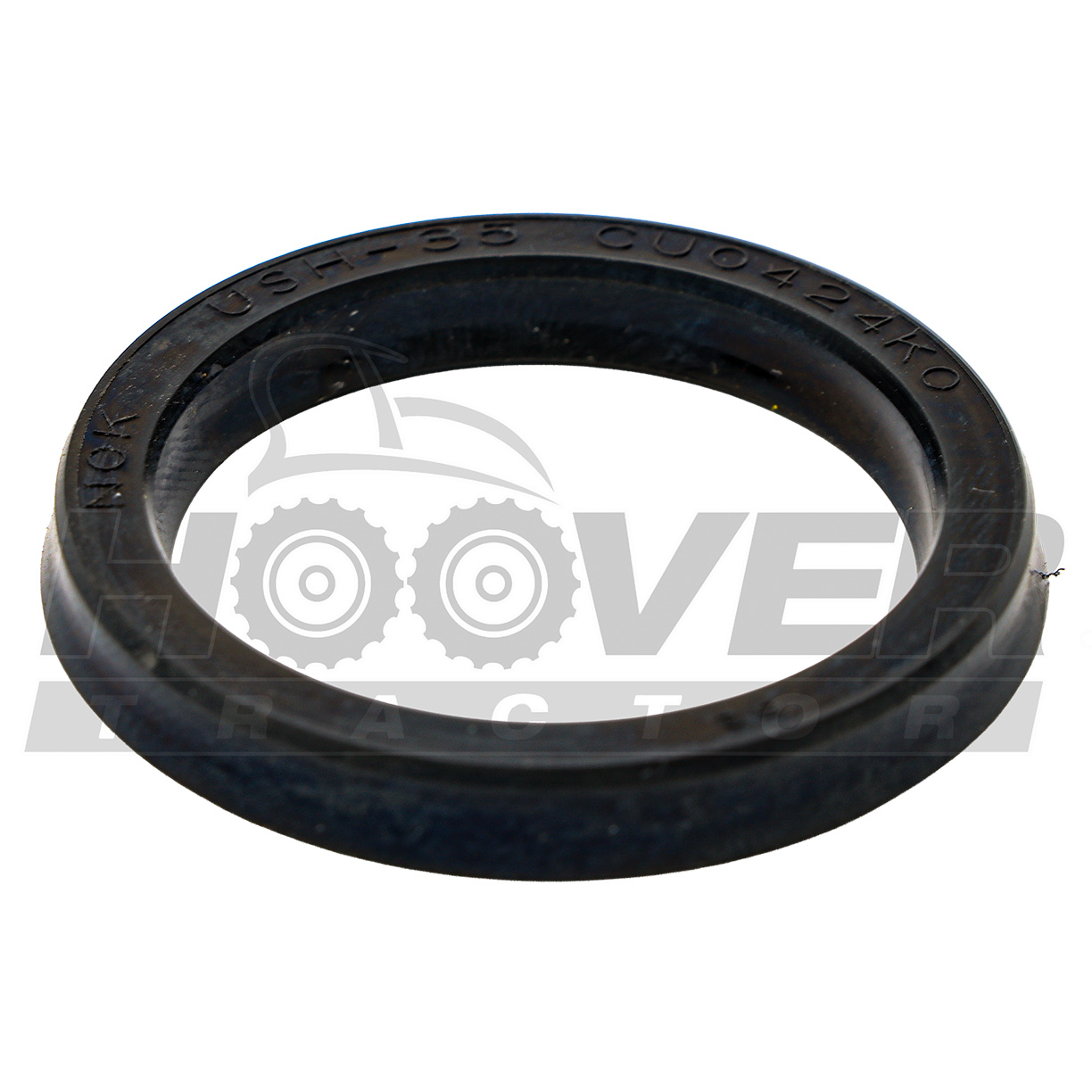

  • 30 PACKING

    PACKING

    • Part No. T4625-31261
    • GNY35
    • 2 shown on diagram
    $75.99
  • 31

    DUST SEAL

    • Part No. T4625-31271
    • SCK35
    • 2 shown on diagram
    $68.99
  • 32

    ROD

    • Part No. T4625-31282
    • Applied Dates 2001-11-20 and up
    • DIA35
    • 2 shown on diagram
    $.01
  • 33

    HOUSING v [NLA]

    • Part No. T2630-31322
    • Applied Dates 2001-11-20 and up
    • 2 shown on diagram
    $.00
  • 34

    CYLINDER ASS’Y(RIGHT) STEERING v

    • Part No. T4625-31321
    • Applied Dates 2003-05-03 to 2003-09-08
    • *multiple options for # 34
    • 1 shown on diagram
    $359.99
  • 34

    CTL. ASS’Y, STEERING obs v

    • Part No. T4625-31322
    • Compatibility New Replaces Old
    • Applied Dates 2003-09-09 and up
    • Serial No. 356800001 and up
    • *multiple options for # 34
    • 1 shown on diagram
    $479.99
