REMOTE HYDRAULIC TUBE GROUP - DK45-T380A

Kioti TRACTOR | DK Series | DK45C

  • 1

    TUBE A HYD v

    • Part No. T4682-90011
    • Applied Dates 2001-07-25 to 2008-11-18
    • 1 shown on diagram
    $64.99
  • 2

    TUBE B HYD v, Replaced by T4682-90022

    • Part No. T4682-90021
    • Applied Dates 2001-07-25 to 2008-11-18
    • 1 shown on diagram
    $.00
  • 3

    BRACKET,SCOKET

    • Part No. T4625-90073
    • Applied Dates 2001-07-25 and up
    • 1 shown on diagram
    $17.99
  • 4

    BOLT

    • Part No. 01133-51018
    • Applied Dates 2002-03-01 and up
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 5

    COUPLER SOCKET ASS`Y

    • Part No. T4520-90093
    • Applied Dates 2001-01-03 to 2005-11-22
    • 1/2"
    • *multiple options for # 5
    • 2 shown on diagram
    $89.99
  • 5

    COUPLER

    • Part No. T4720-90091
    • Compatibility New Replaces Old
    • Applied Dates 2005-11-23 and up
    • *multiple options for # 5
    • 2 shown on diagram
    $76.99
  • 6

    BOLT 3,JOINT

    • Part No. T4682-90051
    • Applied Dates 2001-07-25 and up
    • 1 shown on diagram
    $33.99
  • 7

    BOLT 2, JOINT

    • Part No. T4520-37372
    • Applied Dates 2001-07-25 and up
    • M18*1.5
    • 1 shown on diagram
    $29.99

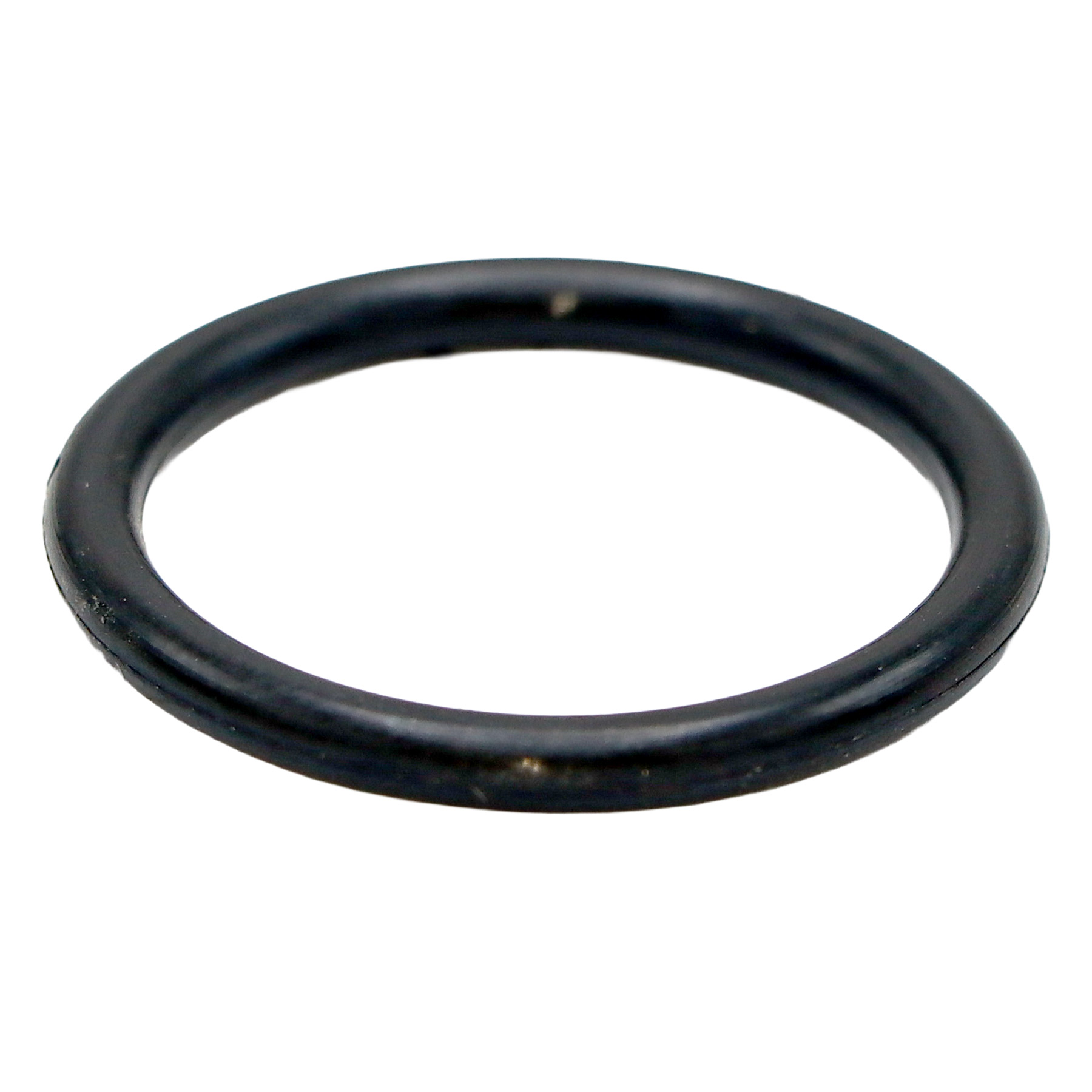

  • 8 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 4 shown on diagram
    $1.19
  • 9

    CONNECTOR W/ FILTER

    • Part No. T4682-37581
    • Applied Dates 2001-07-25 and up
    • 2 shown on diagram
    $39.99
