BONNET 4 GROUP - D400-T620A

Kioti TRACTOR | DK Series | DK45

  • 1

    COVER LOW(LH) v

    • Part No. T4680-50903
    • Applied Dates 2000-05-17 to 2003-04-13
    • Serial No. 056700001 to 356700410
    • *multiple options for # 1
    • 1 shown on diagram
    $99.99
  • 1

    COVER LOW(LH)

    • Part No. T4680-50904
    • Compatibility New Replaces Old
    • Applied Dates 2003-04-14 and up
    • Serial No. 356700411 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $97.99
  • 2

    COVER LOW(RH)

    • Part No. T4680-50913
    • Applied Dates 2000-05-17 and up
    • 1 shown on diagram
    $134.99

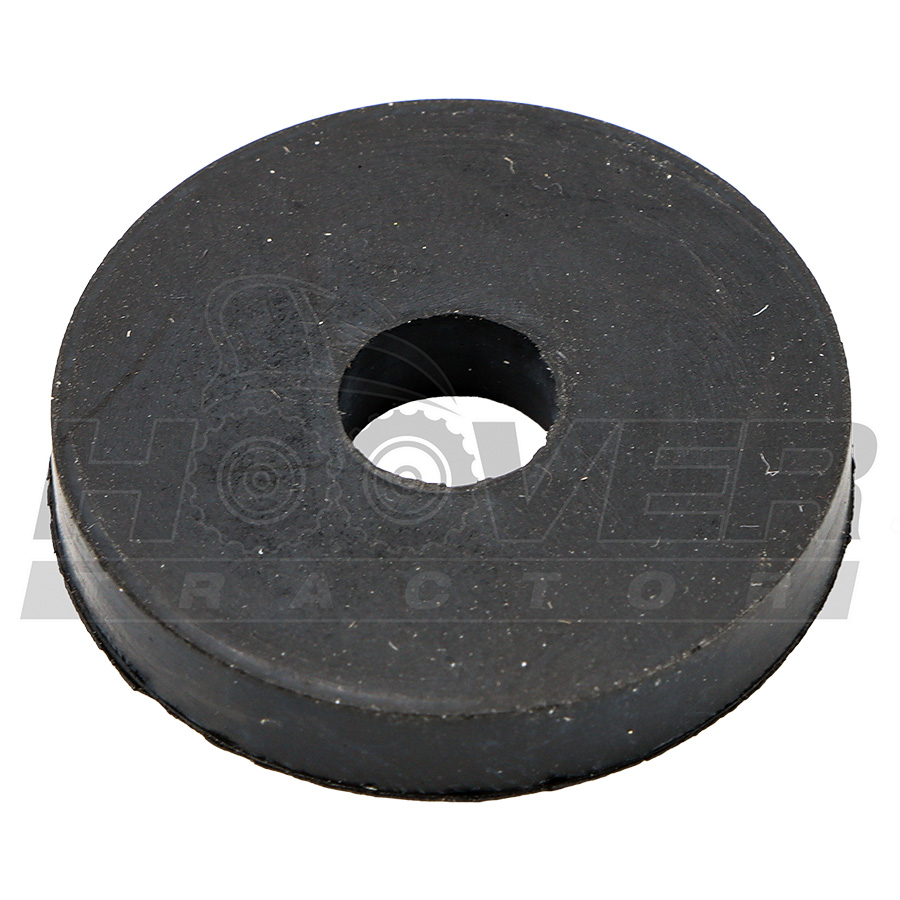

  • 3 CUSHION

    CUSHION

    • Part No. T2610-80691
    • Applied Dates 2000-10-11 and up
    • 5T
    • 4 shown on diagram
    $1.79

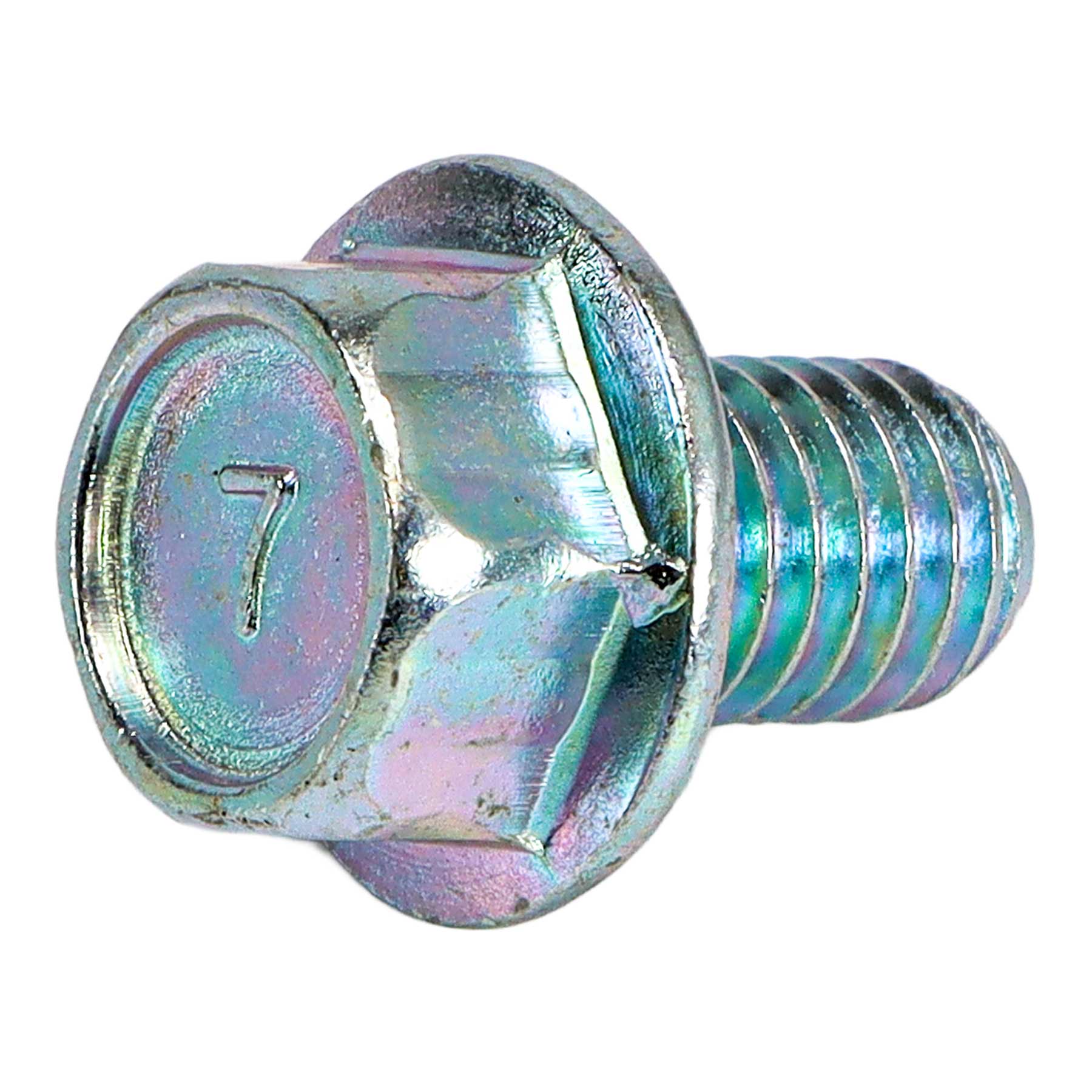

  • 4 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 5

    RUBBER,COVER(LH)

    • Part No. T4681-50691
    • 1 shown on diagram
    $24.99
  • 6

    GRIP obs v

    • Part No. T4810-50832
    • 4 shown on diagram
    $22.99

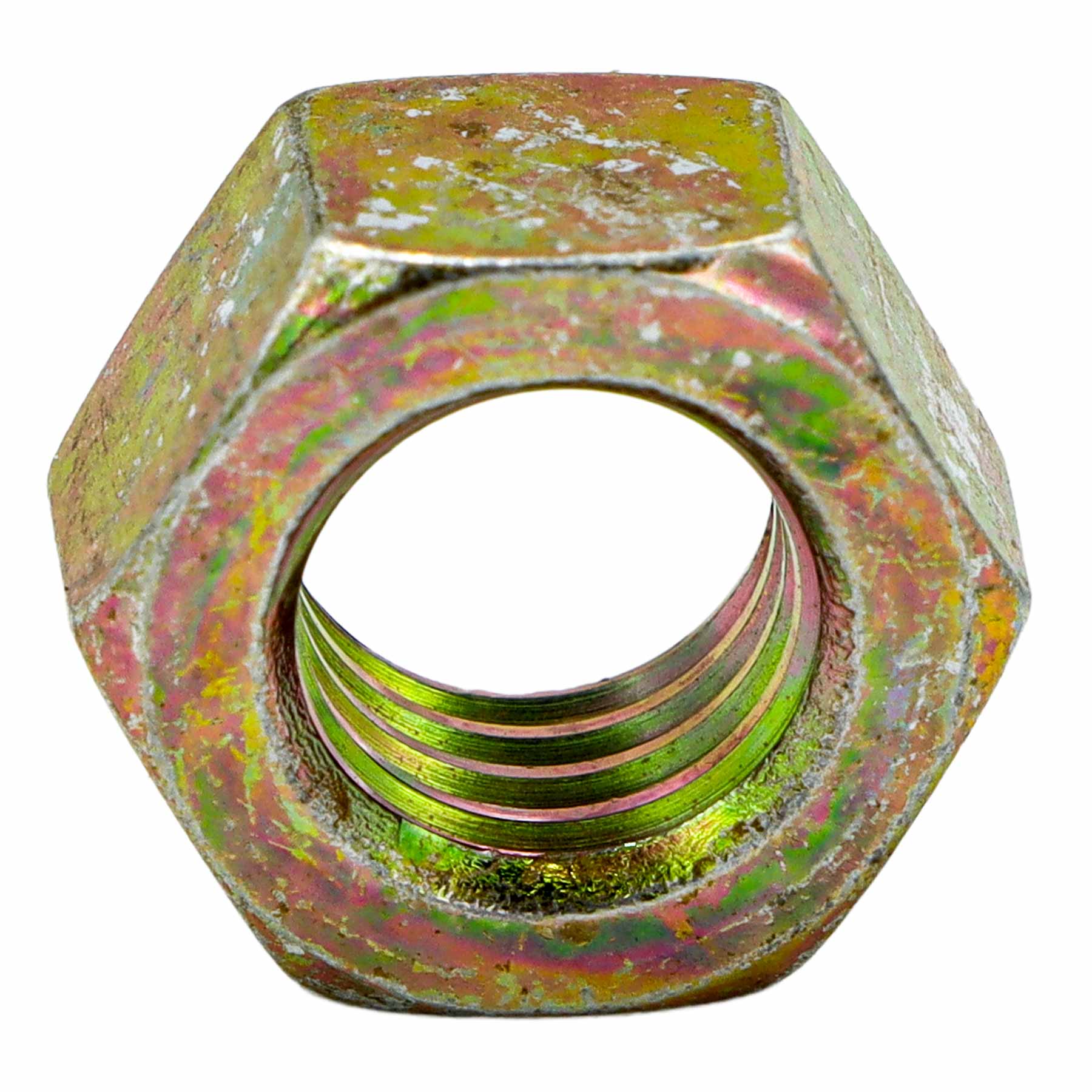

  • 7 NUT

    NUT

    • Part No. 02112-50080
    • M8*P1.25
    • 2 shown on diagram
    $0.55
  • 8

    NLA-PLATE SIDE COVER

    • Part No. T4620-50881
    • 2 shown on diagram
    $7.99
  • 9

    BOLT,CUSHION obs

    • Part No. T4620-50891
    • 2 shown on diagram
    $5.99
  • 10

    RUBBER(BONNET) LH obs v

    • Part No. T4810-50851
    • T2
    • 4 shown on diagram
    $7.49
  • 11

    BRACKET, BONNET dnr v, Replaced by T4810-50841

    • Part No. T4681-50841
    • Applied Dates 2000-04-04 and up
    • T0.8
    • 4 shown on diagram
    $.00
  • 12

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • 6 shown on diagram
    $0.68
  • 13

    BOLT

    • Part No. 01053-50610
    • 8 shown on diagram
    $1.09
  • 14

    RUBBER COVER(RH)

    • Part No. T4681-51691
    • 1 shown on diagram
    $25.99
  • 15 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 4 shown on diagram
    $1.19
