BONNET 2 GROUP - DK45-T600A

Kioti TRACTOR | DK Series | DK45

  • 1

    BONNET, Replaced by T4680-50604BE

    • Part No. T4680-50601OE
    • Applied Dates 1999-01-19 to 2000-05-16
    • Serial No. 956700001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $.00
  • 1

    BONNET v

    • Part No. T4680-50602OE
    • Compatibility New Replaces Old
    • Applied Dates 2000-05-17 to 2003-04-13
    • Serial No. 056700001 to 356700410
    • *multiple options for # 1
    • 1 shown on diagram
    $699.99
  • 1

    BONNET-UPR

    • Part No. T4680-50604OE
    • Compatibility No Interchange
    • Applied Dates 2003-04-14 and up
    • Serial No. 356700411 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $674.99

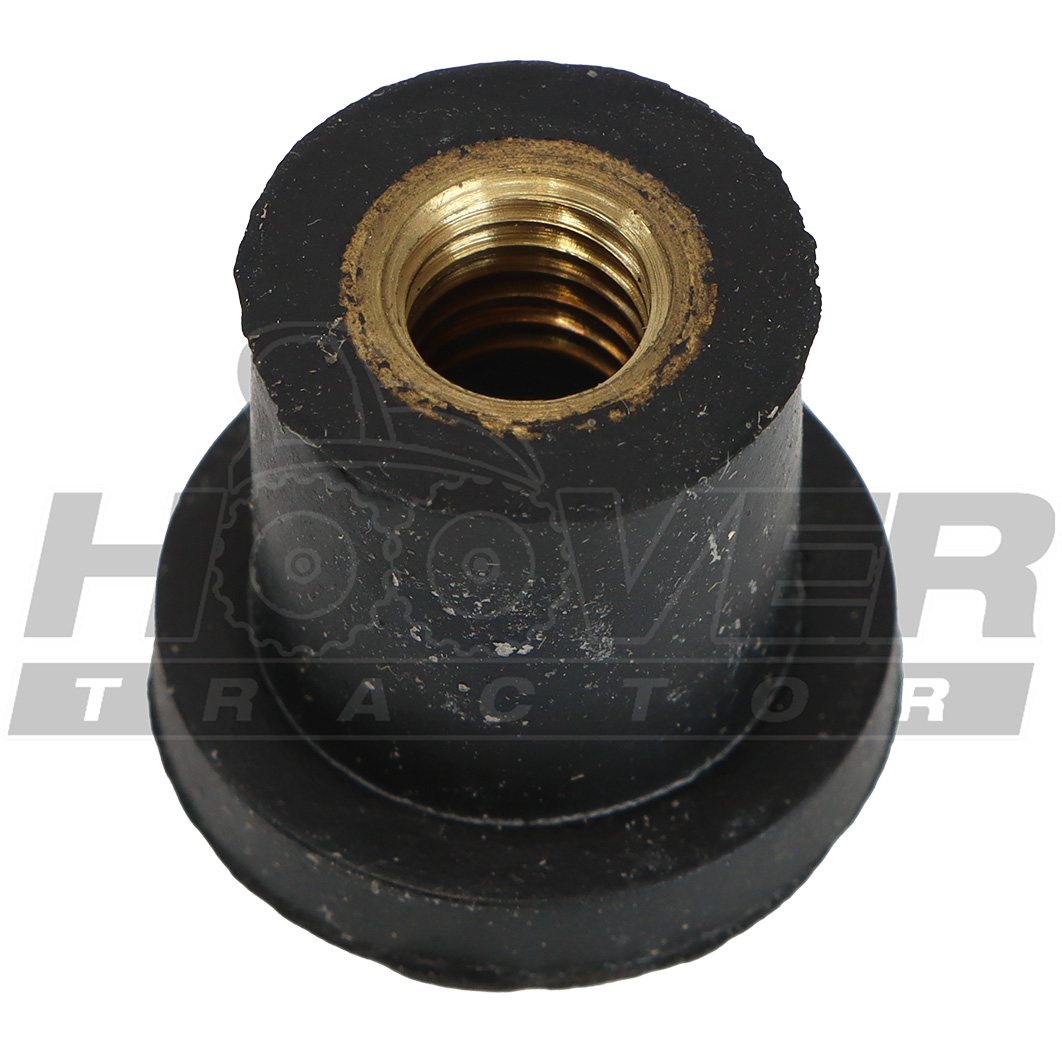

  • 2 RUBBER CUSHION

    RUBBER CUSHION

    • Part No. T4620-50672
    • 2 shown on diagram
    $9.99
  • 3 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
    $1.19
  • 4

    PACKING

    • Part No. T4620-80691
    • 2 shown on diagram
    $2.99
  • 5 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
    $1.19
  • 6

    ASSY 2,COVER(AUX) v

    • Part No. T4620-50713OE
    • Applied Dates 2000-05-17 to 2003-04-13
    • Serial No. 056700001 to 356700410
    • *multiple options for # 6
    • 1 shown on diagram
    $29.99
  • 6

    DO NOT USE, USE T4625-50701

    • Part No. T4625-50701OE
    • Compatibility No Interchange
    • Applied Dates 2003-04-14 and up
    • Serial No. 356700411 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $.00
  • 7

    ASSY COVER BONNET

    • Part No. T4260-18612OE
    • Applied Dates 2000-03-01 to 2003-04-13
    • Serial No. 956700001 to 356700410
    • *multiple options for # 7
    • 1 shown on diagram
    $18.99
  • 7

    COVER assy

    • Part No. T4625-50731OE
    • Compatibility No Interchange
    • Applied Dates 2003-04-14 and up
    • Serial No. 356700411 and up
    • *multiple options for # 7
    • 1 shown on diagram
    $23.99
  • 8

    SPRING, Replaced by T4681-18631

    • Part No. T4260-18632
    • Applied Dates 2000-05-17 to 2003-04-13
    • 1 shown on diagram
    $.00
  • 9

    SCREW

    • Part No. 38430-1827-1
    • Applied Dates 2000-03-01 to 2003-04-13
    • Serial No. Up to 356700410
    • *multiple options for # 9
    • 4 shown on diagram
    $0.46
  • 9

    BOLT, WASHER v

    • Part No. 01023-50612
    • Compatibility No Interchange
    • Applied Dates 2003-04-14 and up
    • Serial No. 356700411 and up
    • M6XP1.0
    • *multiple options for # 9
    • 4 shown on diagram
    $1.09

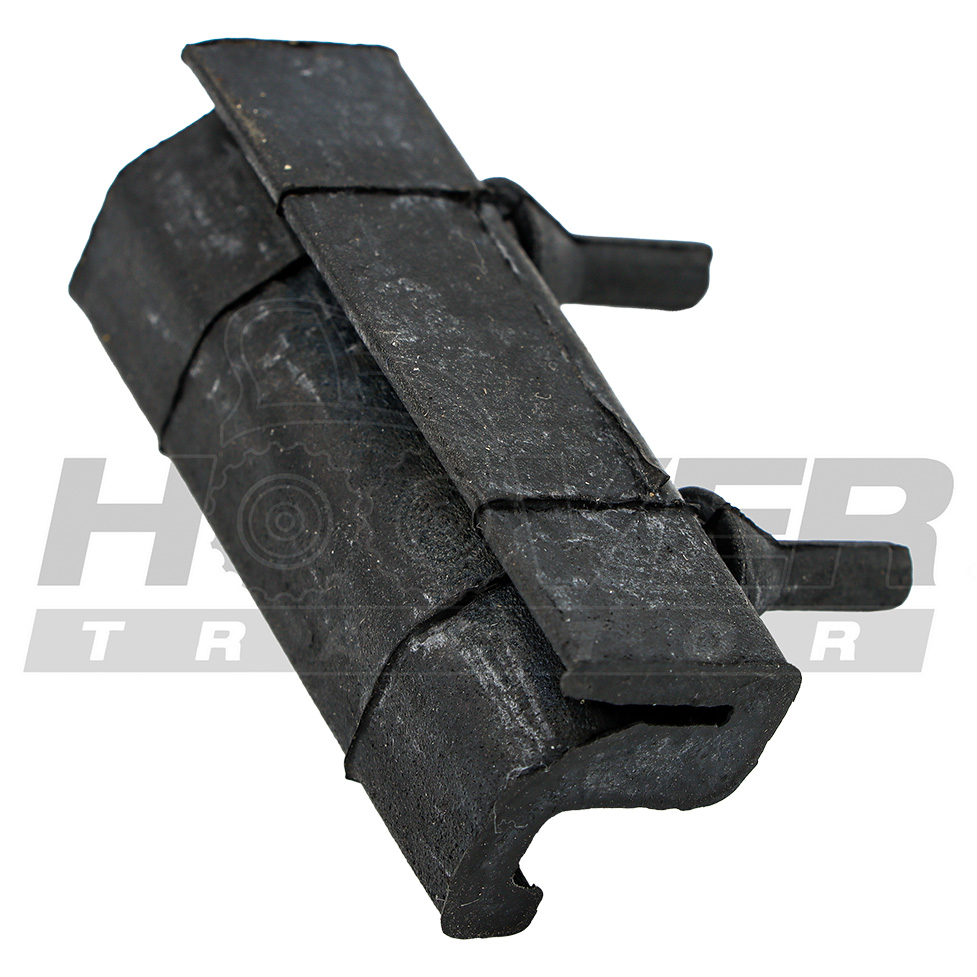

  • 10 CUSHION, BONNET

    CUSHION, BONNET

    • Part No. T4260-19141
    • 4 shown on diagram
    $9.49
  • 11

    HANDLE BONNET LOCK v, Replaced by T4620-50635

    • Part No. T4620-50634
    • Applied Dates 1998-07-17 and up
    • 1 shown on diagram
    $.00
  • 12

    WASHER

    • Part No. 32240-2395-1
    • Applied Dates 2000-07-31 and up
    • T1.0
    • 1 shown on diagram
    $1.29
  • 13

    PLATE FRONT GRILL

    • Part No. T4620-50612
    • 1 shown on diagram
    $19.99
  • 14

    WASHER

    • Part No. 76KP-0603
    • Applied Dates 1998-01-13 and up
    • T3.2*35*35
    • 1 shown on diagram
    $3.49
  • 15 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • Applied Dates 1997-05-19 and up
    • M8
    • 1 shown on diagram
    $1.09
  • 16 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $.85
  • 17

    SPRING

    • Part No. T4620-50652
    • 1 shown on diagram
    $5.49
  • 18

    BOLT,GUIDE

    • Part No. T4260-18031
    • SQE9
    • 2 shown on diagram
    $3.49

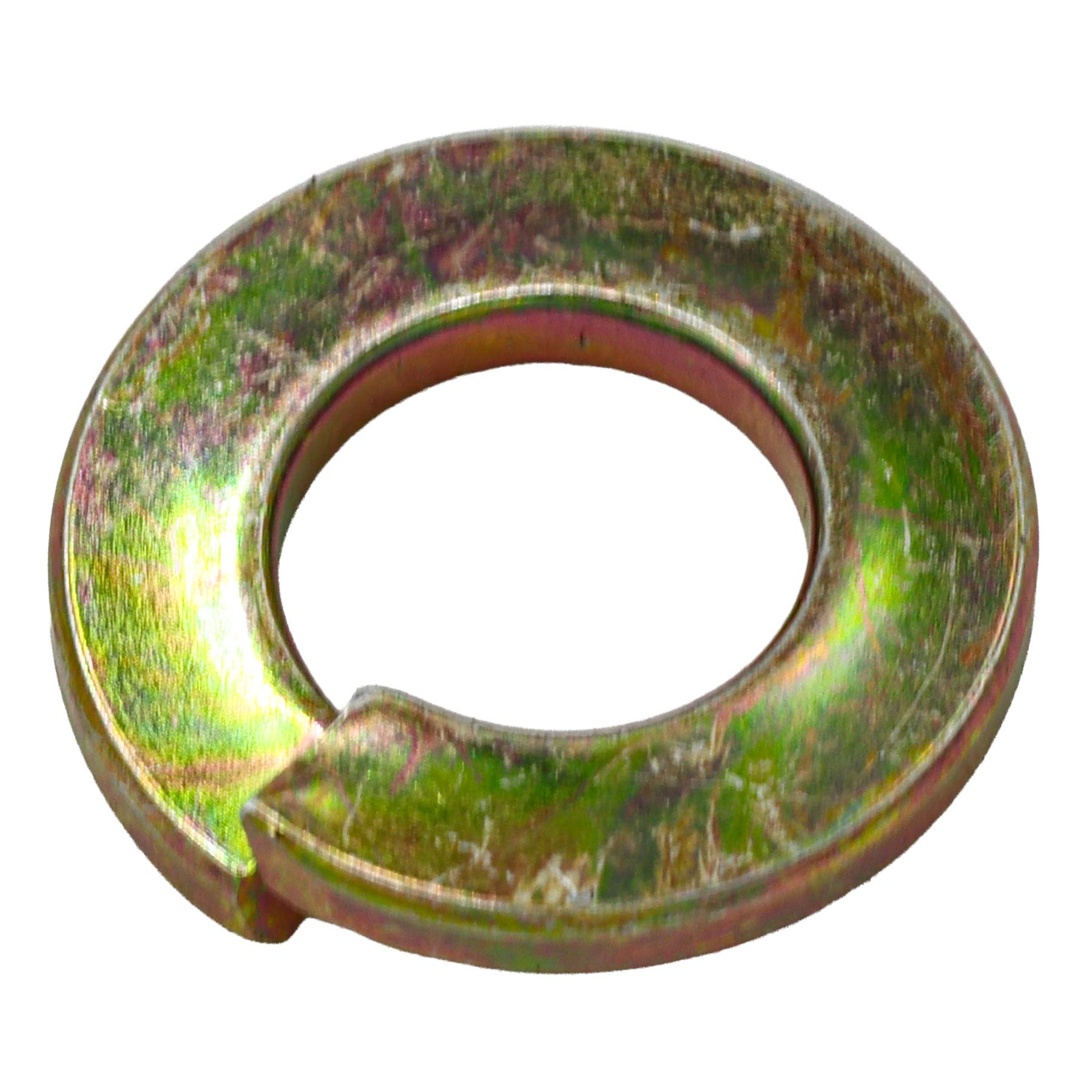

  • 19 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 2 shown on diagram
    $0.61

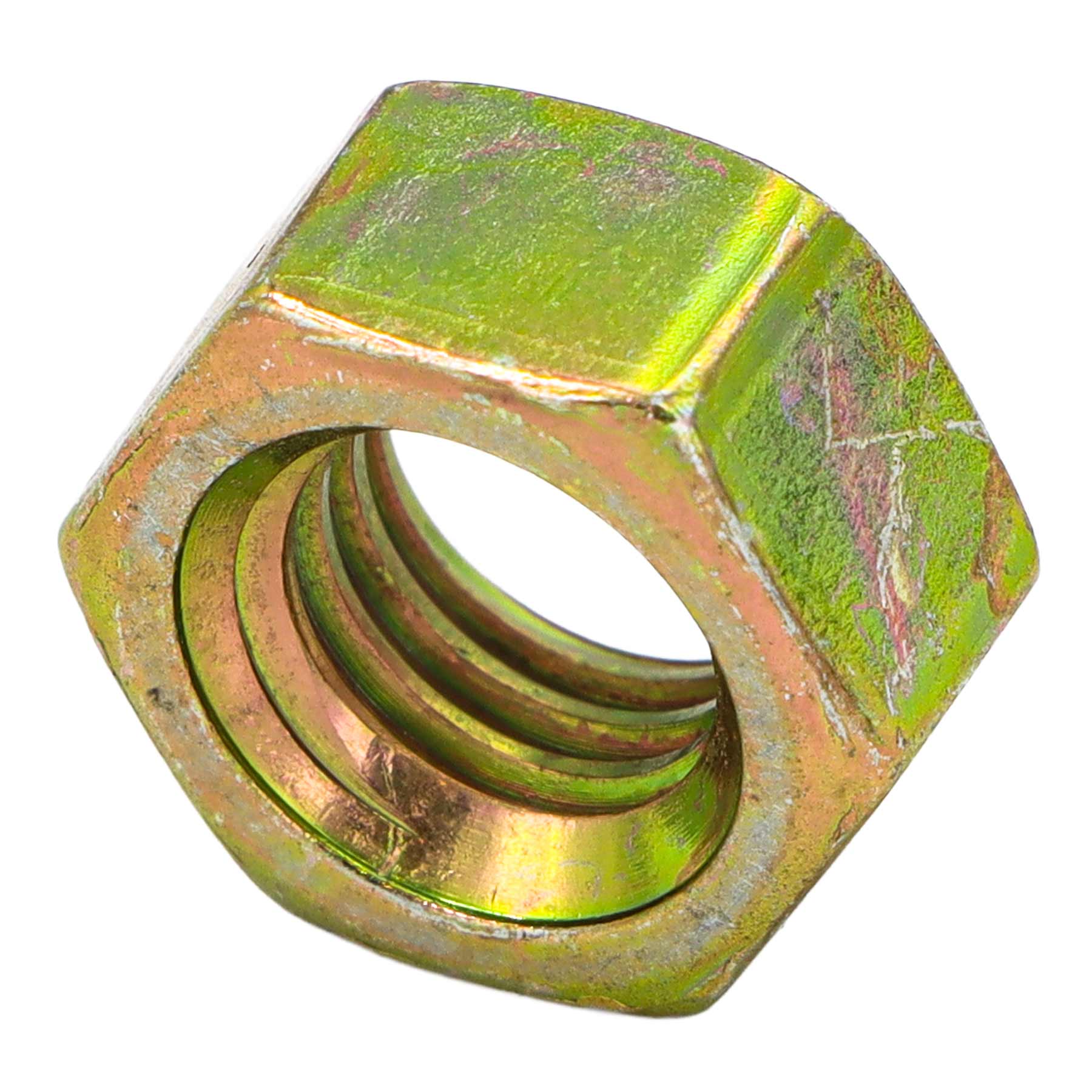

  • 20 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.49
  • 21

    ASSY HOOK v

    • Part No. T4620-50661
    • Applied Dates Up to 2000-05-15
    • *multiple options for # 21
    • 1 shown on diagram
    $7.99
  • 21

    ASSY,HOOK v

    • Part No. T4620-50662
    • Compatibility New Replaces Old
    • Applied Dates 2000-05-16 to 2001-03-25
    • Serial No. 056700001 and up
    • *multiple options for # 21
    • 1 shown on diagram
    $12.99

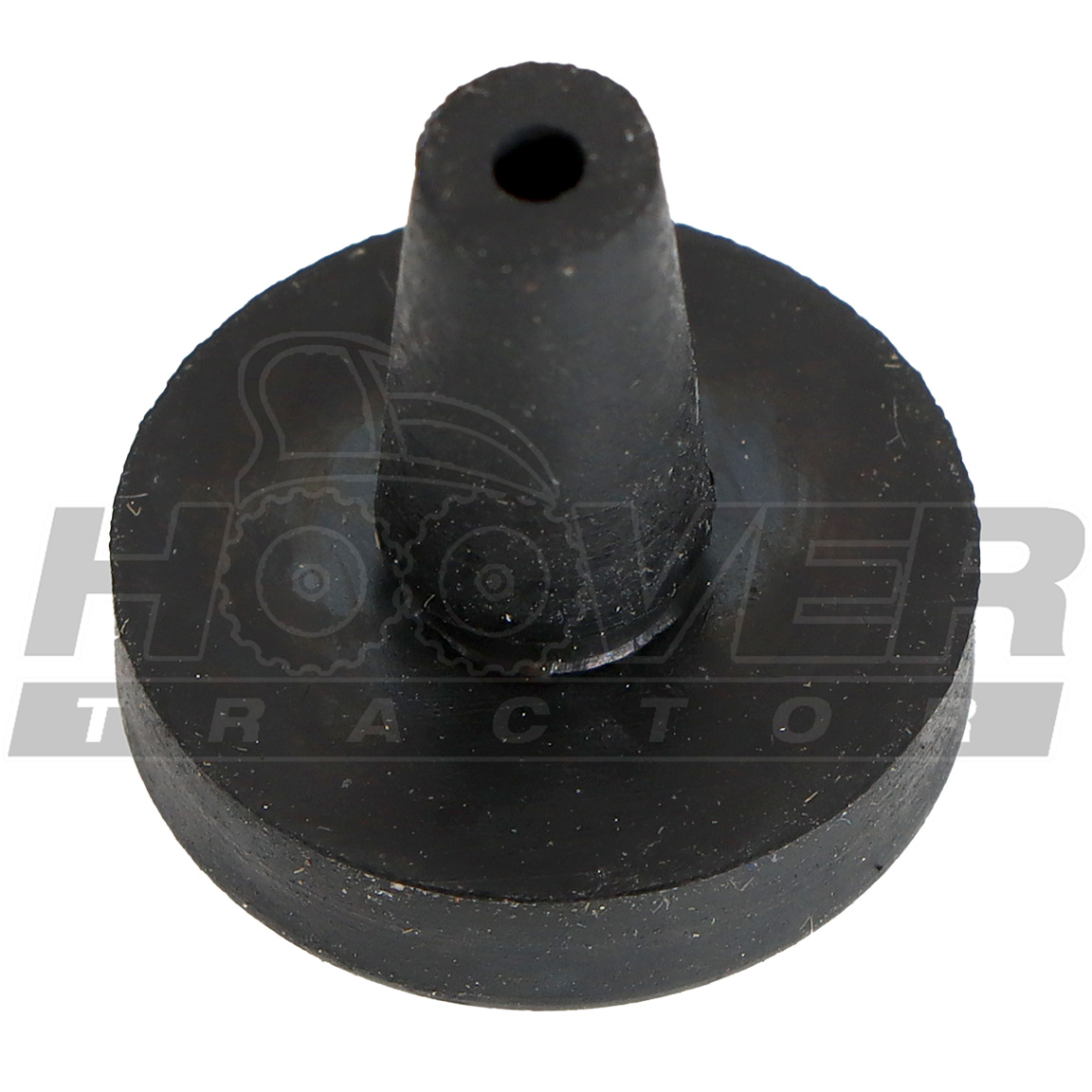

  • 22 CUSHION

    CUSHION

    • Part No. T4810-50661
    • Applied Dates 1997-07-24 and up
    • 2 shown on diagram
    $2.49
  • 23

    SPACER obs v

    • Part No. 55314-3717-1
    • Applied Dates 2000-07-31 and up
    • OD32*T3.0
    • 2 shown on diagram
    $1.89
  • 24

    PLATE A, Replaced by T4625-50711BE

    • Part No. T4625-50711
    • Applied Dates 2003-04-14 and up
    • 2 shown on diagram
    $.00
  • 25

    PLATE B

    • Part No. T4625-50721
    • Applied Dates 2003-04-14 to 2004-04-13
    • Serial No. 356700411 to D56700104
    • *multiple options for # 25
    • 2 shown on diagram
    $1.99
  • 25

    PLATE B v

    • Part No. T4625-50722
    • Compatibility New Replaces Old
    • Applied Dates 2004-04-14 and up
    • Serial No. D56700105 and up
    • T1.0
    • *multiple options for # 25
    • 2 shown on diagram
    $6.99
  • 26

    CUSHION-BONNET

    • Part No. T4625-50741
    • Applied Dates 2003-04-14 and up
    • 4 shown on diagram
    $2.49
