OIL FILTER GROUP - D43-T640A

Kioti TRACTOR | DK Series | DK45

Diagram for OIL FILTER GROUP - D43-T640A
  • 1

    HOSE 1, FUEL

    • Part No. 09661-80370
    • 1 shown on diagram
    $11.99
  • 2

    HOSE

    • Part No. 09661-80450
    • 1 shown on diagram
    $13.99
  • 3

    HOSE

    • Part No. 09661-80450
    • Applied Dates 1997-10-10 and up
    • 1 shown on diagram
    $13.99
  • 4

    CLAMP, FUEL HOSE

    • Part No. 38430-4515-1
    • ??19#
    • 6 shown on diagram
    $5.49
  • 5

    PROTECTOR SPRING v

    • Part No. 67111-5832-3
    • Applied Dates 2000-07-18 and up
    • 4 shown on diagram
    $13.99
  • 6

    FUEL PIPE 4

    • Part No. 38430-3556-1
    • 1 shown on diagram
    $7.49
  • 7

    CLIP HOSE

    • Part No. 15271-4271-1
    • DIA0.8*50
    • 2 shown on diagram
    $1.49
  • 8

    HOSE 4, FUEL

    • Part No. 09661-40340
    • 1 shown on diagram
    $4.99
  • 9

    CLIP HOSE

    • Part No. 15271-4271-1
    • DIA0.8*50
    • 2 shown on diagram
    $1.49
  • 10

    ASS’Y,FUEL FILTER v, Replaced by T4240-35017

    • Part No. T4240-35014
    • Applied Dates 1999-03-19 to 2003-12-07
    • Serial No. 956700001 and up
    • *multiple options for # 10
    • 1 shown on diagram
    $.00
  • 10

    FUEL FILTER ASSY V, Replaced by T4240-35017

    • Part No. T4240-35015
    • Compatibility New Replaces Old
    • Applied Dates 2003-12-08 to 2006-07-20
    • Serial No. D56700001 and up
    • *multiple options for # 10
    • 1 shown on diagram
    $.00
  • 11

    BODY, FUEL FILTER dnr v, Replaced by T4240-35017

    • Part No. T4240-35022
    • Applied Dates 1998-04-14 to 2003-12-07
    • *multiple options for # 11
    • 1 shown on diagram
    $.00
  • 11

    BODY, FUEL FILTER

    • Part No. T4240-35023
    • Compatibility New Replaces Old
    • Applied Dates 2003-12-08 to 2006-07-20
    • *multiple options for # 11
    • 1 shown on diagram
    $.00

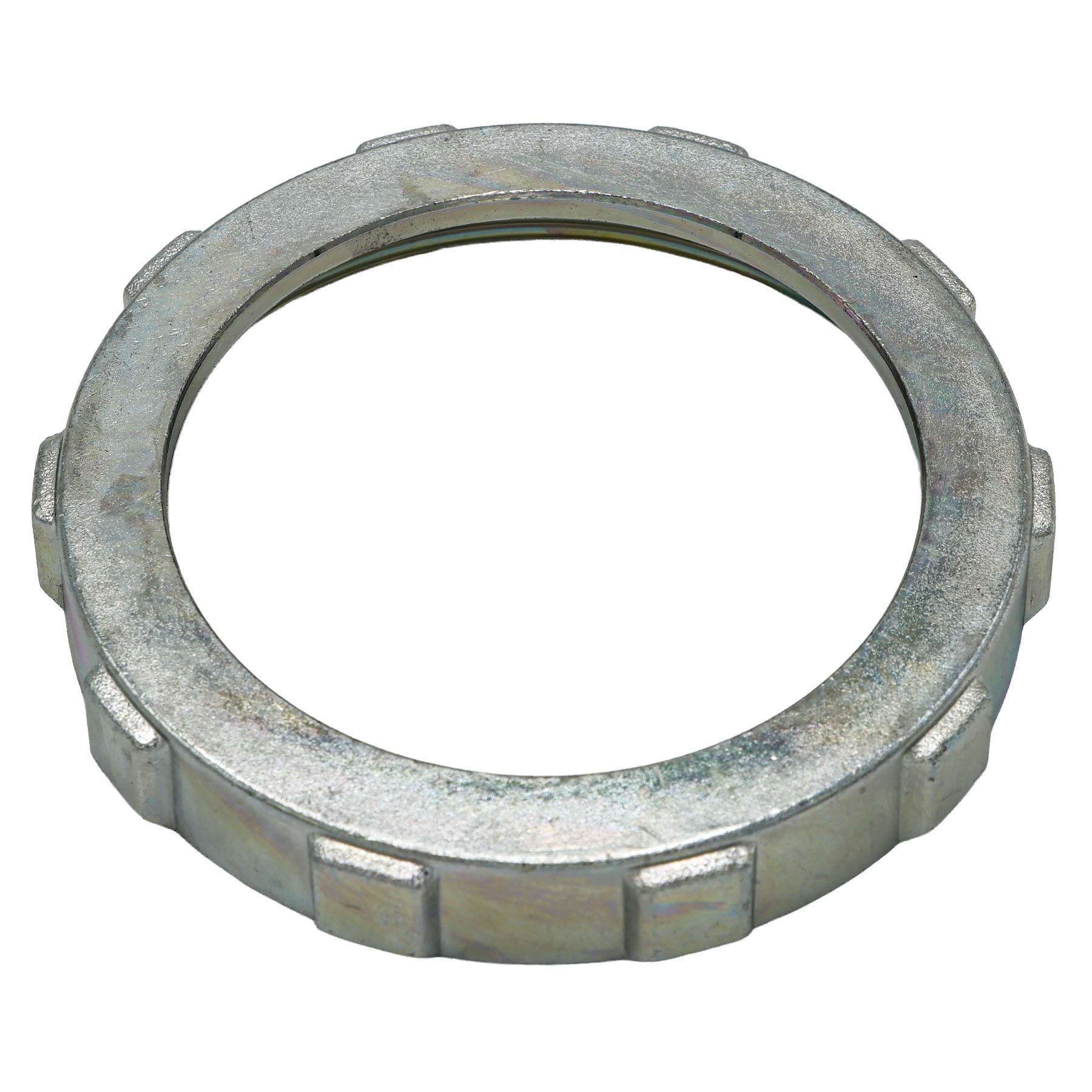

  • 12 RING RETAINER

    RING RETAINER

    • Part No. 84612-4315-0
    • 1 shown on diagram
    $17.99
  • 13

    FILTER POT

    • Part No. T4240-43133
    • Applied Dates 1999-03-19 and up
    • 1 shown on diagram
    $19.99
  • 14 SPRING v

    SPRING v

    • Part No. 84612-4393-0
    • DIA1.2
    • 1 shown on diagram
    $1.59
  • 15 Fuel Filter Cartridge

    Fuel Filter Cartridge

    • Part No. 84612-4316-0
    • 1 shown on diagram
    $7.99
  • 16 O-ring, Fuel Filter Bowl

    O-ring, Fuel Filter Bowl

    • Part No. 04811-50650
    • 1 shown on diagram
    $1.69
  • 17 Bolt With Washer, M8 P1.25 x 30mm

    Bolt With Washer, M8 P1.25 x 30mm

    • Part No. 01123-50830
    • Applied Dates 2000-03-01 and up
    • M8P1.25*30
    • 2 shown on diagram
    $2.49
  • 18 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $.61
  • 19 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
    $.85
  • 20

    LABEL(FULL FILTER)

    • Part No. T4240-35101
    • Applied Dates 1998-05-06 to 2004-07-23
    • 1 shown on diagram
    $1.59
