FRAME GROUP - DK45CHSE-T1005C

Kioti TRACTOR | DK Series | DK45CHSE

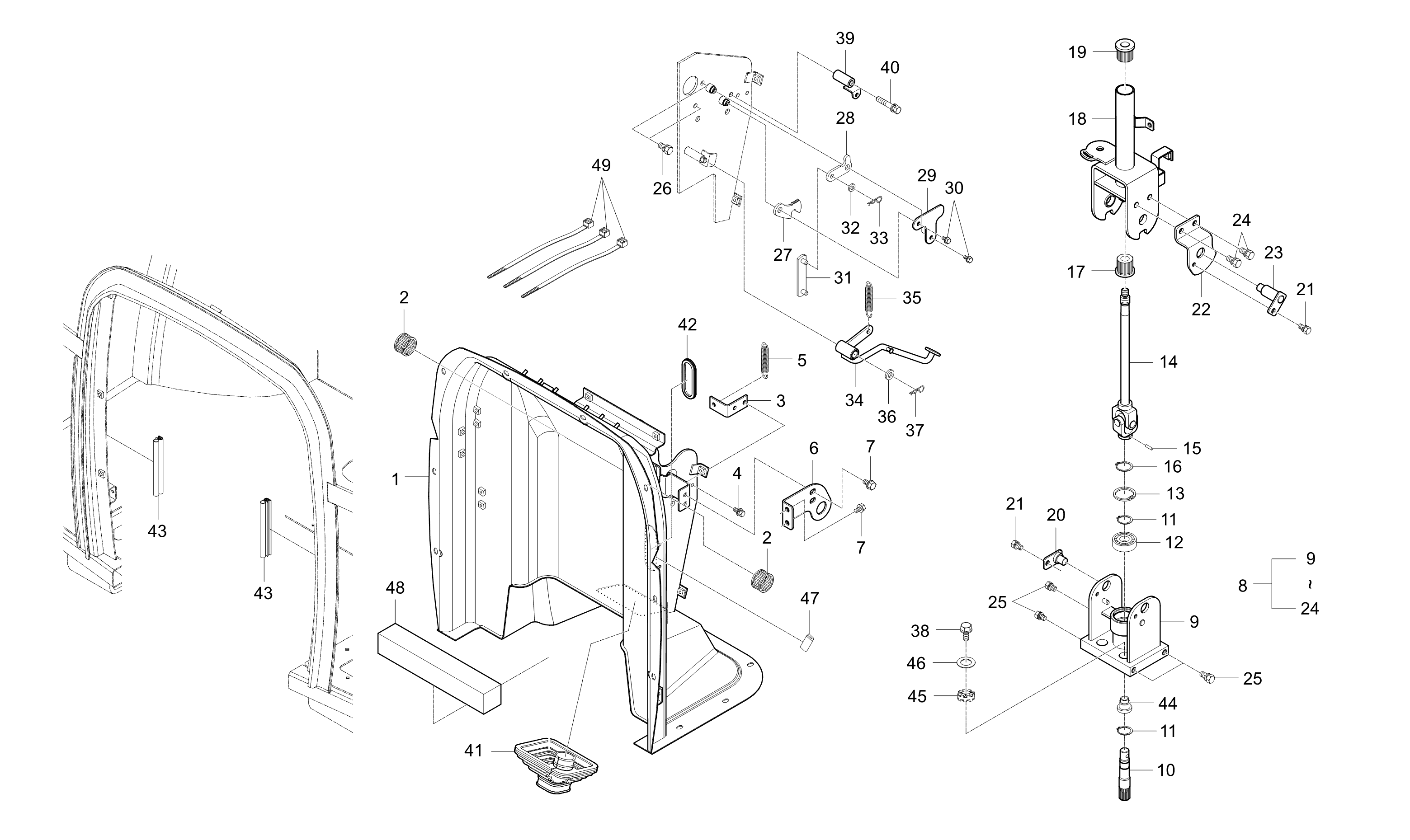

Diagram for FRAME GROUP - DK45CHSE-T1005C
  • 1

    FRAME ASSEMBLY

    • Part No. T4145-55102
    • Applied Dates 2008-03-31 to 2008-10-08
    • Serial No. Up to HH1400085
    • *multiple options for # 1
    • 1 shown on diagram
    $.00
  • 1

    FRAME ASSEMBLY

    • Part No. T4145-55103
    • Compatibility No Interchange
    • Applied Dates 2008-10-09 and up
    • Serial No. HH1400086 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $.00
  • 1

    FRAME ASSEMBLY

    • Part No. T4145-55104
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $474.99
  • 2

    NEEDLE BEARING

    • Part No. 08822-53017
    • ??DIA25
    • 2 shown on diagram
    $19.99
  • 3

    HOLDING, SPRING

    • Part No. T4125-66571
    • 1 shown on diagram
    $9.49
  • 4 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 2 shown on diagram
    $1.89
  • 5

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 1 shown on diagram
    $6.49
  • 6

    STAY,DYNAMO

    • Part No. T4125-56131
    • T3.2
    • 1 shown on diagram
    $14.99
  • 7 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 8

    TOEAL STEERING ASSY

    • Part No. T4145-66103
    • Applied Dates 2008-07-08 to 2009-03-22
    • Serial No. HH1400086 to JH1400036
    • *multiple options for # 8
    • 1 shown on diagram
    $629.99
  • 8

    STEERING TOTAL ASSY

    • Part No. T4145-66104
    • Compatibility Interchangeable
    • *multiple options for # 8
    • 1 shown on diagram
    $489.99
  • 9

    STEERING SUPPORT v

    • Part No. T4145-66111
    • Applied Dates 2008-04-10 and up
    • *multiple options for # 9
    • 1 shown on diagram
    $229.99
  • 9

    SUPPORT, STEERING

    • Part No. T4135-66111
    • Compatibility Interchangeable
    • *multiple options for # 9
    • 1 shown on diagram
    $.00
  • 10

    SHAFT obs v

    • Part No. T2825-66141
    • Applied Dates 2008-07-08 and up
    • 1 shown on diagram
    $41.99

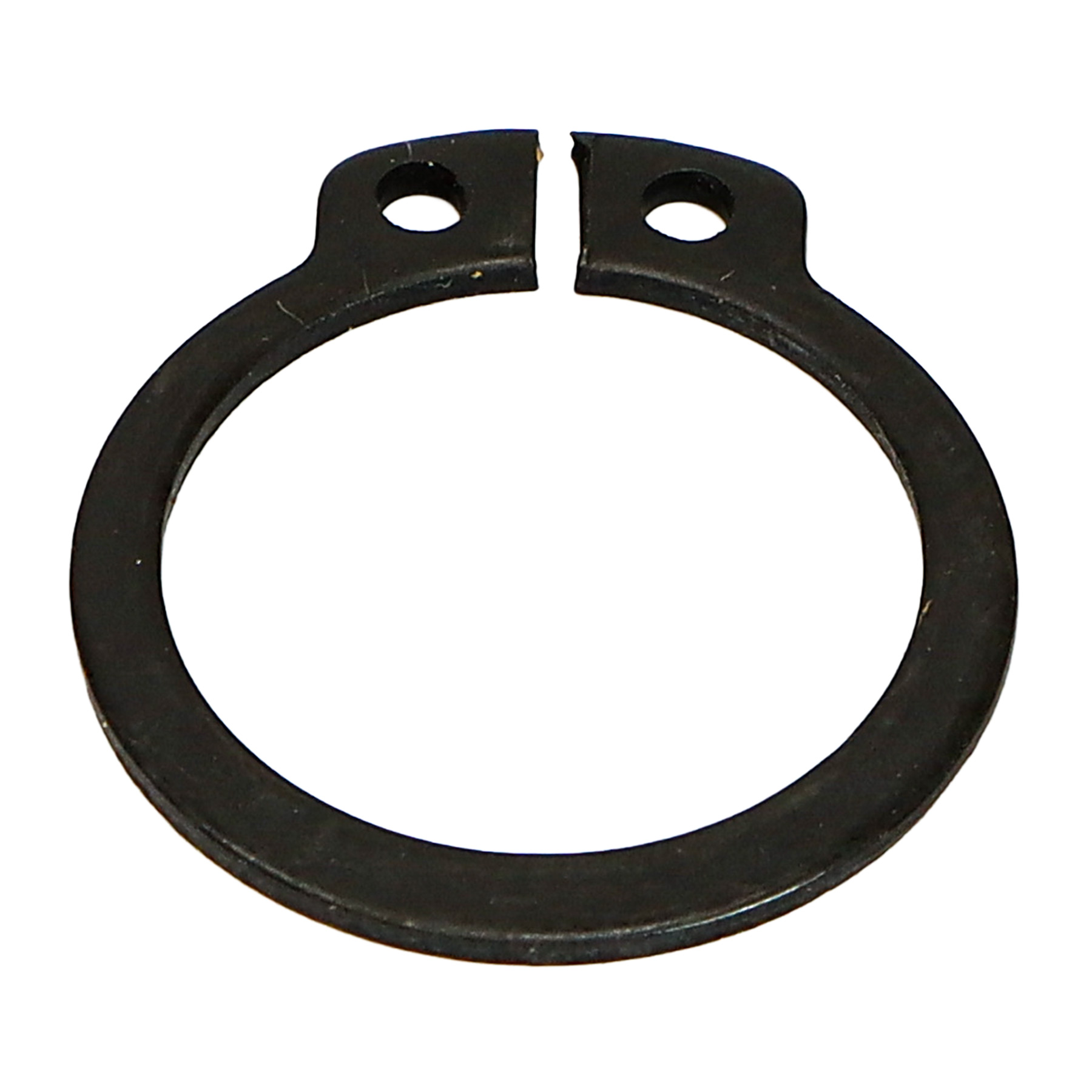

  • 11 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00170
    • DIA17
    • 2 shown on diagram
    $0.98
  • 12

    BEARING, BALL

    • Part No. 08141-06203
    • DIA17
    • 1 shown on diagram
    $15.99
  • 13

    CIR CLIP, INTERNAL

    • Part No. 04611-00400
    • DIA40
    • 1 shown on diagram
    $2.49
  • 14

    ASSY, STEERING SHAFT v

    • Part No. T4125-48121
    • Applied Dates 2008-07-08 and up
    • *multiple options for # 14
    • 1 shown on diagram
    $214.99
  • 14

    SHAFT ASSY, STEERING

    • Part No. T4135-48121
    • Compatibility Interchangeable
    • *multiple options for # 14
    • 1 shown on diagram
    $.00

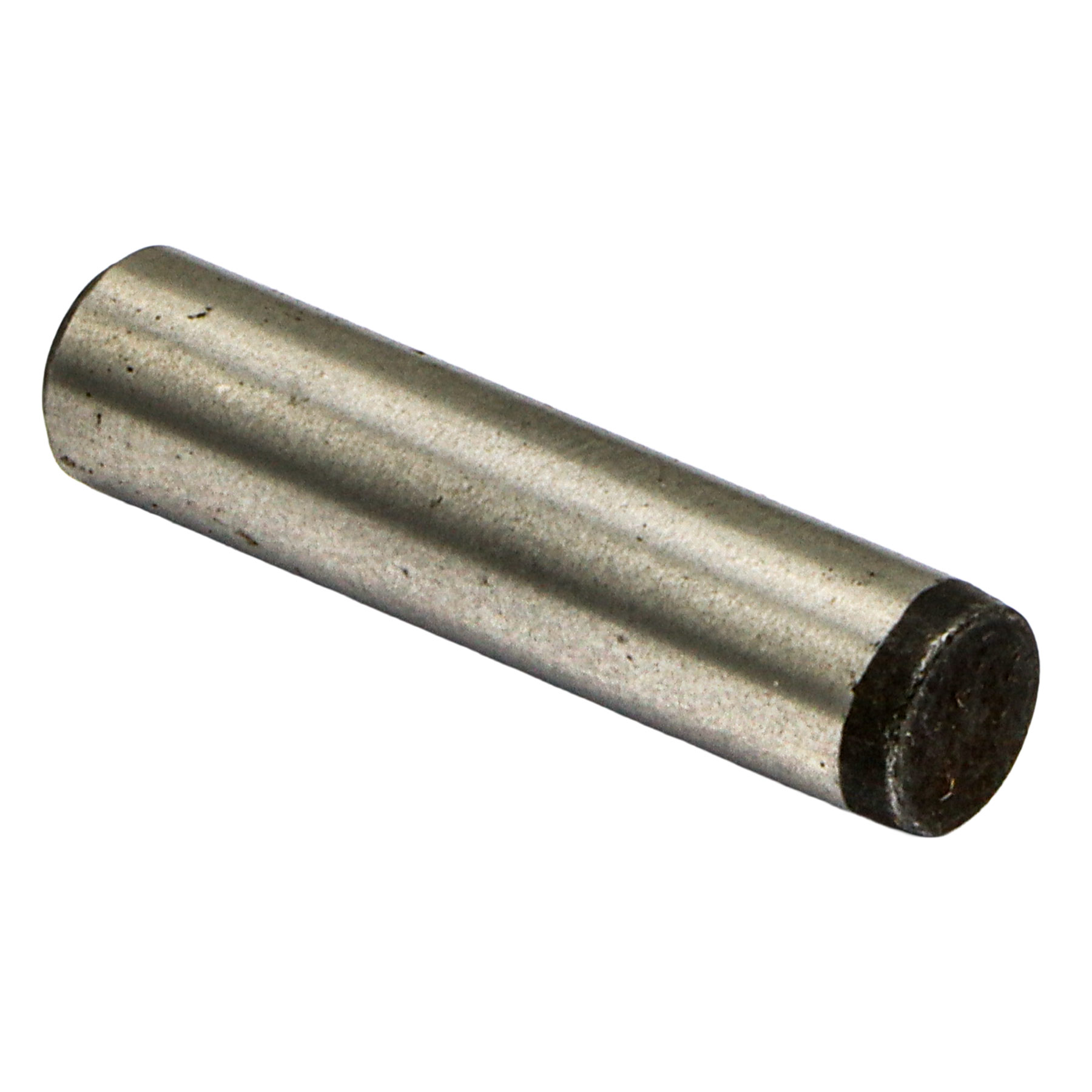

  • 15 PIN, STRAIGHT

    PIN, STRAIGHT

    • Part No. 66116-4135-3
    • Applied Dates 2008-07-08 and up
    • 1 shown on diagram
    $9.99
  • 16 SNAP RING

    SNAP RING

    • Part No. 04612-00280
    • Applied Dates 2008-07-08 and up
    • DIA28
    • 1 shown on diagram
    $1.19
  • 17

    RUBBER 2, CUSHION

    • Part No. T4520-62261
    • *multiple options for # 17
    • 1 shown on diagram
    $21.99
  • 17

    RUBBER 2 ,CUSHION

    • Part No. T4135-62261
    • Compatibility Interchangeable
    • *multiple options for # 17
    • 1 shown on diagram
    $12.99
  • 18

    COLLUM

    • Part No. T4125-66127
    • Applied Dates 2008-07-08 and up
    • 1 shown on diagram
    $149.99
  • 19

    RUBBER, CUSHION

    • Part No. T2185-62241
    • *multiple options for # 19
    • 1 shown on diagram
    $23.99
  • 19

    RUBBER, CUSHION

    • Part No. T4135-62241
    • Compatibility Interchangeable
    • B2 715-AW
    • *multiple options for # 19
    • 1 shown on diagram
    $14.99
  • 20

    PLATE

    • Part No. T4682-48061
    • *multiple options for # 20
    • 1 shown on diagram
    $12.99
  • 20

    PLATE, GUIDE

    • Part No. T4135-48061
    • Compatibility Interchangeable
    • *multiple options for # 20
    • 1 shown on diagram
    $.00
  • 21 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Applied Dates 2008-03-13 to 2008-03-12
    • Serial No. HH1400001 to JH1400052
    • M8XP1.25
    • *multiple options for # 21
    • 2 shown on diagram
    $1.09
  • 21 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Compatibility Interchangeable
    • M8XP1.25
    • *multiple options for # 21
    • 1 shown on diagram
    $1.09

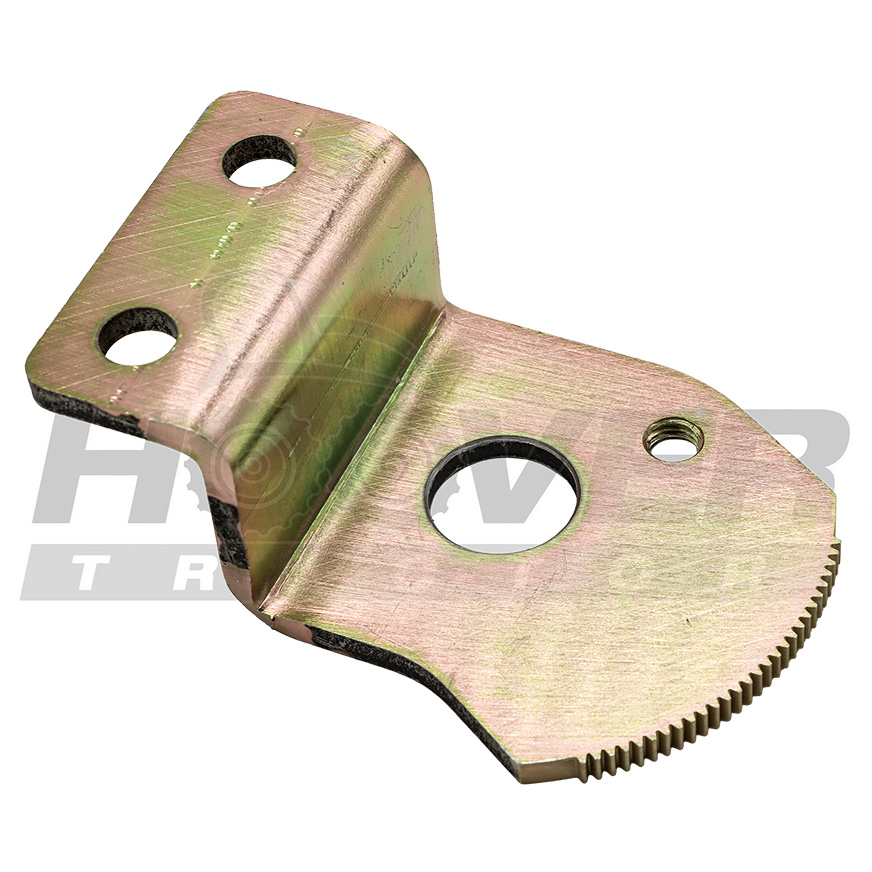

  • 22 GEAR,SECTOR

    GEAR,SECTOR

    • Part No. T4125-66062
    • T4.5
    • 1 shown on diagram
    $114.99
  • 23

    SKID ADJUSTER

    • Part No. T4125-66261
    • DIA15
    • 1 shown on diagram
    $19.99
  • 24 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 25

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 4 shown on diagram
    $2.99
  • 26 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 2 shown on diagram
    $3.49

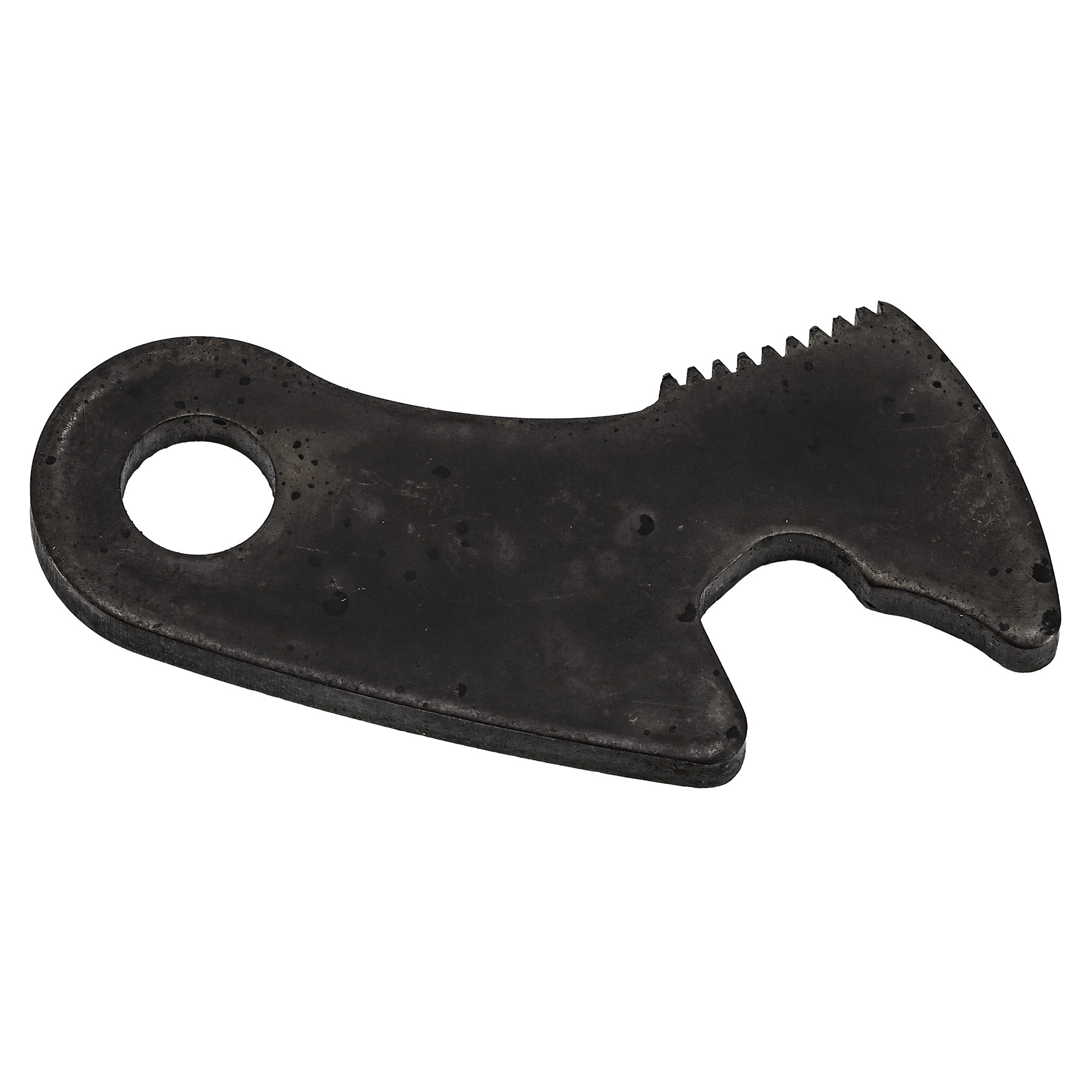

  • 27 GEAR, LOCK

    GEAR, LOCK

    • Part No. T4682-66071
    • T4.5
    • 1 shown on diagram
    $28.99
  • 28

    LEVER, TILT

    • Part No. T4125-66033
    • Applied Dates 2008-03-31 and up
    • T4.5
    • 1 shown on diagram
    $9.99
  • 29

    PLATE

    • Part No. T4125-66271
    • T3.0
    • 1 shown on diagram
    $7.99
  • 30

    WASHER BOLT

    • Part No. 01025-50612
    • M6XP1.0
    • 2 shown on diagram
    $2.49
  • 31

    LOD(TILT)

    • Part No. T2185-66041
    • 1 shown on diagram
    $17.99
  • 32 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $.79
  • 33

    PIN, SNAP

    • Part No. 05515-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 34

    PEDAL TILT, Replaced by T4125-66053BB

    • Part No. T4125-66053
    • Applied Dates Up to 2008-01-12
    • Serial No. Up to HH1400085
    • *multiple options for # 34
    • 1 shown on diagram
    $.00
  • 34

    PEDAL, TILT

    • Part No. T4125-66053BB
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 34
    • 1 shown on diagram
    $49.99

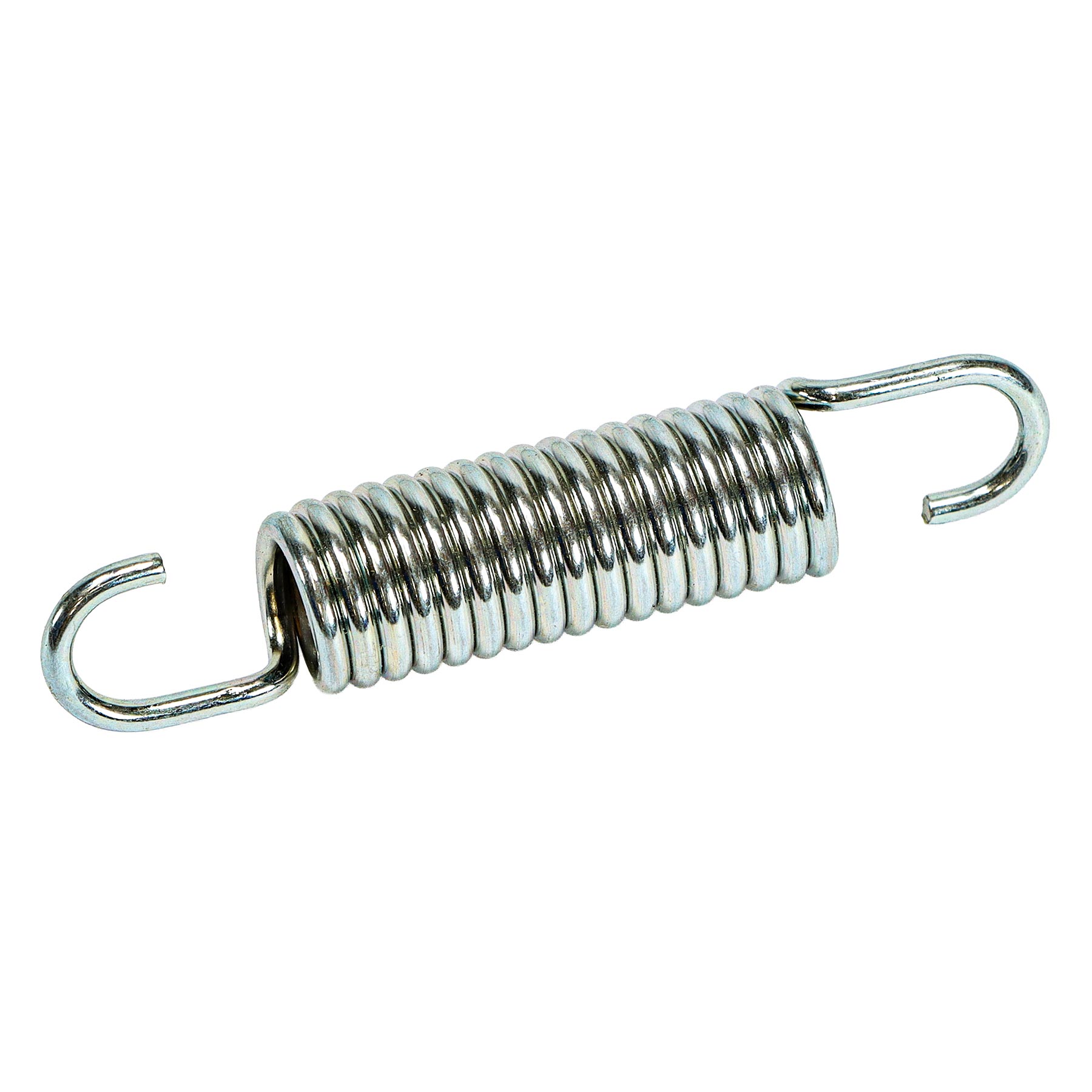

  • 35 SPRING

    SPRING

    • Part No. T4520-27831
    • DIA2.0
    • 1 shown on diagram
    $6.49
  • 36 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $.73
  • 37

    PIN, SNAP

    • Part No. 05515-51000
    • DIA10
    • 1 shown on diagram
    $1.29
  • 38

    BOLT

    • Part No. 01133-51045
    • Applied Dates 2008-04-10 and up
    • 4 shown on diagram
    $3.99
  • 39

    BRACKET

    • Part No. T4125-65671
    • Applied Dates Up to 2008-01-12
    • Serial No. Up to HH1400085
    • *multiple options for # 39
    • 1 shown on diagram
    $15.99
  • 39

    BRACKET, SPRING HANGER

    • Part No. T4125-65671BB
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 39
    • 1 shown on diagram
    $16.99
  • 40

    Bolt With Washer, M8 P1.25 x 55mm

    • Part No. 01123-50855
    • M8XP1.25
    • 1 shown on diagram
    $3.49
  • 41

    BOOT

    • Part No. T4145-55412
    • Applied Dates 2008-04-14 and up
    • T1.2
    • 1 shown on diagram
    $25.99
  • 42

    JABARA CLUTCH

    • Part No. T4145-55541
    • 1 shown on diagram
    $6.99
  • 43

    RUBBER

    • Part No. T4157-57772
    • Applied Dates 2008-04-04 and up
    • 2 shown on diagram
    $4.49
  • 44

    RUBBER

    • Part No. T4145-66121
    • Applied Dates 2008-04-10 and up
    • 4 shown on diagram
    $12.99
  • 45

    RUBBER

    • Part No. T4145-66131
    • Applied Dates 2008-04-10 and up
    • 4 shown on diagram
    $7.49
  • 46

    WASHER

    • Part No. 62411-3313-1
    • Applied Dates 2008-04-10 and up
    • 4 shown on diagram
    $4.49
  • 47

    GASKET

    • Part No. T4145-50271
    • Applied Dates 2008-05-19 and up
    • 2 shown on diagram
    $1.99
  • 48

    SPONG 2

    • Part No. T4850-50461
    • Applied Dates 2008-06-10 and up
    • 1 shown on diagram
    $9.49
  • 49

    BAND, CORD v

    • Part No. T4520-82551
    • Applied Dates 2008-06-17 to 2009-03-12
    • Serial No. Up to JH1400036
    • L270
    • *multiple options for # 49
    • 3 shown on diagram
    $1.19
  • 49

    BAND CORD

    • Part No. T2185-82551
    • Compatibility Interchangeable
    • Serial No. NH1400001 and up
    • L290
    • *multiple options for # 49
    • 3 shown on diagram
    $1.29
