POSITION DRAFT CONTROL LEVER GROUP - DK45CHSE-T1205C

Kioti TRACTOR | DK Series | DK45CHSE

Diagram for POSITION DRAFT CONTROL LEVER GROUP - DK45CHSE-T1205C
  • 1

    LEVER HYD ASSY v

    • Part No. T4145-65231
    • Serial No. Up to HH1400085
    • *multiple options for # 1
    • 1 shown on diagram
    $129.99
  • 1

    LEVER ASSY, HYDRAULIC

    • Part No. T4145-65231BB
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $129.99
  • 1

    HYDRAULIC LEVER ASSY obs v

    • Part No. T4145-65232
    • Compatibility Interchangeable
    • Applied Dates 2011-01-17 and up
    • Serial No. LH1400008 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $109.99
  • 2

    BRACKET

    • Part No. T4125-65411
    • Serial No. Up to HH1400085
    • *multiple options for # 2
    • 1 shown on diagram
    $46.99
  • 2

    BRACKET, POSITION TRACTION

    • Part No. T4125-65411BB
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $46.99
  • 2

    BRACKET, POSITION TRACTION

    • Part No. T4125-65412
    • Compatibility Interchangeable
    • *multiple options for # 2
    • 1 shown on diagram
    $124.99

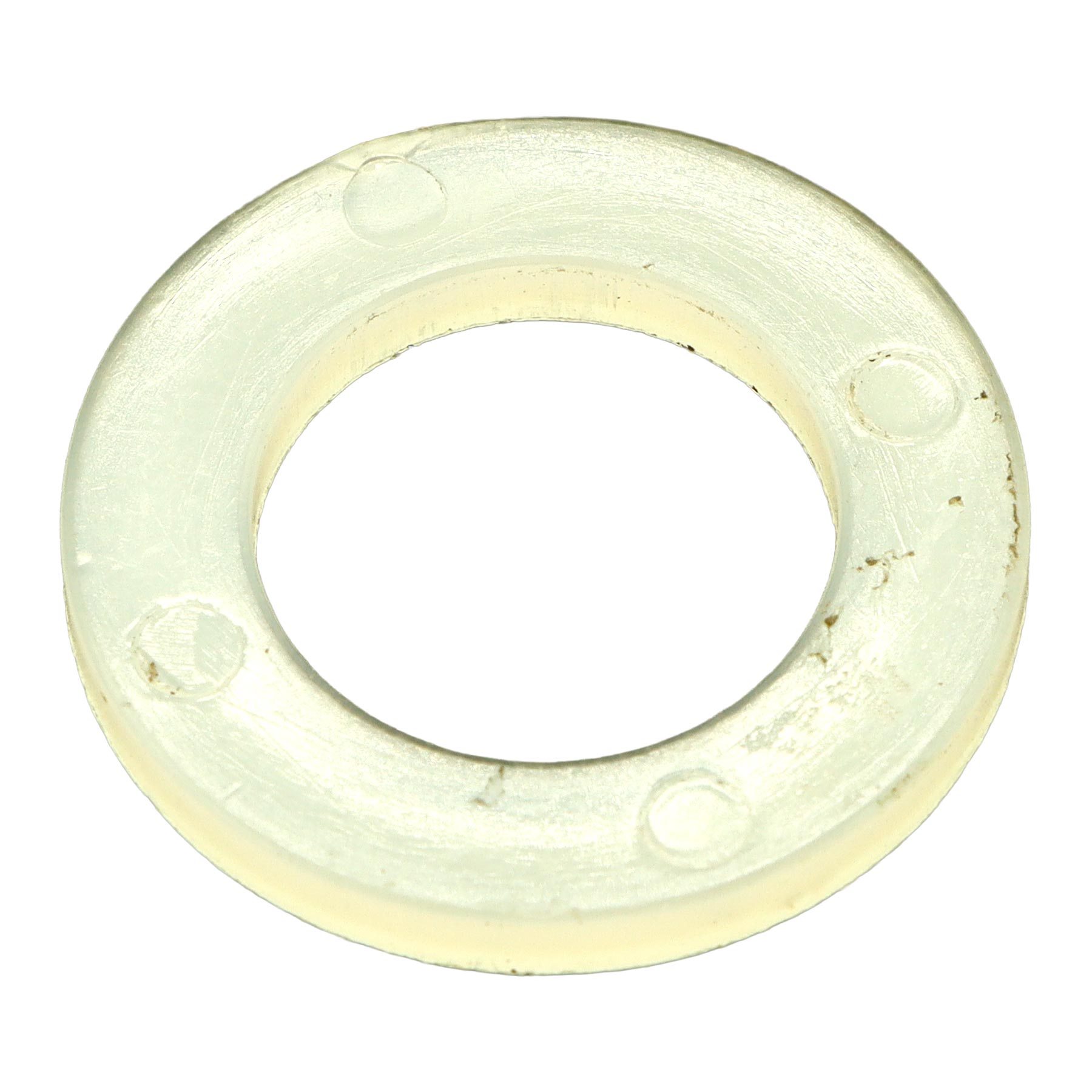

  • 3 WASHER

    WASHER

    • Part No. T4810-66721
    • 3 shown on diagram
    $1.39
  • 4

    SHAFT v

    • Part No. T4835-66532
    • 1 shown on diagram
    $13.99
  • 5

    LEVER, DRAWER CONTROL

    • Part No. T4145-65421
    • *multiple options for # 5
    • 1 shown on diagram
    $.00
  • 5

    LEVER, DRAWER CONTROL

    • Part No. T4145-65422
    • Compatibility Interchangeable
    • *multiple options for # 5
    • 1 shown on diagram
    $51.99
  • 6

    LEVER, POSITING CONTROL

    • Part No. T4145-65431
    • Serial No. Up to HH1400085
    • *multiple options for # 6
    • 1 shown on diagram
    $.00
  • 6

    LEVER, POSITING CONTROL

    • Part No. T4145-65431BB
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $43.99
  • 6

    LEVER, POSITING CONTROL

    • Part No. T4145-65432
    • Compatibility Interchangeable
    • *multiple options for # 6
    • 1 shown on diagram
    $52.99
  • 7 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 8 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 9

    ROD

    • Part No. T4145-65481
    • 2 shown on diagram
    $63.99
  • 10

    WASHER 3

    • Part No. T4682-65311
    • 2 shown on diagram
    $0.79
  • 11

    PIN, SNAP

    • Part No. 05515-50800
    • DIA8
    • 2 shown on diagram
    $1.29
  • 12

    BRACKET 1

    • Part No. T4835-65391
    • 1 shown on diagram
    $6.49
  • 13

    WASHER BOLT

    • Part No. 01025-50612
    • M6XP1.0
    • 1 shown on diagram
    $2.49
  • 14

    BRACKET 2

    • Part No. T4835-65411
    • T2.0
    • 1 shown on diagram
    $6.49
  • 15

    BOLT

    • Part No. 01202-50616
    • M6XP1.0
    • 1 shown on diagram
    $1.09
  • 16 STOPPER

    STOPPER

    • Part No. T4835-76381
    • 2 shown on diagram
    $6.49

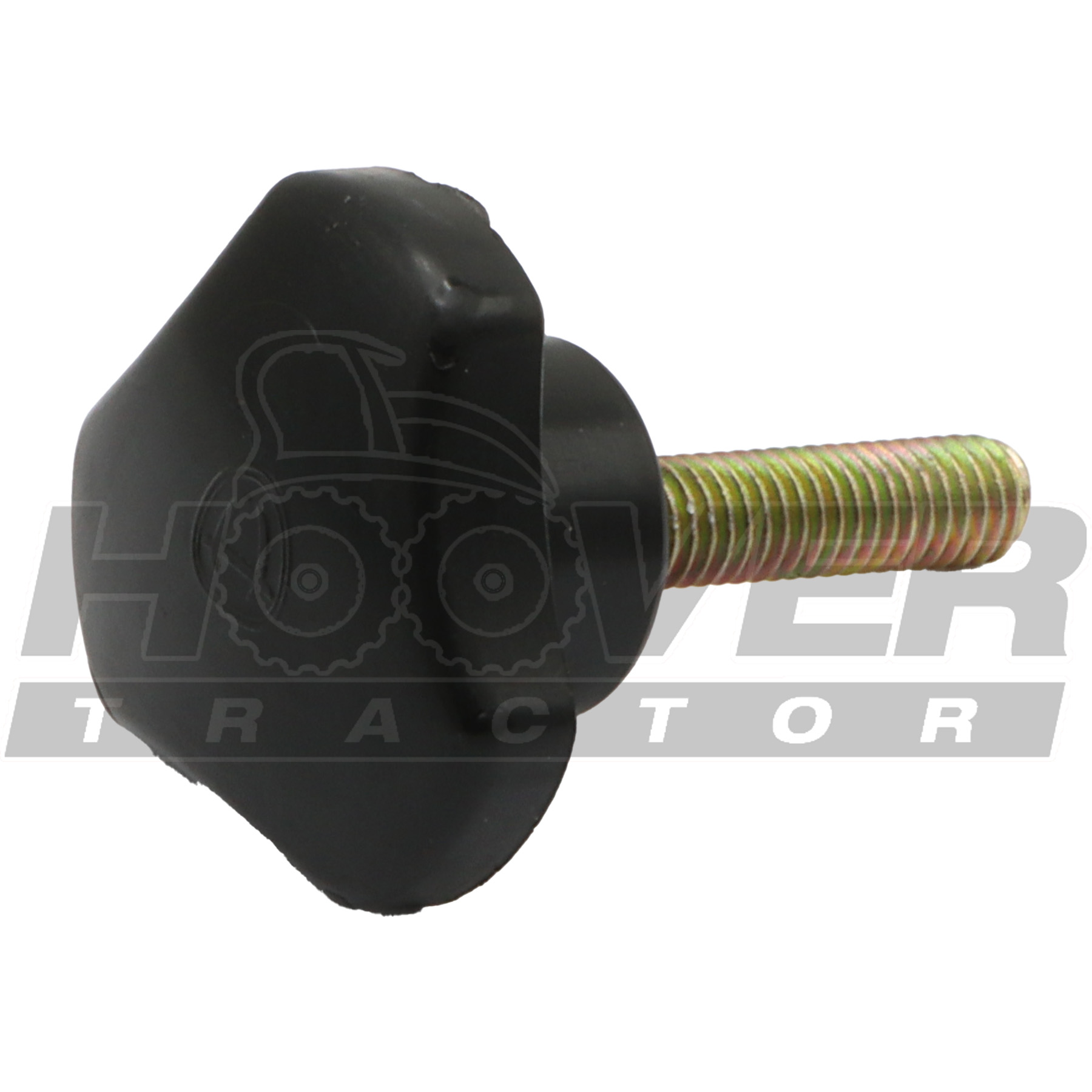

  • 17 BOLT, KNOB

    BOLT, KNOB

    • Part No. P4410-98251
    • 2 shown on diagram
    $4.49

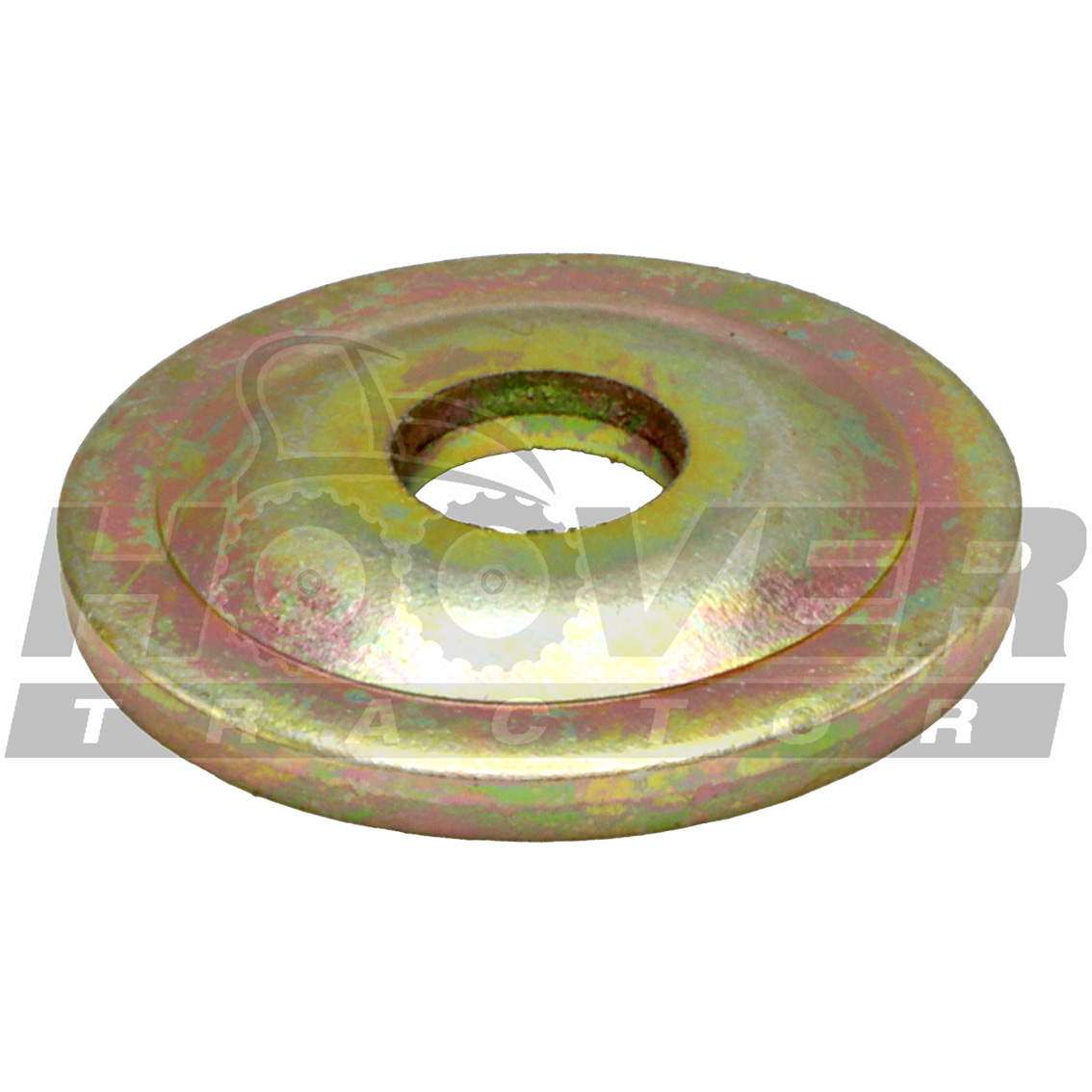

  • 18 WASHER v

    WASHER v

    • Part No. T4710-64791
    • 2 shown on diagram
    $3.49
  • 19

    GRIP

    • Part No. T2610-24471
    • *multiple options for # 19
    • 1 shown on diagram
    $11.99
  • 19

    GRIP

    • Part No. T2198-24461
    • Compatibility New Replaces Old
    • *multiple options for # 19
    • 1 shown on diagram
    $9.99

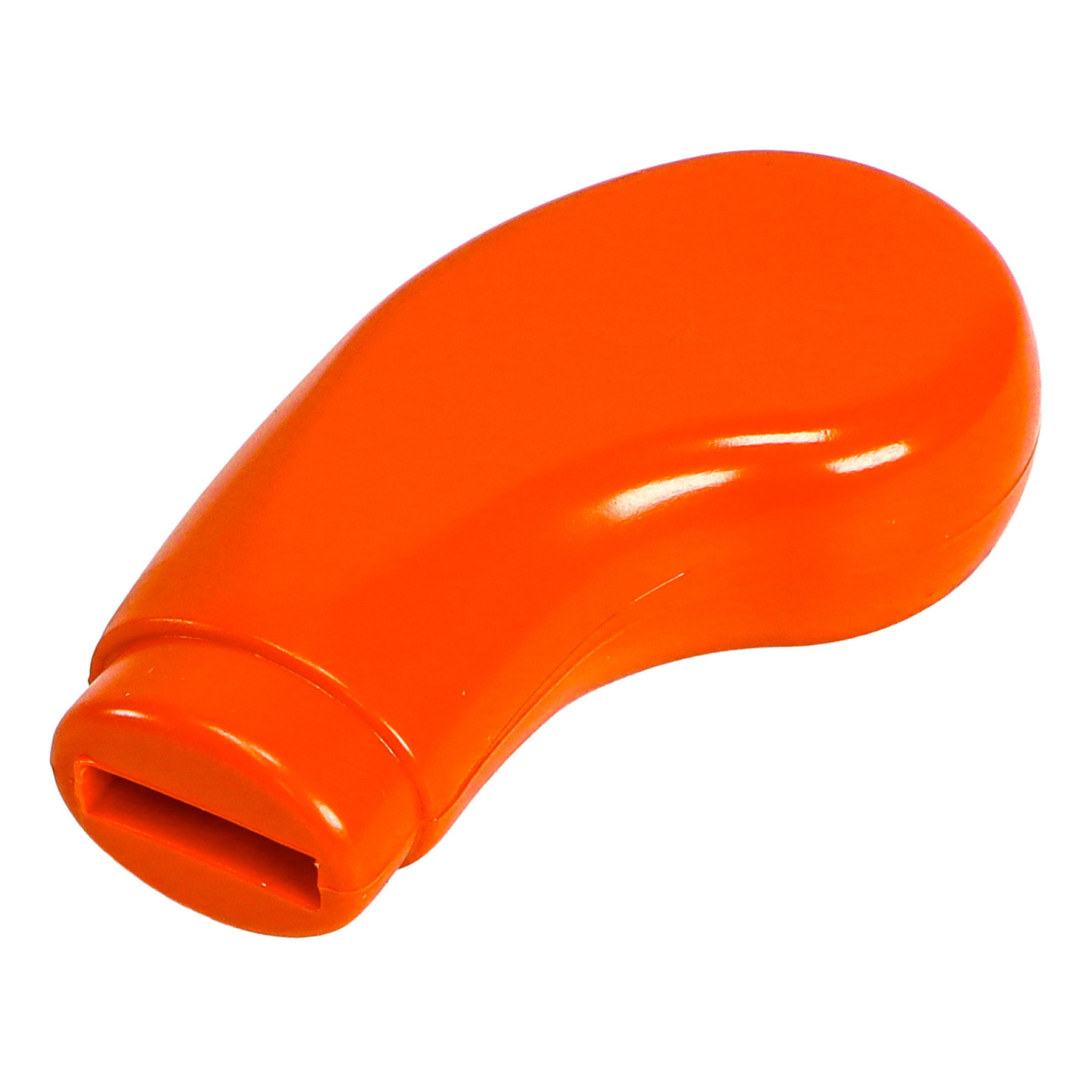

  • 20 GRIP

    GRIP

    • Part No. T2610-24461
    • *multiple options for # 20
    • 1 shown on diagram
    $12.99
  • 20

    Grip

    • Part No. T2185-24461
    • Compatibility New Replaces Old
    • *multiple options for # 20
    • 1 shown on diagram
    $8.49

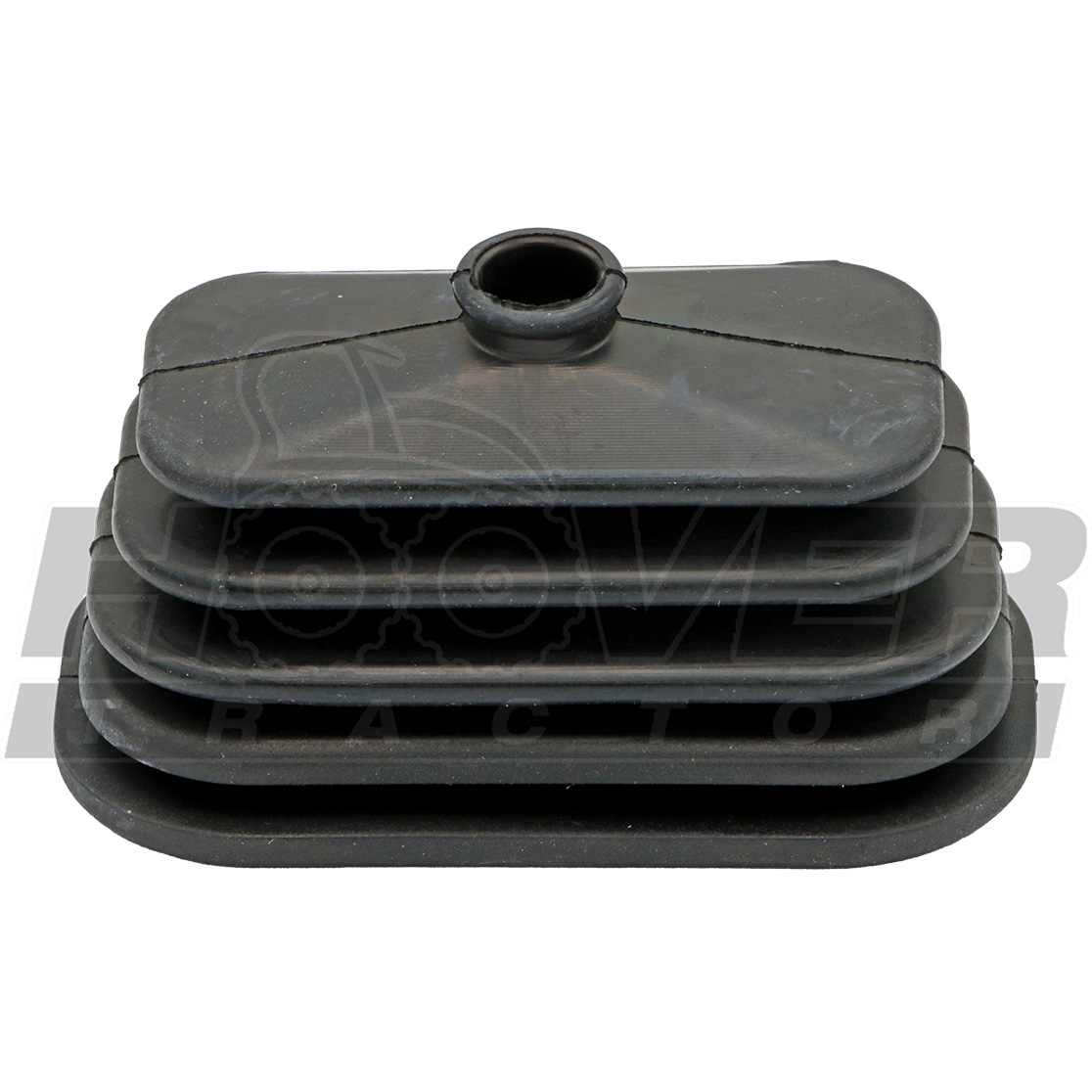

  • 21 JABARA

    JABARA

    • Part No. T4145-64671
    • 2 shown on diagram
    $16.99
  • 22

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
