STEP SUPPORT GROUP - DK45CHSE-T805A

Kioti TRACTOR | DK Series | DK45CHSE

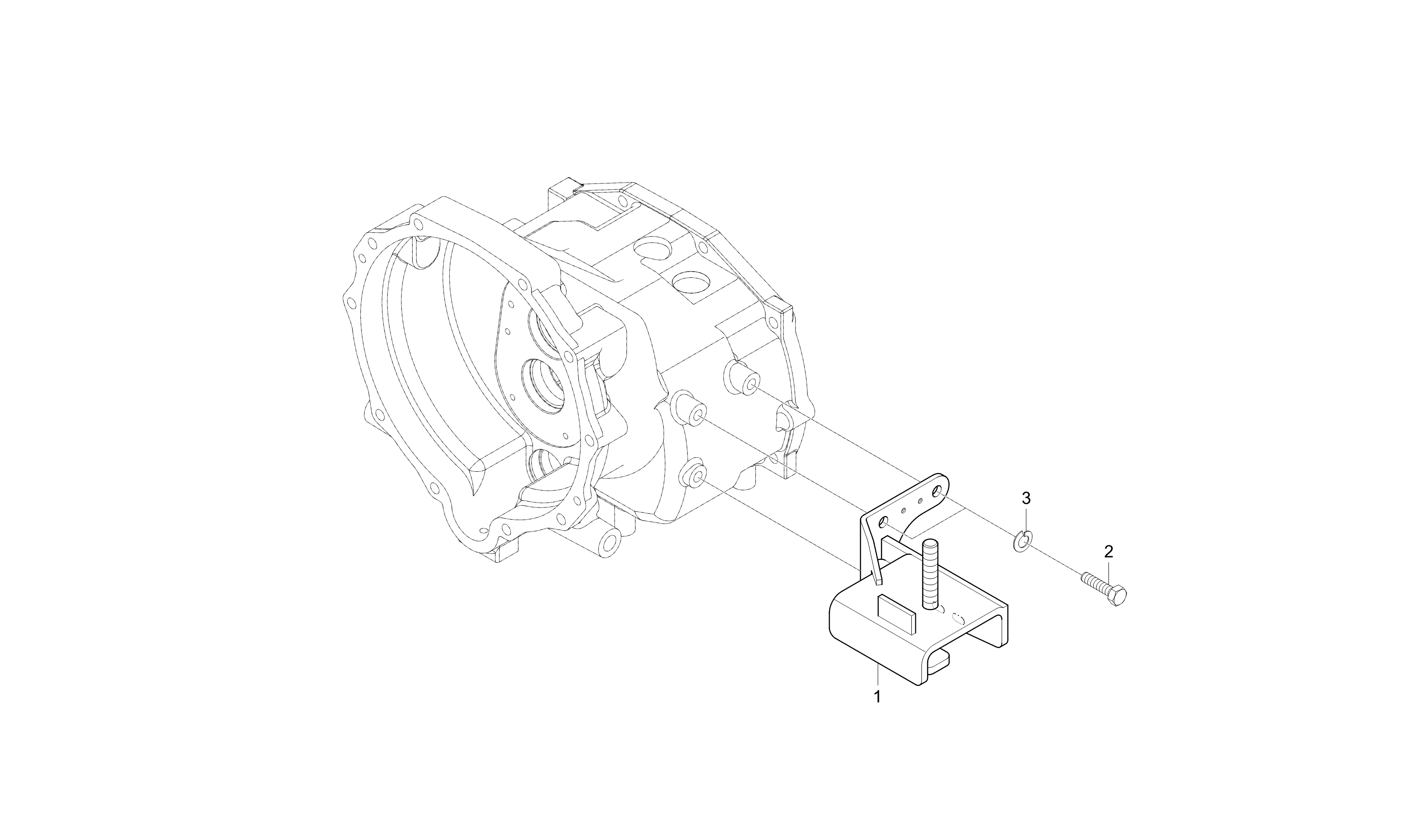

Diagram for STEP SUPPORT GROUP - DK45CHSE-T805A
  • 1

    SUPPORT, CABIN FRONT (LH) dnr v

    • Part No. T4135-33122
    • Applied Dates 2008-04-07 to 2008-10-23
    • Serial No. HH1400002 to HH1400085
    • *multiple options for # 1
    • 1 shown on diagram
    $334.99
  • 1

    SUPPORT, CABIN obs v

    • Part No. T4135-33122ED
    • Compatibility No Interchange
    • Serial No. HH1400086 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $299.99

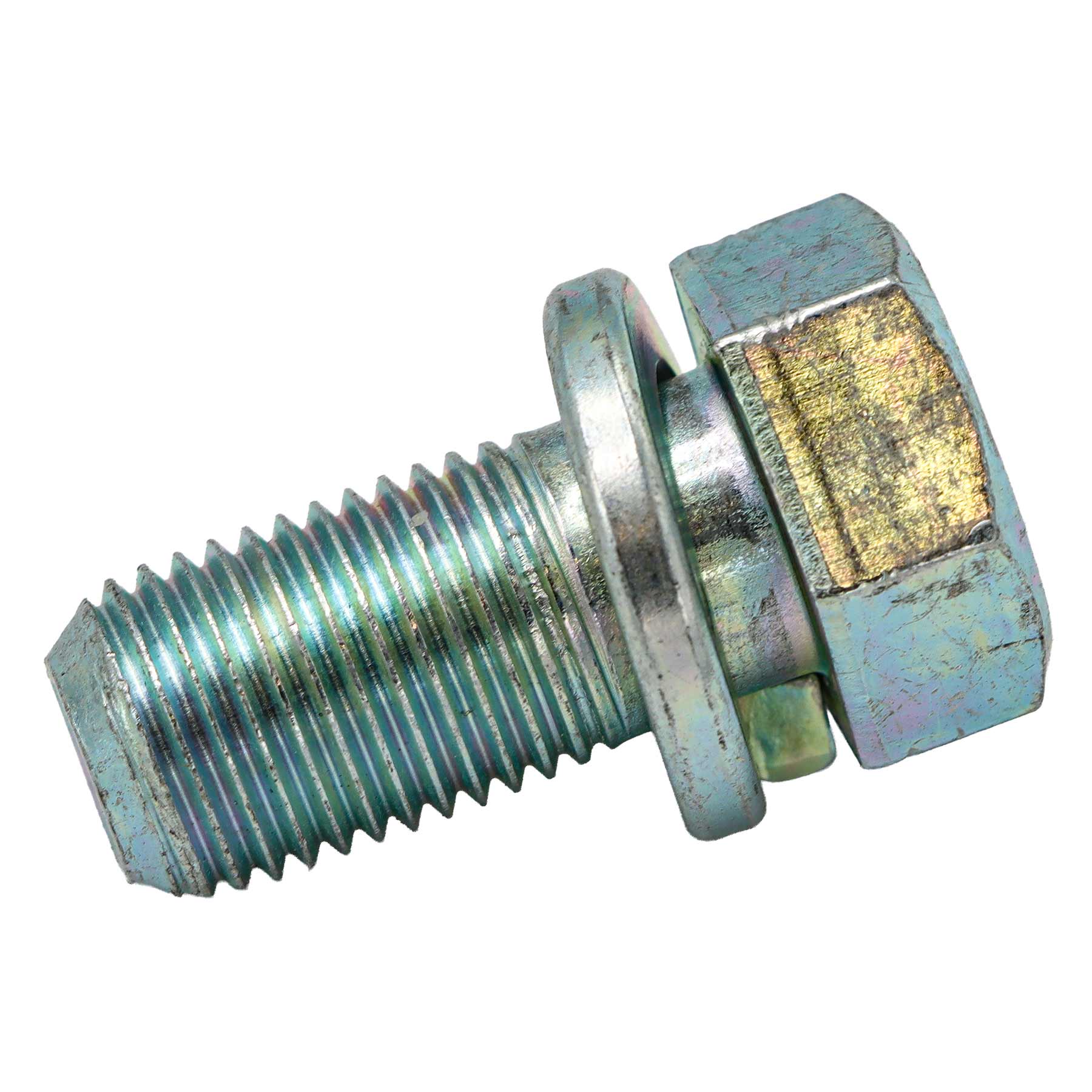

  • 2 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • Applied Dates 2008-04-17 and up
    • M12XP1.25
    • 3 shown on diagram
    $3.49
  • 3 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • Applied Dates Up to 2008-04-16
    • M12
    • 3 shown on diagram
    $0.95
