GEAR CASE GROUP - EF3-G104001

Kioti TRACTOR | CK Series | CK3510SEB

Diagram for GEAR CASE GROUP - EF3-G104001
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50625
    • M6XP1.0
    • 4 shown on diagram
    $1.29
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 10 shown on diagram
    $1.79
  • 3 BOLT v

    BOLT v

    • Part No. 01754-50835
    • M8XP1.25
    • 3 shown on diagram
    $1.89
  • 4 O RING

    O RING

    • Part No. 04811-00150
    • DIA14.8
    • * multiple options for #4
    • 3 shown on diagram
    $1.09
  • 4

    O-RING (Green), Use 04810-00150

    • Part No. 04816-00150
    • Compatibility New repl old
    • DIA14.8
    • * multiple options for #4
    • 3 shown on diagram
    $2.99

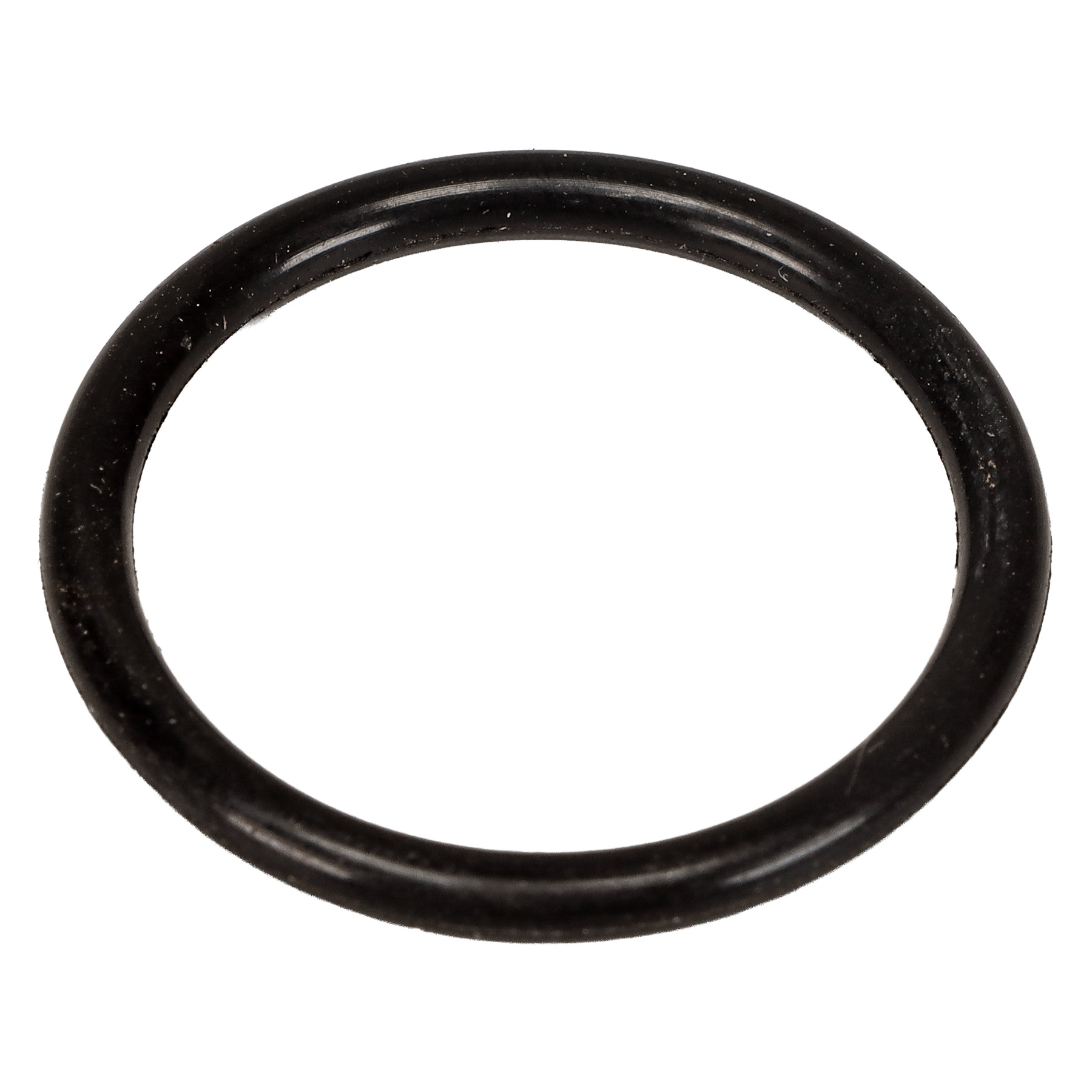

  • 5 O RING

    O RING

    • Part No. 04811-00220
    • DIA21.8
    • * multiple options for #5
    • 2 shown on diagram
    $0.9
  • 5 O-ring, 90 Durometer

    O-ring, 90 Durometer

    • Part No. 04816-00220
    • Compatibility New repl old
    • DIA21.8
    • * multiple options for #5
    • 2 shown on diagram
    $3.99
  • 6 O Ring 29.4mm (04811-50300)

    O Ring 29.4mm (04811-50300)

    • Part No. 04811-50300
    • DIA29.4
    • 1 shown on diagram
    $1.29
  • 7 KEY

    KEY

    • Part No. 05712-00410
    • W4XL10
    • 1 shown on diagram
    $2.49
  • 8 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 1 shown on diagram
    $17.99

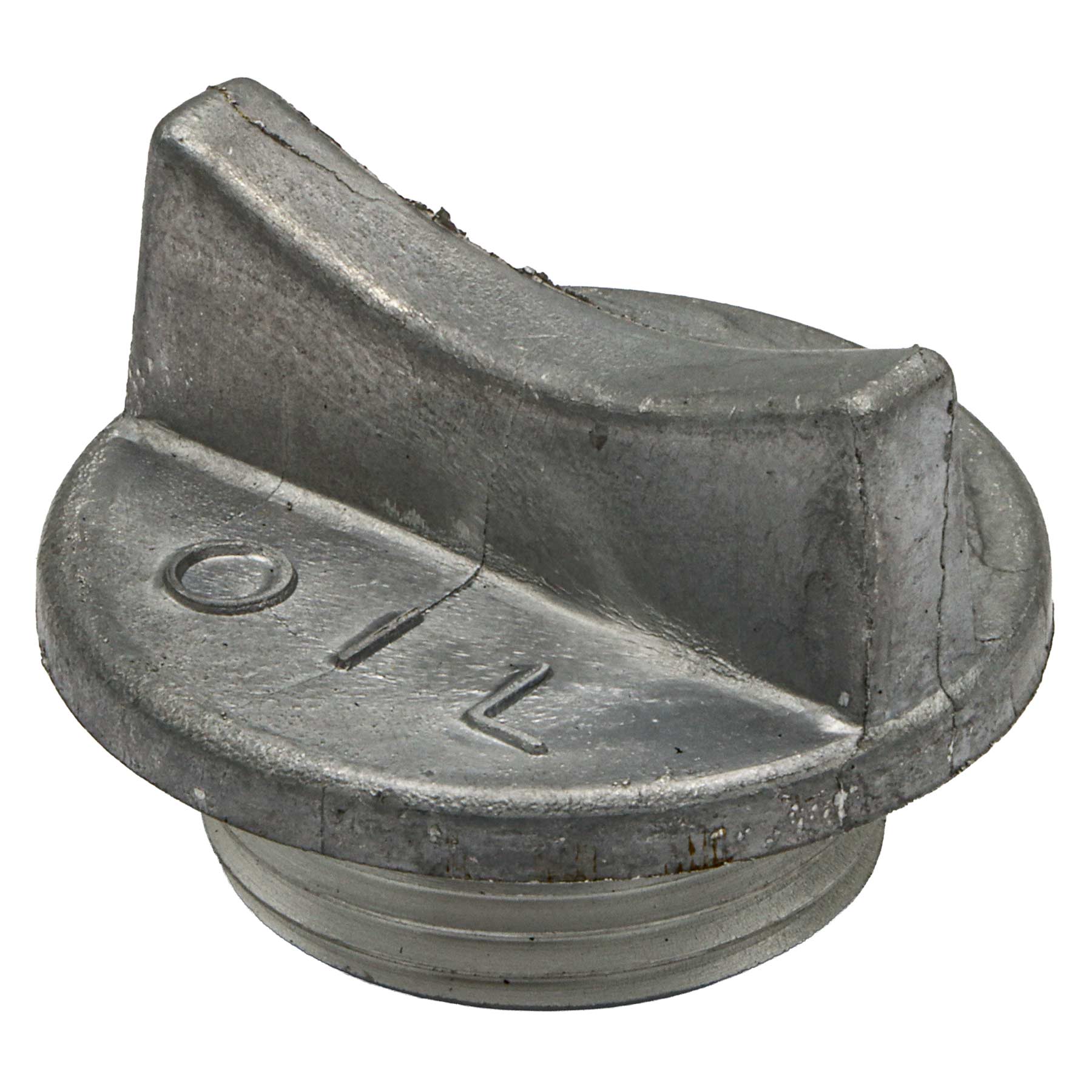

  • 9 PLUG, OIL FILLER, Replaced by EH11-0008A

    PLUG, OIL FILLER, Replaced by EH11-0008A

    • Part No. E5500-33142
    • 1 shown on diagram
    $15.99
  • 10

    FLANGE NUT

    • Part No. E6300-35681
    • M12*P1.25
    • 1 shown on diagram
    $1.79
  • 11

    ASSY CASE,GEAR

    • Part No. F5850-04103
    • * multiple options for #11
    • 1 shown on diagram
    $609.99
  • 11

    ASSYCASE,GEAR

    • Part No. F5850-04104
    • Compatibility Interchngable
    • * multiple options for #11
    • 1 shown on diagram
    $609.99
  • 11

    ASSY CASE,GEAR v

    • Part No. F5850-04105
    • Compatibility Interchngable
    • * multiple options for #11
    • 1 shown on diagram
    $684.99
  • 11

    ASSY CASE,GEAR

    • Part No. F5850-04106
    • Compatibility Interchngable
    • * multiple options for #11
    • 1 shown on diagram
    $554.99
  • 12 O RING

    O RING

    • Part No. 04811-00160
    • DIA15.8
    • 1 shown on diagram
    $1.09
  • 13

    PIN,STRAIGHT

    • Part No. 05012-00510
    • DIA5XL10
    • 4 shown on diagram
    $1.49
  • 14

    PLUG

    • Part No. E5800-96032
    • PT3/8
    • 1 shown on diagram
    $1.99
  • 15

    GEAR CASE v

    • Part No. F5800-04113
    • * multiple options for #15
    • 1 shown on diagram
    $364.99
  • 15

    GEARCASE v

    • Part No. F5800-04114
    • Compatibility Interchngable
    • * multiple options for #15
    • 1 shown on diagram
    $464.99
  • 15

    GEAR CASE

    • Part No. F5800-04115
    • Compatibility Interchngable
    • * multiple options for #15
    • 1 shown on diagram
    $489.99
  • 15

    GEAR CASE

    • Part No. F5800-04116
    • Compatibility Interchngable
    • * multiple options for #15
    • 1 shown on diagram
    $499.99
  • 16

    PLUNGER, RELIEF VALVE v

    • Part No. F6720-04711
    • * multiple options for #16
    • 1 shown on diagram
    $15.99
  • 16

    PLUNGER, RELIEF VALVE

    • Part No. F6720-04712
    • Compatibility Interchngable
    • * multiple options for #16
    • 1 shown on diagram
    $16.99
  • 17

    SPRING, RELIEF VALVE

    • Part No. F6720-04721
    • DIA1.8
    • 1 shown on diagram
    $4.49
  • 18

    PLUG, RELIEF VALVE v

    • Part No. F6720-04731
    • 1 shown on diagram
    $19.99
  • 19

    COVER, OIL PUMP

    • Part No. F6800-04302
    • 1 shown on diagram
    $37.99
  • 20

    OIL PUMP ROTOR SHAFT ASSY

    • Part No. F6800-04401
    • 1 shown on diagram
    $119.99
  • 21

    BUSH, PTO SHAFT

    • Part No. F6800-04501
    • 1 shown on diagram
    $38.99
  • 22

    GEAR, OIL PUMP

    • Part No. F6800-35661
    • 1 shown on diagram
    $109.99
