COOLING FAN GROUP - EF3-G125002

Kioti TRACTOR | CK Series | CK3510SEB

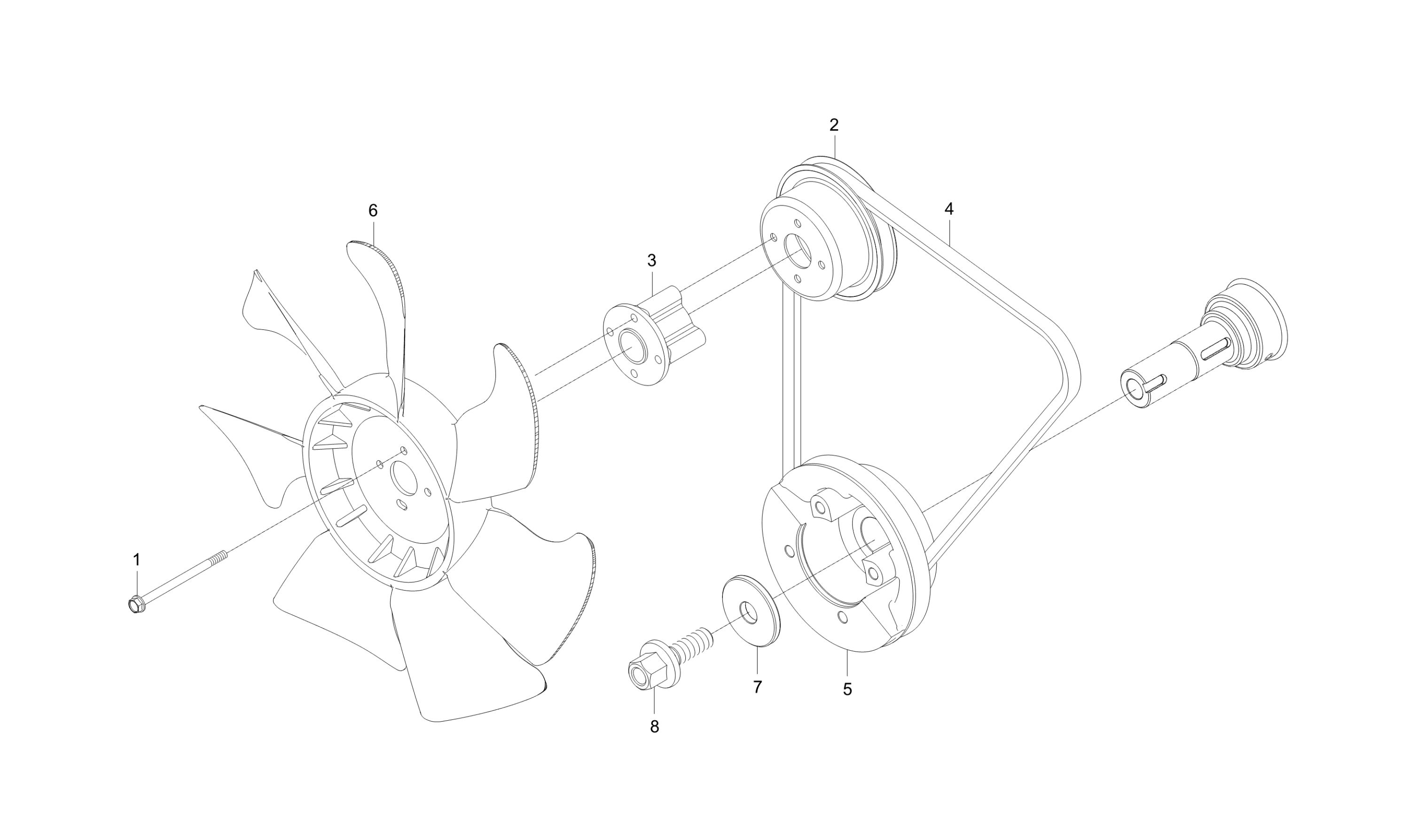

Diagram for COOLING FAN GROUP - EF3-G125002
  • 1

    BOLT, WASHER

    • Part No. 01023-50665
    • MEX10*76
    • 4 shown on diagram
    $2.49
  • 2

    PULLEY, FAN

    • Part No. E5616-74252ED
    • 1 shown on diagram
    $53.99
  • 3

    COLLAR,FAN

    • Part No. E6850-74151
    • Applied Dates 2017-07-01 and up
    • 1 shown on diagram
    $36.99
  • 4

    BELT,FAN LA 42.5

    • Part No. E6857-72531
    • Serial No. Up to XJJ700287
    • * multiple options for #4
    • 1 shown on diagram
    $21.99
  • 4 BELT, FAN-GREEN-1 LA42.5

    BELT, FAN-GREEN-1 LA42.5

    • Part No. EH16-0008A
    • Compatibility New repl old
    • Serial No. XJJ700288 and up
    • REC GREEN-1 LA42.5
    • * multiple options for #4
    • 1 shown on diagram
    $38.99
  • 5

    PULLEY, CRANKSHAFT dnr v

    • Part No. EF36-0019A
    • 1 shown on diagram
    $199.99
  • 6

    FAN, COOLING

    • Part No. EF36-0024A
    • Applied Dates 2017-07-01 and up
    • 1 shown on diagram
    $62.99
  • 7

    CRANKSHAFT WASHER

    • Part No. F6800-23501
    • 1 shown on diagram
    $11.99
  • 8

    BOLT, CRANKSHAFT

    • Part No. F6800-92311
    • 1 shown on diagram
    $13.99
