FRONT DRIVING GEAR GROUP - EX35H-T265A

Kioti TRACTOR | DK Series | DK45CHSE

Diagram for FRONT DRIVING GEAR GROUP - EX35H-T265A
  • 1

    GEAR

    • Part No. T4115-44521
    • 1 shown on diagram
    $224.99
  • 2

    BEARING,NEEDLE

    • Part No. 08823-23717
    • 2 shown on diagram
    $19.99
  • 3

    COLLAR,THRUST

    • Part No. T2610-23621
    • 2 shown on diagram
    $22.99
  • 4

    RING SNAP

    • Part No. 04612-00320
    • 1 shown on diagram
    $1.69
  • 5

    SHAFT, IDLE, Replaced by T4125-44633

    • Part No. T4125-44631
    • *multiple options for # 5
    • 1 shown on diagram
    $.00
  • 5

    SHAFT, IDLE, Replaced by T4125-44633

    • Part No. T4125-44632
    • Compatibility Call for compatibility
    • *multiple options for # 5
    • 1 shown on diagram
    $.00
  • 5

    SHAFT, IDLE

    • Part No. T4125-44633
    • Compatibility Call for compatibility
    • *multiple options for # 5
    • 1 shown on diagram
    $359.99
  • 6

    ASSY RING, PISTON

    • Part No. T4125-44661
    • 1 shown on diagram
    $12.99
  • 7 RING, PISTON

    RING, PISTON

    • Part No. T2630-46211
    • 1 shown on diagram
    $6.99
  • 8

    GEAR

    • Part No. T4115-44653
    • Applied Dates 2007-04-03 and up
    • 1 shown on diagram
    $214.99
  • 9

    SPRING v

    • Part No. T4125-44682
    • Applied Dates 2007-04-03 and up
    • 1 shown on diagram
    $17.99
  • 10

    COLLAR

    • Part No. T4125-44691
    • 1 shown on diagram
    $24.99
  • 11

    GEAR (26)

    • Part No. T4115-44642
    • Applied Dates 2007-04-03 and up
    • 1 shown on diagram
    $214.99
  • 12

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 1 shown on diagram
    $24.99
  • 13 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00620
    • DIA62
    • 1 shown on diagram
    $3.99
  • 14

    SPACER

    • Part No. T4125-44671
    • 1 shown on diagram
    $21.99
  • 15 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 2 shown on diagram
    $17.99
  • 16

    NUT v

    • Part No. 31220-2234-2
    • HEX32*17
    • 1 shown on diagram
    $12.99
  • 17

    RING SEAL

    • Part No. T2630-46231
    • *multiple options for # 17
    • 2 shown on diagram
    $46.99
  • 17

    SEALING

    • Part No. T2630-46232
    • Compatibility Interchangeable
    • *multiple options for # 17
    • 2 shown on diagram
    $.00
  • 17
    • Part No. T2630-46233
    • Compatibility Interchangeable
    • *multiple options for # 17
    • 2 shown on diagram
  • 18

    DRIVE SHAFT

    • Part No. T4115-44511
    • 1 shown on diagram
    $119.99
  • 19

    GEAR 21

    • Part No. T2815-44621
    • Applied Dates 2011-06-17 and up
    • 1 shown on diagram
    $92.99
  • 20 Snap Ring 30mm

    Snap Ring 30mm

    • Part No. 04612-00300
    • DIA30
    • 1 shown on diagram
    $1.59
  • 21 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 1 shown on diagram
    $17.99
  • 22

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 1 shown on diagram
    $24.99
  • 23 Coupling, 42.7 mm OD

    Coupling, 42.7 mm OD

    • Part No. T4620-44592
    • OD42.7*T1.6
    • 1 shown on diagram
    $39.99
  • 24 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • DIA6.4XL35
    • 1 shown on diagram
    $0.96
  • 25

    SHAFT,PROPELLER

    • Part No. T4125-44572
    • 1 shown on diagram
    $344.99

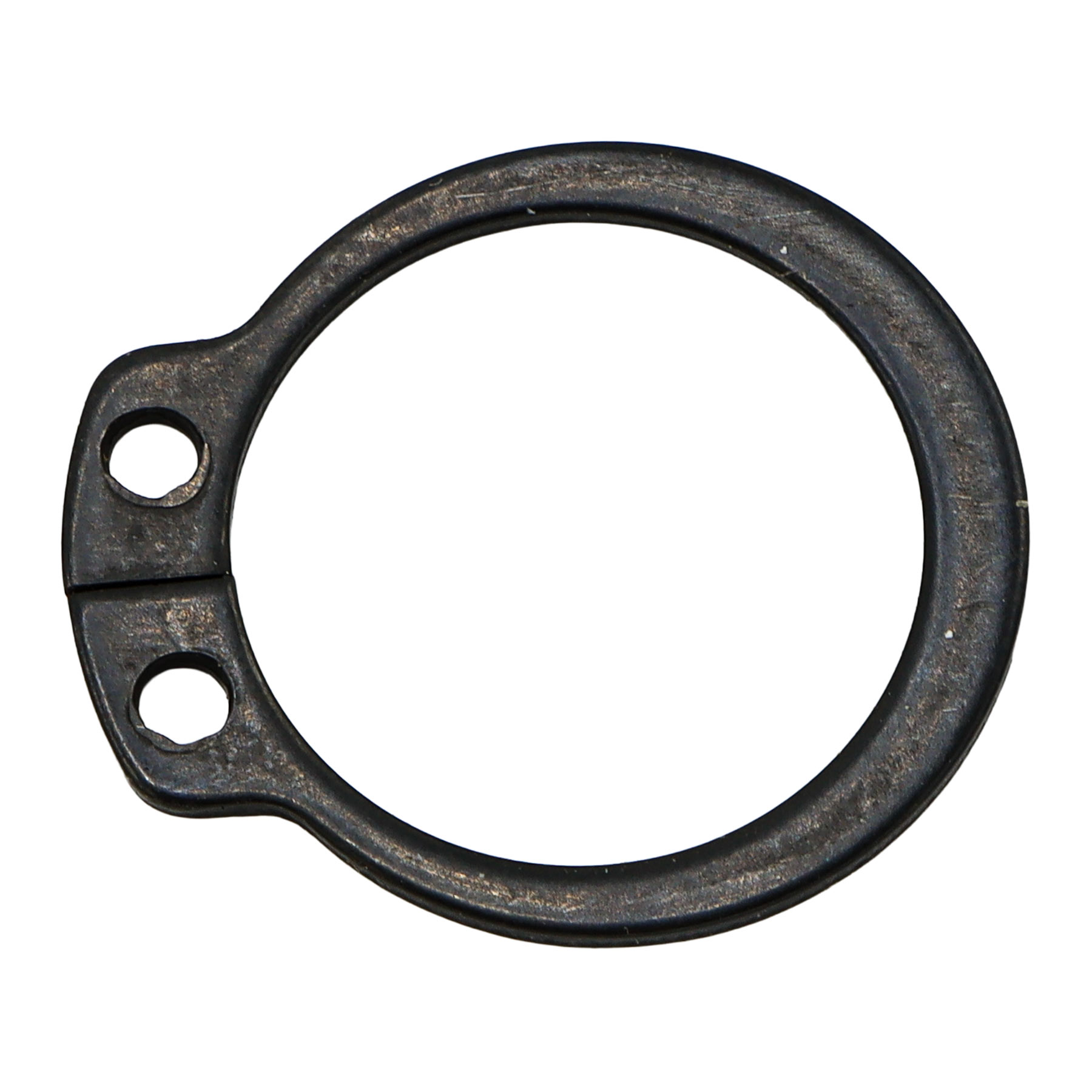

  • 26 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • Applied Dates 2009-07-01 to 2008-03-12
    • Serial No. HH1400001 and up
    • DIA25
    • *multiple options for # 26
    • 2 shown on diagram
    $1.09
  • 26 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • Compatibility Call for compatibility
    • DIA25
    • *multiple options for # 26
    • 4 shown on diagram
    $1.09
  • 26 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • Compatibility Call for compatibility
    • DIA25
    • *multiple options for # 26
    • 2 shown on diagram
    $1.09

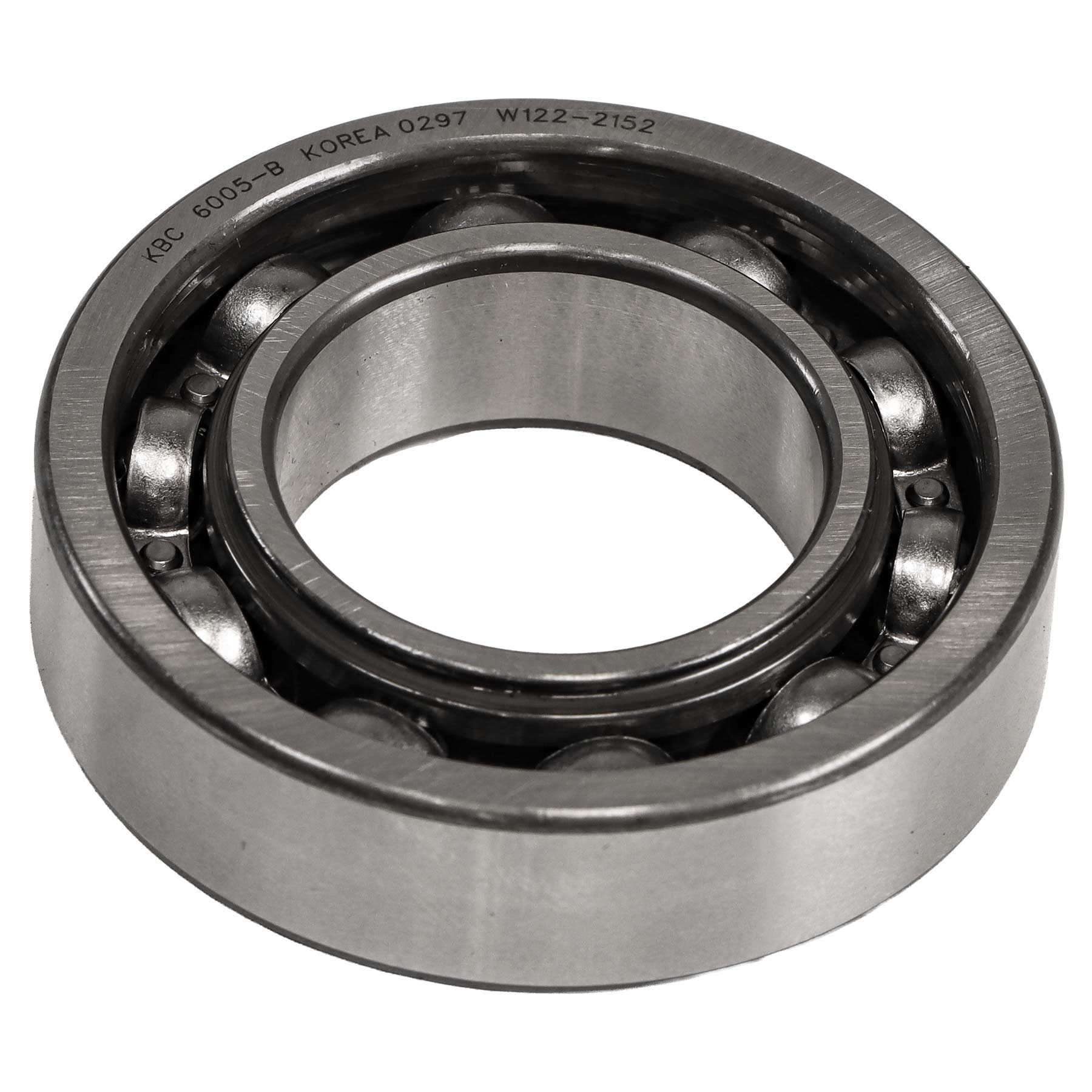

  • 27 BALL BEARING 25x47x12

    BALL BEARING 25x47x12

    • Part No. 08101-06005
    • DIA25
    • 1 shown on diagram
    $16.99

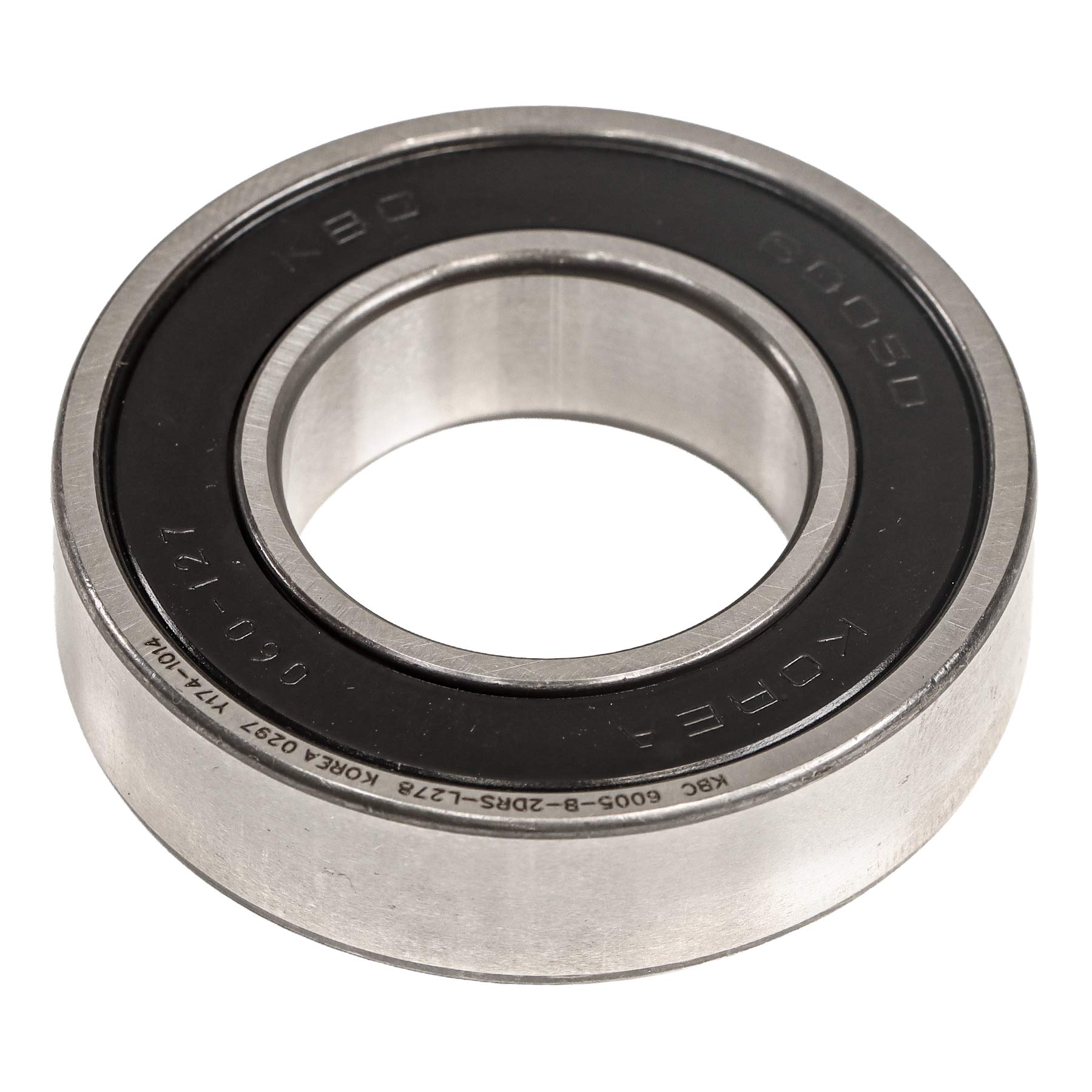

  • 28 BEARING,BALL v 25x47x12

    BEARING,BALL v 25x47x12

    • Part No. 08141-06005
    • DIA25
    • 1 shown on diagram
    $25.99
  • 29

    RING,SNAP

    • Part No. 04611-00470
    • DIA47
    • 2 shown on diagram
    $2.99
  • 30 Oil Seal 25x52x10

    Oil Seal 25x52x10

    • Part No. 09502-55210
    • DIA25
    • 1 shown on diagram
    $3.49
  • 31

    COLLAR v

    • Part No. 34150-2156-1
    • T2*42*42
    • 1 shown on diagram
    $3.49
  • 32

    SPACER

    • Part No. T4125-44671
    • 1 shown on diagram
    $21.99
  • 33

    NUT v

    • Part No. 31220-2234-2
    • HEX32*17
    • 1 shown on diagram
    $12.99
