DRIVE SHAFT GROUP - EX45H-T175A

Kioti TRACTOR | DK Series | DK45CHSE

Diagram for DRIVE SHAFT GROUP - EX45H-T175A
  • 1

    CASE, PROPELLER SHAFT dnr v, Replaced by T4125-14752

    • Part No. T4125-14751
    • *multiple options for # 1
    • 1 shown on diagram
    $.00
  • 1

    CASE, PROPELLAR SHAFT

    • Part No. T4125-14752
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $159.99
  • 2

    Bolt With Washer, M8 P1.25 x 40mm

    • Part No. 01123-50840
    • M8XP1.25
    • 6 shown on diagram
    $2.49

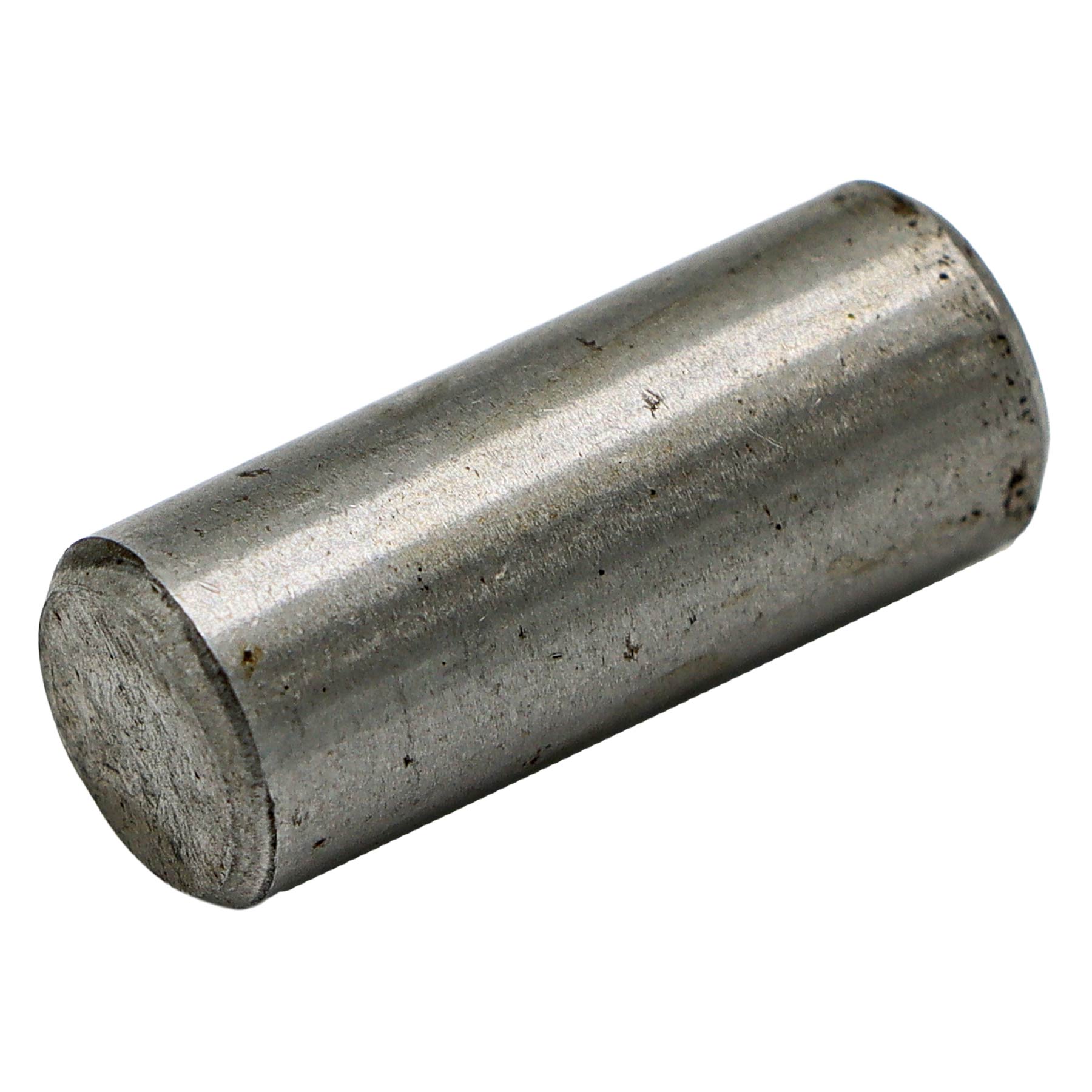

  • 3 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59
  • 4

    SHAFT, GEAR, Replaced by T4125-21312

    • Part No. T4125-21311
    • Applied Dates Up to 2009-12-28
    • *multiple options for # 4
    • 1 shown on diagram
    $.00
  • 4

    SHAFT GEAR 22

    • Part No. T4125-21312
    • Compatibility Interchangeable
    • Applied Dates 2010-02-21 and up
    • *multiple options for # 4
    • 1 shown on diagram
    $259.99

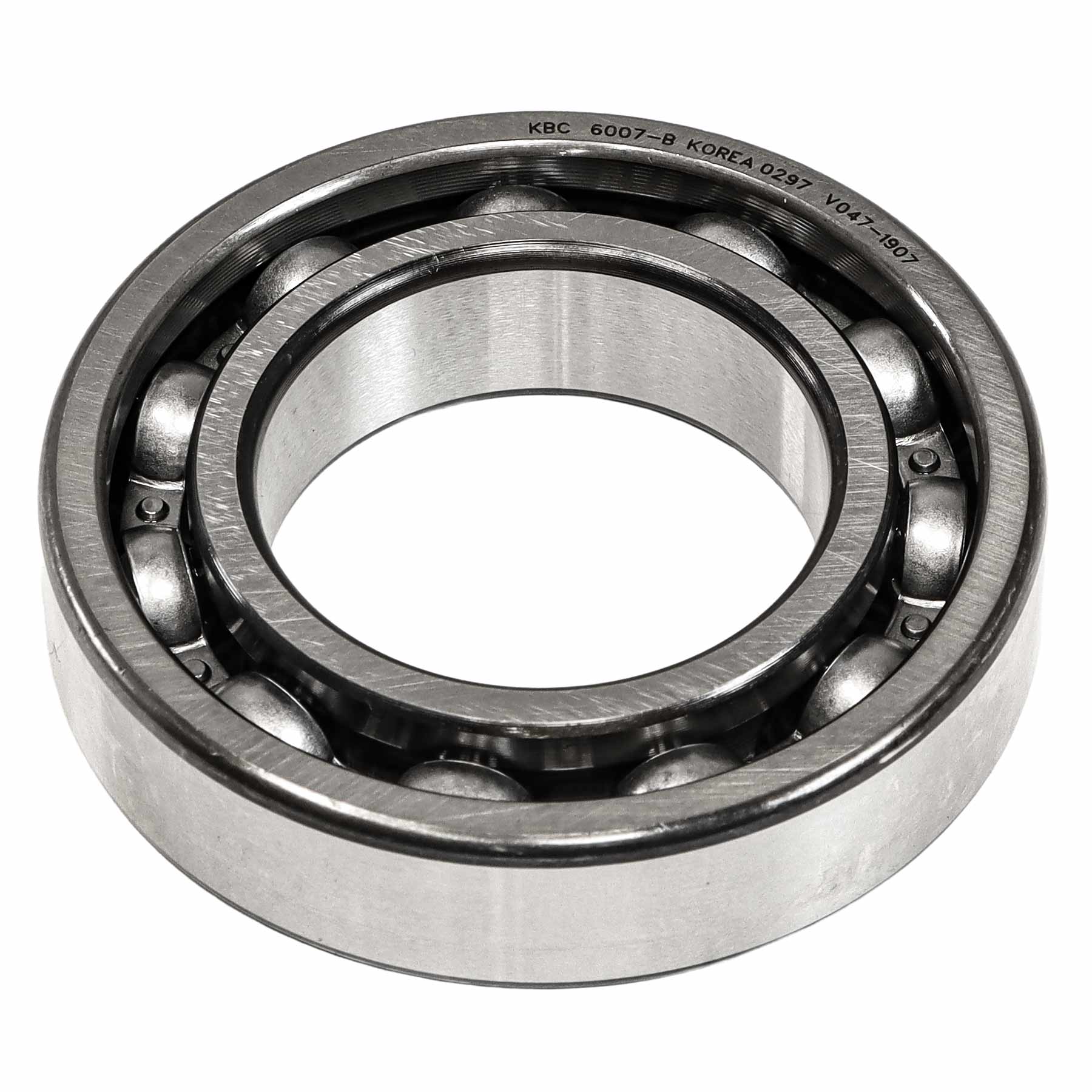

  • 5 BEARING BALL 40x67x19

    BEARING BALL 40x67x19

    • Part No. 08101-06007
    • DIA35
    • 1 shown on diagram
    $26.99
  • 6 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 1 shown on diagram
    $28.99
  • 7 SEAL,OIL 35x52x8

    SEAL,OIL 35x52x8

    • Part No. 09500-35528
    • DIA35
    • 1 shown on diagram
    $3.49
  • 8

    GEAR, Replaced by T4125-21322

    • Part No. T4125-21321
    • Applied Dates Up to 2009-12-28
    • *multiple options for # 8
    • 1 shown on diagram
    $56.59
  • 8

    GEAR 24

    • Part No. T4125-21322
    • Compatibility Interchangeable
    • Applied Dates 2010-02-21 and up
    • *multiple options for # 8
    • 1 shown on diagram
    $99.99
  • 9 BEARING BALL 40x67x19

    BEARING BALL 40x67x19

    • Part No. 08101-06007
    • DIA35
    • 2 shown on diagram
    $26.99
