PTO COUNT SHAFT GROUP - EX45H-T275A

Kioti TRACTOR | DK Series | DK45CHSE

Diagram for PTO COUNT SHAFT GROUP - EX45H-T275A
  • 1

    SHAFT,COUNTER

    • Part No. T4125-21531
    • 1 shown on diagram
    $144.99
  • 2

    GEAR

    • Part No. T4125-25221
    • 1 shown on diagram
    $84.99
  • 3

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 2 shown on diagram
    $24.99
  • 4 Oil Seal 25x52x10

    Oil Seal 25x52x10

    • Part No. 09502-55210
    • DIA25
    • 1 shown on diagram
    $3.49
  • 5

    COUPLING

    • Part No. 37805-4452-1
    • 1 shown on diagram
    $52.99
  • 6 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • DIA6.4XL35
    • 1 shown on diagram
    $0.96
  • 7

    SHAFT,COUNTER

    • Part No. T4125-25232
    • Applied Dates 2006-01-19 and up
    • 1 shown on diagram
    $93.99
  • 8

    GEAR

    • Part No. T4125-25241
    • 1 shown on diagram
    $114.99
  • 9

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 2 shown on diagram
    $24.99

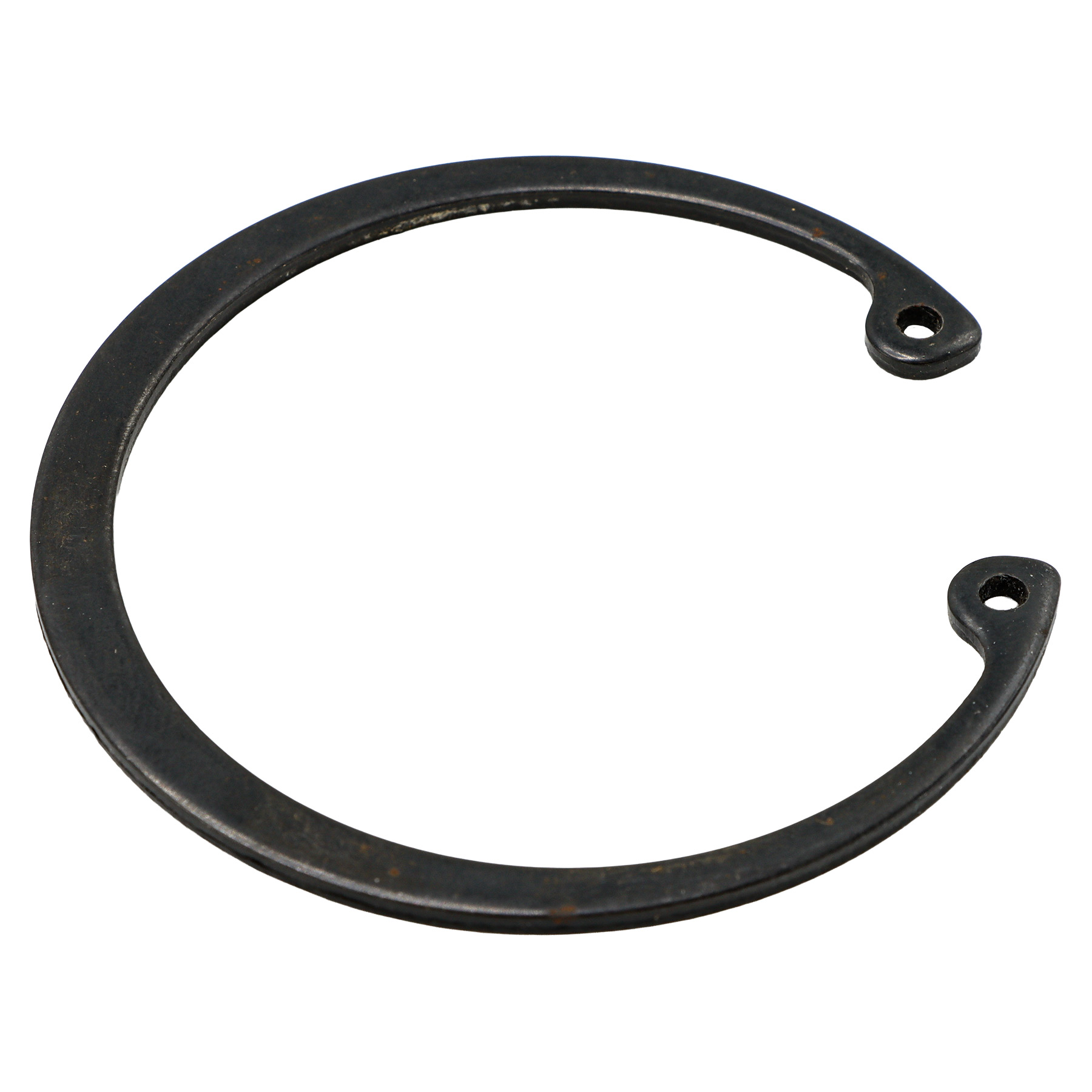

  • 10 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00620
    • DIA62
    • 1 shown on diagram
    $3.99
  • 11

    PTO CLUTCH ASS’Y v

    • Part No. T2615-25604
    • Applied Dates Up to 2011-12-31
    • 1 shown on diagram
    $824.99
  • 12

    BODY,CYLINDER

    • Part No. T2615-25614
    • Applied Dates 2012-02-17 and up
    • 1 shown on diagram
    $299.99
  • 13 Ring, Seal

    Ring, Seal

    • Part No. T2615-25621
    • 2 shown on diagram
    $38.99
  • 14

    PISTON, Replaced by T5520-23651

    • Part No. T2615-25651
    • 1 shown on diagram
    $.00
  • 15

    RING, PISTON

    • Part No. T2615-25661
    • Applied Dates 2012-02-17 and up
    • 1 shown on diagram
    $6.99
  • 16

    RING, PISTON v

    • Part No. T2615-25671
    • Applied Dates 2012-02-17 and up
    • 1 shown on diagram
    $7.49
  • 17

    PLATE, BRAKE

    • Part No. T2615-25711
    • Applied Dates 2012-02-17 and up
    • 1 shown on diagram
    $44.99
  • 18

    PLATE, RETURN

    • Part No. T2615-25721
    • Applied Dates 2012-02-17 and up
    • 1 shown on diagram
    $22.99
  • 19

    SPRING

    • Part No. T2615-25732
    • Applied Dates 2012-02-17 and up
    • 1 shown on diagram
    $21.99
  • 20

    PLATE,PRESSURE

    • Part No. T2615-25742
    • 1 shown on diagram
    $93.99
  • 21

    HUB,SPLINE

    • Part No. T2615-25762
    • 1 shown on diagram
    $149.99
  • 22

    DISK, CLUTCH

    • Part No. T2615-25771
    • 7 shown on diagram
    $37.99
  • 23

    PLATE,CLUTCH

    • Part No. T2615-25782
    • 7 shown on diagram
    $19.99
  • 24

    BALL_BEARING

    • Part No. 08101-06807
    • DIA35
    • 1 shown on diagram
    $46.99

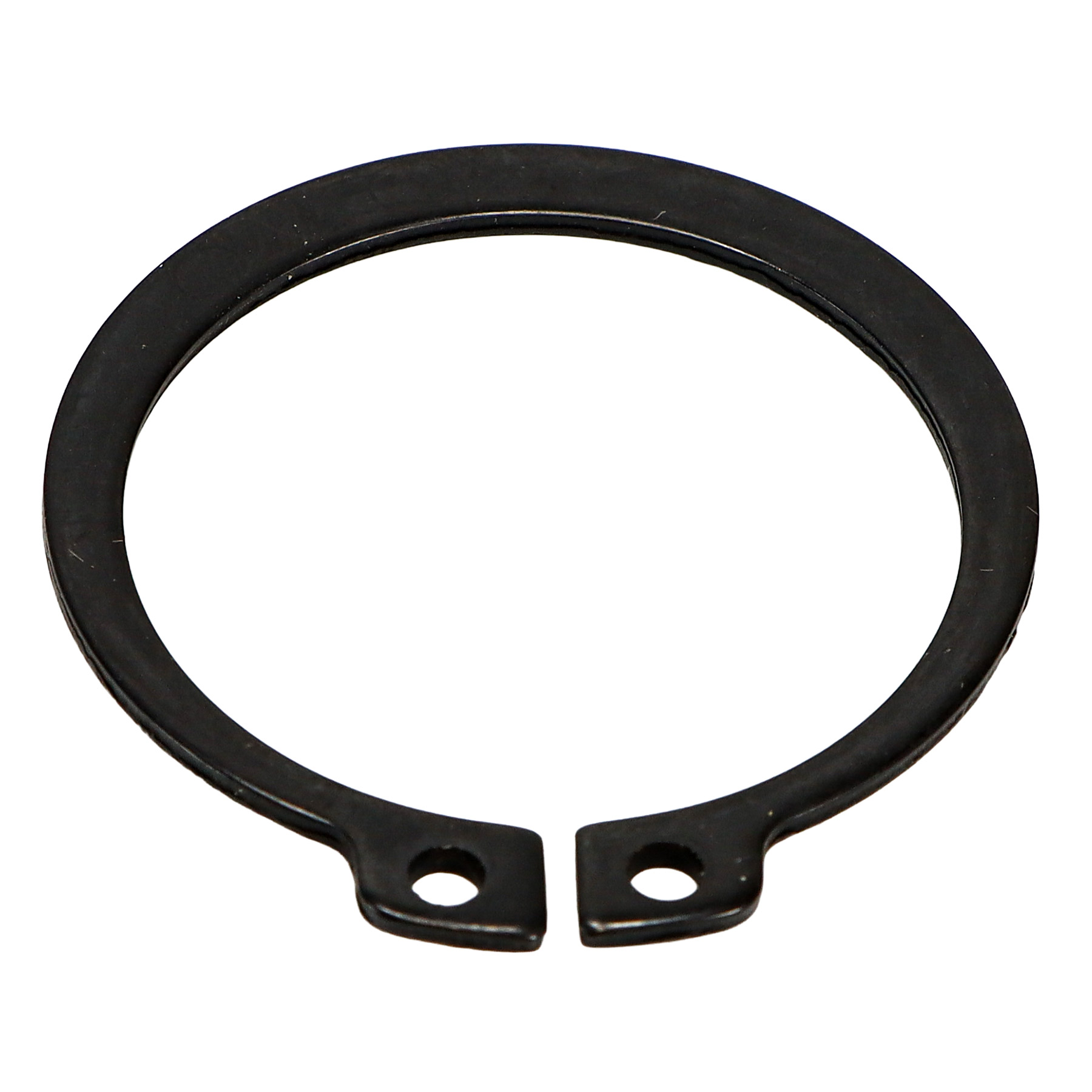

  • 25 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 1 shown on diagram
    $1.89
  • 26 RING SNAP

    RING SNAP

    • Part No. 04611-00920
    • DIA92
    • 1 shown on diagram
    $13.99
  • 27

    SPACER

    • Part No. T2615-25681
    • 1 shown on diagram
    $5.99
  • 28

    RUBBER

    • Part No. T2615-25791
    • 12 shown on diagram
    $1.29
  • 29 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 1 shown on diagram
    $28.99
  • 30

    SPACER

    • Part No. T2615-25681
    • 1 shown on diagram
    $5.99
  • 31

    CIR-CLIP

    • Part No. T2615-25691
    • 1 shown on diagram
    $11.99

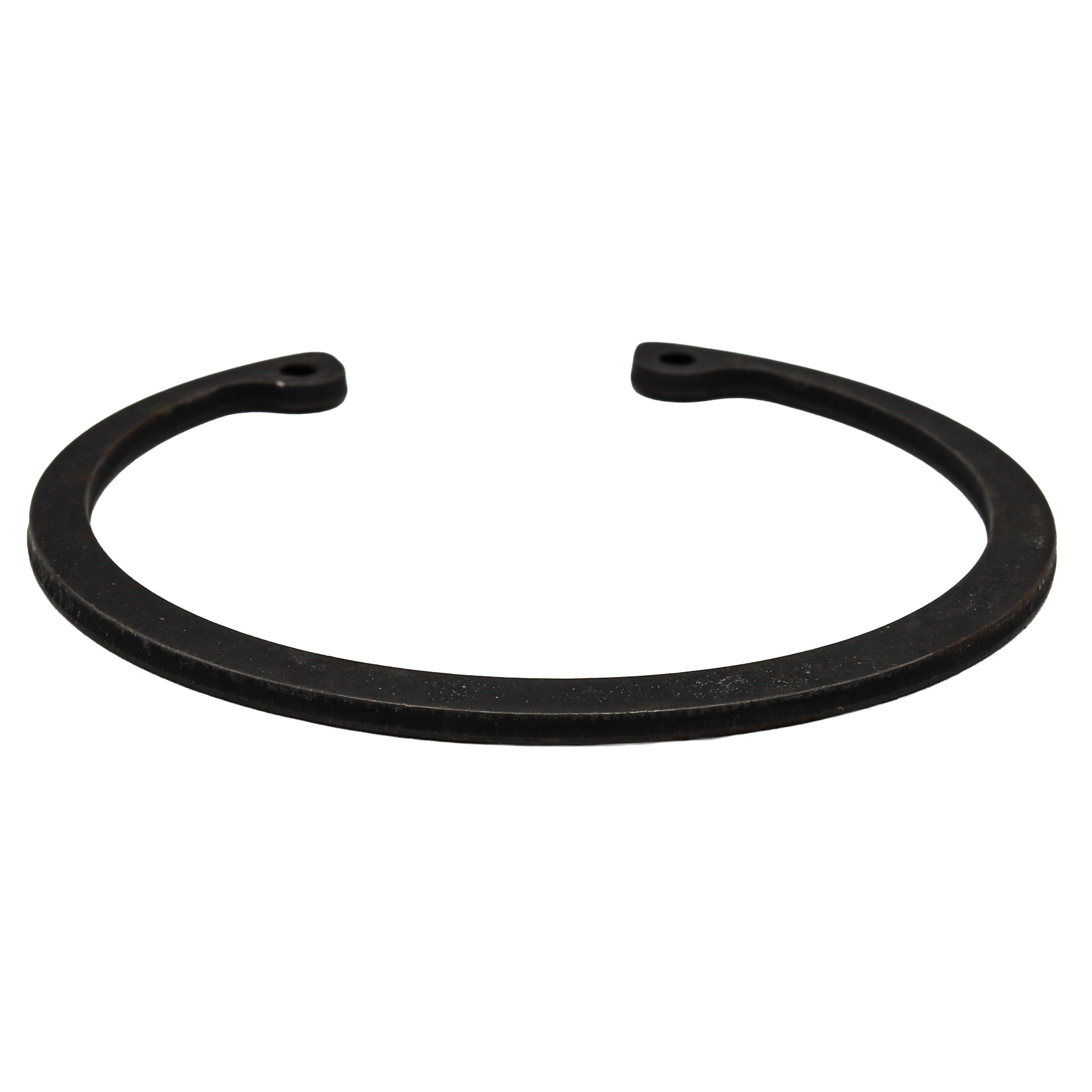

  • 32 RING,SNAP

    RING,SNAP

    • Part No. 04611-00720
    • DIA72
    • 1 shown on diagram
    $7.99
