FRONT AXLE GROUP - EX35H-T575A

Kioti TRACTOR | DK Series | DK50HSE

Diagram for FRONT AXLE GROUP - EX35H-T575A
  • 1

    AXLE, FRONT V, Replaced by T4620-43713

    • Part No. T4620-43712
    • Applied Dates Up to 2009-12-31
    • *multiple options for # 1
    • 2 shown on diagram
    $0.00

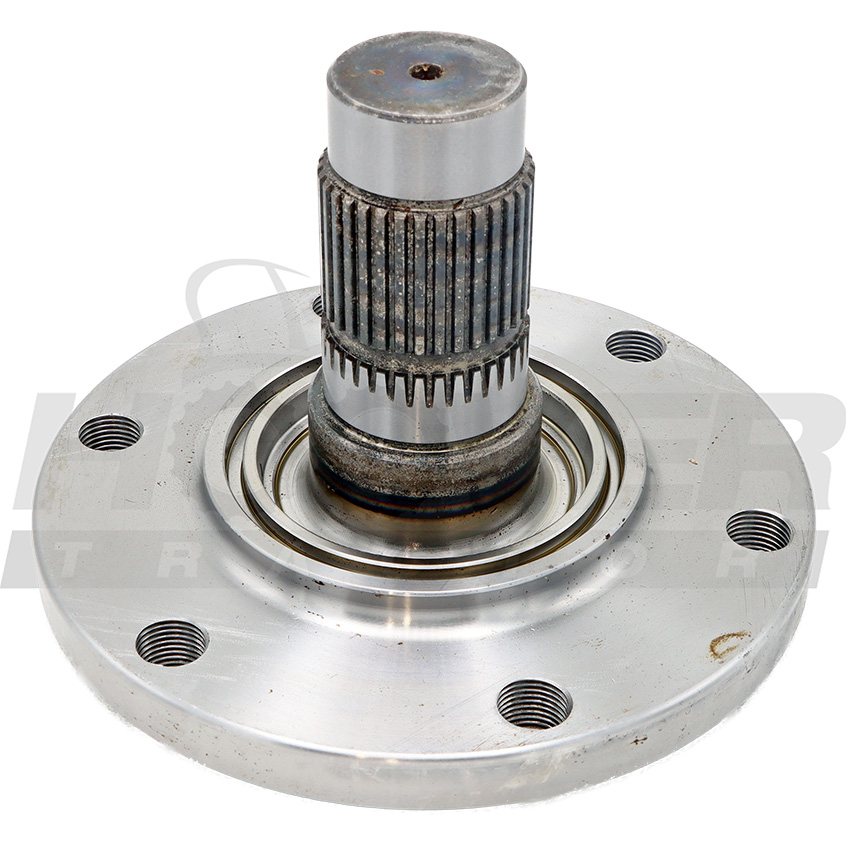

  • 1 AXLE FRONT V (early serial # )

    AXLE FRONT V (early serial # )

    • Part No. T4620-43713
    • Compatibility Interchngable
    • Applied Dates Up to 2010-12-31
    • *multiple options for # 1
    • 2 shown on diagram
    $509.99

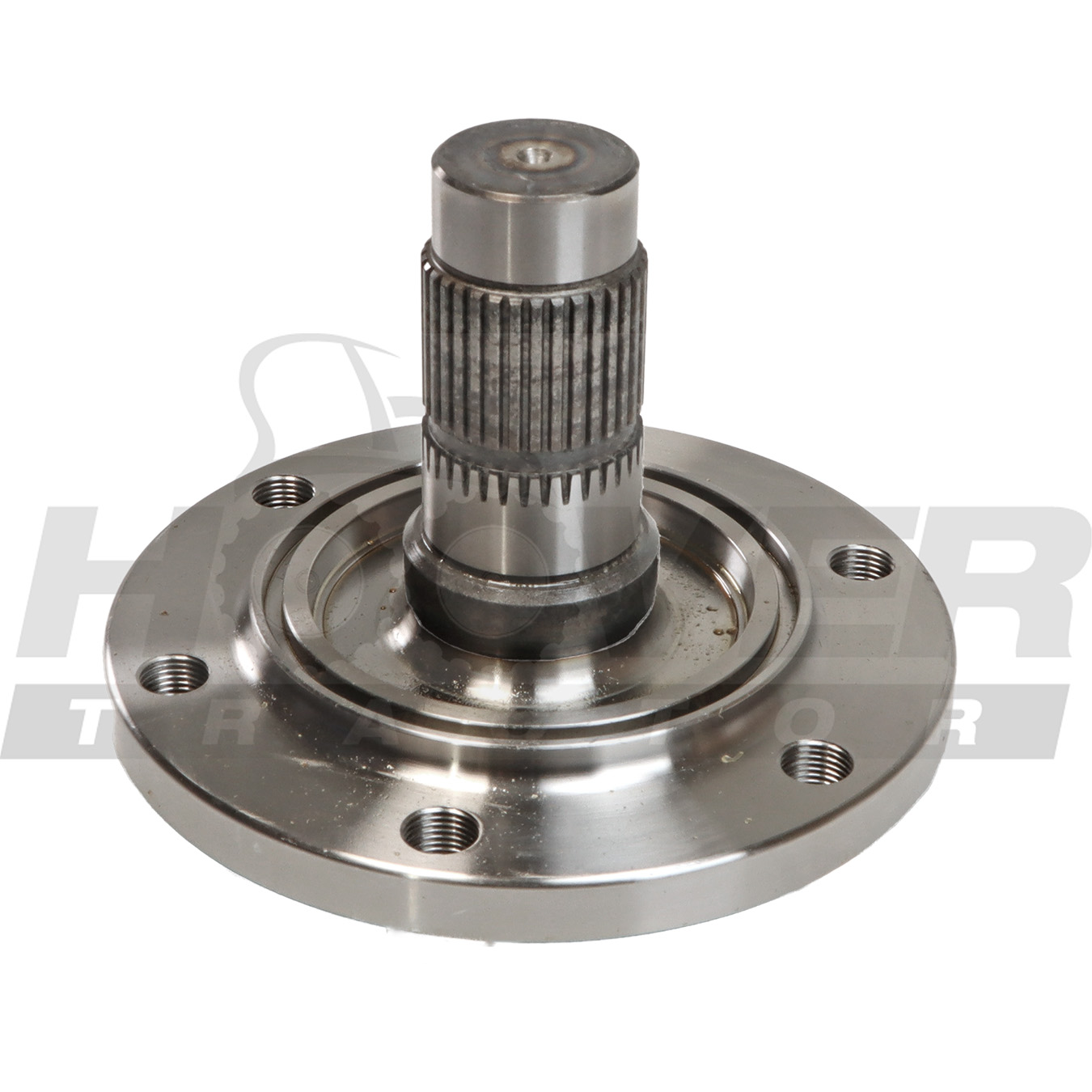

  • 1 FRONT AXLE v (later serial # DKSE & DS) (DK55 upto ~ E06800080)

    FRONT AXLE v (later serial # DKSE & DS) (DK55 upto ~ E06800080)

    • Part No. T4686-43712
    • Compatibility Call for compatibility
    • Serial No. NS2800029 and up
    • *multiple options for # 1
    • 2 shown on diagram
    $569.99
  • 2 Floating Seal Assy, 61mm ID

    Floating Seal Assy, 61mm ID

    • Part No. T4818-43451
    • *multiple options for # 2
    • 2 shown on diagram
    $77.99
  • 2 Floating Seal Assy, 78mm ID

    Floating Seal Assy, 78mm ID

    • Part No. T4520-43652
    • Compatibility Call for compatibility
    • *multiple options for # 2
    • 2 shown on diagram
    $82.99
  • 3

    RING, SEAL, Replaced by T4818-43451

    • Part No. T4818-43451001
    • 2 shown on diagram
    $0.00
  • 4

    O-Ring, Replaced by T4818-43451

    • Part No. T4818-43451002
    • 2 shown on diagram
    $0.00
  • 5 Cover, Front Axle *see notes*

    Cover, Front Axle *see notes*

    • Part No. T4682-43622
    • *multiple options for # 5
    • 2 shown on diagram
    $194.99
  • 5

    COVER,FRONT AXLE N.S., Replaced by T4686-43622

    • Part No. T4686-43621
    • Compatibility Call for compatibility
    • Applied Dates Up to 2010-12-31
    • *multiple options for # 5
    • 2 shown on diagram
    $0.00
  • 5 COVER, FRONT AXLE (later serial #)

    COVER, FRONT AXLE (later serial #)

    • Part No. T4686-43622
    • Compatibility Call for compatibility
    • Serial No. NS2800029 and up
    • *multiple options for # 5
    • 2 shown on diagram
    $199.99
  • 6 O-Ring

    O-Ring

    • Part No. 37805-4355-1
    • 2 shown on diagram
    $6.49
  • 7 Ball Bearing 45x85x19mm

    Ball Bearing 45x85x19mm

    • Part No. 08101-06209
    • #6209
    • *multiple options for # 7
    • 2 shown on diagram
    $45.99
  • 7 BALL BEARING #6309 45x100x25

    BALL BEARING #6309 45x100x25

    • Part No. 08101-06309
    • Compatibility Call for compatibility
    • Serial No. LS2800005 and up
    • DIA45
    • *multiple options for # 7
    • 2 shown on diagram
    $34.99
  • 8 CIR CLIP V

    CIR CLIP V

    • Part No. T4340-43681
    • ??5
    • 4 shown on diagram
    $26.99
  • 9

    BEVEL GEAR obs v

    • Part No. T4125-43721
    • 2 shown on diagram
    $809.99
  • 10 BEARING BALL v, Replaced by T4682-43731

    BEARING BALL v, Replaced by T4682-43731

    • Part No. 08101-06208
    • DIA40
    • *multiple options for # 10
    • 2 shown on diagram
    $0.00
  • 10 Bearing 6208 40x80x18

    Bearing 6208 40x80x18

    • Part No. T4682-43731
    • Compatibility Call for compatibility
    • Serial No. LS2800005 and up
    • *multiple options for # 10
    • 2 shown on diagram
    $57.99
  • 11 Bolt With Washer, M8 P1.25 x 35mm

    Bolt With Washer, M8 P1.25 x 35mm

    • Part No. 01123-50835
    • M8XP1.25
    • 16 shown on diagram
    $2.49
  • 12

    STUD v, Replaced by 01517-51632

    • Part No. T4240-27712
    • Applied Dates Up to 2008-09-08
    • *multiple options for # 12
    • 4 shown on diagram
    $0.00
  • 12 STUD

    STUD

    • Part No. 01517-51632
    • Compatibility New Replaces Old
    • M16*1.5*32
    • *multiple options for # 12
    • 4 shown on diagram
    $4.49
