FRONT AXLE FRAME GROUP - EX45H-T505A

Kioti TRACTOR | DK Series | DK50HSE

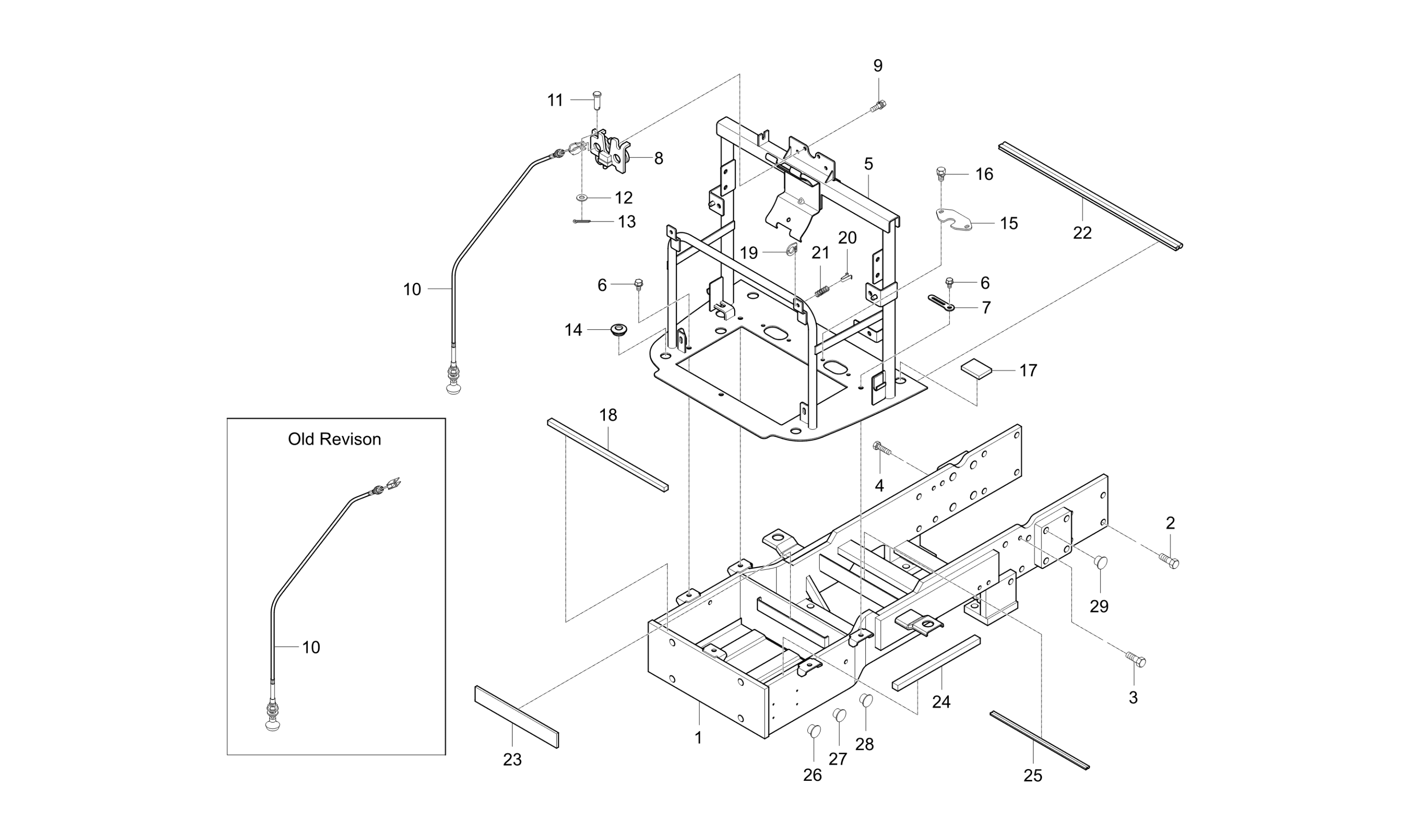

Diagram for FRONT AXLE FRAME GROUP - EX45H-T505A
  • 1

    FRAME,FRONT AXLE v

    • Part No. T4125-50013
    • Applied Dates 2006-04-11 to 2007-01-02
    • *multiple options for # 1
    • 1 shown on diagram
    $734.99
  • 1

    FRAME,FRONT AXLE v

    • Part No. T4125-50014
    • Compatibility New Replaces Old
    • Applied Dates 2007-01-03 to 2007-02-22
    • *multiple options for # 1
    • 1 shown on diagram
    $629.99
  • 1

    FRAME,FRONT AXLE v

    • Part No. T4125-50015
    • Compatibility Call for compatibility
    • Applied Dates 2007-02-23 to 2007-12-10
    • Serial No. GS2800001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $634.99
  • 1

    FRAME,FRONT AXLE v

    • Part No. T4125-50016
    • Compatibility New Replaces Old
    • Applied Dates 2007-12-11 to 2008-04-24
    • *multiple options for # 1
    • 1 shown on diagram
    $734.99
  • 1

    FRAME, FRONT AXLE v, Replaced by T4125-50017BB

    • Part No. T4125-50017
    • Compatibility New Replaces Old
    • Applied Dates 2008-04-25 and up
    • Serial No. HS2800001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 2

    BOLT v

    • Part No. 01177-51235
    • Applied Dates 2008-06-04 and up
    • M12XP1.25
    • 11 shown on diagram
    $3.49
  • 3

    BOLT

    • Part No. 01176-51250
    • Applied Dates Up to 2008-04-16
    • *multiple options for # 3
    • 2 shown on diagram
    $5.49
  • 3

    BOLT

    • Part No. 01177-51250
    • Compatibility Interchngable
    • Applied Dates 2008-04-17 and up
    • Serial No. HS2800001 and up
    • M12XP1.25(9T)
    • *multiple options for # 3
    • 2 shown on diagram
    $3.99
  • 4 BOLT, M10 P1.25×30

    BOLT, M10 P1.25×30

    • Part No. 01177-51030
    • Applied Dates 2008-04-17 and up
    • M10XP1.25(9T)
    • 1 shown on diagram
    $3.49
  • 5

    SUPPORT, RADIATOR

    • Part No. T4125-50203
    • Applied Dates 2006-04-11 to 2007-12-10
    • *multiple options for # 5
    • 1 shown on diagram
    $399.99
  • 5

    SUPPORT, RADIATOR v

    • Part No. T4125-50204
    • Compatibility New Replaces Old
    • Applied Dates 2007-12-11 to 2008-10-22
    • Serial No. Up to GS2800002
    • *multiple options for # 5
    • 1 shown on diagram
    $284.99
  • 5

    SUPPORT, RADIATOR v

    • Part No. T4125-50204ED
    • Compatibility No Interchange
    • Serial No. HS2800001 and up
    • *multiple options for # 5
    • 1 shown on diagram
    $274.99
  • 5

    SUPPORT, RADIATOR

    • Part No. T4125-50205
    • Compatibility No Interchange
    • Applied Dates 2011-10-01 to 2011-09-30
    • *multiple options for # 5
    • 1 shown on diagram
    $0.00
  • 5

    SUPPORT, RADIATOR

    • Part No. T4125-50206
    • Compatibility No Interchange
    • Applied Dates 2011-10-01 to 2013-11-30
    • Serial No. LS2800029 to NS2800040
    • *multiple options for # 5
    • 1 shown on diagram
    $0.00
  • 5

    SUPPORT, RADIATOR

    • Part No. T4125-50207
    • Compatibility New Replaces Old
    • Applied Dates 2013-12-01 and up
    • Serial No. NS2800041 and up
    • *multiple options for # 5
    • 1 shown on diagram
    $274.99
  • 6 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • Applied Dates 2008-09-24 to 2010-06-08
    • Serial No. HS2800001 to KS2800012
    • M8XP1.25
    • *multiple options for # 6
    • 5 shown on diagram
    $2.49
  • 6 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • Compatibility Interchngable
    • Applied Dates 2005-11-23 to 2006-04-10
    • Serial No. KS2800013 to JS2800032
    • M8XP1.25
    • *multiple options for # 6
    • 5 shown on diagram
    $1.19
  • 7

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 2 shown on diagram
    $4.99
  • 8

    ASSY,CATCH

    • Part No. T4125-50681
    • Applied Dates Up to 2011-09-30
    • Serial No. Up to LS2800028
    • *multiple options for # 8
    • 1 shown on diagram
    $98.99
  • 8

    HANDLE ASSY

    • Part No. T4145-60581
    • Compatibility No Interchange
    • Applied Dates 2011-10-01 to 2011-09-30
    • *multiple options for # 8
    • 1 shown on diagram
    $44.99
  • 8 HANDLE ASSY

    HANDLE ASSY

    • Part No. T4145-60582
    • Compatibility No Interchange
    • Applied Dates 2011-10-01 and up
    • Serial No. LS2800029 and up
    • *multiple options for # 8
    • 1 shown on diagram
    $66.99
  • 9 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50625
    • Applied Dates 2006-02-10 and up
    • M6XP1.0
    • 4 shown on diagram
    $1.29
  • 10

    CABLE,BONNET OPEN dnr v

    • Part No. T4125-50692
    • Applied Dates 2006-02-13 to 2011-05-28
    • Serial No. Up to LS2800012
    • *multiple options for # 10
    • 1 shown on diagram
    $37.99
  • 10 CABLE BONNET

    CABLE BONNET

    • Part No. T4125-50693
    • Compatibility Interchngable
    • Applied Dates 2011-05-29 and up
    • Serial No. LS2800013 and up
    • *multiple options for # 10
    • 1 shown on diagram
    $44.99
  • 11

    Pin, Joint M6x14mm

    • Part No. 05122-50614
    • 1 shown on diagram
    $2.49
  • 12

    Flat Washer M6

    • Part No. 04014-50060
    • 1 shown on diagram
    $0.67
  • 13

    Split Pin (05511-51615)

    • Part No. 05511-51615
    • DIA1.4XL15
    • 1 shown on diagram
    $0.56
  • 14

    RUBBER, CUSHION ROUND T4620-50592

    • Part No. T4620-50592
    • Applied Dates Up to 2009-01-20
    • *multiple options for # 14
    • 2 shown on diagram
    $5.49
  • 14

    RUBBER, CUSHION

    • Part No. T4125-50591
    • Compatibility New Replaces Old
    • Applied Dates 2009-01-21 and up
    • Serial No. JS2800001 and up
    • *multiple options for # 14
    • 2 shown on diagram
    $3.99
  • 15

    PLATE, GUIDE

    • Part No. T2185-50441
    • T2.3
    • 2 shown on diagram
    $6.49
  • 16 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • Applied Dates 2006-02-10 to 2010-01-25
    • Serial No. JS2800033 and up
    • M6XP1.0
    • *multiple options for # 16
    • 4 shown on diagram
    $1.89
  • 16 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • Compatibility Interchngable
    • Applied Dates 2010-01-26 to 2006-06-13
    • Serial No. KS2800001 and up
    • M6XP1.0
    • *multiple options for # 16
    • 4 shown on diagram
    $1.39
  • 17

    SPONGE

    • Part No. T4125-50272
    • Applied Dates 2006-05-10 and up
    • 2 shown on diagram
    $5.99
  • 18

    SPONGE

    • Part No. T4125-50282
    • Applied Dates 2006-05-10 and up
    • 1 shown on diagram
    $7.99
  • 19 FIXED PLATE, Replaced by T4125-50862BK

    FIXED PLATE, Replaced by T4125-50862BK

    • Part No. T4125-50862
    • Applied Dates 2006-02-13 and up
    • T1.6
    • 2 shown on diagram
    $0.00
  • 20 HANGER

    HANGER

    • Part No. T4125-50871
    • T2.0
    • 2 shown on diagram
    $3.49
  • 21 SPRING

    SPRING

    • Part No. T4125-50882
    • Applied Dates 2006-02-13 and up
    • T1.0
    • 2 shown on diagram
    $2.99
  • 22

    RUBBER(RADIATOR)

    • Part No. T4125-13691
    • Applied Dates 2006-04-11 and up
    • 1 shown on diagram
    $14.99
  • 23 RUBBER, CUSHION v

    RUBBER, CUSHION v

    • Part No. T2610-50271
    • Applied Dates 2006-04-11 and up
    • 1 shown on diagram
    $5.99
  • 24

    RUBBER

    • Part No. T4125-50091
    • Applied Dates 2006-06-13 and up
    • 1 shown on diagram
    $5.99
  • 25

    RUBBER

    • Part No. T4125-50901
    • Applied Dates 2006-10-12 and up
    • 2 shown on diagram
    $4.99
  • 26

    PLUG

    • Part No. T4520-26911
    • Applied Dates 2008-03-10 and up
    • 20 shown on diagram
    $4.99
  • 27

    PLUG

    • Part No. 31220-1429-3
    • Applied Dates 2008-03-10 and up
    • 9 shown on diagram
    $3.49
  • 28

    PLUG

    • Part No. 32210-2758-1
    • Applied Dates 2008-03-10 and up
    • M12
    • 10 shown on diagram
    $1.59
  • 29

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 8 shown on diagram
    $1.59
