LIGHT GROUP - EX45H-T965A

TAIL LAMP LH ASSY v, Replaced by T4125-75893BB

• Part No. T4125-75893
• Applied Dates 2006-10-27 to 2009-04-05
• Serial No. FS2800001 to GS2800002
• *multiple options for # 1
• 1 shown on diagram

ASS’Y TAIL LAMP(LEFT) v

• Part No. T4125-75893BB
• Compatibility No Interchange
• Serial No. HS2800001 and up
• *multiple options for # 1
• 1 shown on diagram

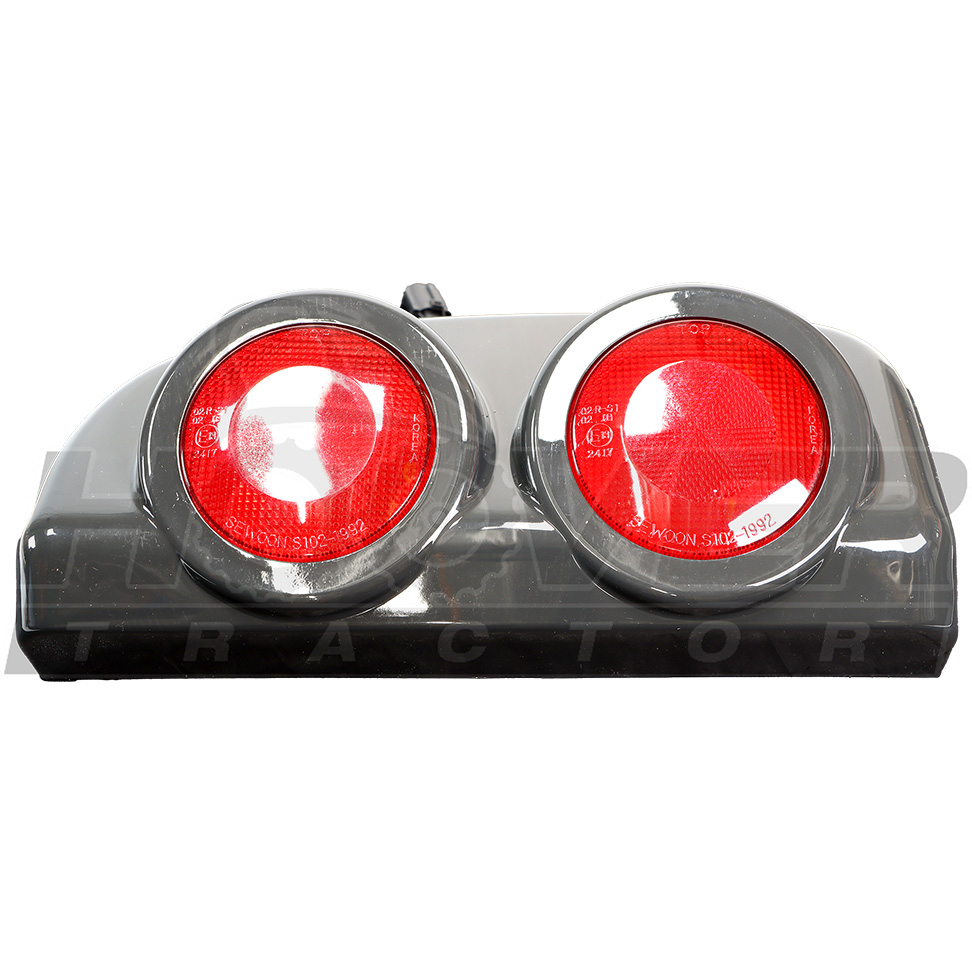

ASSY TAIL LAMP LH v

• Part No. T4157-75891
• Compatibility Call for compatibility
• Applied Dates 2011-10-23 to 2015-09-30
• Serial No. LS2800033 and up
• *multiple options for # 1
• 1 shown on diagram

ASSY LAMP, REAR COMBINATION-LH dnr v

• Part No. T4157-75892
• Compatibility No Interchange
• *multiple options for # 1
• 1 shown on diagram

REAR LAMP LH ASSY V OLD GRAY [NLA], Replaced by T4125-95113BB

• Part No. T4125-95113
• Applied Dates 2006-10-27 and up
• Serial No. Up to GS2800002
• *multiple options for # 2
• 1 shown on diagram

Rear Lamp (LH) New Charcoal Gray

• Part No. T4125-95113BB
• Compatibility No Interchange
• Serial No. HS2800001 and up
• *multiple options for # 2
• 1 shown on diagram

• Part No. T4125-95114
• Compatibility No Interchange
• *multiple options for # 2
• 1 shown on diagram

BOLT

• Part No. T4125-95422002
• Applied Dates 2006-05-23 and up
• 2 shown on diagram

TAPPING SCREW v

• Part No. 38240-1883-1
• Applied Dates 2006-02-18 and up
• M4X16
• 6 shown on diagram

LAMP, HAZARD REAR (AMBER)

• Part No. T2185-69651
• Applied Dates 2006-02-18 and up
• 1 shown on diagram

TAIL&STOP LAMP

• Part No. T2185-68661
• Applied Dates 2006-10-27 and up
• 1 shown on diagram

Bulb 12v 27w, 1156

• Part No. T2185-79011
• Applied Dates 2006-02-18 and up
• 1 shown on diagram

BULB V 1157

• Part No. T2185-79051
• Applied Dates 2006-02-18 and up
• S25D
• 1 shown on diagram

Lead Wire

• Part No. T4125-75882007
• Applied Dates 2006-10-27 to 2007-01-15
• *multiple options for # 9
• 1 shown on diagram

HARNESS ASSEMBLY

• Part No. T4157-69691
• Compatibility Call for compatibility
• *multiple options for # 9
• 1 shown on diagram

SCREW

• Part No. 03514-50512
• Applied Dates 2006-02-18 and up
• 4 shown on diagram

NLA- TAIL LAMP RH ASSY dnr v

• Part No. T4125-75883
• Applied Dates 2006-10-27 to 2009-04-05
• Serial No. FS2800001 to GS2800002
• *multiple options for # 11
• 1 shown on diagram

ASS’Y TAIL LAMP(RIGHT)

• Part No. T4125-75883BB
• Compatibility No Interchange
• Serial No. HS2800001 and up
• *multiple options for # 11
• 1 shown on diagram

Tail Lamp RH

• Part No. T4157-75881
• Compatibility Call for compatibility
• Applied Dates 2011-10-23 to 2015-09-30
• Serial No. LS2800033 and up
• *multiple options for # 11
• 1 shown on diagram

ASSY LAMP, REAR COMBINATION-RH dnr v

• Part No. T4157-75882
• Compatibility No Interchange
• *multiple options for # 11
• 1 shown on diagram

REAR LAMP RH ASSY, Replaced by T4125-95123BB

• Part No. T4125-95123
• Applied Dates 2006-10-27 and up
• Serial No. Up to GS2800002
• *multiple options for # 12
• 1 shown on diagram

LAMP ASSY REAR RH

• Part No. T4125-95123BB
• Compatibility No Interchange
• Serial No. HS2800001 and up
• *multiple options for # 12
• 1 shown on diagram

COVER, REAR LAMP RH

• Part No. T4125-95124
• Compatibility No Interchange
• *multiple options for # 12
• 1 shown on diagram

BOLT

• Part No. T4125-95422002
• Applied Dates 2006-05-23 and up
• 2 shown on diagram

TAPPING SCREW v

• Part No. 38240-1883-1
• Applied Dates 2006-02-18 and up
• M4X16
• 6 shown on diagram

LAMP, HAZARD REAR (AMBER)

• Part No. T2185-69651
• Applied Dates 2006-02-18 and up
• 1 shown on diagram

TAIL&STOP LAMP

• Part No. T2185-68661
• Applied Dates 2006-10-27 and up
• 1 shown on diagram

Bulb 12v 27w, 1156

• Part No. T2185-79011
• Applied Dates 2006-02-18 and up
• 1 shown on diagram

BULB V 1157

• Part No. T2185-79051
• Applied Dates 2006-02-18 and up
• S25D
• 1 shown on diagram

Lead Wire

• Part No. T4125-75882007
• Applied Dates 2006-10-27 and up
• 1 shown on diagram

SCREW

• Part No. 03514-50512
• Applied Dates 2006-02-18 and up
• 4 shown on diagram

ASSY LAMP,HEAD

• Part No. T4025-68901
• Applied Dates 2006-06-12 and up
• 1 shown on diagram

ASS’Y HEADLIGHT

• Part No. T4025-68911
• Applied Dates 2006-06-12 and up
• 1 shown on diagram

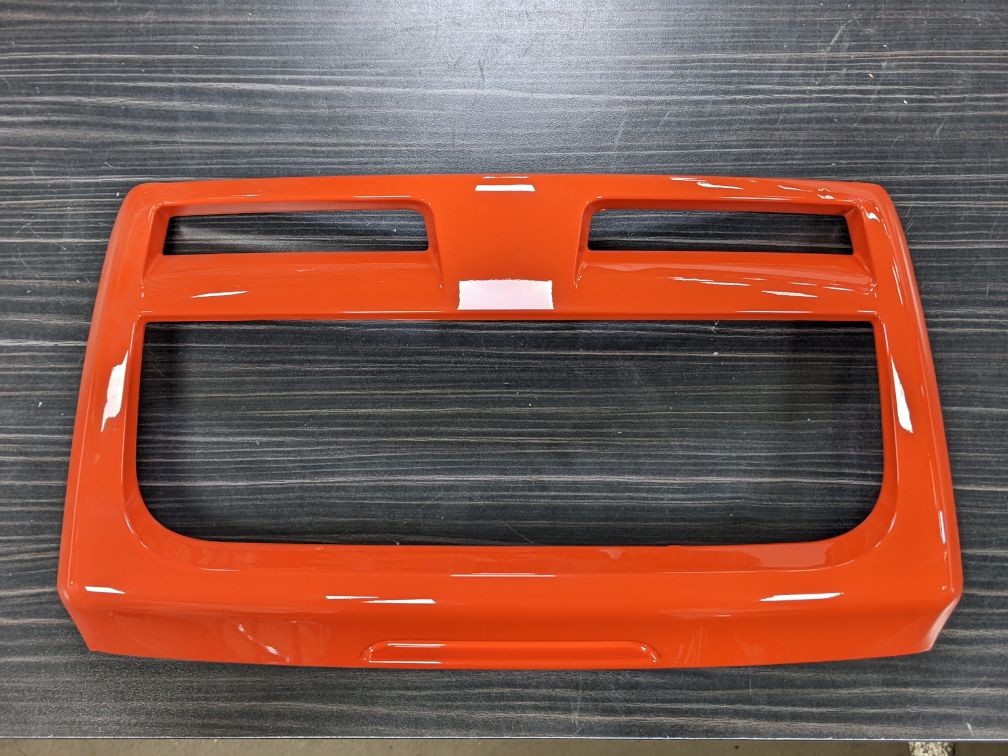

HEAD LAMP BODY

• Part No. T4025-68921
• Applied Dates 2006-06-12 and up
• 1 shown on diagram

WIRE

• Part No. T4025-68931
• Applied Dates 2006-06-12 and up
• T0.8
• 1 shown on diagram

BULB 12V35-35W

• Part No. T4620-69241
• Applied Dates 2006-06-12 and up
• 12V35W/35W(H4)
• 2 shown on diagram

ASS’Y WIRE HARNESS HEAD LAMP

• Part No. T4025-68941
• 1 shown on diagram

SCREW

• Part No. 38430-1827-1
• Applied Dates 2006-10-27 and up
• 10 shown on diagram

TURN INDICATOR ASSEMBLY v

• Part No. T4125-69061
• Applied Dates 2007-08-21 to 2008-01-17
• Serial No. GS2800001 and up
• *multiple options for # 28
• 2 shown on diagram

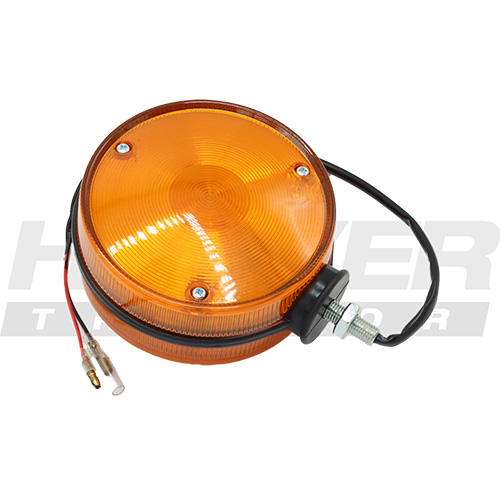

TURN INDICATOR ASSEMBLY

• Part No. T4125-69062
• Compatibility Call for compatibility
• Applied Dates 2008-01-18 and up
• Serial No. HS2800001 and up
• *multiple options for # 28
• 2 shown on diagram

BULB (12V 21W) v 1156

• Part No. T4620-69272
• Applied Dates 2007-07-05 and up
• 12V21W(S25S)
• 2 shown on diagram

WASHER, SPRING

• Part No. 04512-50100
• Applied Dates 2007-07-05 and up
• M10
• 2 shown on diagram
