CYLINDER BLOCK GROUP - F5800-G010A

Kioti TRACTOR | DK Series | DK5010HS

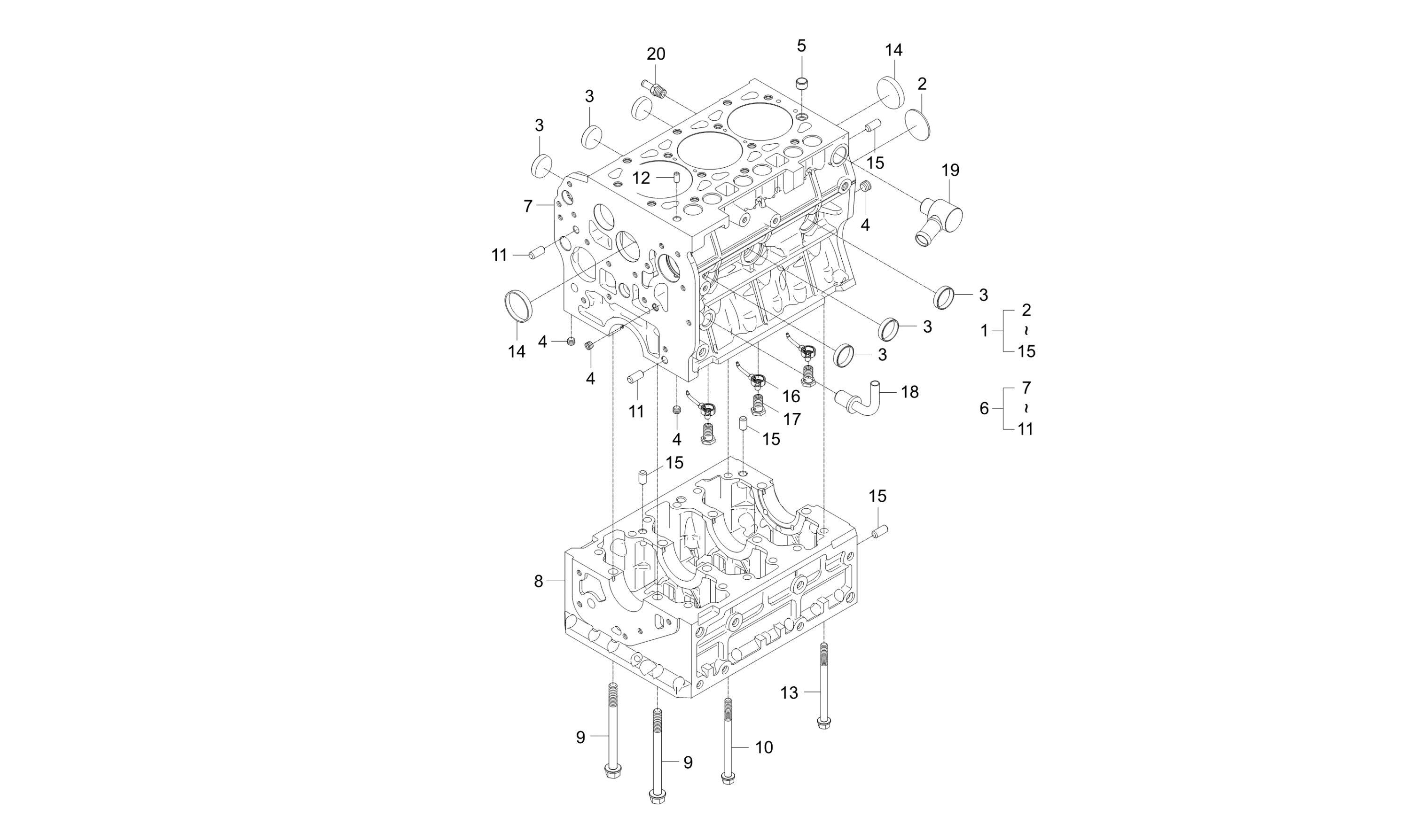

Diagram for CYLINDER BLOCK GROUP - F5800-G010A
  • 1

    ASSY BLOCK,CYLINDER

    • Part No. F5800-01003
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY BLOCK,CYLINDER

    • Part No. F5800-01004
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY BLOCK,CYLINDER

    • Part No. F5800-01005
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY BLOCK,CYLINDER

    • Part No. F5800-01006
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY BLOCK,CYLINDER

    • Part No. F5800-01007
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY BLOCK,CYLINDER

    • Part No. F5800-01008
    • Compatibility Interchangeable
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 2

    PLUG

    • Part No. 06311-75045
    • DIA45
    • 1 shown on diagram
    $3.49
  • 3 CAP, SEALING

    CAP, SEALING

    • Part No. 15221-0338-3
    • 6 shown on diagram
    $3.99
  • 4 PLUG, Replaced by E5900-96022

    PLUG, Replaced by E5900-96022

    • Part No. E5900-96021
    • *multiple options for # 4
    • 4 shown on diagram
    $4.99
  • 4 PLUG

    PLUG

    • Part No. E5900-96022
    • Compatibility Interchangeable
    • *multiple options for # 4
    • 4 shown on diagram
    $3.99
  • 5

    PIN, PIPE

    • Part No. E6301-33812
    • 1 shown on diagram
    $6.49
  • 6

    ASSY BLOCK,CYLINDER

    • Part No. F5800-A0014
    • *multiple options for # 6
    • 1 shown on diagram
    $3,894.99
  • 6

    CYLINDERBLOCKSUBASSY dnr v

    • Part No. F5800-01108
    • Compatibility Interchangeable
    • *multiple options for # 6
    • 1 shown on diagram
    $649.99
  • 7

    CYLINDER BLOCK

    • Part No. F5800-01113
    • *multiple options for # 7
    • 1 shown on diagram
    $0.00
  • 7

    CYLINDER BLOCK

    • Part No. F5800-01114
    • Compatibility New Replaces Old
    • *multiple options for # 7
    • 1 shown on diagram
    $0.00
  • 7

    CYLINDER BLOCK

    • Part No. F5800-01115
    • Compatibility New Replaces Old
    • *multiple options for # 7
    • 1 shown on diagram
    $0.00
  • 7

    CYLINDER BLOCK

    • Part No. F5800-01116
    • Compatibility Interchangeable
    • *multiple options for # 7
    • 1 shown on diagram
    $0.00
  • 8

    LADDER FRAME

    • Part No. F5800-01122
    • *multiple options for # 8
    • 1 shown on diagram
    $0.00
  • 8

    LADDER FRAME

    • Part No. F5800-01123
    • Compatibility New Replaces Old
    • *multiple options for # 8
    • 1 shown on diagram
    $0.00
  • 8

    LADDER FRAME

    • Part No. F5800-01124
    • Compatibility New Replaces Old
    • *multiple options for # 8
    • 1 shown on diagram
    $0.00
  • 9

    BOLT, MAIN BEARING

    • Part No. F6800-90111
    • 8 shown on diagram
    $9.49
  • 10

    BOLT, LADDER FRAME

    • Part No. F6800-90121
    • 4 shown on diagram
    $5.49
  • 11 PIN, STRAIGHT 05012-01018

    PIN, STRAIGHT 05012-01018

    • Part No. 05012-01018
    • DIA10XL18
    • 2 shown on diagram
    $1.79
  • 12

    PIN

    • Part No. F6800-33651
    • 1 shown on diagram
    $9.99
  • 13

    BOLT, LADDER FRAME

    • Part No. F6800-90121
    • 8 shown on diagram
    $5.49
  • 14

    CAP SEALING

    • Part No. 15221-0339-2
    • 2 shown on diagram
    $4.49
  • 15 PIN, STRAIGHT 05012-01018

    PIN, STRAIGHT 05012-01018

    • Part No. 05012-01018
    • DIA10XL18
    • 4 shown on diagram
    $1.79
  • 16

    BODY, PISTON COOLING JET

    • Part No. F6800-01311
    • 3 shown on diagram
    $21.99
  • 17

    VALVE, PISTON COOLING JET

    • Part No. F6800-01321
    • 3 shown on diagram
    $19.99
  • 18

    TUBE 3, OIL, Replaced by E6500-33063

    • Part No. E6500-33062
    • *multiple options for # 18
    • 1 shown on diagram
    $0.00
  • 18

    PIPE, OIL-3 v

    • Part No. E6500-33063
    • Compatibility New Replaces Old
    • *multiple options for # 18
    • 1 shown on diagram
    $38.99
  • 19

    COOLANT CONNECTOR ASSY v

    • Part No. F6800-20702
    • *multiple options for # 19
    • 1 shown on diagram
    $49.99
  • 19

    COOLANT CONNECTOR ASSY

    • Part No. F6800-20703
    • Compatibility Interchangeable
    • *multiple options for # 19
    • 1 shown on diagram
    $55.99
  • 20

    JOINT, HOSE

    • Part No. F6800-73341
    • 1 shown on diagram
    $12.99
