Fuel Filter & Pipe Group - F5830-G160B

Kioti TRACTOR | DK Series | DK5010HS

Diagram for Fuel Filter & Pipe Group - F5830-G160B
  • 1 Bolt, M6 P1.0x25

    Bolt, M6 P1.0x25

    • Part No. 01053-50625
    • M6*P1.0
    • 2 shown on diagram
    $1.09
  • 2 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 3

    Bolt With Washers, M8 P1.25 x 30mm

    • Part No. 01125-50830
    • M8*P1.25
    • 2 shown on diagram
    $2.99
  • 4 NUT

    NUT

    • Part No. 02012-50060
    • 4 shown on diagram
    $0.61
  • 5

    HOSE

    • Part No. 09661-80300
    • 1 shown on diagram
    $7.49
  • 6

    HOSE

    • Part No. 09661-80450
    • 1 shown on diagram
    $13.99
  • 7

    CLIP, TUBE

    • Part No. 14911-4275-1
    • T0.8*#12
    • 3 shown on diagram
    $1.49
  • 8

    CLIP, HOSE

    • Part No. 15301-7247-0
    • ??16#
    • 1 shown on diagram
    $2.49

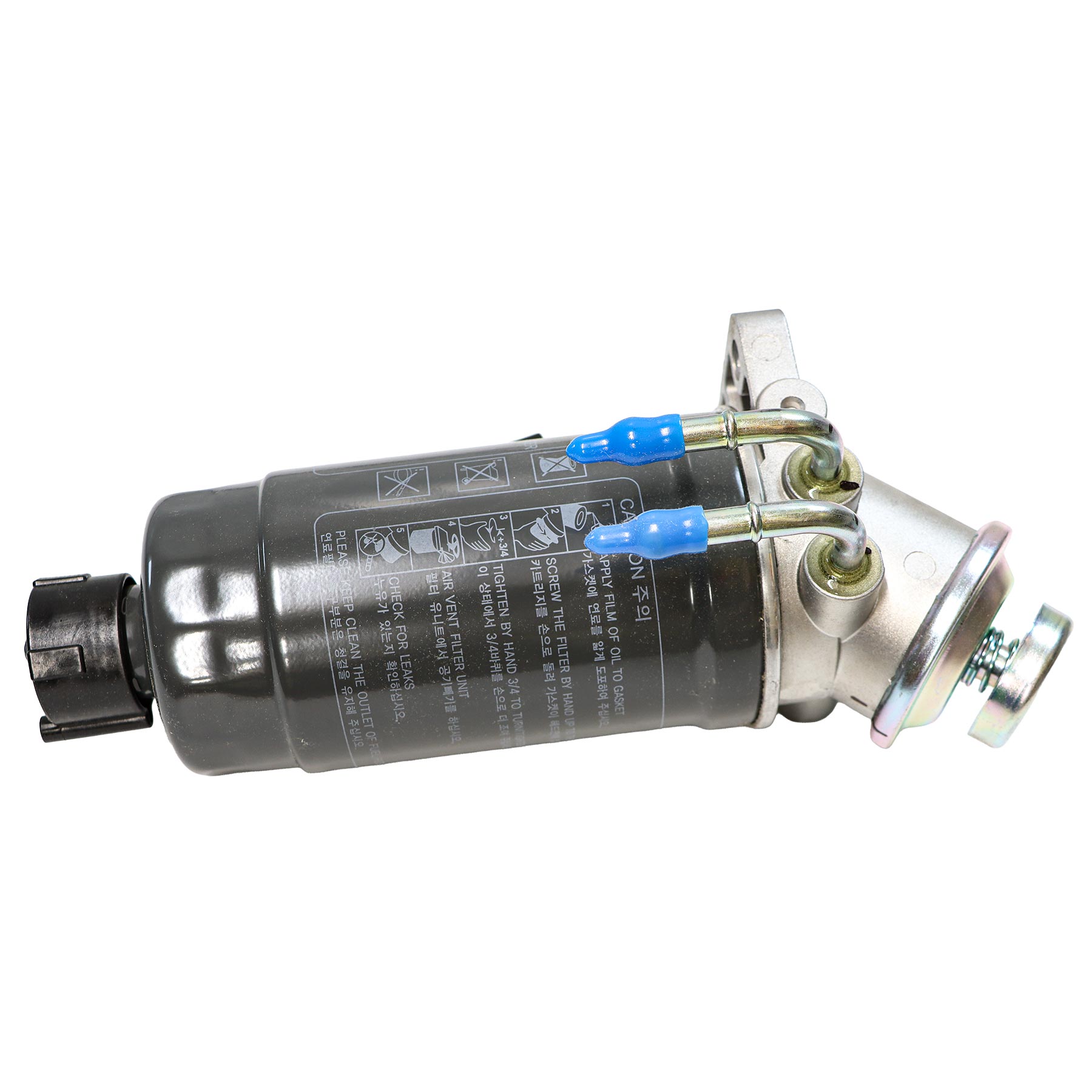

  • 9 ASSY FILTER, FUEL v

    ASSY FILTER, FUEL v

    • Part No. F5805-16402
    • 1 shown on diagram
    $159.99
  • 10

    SENSOR, FUEL WATER M12 P1.125

    • Part No. F6800-16121
    • 1 shown on diagram
    $66.99
  • 11 Main Fuel Filter (Tier 4) 2018 & before

    Main Fuel Filter (Tier 4) 2018 & before

    • Part No. F6800-16411
    • 1 shown on diagram
    $56.99
  • 12

    SUPPORT

    • Part No. F5830-16121
    • 1 shown on diagram
    $0.00
  • 13

    BRACKET, FUEL-FILTER

    • Part No. F5830-16141
    • 1 shown on diagram
    $58.99
  • 14

    QUICK CONNECTOR

    • Part No. F6800-16131
    • 3 shown on diagram
    $15.99
