Turbo Charger Group - F5800-G240A

Kioti TRACTOR | DK Series | DK5010

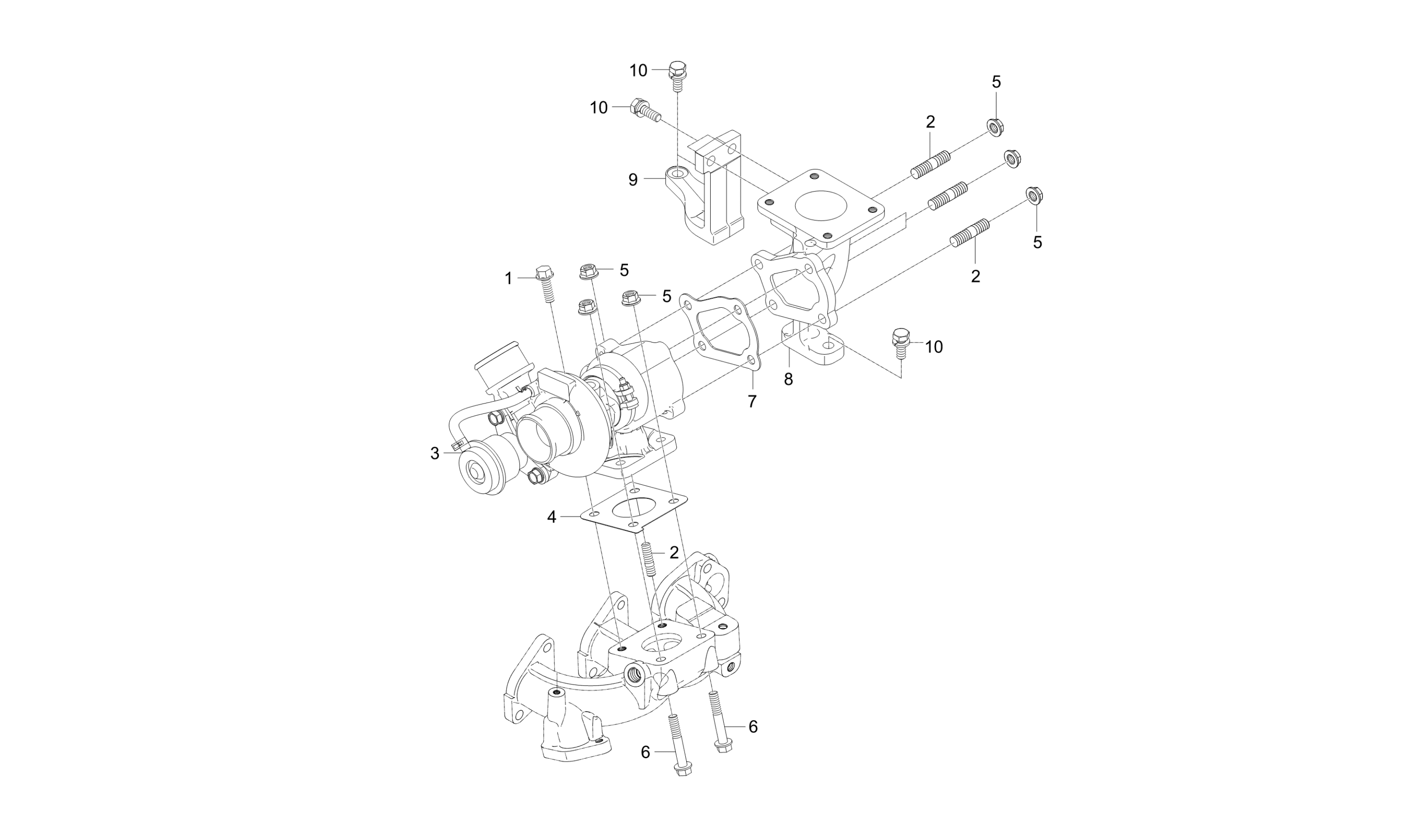

Diagram for Turbo Charger Group - F5800-G240A
  • 1

    FLANGEBOLT

    • Part No. F6800-92411
    • M8x1.25 25mm
    • *multiple options for # 1
    • 3 shown on diagram
    $9.99
  • 1

    FLANGEBOLT

    • Part No. F6800-92411
    • Compatibility Interchangeable
    • M8x1.25 25mm
    • *multiple options for # 1
    • 1 shown on diagram
    $9.99
  • 2 BOLT, STUD

    BOLT, STUD

    • Part No. F6800-92441
    • *multiple options for # 2
    • 3 shown on diagram
    $8.49
  • 2 BOLT, STUD

    BOLT, STUD

    • Part No. F6800-92441
    • Compatibility Interchangeable
    • *multiple options for # 2
    • 5 shown on diagram
    $8.49
  • 3
    • Part No. F5800-17011
    • *multiple options for # 3
    • 1 shown on diagram

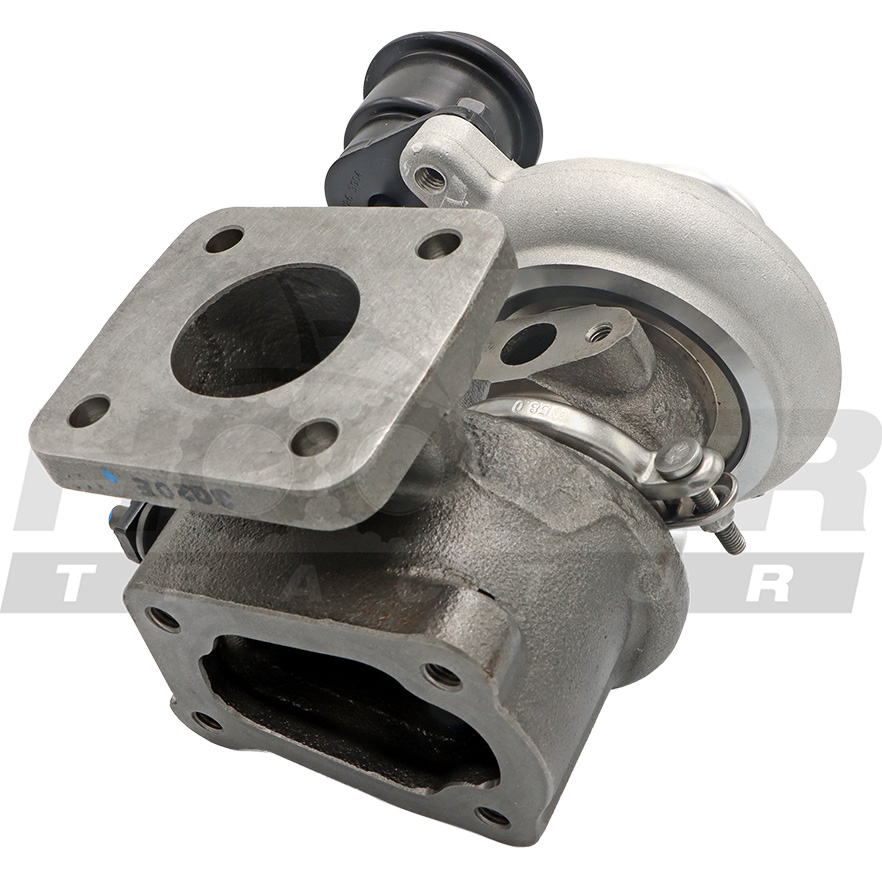

  • 3 TURBOCHARGER ASSY v

    TURBOCHARGER ASSY v

    • Part No. F5800-17012
    • Compatibility Interchangeable
    • *multiple options for # 3
    • 1 shown on diagram
    $2,044.99
  • 4 GASKET 1, TURBOCHARGER

    GASKET 1, TURBOCHARGER

    • Part No. F6800-17101
    • t0.2*4
    • 1 shown on diagram
    $16.99
  • 5 U-NUT

    U-NUT

    • Part No. F6800-91911
    • *multiple options for # 5
    • 5 shown on diagram
    $0.79
  • 5 U-NUT

    U-NUT

    • Part No. F6800-91911
    • Compatibility Interchangeable
    • *multiple options for # 5
    • 7 shown on diagram
    $0.79
  • 6

    FLANGEBOLT

    • Part No. F6800-92421
    • M8x1.25 65mm
    • 2 shown on diagram
    $15.99

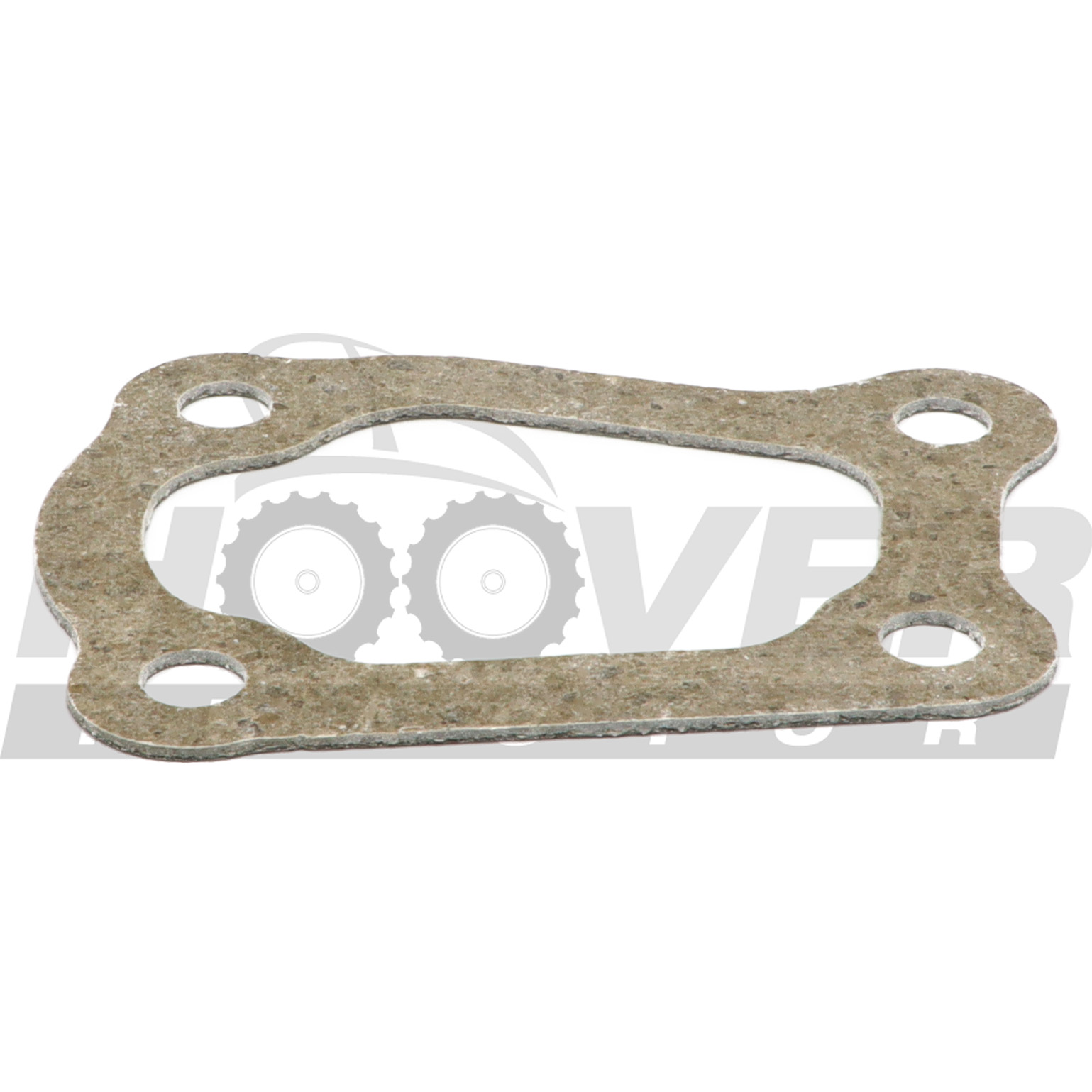

  • 7 GASKET 2, TURBOCHARGER

    GASKET 2, TURBOCHARGER

    • Part No. F6800-17111
    • t1.5
    • 1 shown on diagram
    $15.99
  • 8

    FLANGE, TURBOCHARGER

    • Part No. F6800-11951
    • 1 shown on diagram
    $194.99
  • 9

    SUPPORT, TURBOCHARGER FLANGE

    • Part No. F6800-25501
    • 1 shown on diagram
    $81.99
  • 10 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 5 shown on diagram
    $2.49
