IDLE GEAR GROUP - F6800-G100A

Kioti TRACTOR | DK Series | DK5010

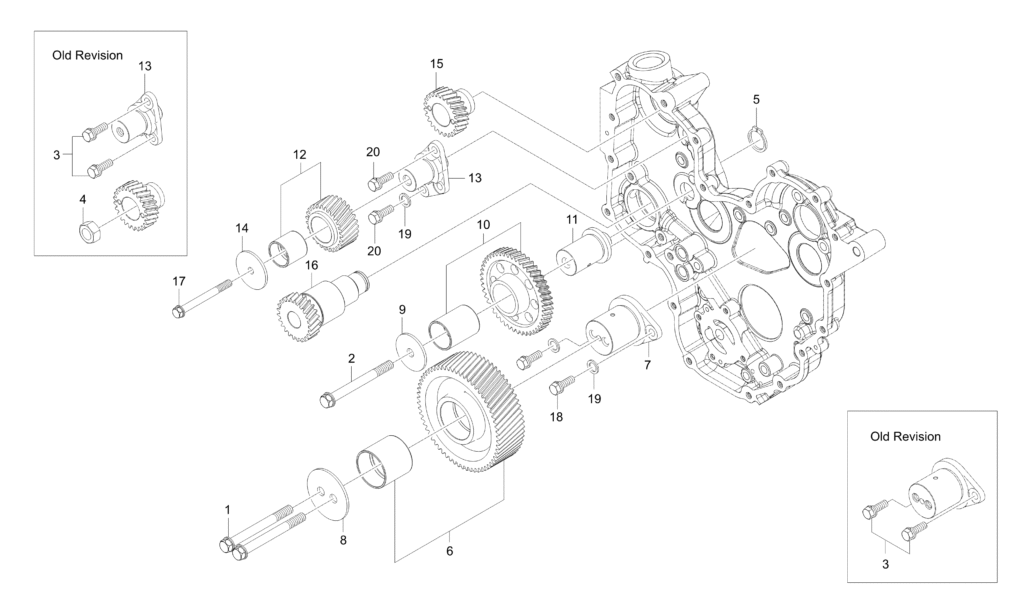

Diagram for IDLE GEAR GROUP - F6800-G100A

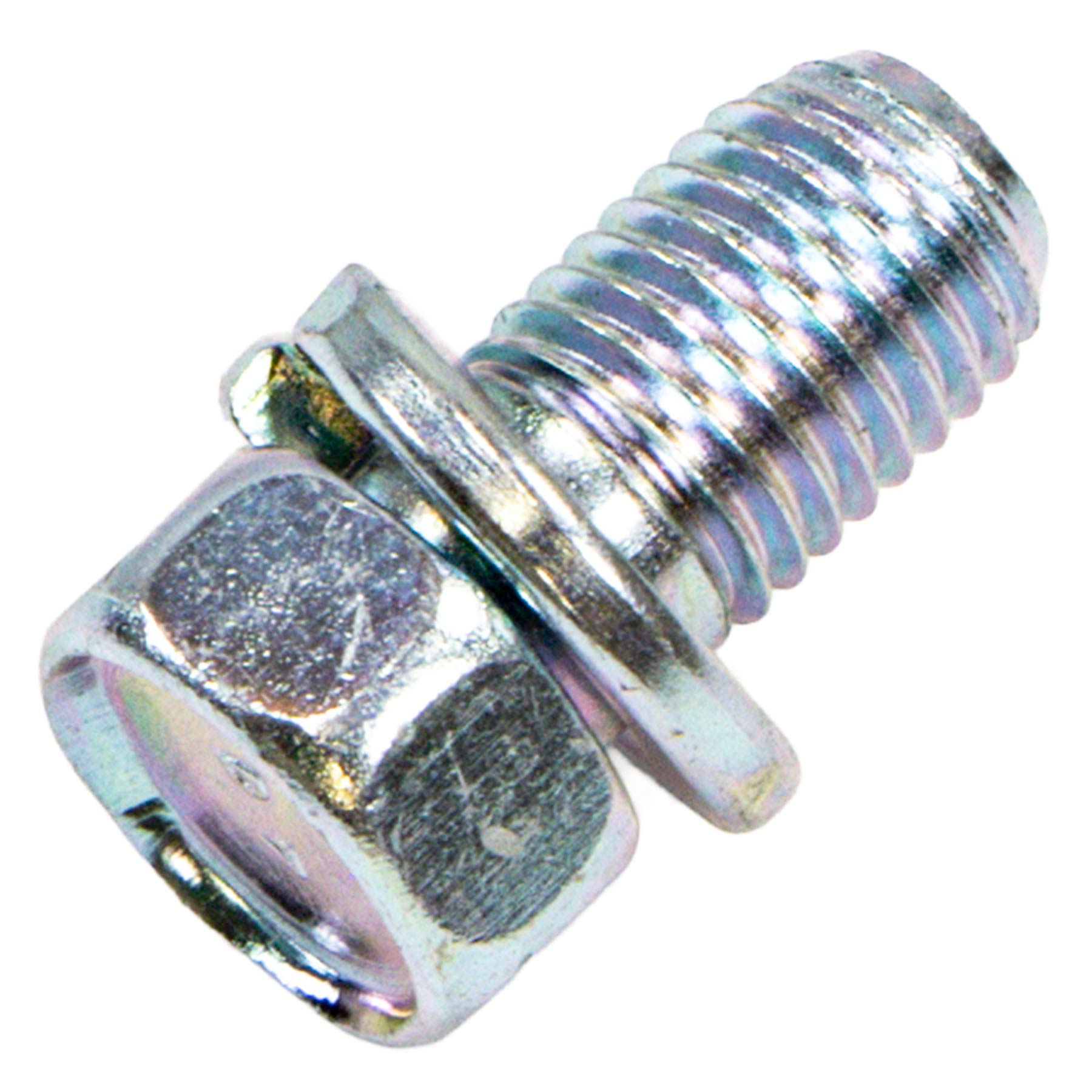

  • 1 BOLT

    BOLT

    • Part No. 01133-51018
    • Applied Dates 2013-01-02 and up
    • M10XP1.25
    • *multiple options for # 1
    • 2 shown on diagram
    $3.49
  • 1

    Bolt With Washer, M8 P1.25 x 70mm

    • Part No. 01123-50870
    • Compatibility New Replaces Old
    • M8XP1.25
    • *multiple options for # 1
    • 2 shown on diagram
    $3.49
  • 2

    BOLT

    • Part No. 01133-51090
    • M10XP1.25
    • 1 shown on diagram
    $4.49
  • 3

    BOLT, FLANGE

    • Part No. 01754-50822
    • M8XP1.25
    • 4 shown on diagram
    $1.89
  • 4

    FLANGE NUT

    • Part No. F6800-92771
    • M14x1.5
    • *multiple options for # 4
    • 1 shown on diagram
    $2.99
  • 4

    FLANGE NUT

    • Part No. F6800-92771
    • Compatibility Interchangeable
    • M14x1.5
    • *multiple options for # 4
    • 1 shown on diagram
    $2.99
  • 5

    SNAP_RING

    • Part No. 15471-9536-1
    • F25
    • 1 shown on diagram
    $7.49
  • 6

    IDLE GEAR ASSY, 1, Replaced by F6800-10102

    • Part No. F6800-10101
    • *multiple options for # 6
    • 1 shown on diagram
    $0.00
  • 6

    Assy IDLE GEAR1

    • Part No. F5850-10102
    • Compatibility New Replaces Old
    • *multiple options for # 6
    • 1 shown on diagram
    $239.99
  • 6

    ASSY GEAR, IDLE-1 dnr v

    • Part No. F5850-10103
    • Compatibility New Replaces Old
    • *multiple options for # 6
    • 1 shown on diagram
    $154.99
  • 7

    SHAFT, IDLE GEAR 1

    • Part No. F6800-10153
    • *multiple options for # 7
    • 1 shown on diagram
    $88.99
  • 7

    SHAFT, IDLE GEAR 1 dnr v

    • Part No. F6800-10154
    • Compatibility New Replaces Old
    • *multiple options for # 7
    • 1 shown on diagram
    $56.99
  • 7

    SHAFT,IDLEGEAR1 v

    • Part No. F6800-10155
    • Compatibility Interchangeable
    • *multiple options for # 7
    • 1 shown on diagram
    $83.99
  • 8

    STOPPER, IDLE GEAR 1

    • Part No. F6800-10161
    • *multiple options for # 8
    • 1 shown on diagram
    $29.99
  • 8

    STOPPER 1, IDLE GEAR

    • Part No. F6800-10162
    • Compatibility New Replaces Old
    • *multiple options for # 8
    • 1 shown on diagram
    $0.00
  • 8

    STOPPER 1, IDLE GEAR

    • Part No. F6800-10163
    • Compatibility Interchangeable
    • *multiple options for # 8
    • 1 shown on diagram
    $21.99
  • 9

    STOPPER, IDLE GEAR 2

    • Part No. F6800-10261
    • 1 shown on diagram
    $21.99
  • 10

    IDLE GEAR ASSY, 3

    • Part No. F6800-10301
    • *multiple options for # 10
    • 1 shown on diagram
    $184.99
  • 10

    IDLE GEAR ASSY ,3

    • Part No. F6800-10302
    • Compatibility New Replaces Old
    • *multiple options for # 10
    • 1 shown on diagram
    $134.99
  • 10

    ASSY GEAR, IDLE-3

    • Part No. F6800-10303
    • Compatibility New Replaces Old
    • *multiple options for # 10
    • 1 shown on diagram
    $119.99
  • 11

    SHAFT, IDLE GEAR 3

    • Part No. F6800-10351
    • *multiple options for # 11
    • 1 shown on diagram
    $47.99
  • 11

    SHAFT 3, IDLE GEAR dnr v

    • Part No. F6800-10352
    • Compatibility New Replaces Old
    • *multiple options for # 11
    • 1 shown on diagram
    $39.99
  • 11

    SHAFT 3, IDLE GEAR v

    • Part No. F6800-10353
    • Compatibility Interchangeable
    • *multiple options for # 11
    • 1 shown on diagram
    $44.99
  • 12

    IDLE GEAR ASSY, 4

    • Part No. F6800-10401
    • *multiple options for # 12
    • 1 shown on diagram
    $149.99
  • 12 ASSY GEAR, IDLE-4          v

    ASSY GEAR, IDLE-4          v

    • Part No. F6800-10402
    • Compatibility New Replaces Old
    • *multiple options for # 12
    • 1 shown on diagram
    $109.99
  • 12

    ASSY GEAR, IDLE-4

    • Part No. F6800-10403
    • Compatibility New Replaces Old
    • *multiple options for # 12
    • 1 shown on diagram
    $91.99
  • 13

    SHAFT, IDLE GEAR 4 v

    • Part No. F6800-10452
    • *multiple options for # 13
    • 1 shown on diagram
    $75.99
  • 13

    SHAFT, IDLE GEAR 4 dnr v

    • Part No. F6800-10453
    • Compatibility New Replaces Old
    • *multiple options for # 13
    • 1 shown on diagram
    $49.99
  • 13

    SHAFT, IDLE GEAR 4

    • Part No. F6800-10454
    • Compatibility New Replaces Old
    • *multiple options for # 13
    • 1 shown on diagram
    $48.99
  • 13 SHAFT,IDLEGEAR4 dnr, v

    SHAFT,IDLEGEAR4 dnr, v

    • Part No. F6800-10455
    • Compatibility Interchangeable
    • *multiple options for # 13
    • 1 shown on diagram
    $68.99
  • 14

    STOPPER, IDLE GEAR 4

    • Part No. F6800-10461
    • *multiple options for # 14
    • 1 shown on diagram
    $25.99
  • 14

    STOPPER, IDLE GEAR 2

    • Part No. F6800-10261
    • Compatibility New Replaces Old
    • *multiple options for # 14
    • 1 shown on diagram
    $21.99
  • 15

    GEAR, HP FUEL PUMP

    • Part No. F6800-10502
    • 1 shown on diagram
    $159.99
  • 16

    GEAR, HYDRAULIC PUMP DRIVE

    • Part No. F6800-10611
    • *multiple options for # 16
    • 1 shown on diagram
    $199.99
  • 16

    GEAR, HYDRAULIC PUMP DRIVE

    • Part No. F6800-10612
    • Compatibility Interchangeable
    • *multiple options for # 16
    • 1 shown on diagram
    $244.99
  • 17 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • Applied Dates 2012-12-07 to 2016-01-07
    • Serial No. SR8000001 to WR8000028
    • M8XP1.25
    • *multiple options for # 17
    • 1 shown on diagram
    $1.09
  • 17 BOLT, WITH WASHER

    BOLT, WITH WASHER

    • Part No. EF15-0039A
    • Compatibility New Replaces Old
    • *multiple options for # 17
    • 1 shown on diagram
    $3.49
  • 18

    FLANGE BOLT dnr v

    • Part No. F6800-91011
    • *multiple options for # 18
    • 4 shown on diagram
    $1.19
  • 18

    FLANGE BOLT dnr v

    • Part No. F6800-91011
    • Compatibility New Replaces Old
    • *multiple options for # 18
    • 5 shown on diagram
    $1.19
  • 18

    FLANGE BOLT v

    • Part No. EF15-0030A
    • Compatibility New Replaces Old
    • *multiple options for # 18
    • 5 shown on diagram
    $2.49
  • 18

    FLANGE BOLT v

    • Part No. EF15-0030A
    • Compatibility New Replaces Old
    • *multiple options for # 18
    • 2 shown on diagram
    $2.49
  • 19

    NORD-LOCK WASHER v

    • Part No. EF15-0029A
    • *multiple options for # 19
    • 2 shown on diagram
    $8.49
  • 19

    NORD-LOCK WASHER v

    • Part No. EF15-0029A
    • Compatibility New Replaces Old
    • *multiple options for # 19
    • 3 shown on diagram
    $8.49
  • 20 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. EF15-0038A
    • 3 shown on diagram
    $2.49
