BEVEL GEAR CASE GROUP - T5715-G315A

Kioti TRACTOR | DK Series | DK5010HS

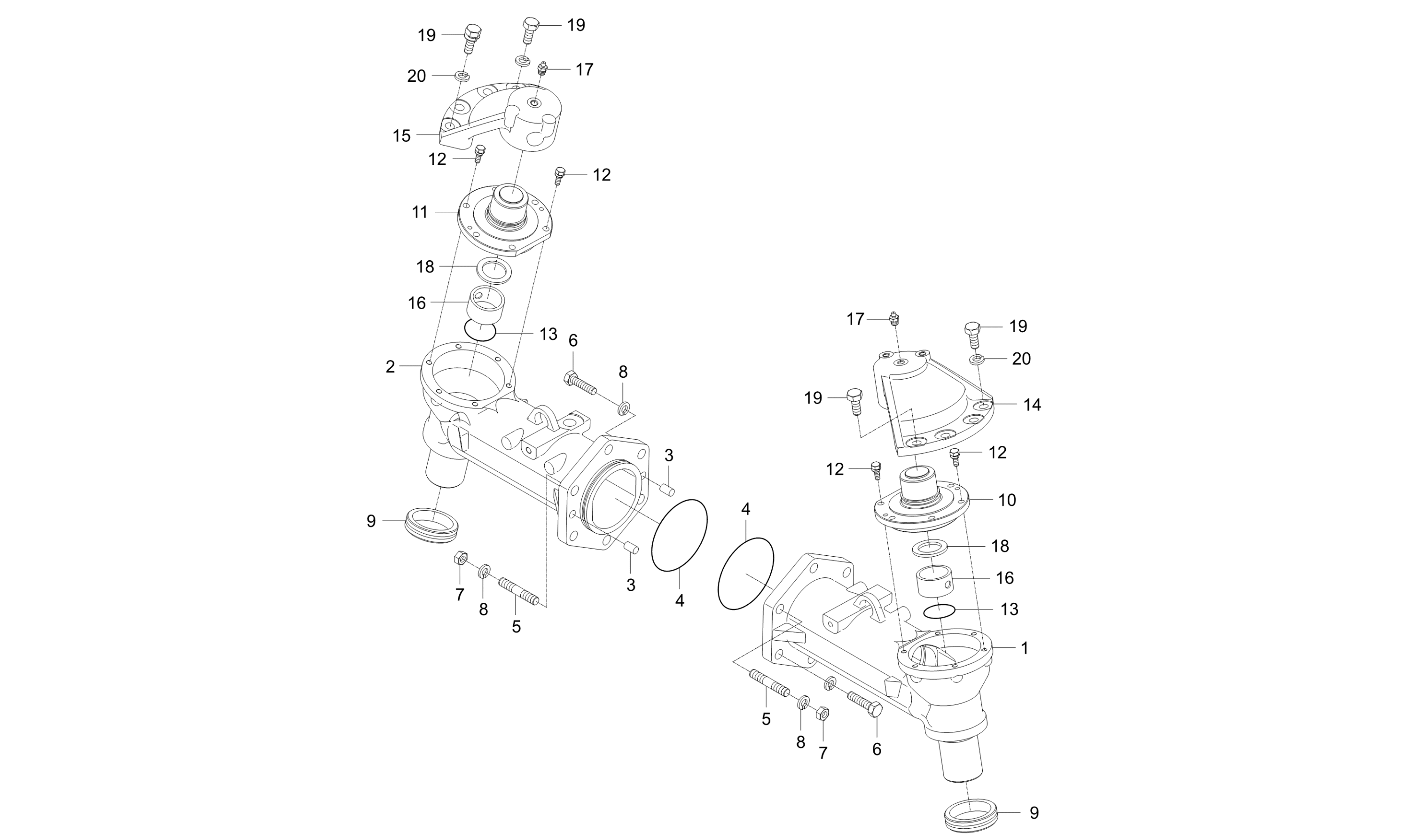

Diagram for BEVEL GEAR CASE GROUP - T5715-G315A
  • 1

    BEVEL GEAR CASE LH, Replaced by T5715-43312

    • Part No. T5715-43311
    • 1 shown on diagram
    $478.33
  • 2

    BEVEL GEAR CASE RH, Replaced by T5715-43332

    • Part No. T5715-43331
    • 1 shown on diagram
    $0.00
  • 3 PIN, DOWEL

    PIN, DOWEL

    • Part No. 37805-4350-1
    • 4 shown on diagram
    $5.99
  • 4 O RING

    O RING

    • Part No. 04811-51050
    • 2 shown on diagram
    $1.89
  • 5

    STUD v

    • Part No. 01517-51440
    • 4 shown on diagram
    $5.99
  • 6

    BOLT

    • Part No. 01173-51445
    • M14XP1.5
    • 8 shown on diagram
    $7.99
  • 7 NUT

    NUT

    • Part No. 02176-50140
    • M14XP1.5
    • 4 shown on diagram
    $1.79
  • 8

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 12 shown on diagram
    $0.90
  • 9 Floating Seal Assy, 61mm ID

    Floating Seal Assy, 61mm ID

    • Part No. T4818-43451
    • 2 shown on diagram
    $77.99
  • 10

    WINNOWBEARINGHOLDER

    • Part No. T5520-31533
    • 1 shown on diagram
    $174.99
  • 11

    WINNOWBEARINGHOLDER

    • Part No. T5520-31542
    • 1 shown on diagram
    $159.99
  • 12 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 12 shown on diagram
    $1.99
  • 13

    O RING

    • Part No. 04811-00490
    • 2 shown on diagram
    $1.29
  • 14

    SUPPORT, AXLE CASE

    • Part No. T5520-31562
    • 1 shown on diagram
    $249.99
  • 15

    SUPPORT, AXLE CASE

    • Part No. T5520-31572
    • 1 shown on diagram
    $239.99
  • 16

    DX BUSH v

    • Part No. T4682-43372
    • 2 shown on diagram
    $71.99
  • 17 Grease Zerk 1/8″ BSPT

    Grease Zerk 1/8″ BSPT

    • Part No. 06611-15010
    • 2 shown on diagram
    $2.49
  • 18

    COLLAR,THRUST

    • Part No. T4682-43261
    • 2 shown on diagram
    $15.99
  • 19

    BOLT v

    • Part No. 01176-51235
    • 8 shown on diagram
    $3.49
  • 20 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 8 shown on diagram
    $0.95
