STEERING CYLINDER GROUP - T5715-G335A

Kioti TRACTOR | DK Series | DK5010HS

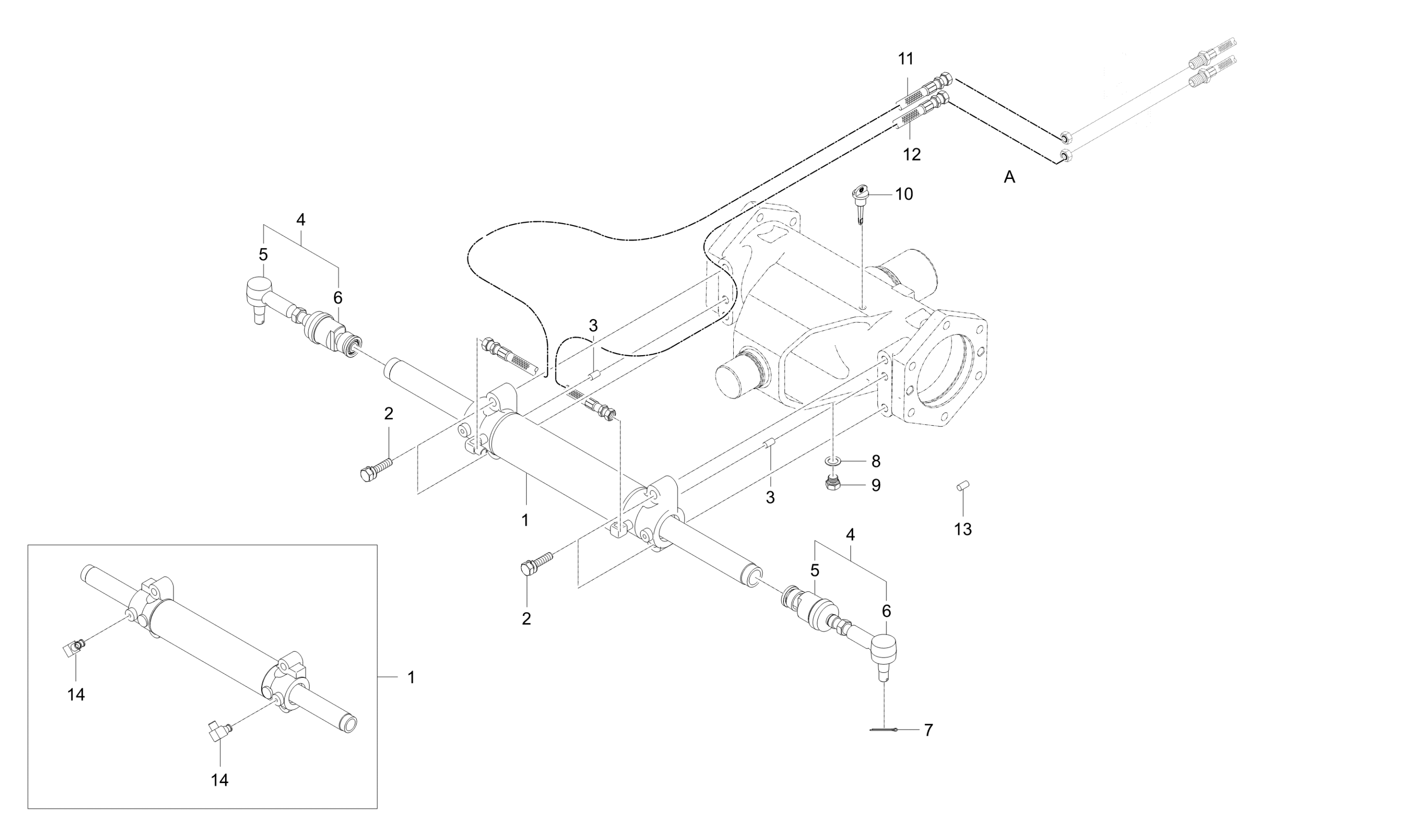

Diagram for STEERING CYLINDER GROUP - T5715-G335A
  • 1

    CYLINDER ASSY

    • Part No. T5715-45201
    • 1 shown on diagram
    $1,059.99
  • 2

    BOLT

    • Part No. 01133-51255
    • 4 shown on diagram
    $4.99
  • 3

    PIN, DOWEL

    • Part No. 05012-01016
    • 2 shown on diagram
    $1.49
  • 4

    BALL JOINT ASSY v, Replaced by T4115-63603

    • Part No. T4115-63602
    • 2 shown on diagram
    $226.96
  • 5

    ASSY RACK END, Replaced by T4115-63613

    • Part No. T4115-63612
    • 1 shown on diagram
    $154.73
  • 6

    TIE ROD ASSY v, Replaced by T4520-63625

    • Part No. T4520-63624
    • 1 shown on diagram
    $135.63
  • 7

    PIN, SPLIT

    • Part No. 05511-50335
    • DIA3*35
    • 2 shown on diagram
    $0.68
  • 8

    WASHER,SEAL

    • Part No. 04717-01400
    • 1 shown on diagram
    $1.69
  • 9

    PLUG

    • Part No. 06331-45014
    • M14XP1.5
    • 1 shown on diagram
    $5.99
  • 10

    GAUGE,OIL

    • Part No. T5520-36571
    • 1 shown on diagram
    $15.99
  • 11

    HOSE ASSEMBLY

    • Part No. T5710-39211
    • 1 shown on diagram
    $99.99
  • 12

    HOSE ASSEMBLY

    • Part No. T5710-39221
    • 1 shown on diagram
    $99.99
  • 13

    PLUG

    • Part No. 32210-2758-1
    • Applied Dates 2014-08-04 and up
    • Serial No. VR8100001 and up
    • M12
    • *multiple options for # 13
    • 4 shown on diagram
    $1.59
  • 13

    PLUG

    • Part No. 34150-2758-1
    • Compatibility New Replaces Old
    • Applied Dates 2014-08-04 and up
    • *multiple options for # 13
    • 4 shown on diagram
    $2.49
  • 14

    ELBOW, PORT

    • Part No. T5715-45201012
    • 1 shown on diagram
    $42.99
