ELECTRICAL GROUP - TB110HGE-T2160A

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

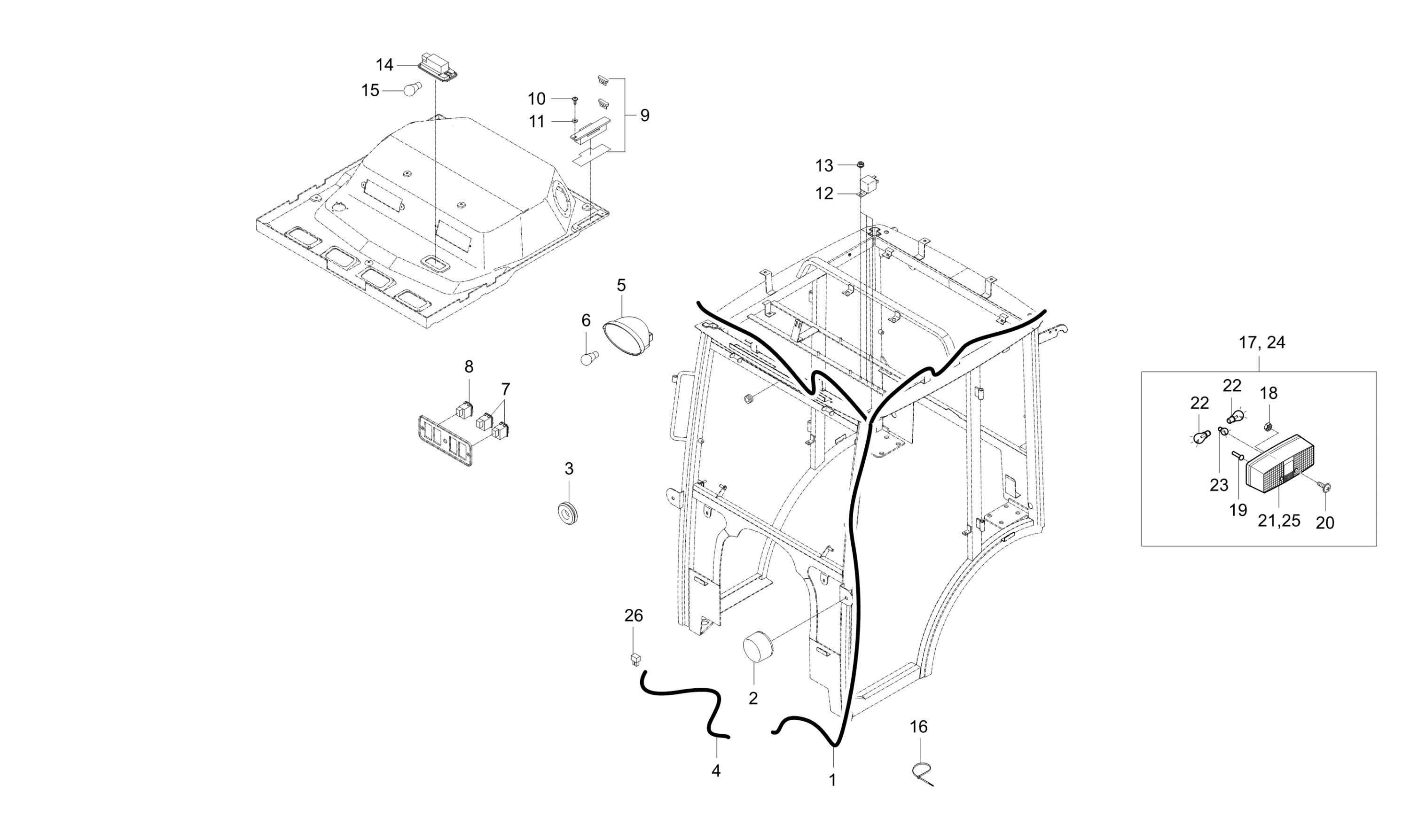

Diagram for ELECTRICAL GROUP - TB110HGE-T2160A
  • 1

    HARNESS WIRE ASSY CABIN 1

    • Part No. T2391-69171
    • * multiple options for #1
    • 1 shown on diagram
    $374.99
  • 1

    ASSY WIRE HARNESS, CABIN

    • Part No. TB25-0004A
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $584.99
  • 1

    ASSY WIRE HARNESS, CABIN

    • Part No. TB25-0004B
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $524.99
  • 2

    LAMP FRONT COMBINATION v

    • Part No. T2391-69071
    • 2 shown on diagram
    $84.99
  • 3

    GROMMET

    • Part No. 31355-2949-1
    • 2 shown on diagram
    $4.99
  • 4

    HARNESS WIRE GENERATOR CONNECTION

    • Part No. T2131-69351
    • 1 shown on diagram
    $16.99
  • 5

    ASSY LAMP, WORKING

    • Part No. T2131-69803
    • AF/O TCJ1022800A3
    • 2 shown on diagram
    $134.99
  • 6 BULB, HALOGEN-12V35W

    BULB, HALOGEN-12V35W

    • Part No. T4620-69251
    • H3
    • 1 shown on diagram
    $21.99
  • 7 Switch, Work Light (T4520-54222)

    Switch, Work Light (T4520-54222)

    • Part No. T4520-54222
    • 2 shown on diagram
    $33.99
  • 8

    SWITCH HEATER

    • Part No. T4681-83611
    • 1 shown on diagram
    $72.99
  • 9

    ASSY FUSE BOX

    • Part No. T2131-69601
    • * multiple options for #9
    • 1 shown on diagram
    $39.99
  • 9

    ASSY FUSE BOX

    • Part No. T2135-69602
    • Compatibility New repl old
    • * multiple options for #9
    • 1 shown on diagram
    $89.99
  • 10

    BOLT

    • Part No. 03056-50416
    • M4XP0.7
    • 2 shown on diagram
    $0.40
  • 11 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 12 RELAY 5P, Replaced by T5535-69961

    RELAY 5P, Replaced by T5535-69961

    • Part No. T4180-69961
    • * multiple options for #12
    • 3 shown on diagram
    $0.00
  • 12 Relay, 5P, 30A 40A, with bracket

    Relay, 5P, 30A 40A, with bracket

    • Part No. T5535-69961
    • Compatibility New repl old
    • Bracket
    • * multiple options for #12
    • 5 shown on diagram
    $19.99
  • 13 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • * multiple options for #13
    • 3 shown on diagram
    $0.73
  • 13 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • Compatibility New repl old
    • M6XP1.0
    • * multiple options for #13
    • 6 shown on diagram
    $0.73
  • 14

    LAMP ROOM 1156-00030

    • Part No. T4815-82361
    • 1 shown on diagram
    $54.99
  • 15 BULB (ROOM LAMP ASS’Y)

    BULB (ROOM LAMP ASS’Y)

    • Part No. T4815-46791
    • 1 shown on diagram
    $9.99
  • 16

    BAND, CORD v

    • Part No. T4520-82551
    • L270
    • 10 shown on diagram
    $1.19

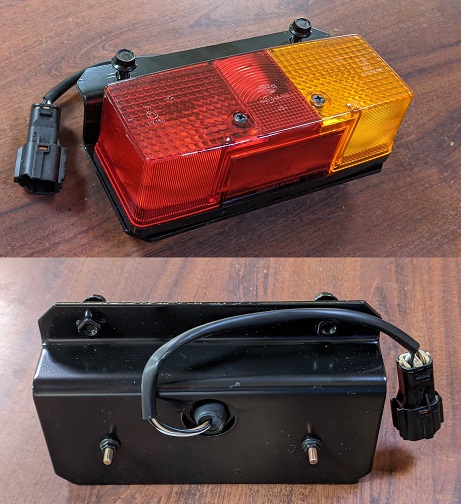

  • 17 ASSY REAR LAMP LH v

    ASSY REAR LAMP LH v

    • Part No. T2611-75892
    • 1 shown on diagram
    $119.99
  • 18

    NUT v

    • Part No. 02052-50040
    • 2 shown on diagram
    $0.40
  • 19

    Screw Washer 03024-50420

    • Part No. 03024-50420
    • 2 shown on diagram
    $0.68
  • 20

    SCREW

    • Part No. 03054-50416
    • M4*0.7
    • 2 shown on diagram
    $0.68

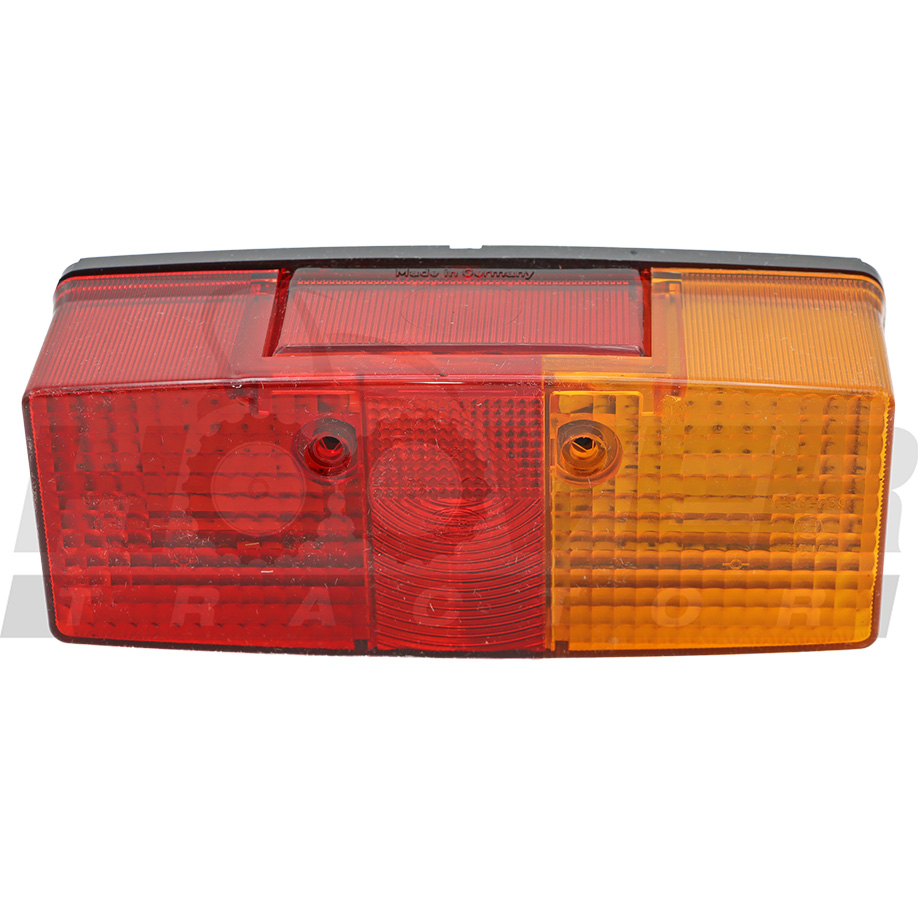

  • 21 LAMP, REAR TAIL LH (old style)

    LAMP, REAR TAIL LH (old style)

    • Part No. T2611-75792
    • 1 shown on diagram
    $84.99
  • 22

    BULB 12V P21W 1156

    • Part No. T2611-79011
    • 2 shown on diagram
    $6.49
  • 23

    BULB

    • Part No. T2611-79021
    • 1 shown on diagram
    $5.99
  • 24

    REAR LAMP ASSY, RH v

    • Part No. T2611-75882
    • 1 shown on diagram
    $119.99

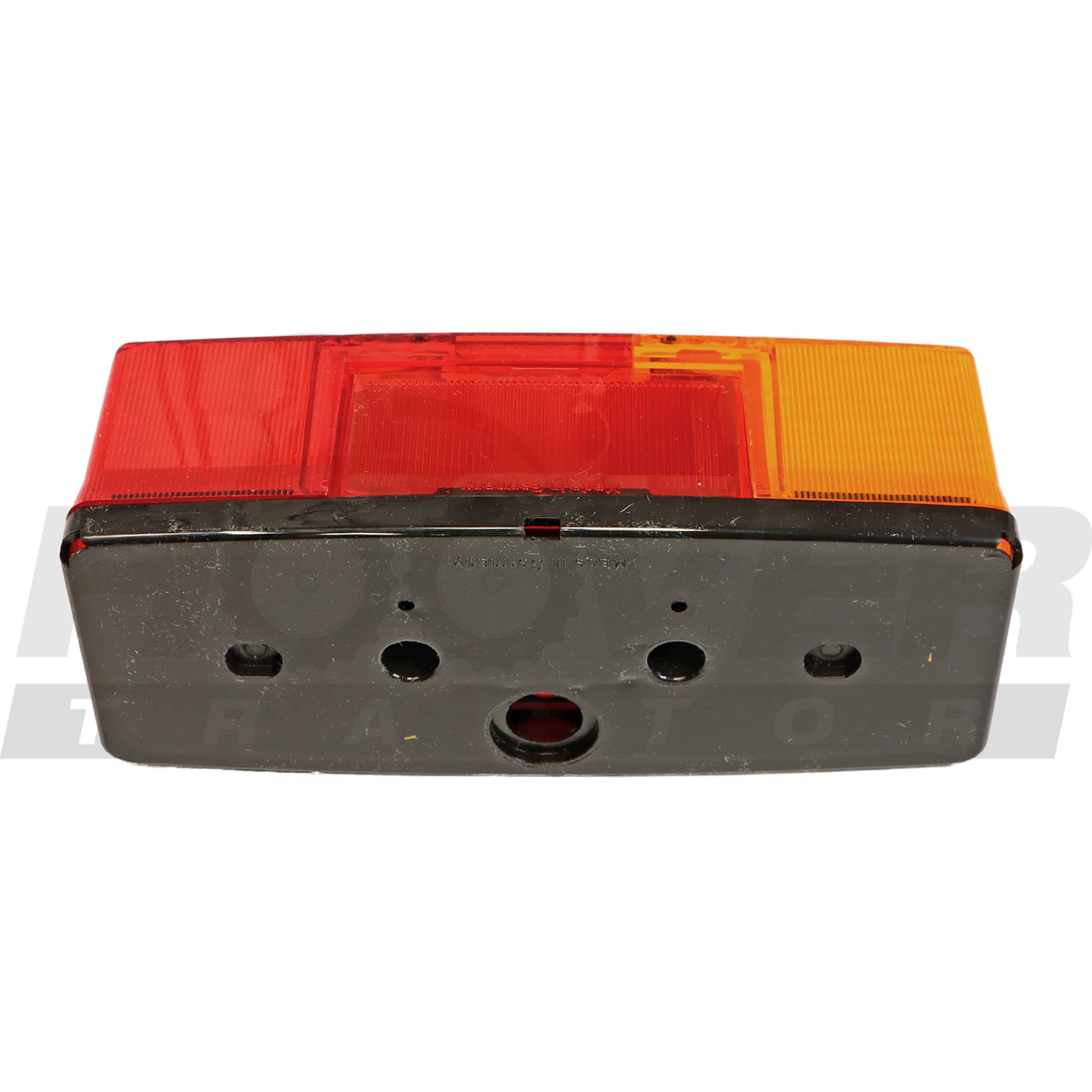

  • 25 LAMP, REAR TAIL RH (old style)

    LAMP, REAR TAIL RH (old style)

    • Part No. T2611-75782
    • 1 shown on diagram
    $91.99
  • 26

    FUSE, 60A v

    • Part No. 52794-4242-1
    • 1 shown on diagram
    $6.49
