ROOF GROUP - TB2-G6C2502

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

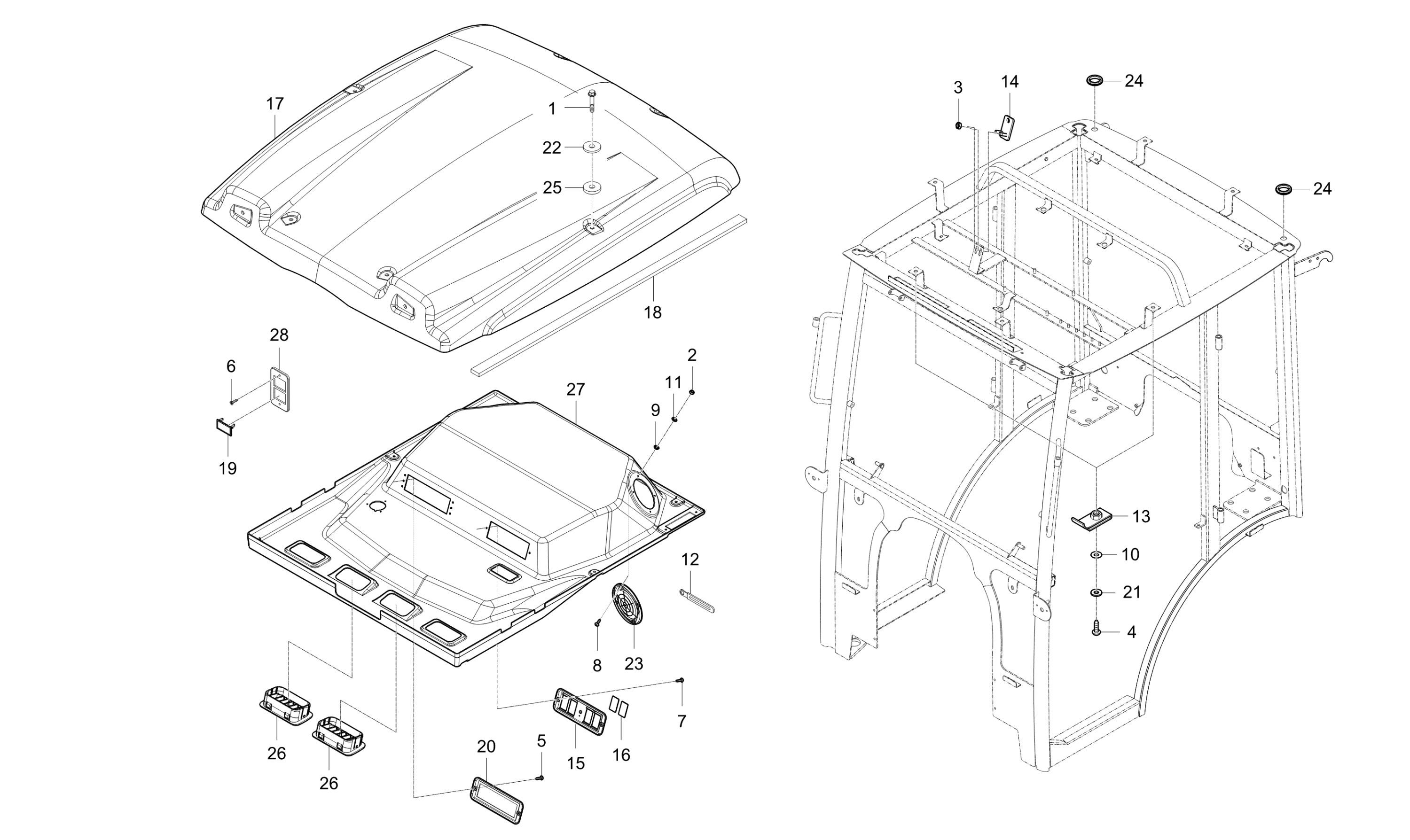

Diagram for ROOF GROUP - TB2-G6C2502
  • 1 Bolt, Flange M8 P1.25

    Bolt, Flange M8 P1.25

    • Part No. 01754-50830
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 2

    Nut M4XP0.7 (02054-50040)

    • Part No. 02054-50040
    • M4XP0.7
    • 1 shown on diagram
    $0.61
  • 3 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 4

    M6*P1.0 Screw (03014-50630)

    • Part No. 03014-50630
    • M6*P1.0
    • 1 shown on diagram
    $0.96
  • 5

    SCREW

    • Part No. 03054-50416
    • M4*0.7
    • 1 shown on diagram
    $0.68
  • 6

    SCREW

    • Part No. 03054-50416
    • M4*0.7
    • 2 shown on diagram
    $0.68
  • 7

    SCREW

    • Part No. 03054-50416
    • M4*0.7
    • 1 shown on diagram
    $0.68
  • 8 OB Screw (03054-50420)

    OB Screw (03054-50420)

    • Part No. 03054-50420
    • 1 shown on diagram
    $0.68
  • 9

    Flat Washer M4

    • Part No. 04013-50040
    • M4
    • 1 shown on diagram
    $0.79
  • 10 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 11

    WASHER, SPRING

    • Part No. 04512-50040
    • M04
    • 1 shown on diagram
    $0.55
  • 12

    CLAMP

    • Part No. 37150-34471
    • 1 shown on diagram
    $0.70
  • 13 NUT, SPRING

    NUT, SPRING

    • Part No. 38245-2925-3
    • 1 shown on diagram
    $4.49
  • 14

    BRACKET 1, CASSETTE

    • Part No. T2131-82411
    • 1 shown on diagram
    $9.99
  • 15

    PANNEL SWITCH

    • Part No. T2131-82511
    • 1 shown on diagram
    $9.99
  • 16 COVER

    COVER

    • Part No. T2131-82521
    • 1 shown on diagram
    $4.49
  • 17

    TRK – ROOF

    • Part No. T2391-82001
    • 1 shown on diagram
    $834.99
  • 18

    Rubber, Roof Sealing

    • Part No. T2391-82131
    • 1 shown on diagram
    $69.99
  • 19 COVER

    COVER

    • Part No. T4025-68301
    • 1 shown on diagram
    $5.49
  • 20 Stereo Cover (T4145-82072 )

    Stereo Cover (T4145-82072 )

    • Part No. T4145-82072
    • 1 shown on diagram
    $9.99
  • 21

    CAP RUBBER

    • Part No. T4145-82081
    • 1 shown on diagram
    $9.99
  • 22

    COLLAR

    • Part No. T4681-83431
    • 1 shown on diagram
    $3.49
  • 23 GRILL SPEAKER

    GRILL SPEAKER

    • Part No. T4810-82352
    • 1 shown on diagram
    $24.99
  • 24

    GROMMET v

    • Part No. T4815-78112
    • 1 shown on diagram
    $3.99
  • 25 WASHER PACKING v

    WASHER PACKING v

    • Part No. T4833-87141
    • 1 shown on diagram
    $2.49
  • 26

    GRILL AIR CONDITIONER

    • Part No. T4930-83082
    • 1 shown on diagram
    $52.99
  • 27

    CEILING-ASSY

    • Part No. TB26-0023A
    • Applied Dates 2020-07-09 to 2020-07-09
    • * multiple options for #27
    • 1 shown on diagram
    $634.99
  • 27

    CEILING-ASSY

    • Part No. TB26-0023B
    • Compatibility Interchngable
    • Applied Dates 2020-07-09 to 2020-07-09
    • * multiple options for #27
    • 1 shown on diagram
    $0.00
  • 27

    CEILING-ASSY

    • Part No. TB26-0023C
    • Compatibility New repl old
    • * multiple options for #27
    • 1 shown on diagram
    $399.99
  • 28

    SWITCH – PANEL 2

    • Part No. TC26-0383A
    • 1 shown on diagram
    $8.99
