AFTERTREATMENT GROUP - TC2-G115001

Kioti TRACTOR | CK Series | CK3520CHSEB

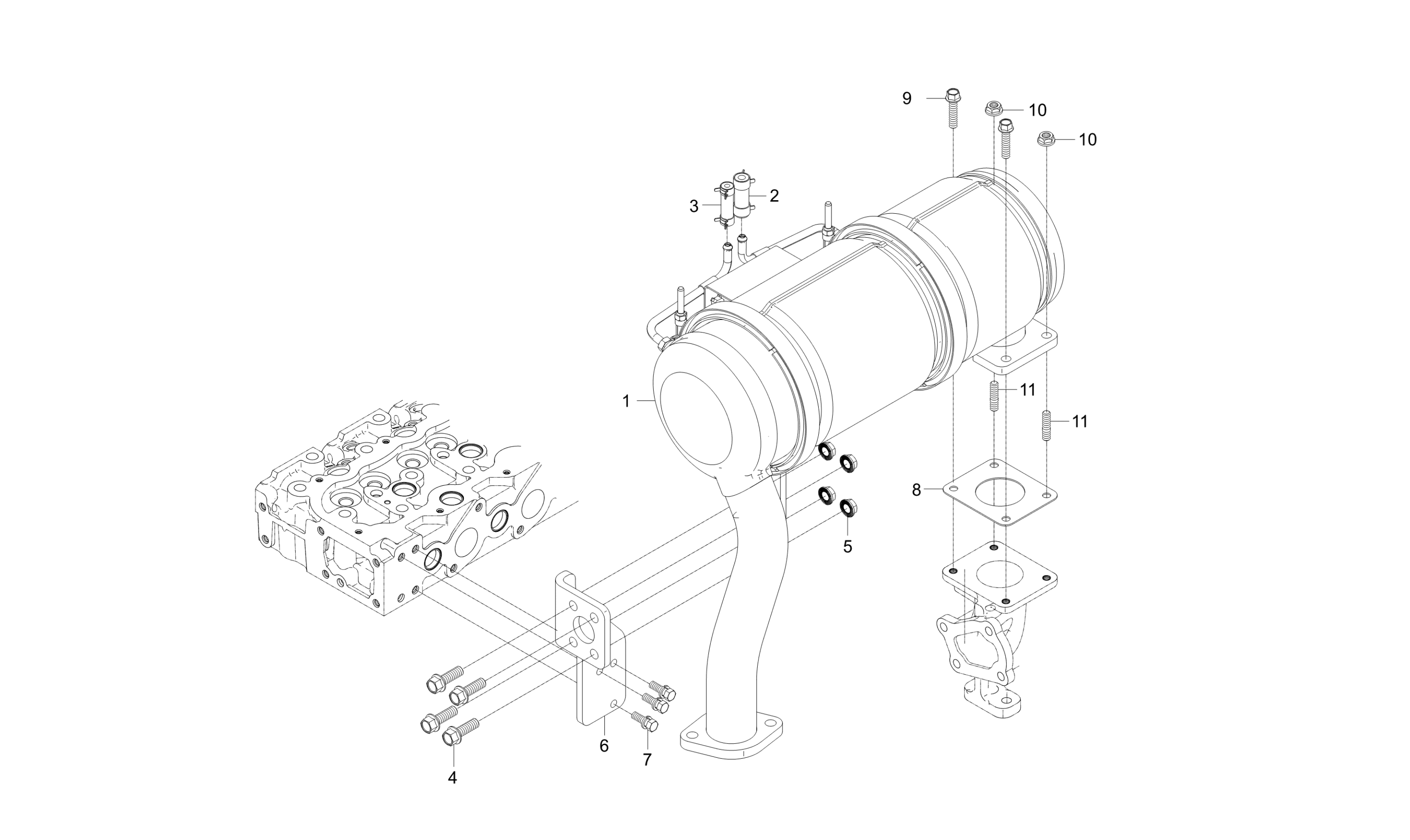

Diagram for AFTERTREATMENT GROUP - TC2-G115001
  • 1

    TRK CCRT ASSY

    • Part No. F5850-25101
    • 1 shown on diagram
    $3069.99
  • 2

    TUBE, 1

    • Part No. F6800-26661
    • 1 shown on diagram
    $18.99
  • 3

    TUBE, 2

    • Part No. F6800-26671
    • 1 shown on diagram
    $17.99
  • 4

    BOLT

    • Part No. 01133-51032
    • M10XP1.25
    • 4 shown on diagram
    $3.99
  • 5

    NUT, FLANGE

    • Part No. 02783-50100
    • 4 shown on diagram
    $0.85
  • 6

    BRACKET

    • Part No. F5830-25423
    • T=8.0
    • 1 shown on diagram
    $68.99
  • 7 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 3 shown on diagram
    $2.49

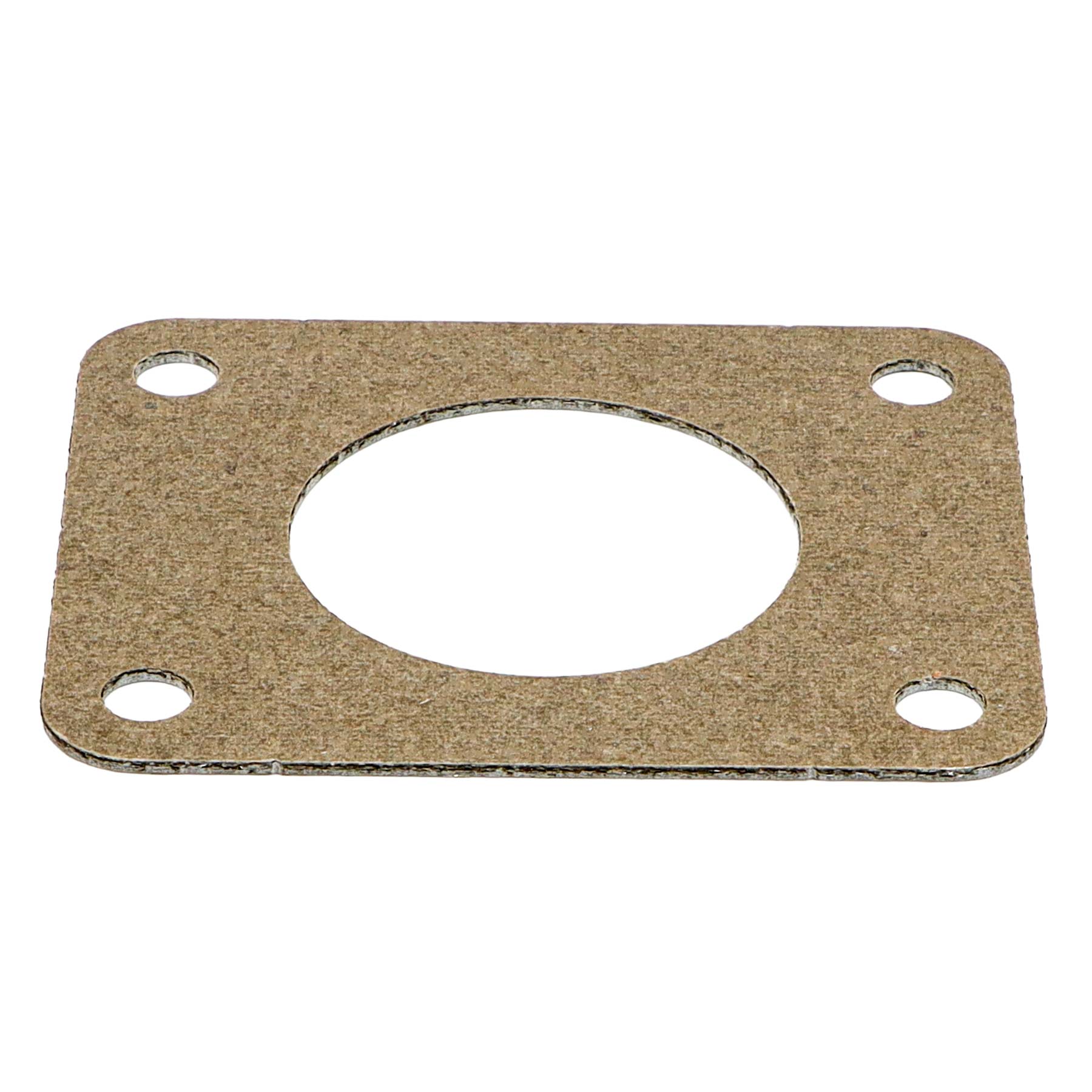

  • 8 GASKET, TURBOCHARGER FLANGE

    GASKET, TURBOCHARGER FLANGE

    • Part No. F6800-12371
    • t1.5
    • 1 shown on diagram
    $15.99
  • 9

    FLANGEBOLT

    • Part No. F6800-92411
    • M8x1.25 25mm
    • 2 shown on diagram
    $9.99
  • 10 U-NUT

    U-NUT

    • Part No. F6800-91911
    • 2 shown on diagram
    $0.79
  • 11 BOLT, STUD

    BOLT, STUD

    • Part No. F6800-92441
    • 2 shown on diagram
    $8.49
