FUEL FILTER GROUP - TC2-G117006

Kioti TRACTOR | CK Series | CK3520CHSEB

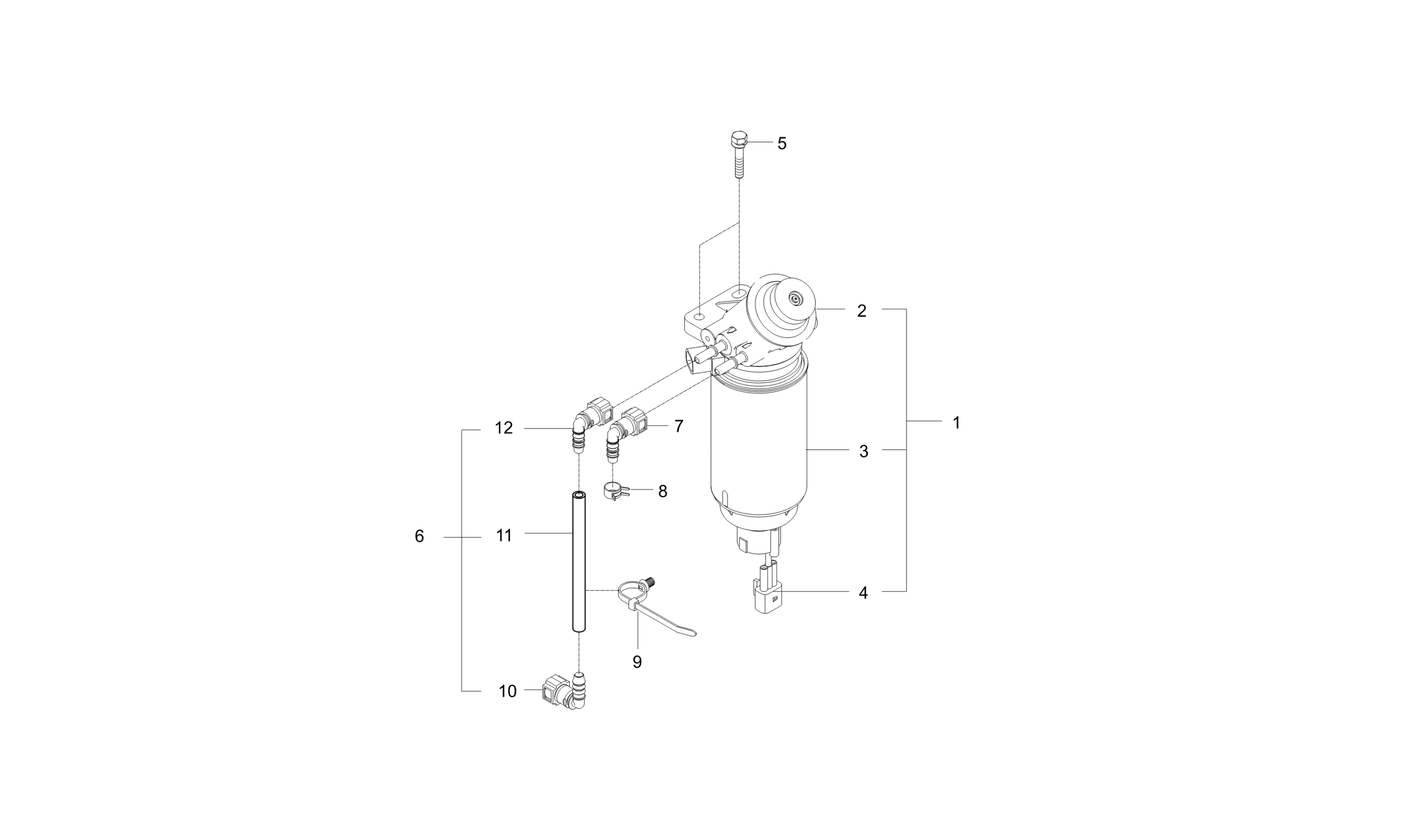

Diagram for FUEL FILTER GROUP - TC2-G117006

1
ASSY, MAIN FUEL FILTER
- Part No. EH35-0006A
- 1 shown on diagram
$359.99

ASSY, MAIN FUEL FILTER quantity
2
ASSY HEAD
- Part No. EH35-0007A
- 1 shown on diagram
$129.99

ASSY HEAD quantity
3
Kioti Stage 5 Fuel Filter – 2019+ w/ Clear Bowl Required
- Part No. EH35-0011A
- 1 shown on diagram
$99.99

Kioti Stage 5 Fuel Filter - 2019+ w/ Clear Bowl Required quantity
4
- Part No. F6800-16121
- 1 shown on diagram
5
Bolt With Washer, M8 P1.25 x 45mm
- Part No. 01123-50845
- M8*P1.25
- 2 shown on diagram
$2.99

Bolt With Washer, M8 P1.25 x 45mm quantity
6
ASSY HOSE, FUEL
- Part No. EH25-0009A
- 1 shown on diagram
$99.99

ASSY HOSE, FUEL quantity
7
CONNECTOR, QUICK-128-783-002
- Part No. EH25-0006A
- 1 shown on diagram
$16.99

CONNECTOR, QUICK-128-783-002 quantity
8
CLMAP, HOSE
- Part No. 09318-88140
- DIA14.8
- 1 shown on diagram
$1.29

CLMAP, HOSE quantity
9
BAND v
- Part No. T2198-82571
- 1 shown on diagram
$1.99

BAND v quantity
10
CONNECTOR, QUICK-226-308-000
- Part No. EH25-0007A
- 1 shown on diagram
$28.99

CONNECTOR, QUICK-226-308-000 quantity
11
HOSE, FUEL
- Part No. EH25-0010A
- 1 shown on diagram
$.00

HOSE, FUEL quantity
12
CONNECTOR, QUICK-128-783-002
- Part No. EH25-0006A
- 1 shown on diagram
$16.99

CONNECTOR, QUICK-128-783-002 quantity
