RANGE SHIFT FORK GROUP - TC2-G272002

Kioti TRACTOR | CK Series | CK3520HSEB

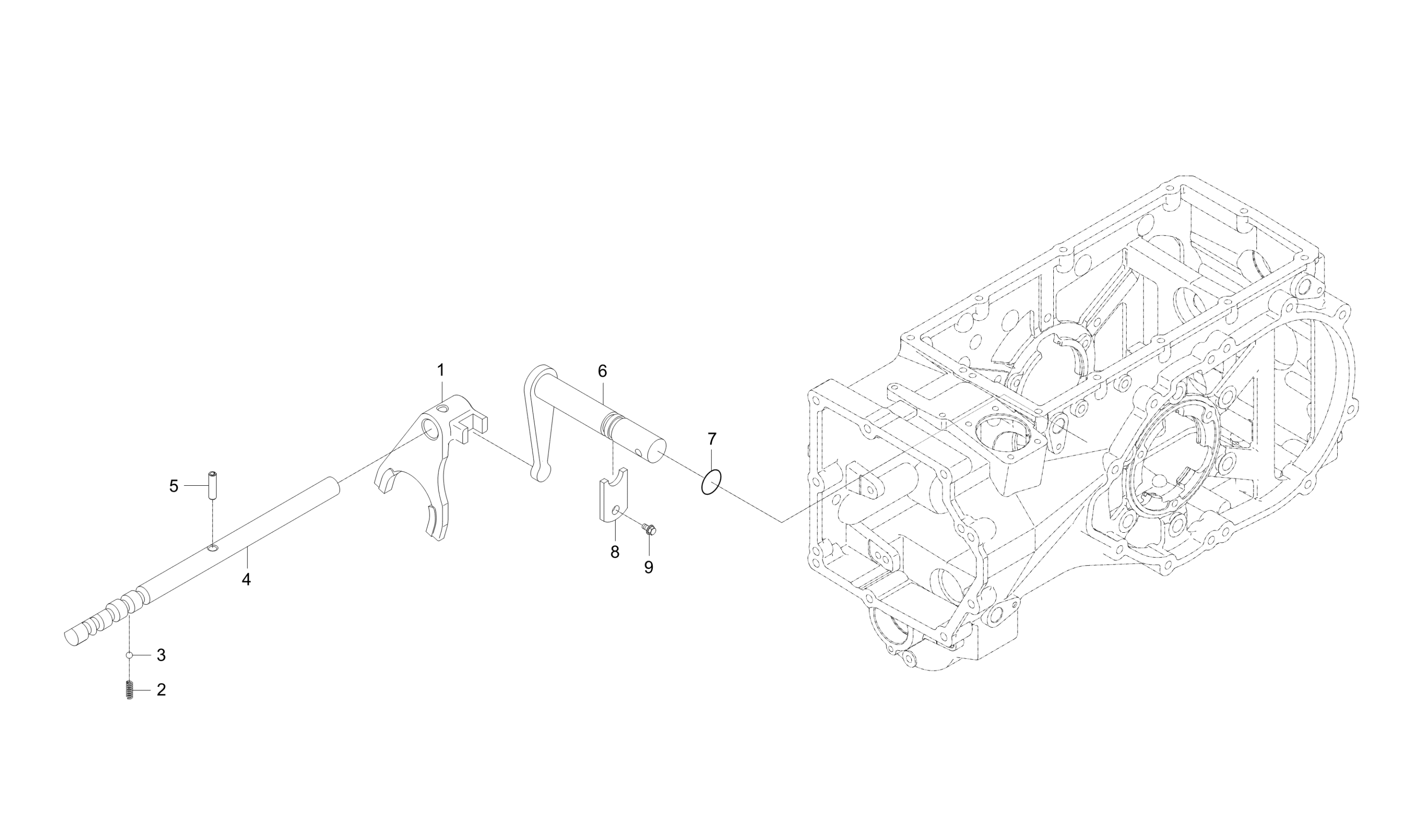

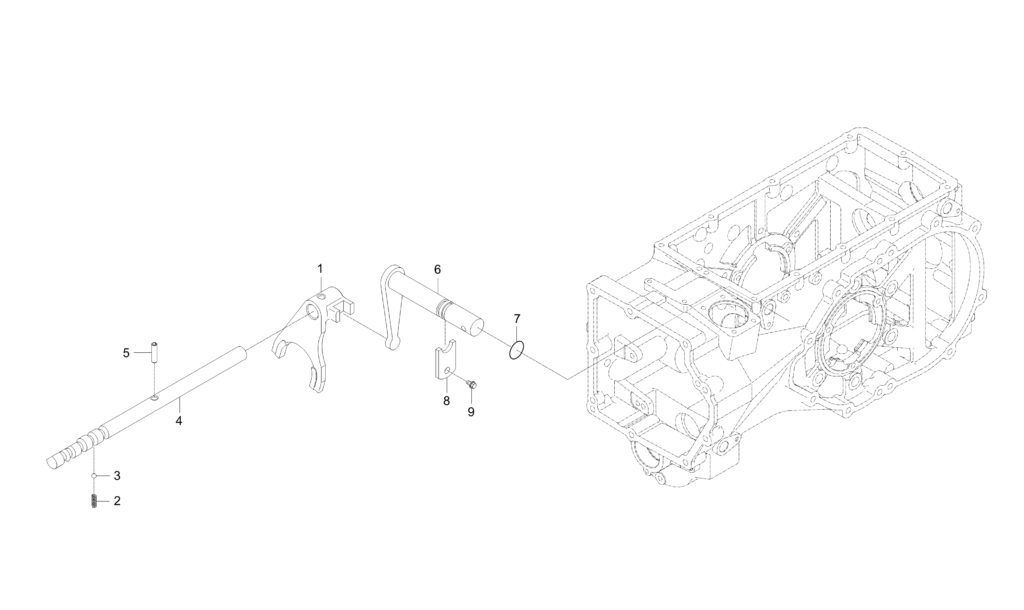

Diagram for RANGE SHIFT FORK GROUP - TC2-G272002
  • 1

    FORK, SHIFT(RANGE)

    • Part No. T5815-23115
    • 1 shown on diagram
    $114.99
  • 2
    • Part No. 62331-1853-2
    • DIA1.4
    • 1 shown on diagram
  • 3 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • DIA7.9375
    • 1 shown on diagram
    $0.56
  • 4

    ROD, FORK RANGE

    • Part No. TC22-0084C
    • 1 shown on diagram
    $.00
  • 5
    • Part No. 05411-00625
    • DIA6.4XL25
    • 1 shown on diagram
  • 6 ARM, RANGE SHIFT v

    ARM, RANGE SHIFT v

    • Part No. T5815-23263
    • 1 shown on diagram
    $41.99
  • 7 O RING

    O RING

    • Part No. 04811-00140
    • 1 shown on diagram
    $.90
  • 8

    STOPPER

    • Part No. T2555-23331
    • 1 shown on diagram
    $5.49
  • 9 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
