EXTERNAL HYDRAULIC VALVE GROUP(DS) - TC2-G442006

Kioti TRACTOR | CK Series | CK3510SEB

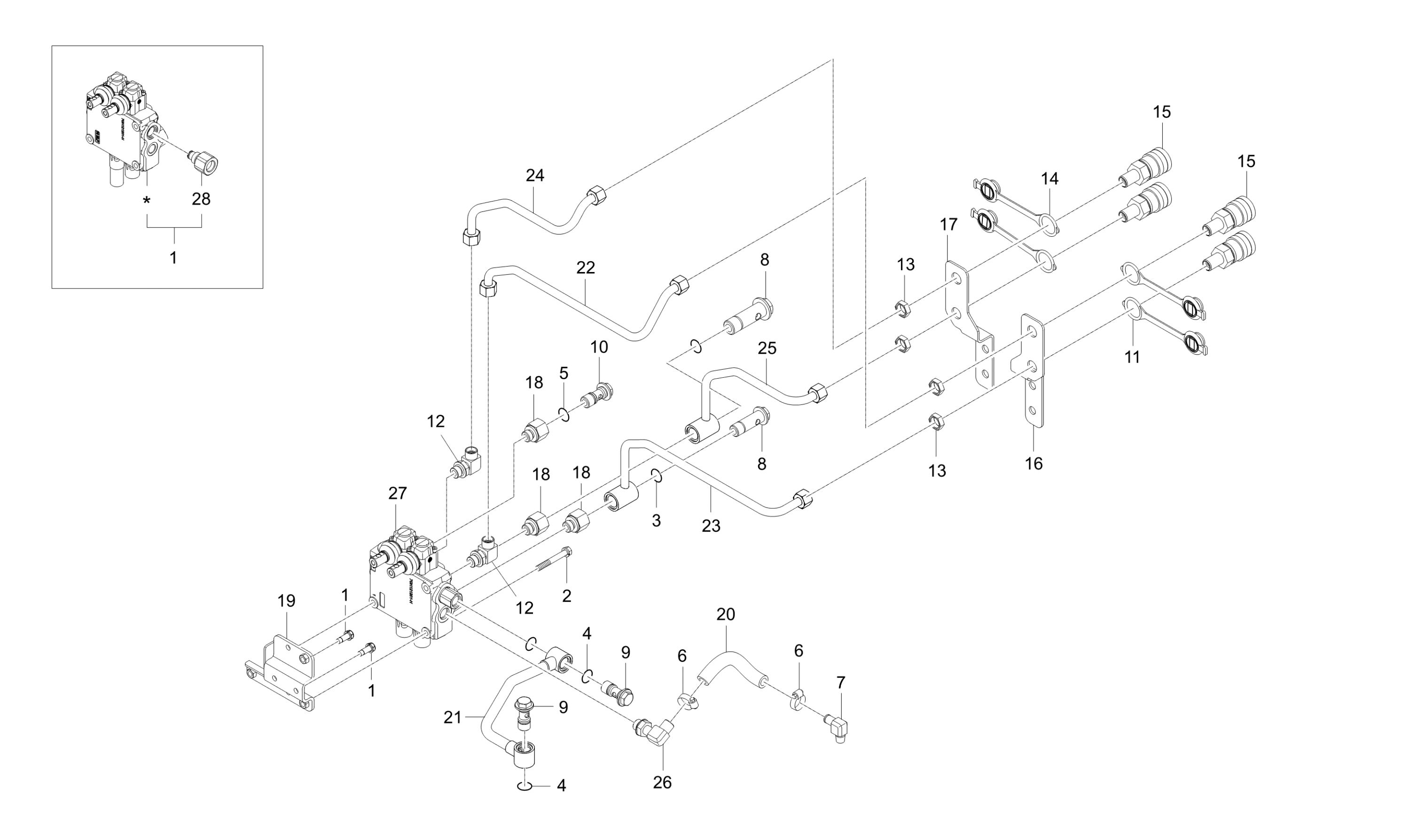

Diagram for EXTERNAL HYDRAULIC VALVE GROUP(DS) - TC2-G442006
  • 1 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 2

    Bolt With Washer, M8 P1.25 x 60mm

    • Part No. 01123-50860
    • M8XP1.25
    • 3 shown on diagram
    $3.49

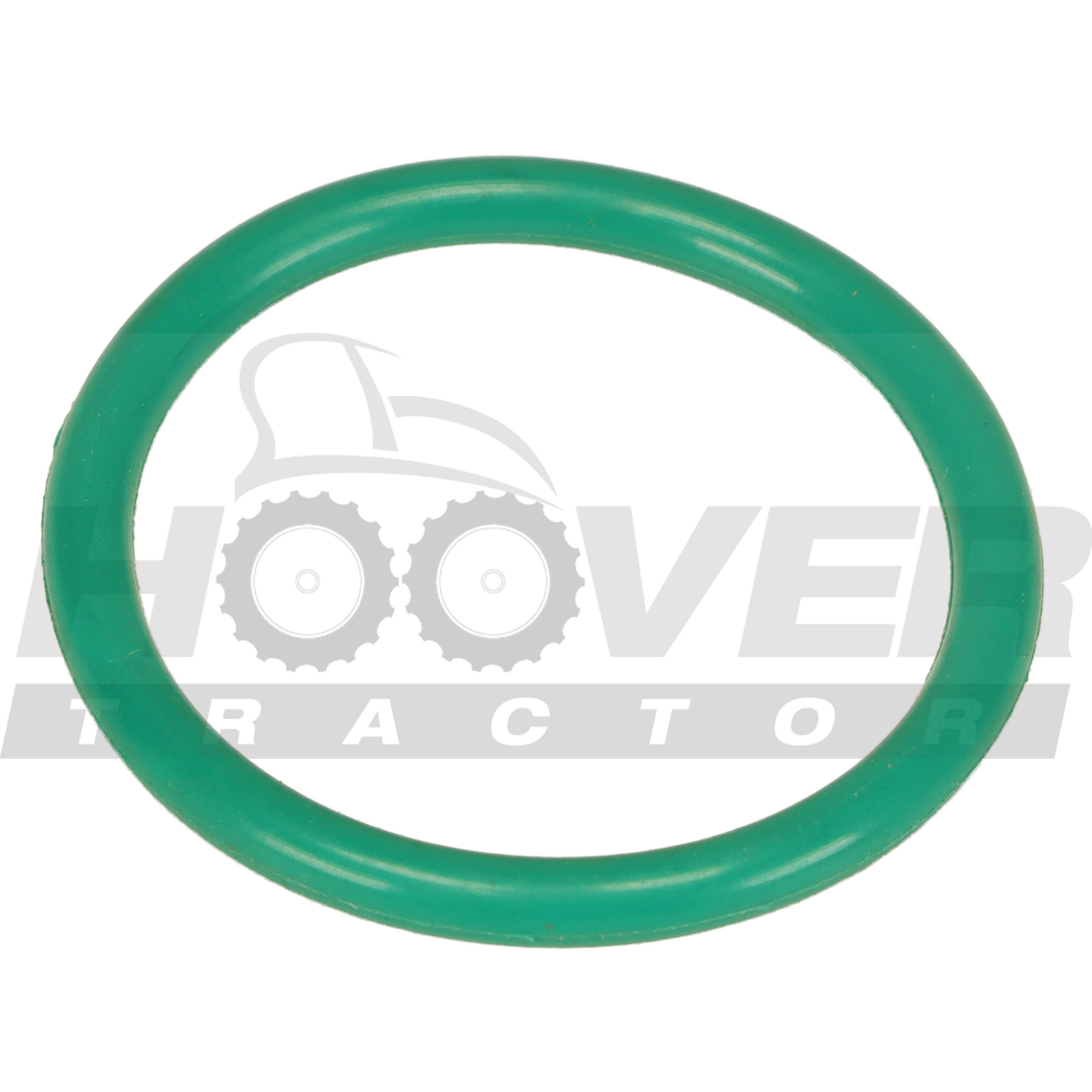

  • 3 O-RING (Green) Use 330-MOR-19.8X2.4-90D

    O-RING (Green) Use 330-MOR-19.8X2.4-90D

    • Part No. 04816-00200
    • Applied Dates 2017-08-01 and up
    • DIA19.8
    • * multiple options for #3
    • 4 shown on diagram
    $3.49
  • 3 O-RING

    O-RING

    • Part No. 04817-00200
    • Compatibility Interchngable
    • DIA19.8
    • * multiple options for #3
    • 4 shown on diagram
    $3.99
  • 4 O-RING (Green) Use 330-MOR-19.8X2.4-90D

    O-RING (Green) Use 330-MOR-19.8X2.4-90D

    • Part No. 04816-00200
    • DIA19.8
    • * multiple options for #4
    • 4 shown on diagram
    $3.49
  • 4 O-RING

    O-RING

    • Part No. 04817-00200
    • Compatibility Interchngable
    • DIA19.8
    • * multiple options for #4
    • 4 shown on diagram
    $3.99
  • 5 O-RING (Green) Use 330-MOR-19.8X2.4-90D

    O-RING (Green) Use 330-MOR-19.8X2.4-90D

    • Part No. 04816-00200
    • DIA19.8
    • 2 shown on diagram
    $3.49
  • 6

    BAND, HOSE

    • Part No. F6800-91851
    • 12-22mm
    • 2 shown on diagram
    $1.89
  • 7

    ELBOW

    • Part No. T2185-66151
    • 1 shown on diagram
    $17.99
  • 8

    BOLT,JOINT

    • Part No. T2360-37081
    • * multiple options for #8
    • 2 shown on diagram
    $26.99
  • 8

    BOLT, JOINT

    • Part No. TC24-0239A
    • Compatibility Interchngable
    • * multiple options for #8
    • 2 shown on diagram
    $24.99
  • 9 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • * multiple options for #9
    • 2 shown on diagram
    $21.99
  • 9 BOLT, JOINT

    BOLT, JOINT

    • Part No. TC24-0238A
    • Compatibility Interchngable
    • * multiple options for #9
    • 2 shown on diagram
    $21.99
  • 10 JOINT BOLT M18 P1.5 V

    JOINT BOLT M18 P1.5 V

    • Part No. T4620-37092
    • * multiple options for #10
    • 1 shown on diagram
    $21.99
  • 10 BOLT, JOINT

    BOLT, JOINT

    • Part No. TC24-0238A
    • Compatibility Interchngable
    • * multiple options for #10
    • 1 shown on diagram
    $21.99
  • 11
    • Part No. T4720-90081
    • Applied Dates Up to 2019-04-30
    • Serial No. Up to VJJ700008
    • * multiple options for #11
    • 2 shown on diagram
  • 11

    CAP, COUPLER SOCKET-1/2

    • Part No. TF14-0122A
    • Compatibility Interchngable
    • Applied Dates 2019-05-01 and up
    • Serial No. VJJ700009 to WJJ700036
    • 45293
    • * multiple options for #11
    • 2 shown on diagram
    $4.49
  • 12

    ELBOW

    • Part No. T4810-45761
    • 2 shown on diagram
    $42.99
  • 13 NUT

    NUT

    • Part No. T4930-47071
    • M18XP1.5
    • 4 shown on diagram
    $3.49
  • 14

    CAP, SOCKET

    • Part No. T5520-90071
    • Applied Dates Up to 2019-04-30
    • Serial No. Up to VJJ700008
    • 45293
    • * multiple options for #14
    • 2 shown on diagram
    $4.49
  • 14

    CAP, COUPLER SOCKET-1/2

    • Part No. TF14-0123A
    • Compatibility Interchngable
    • Applied Dates 2019-05-01 and up
    • Serial No. VJJ700009 to WJJ700036
    • 45293
    • * multiple options for #14
    • 2 shown on diagram
    $4.99
  • 15

    COUPLER,SELF-SEALING,AC,1-1-4 v

    • Part No. T5710-30091
    • * multiple options for #15
    • 4 shown on diagram
    $86.99
  • 15 COUPLER, QUICK

    COUPLER, QUICK

    • Part No. TD24-0159A
    • Compatibility Interchngable
    • * multiple options for #15
    • 4 shown on diagram
    $59.99
  • 16
    • Part No. T5810-48022
    • 1 shown on diagram
  • 17
    • Part No. T5810-48121
    • 3.2T
    • 1 shown on diagram
  • 18 CONNECTION

    CONNECTION

    • Part No. T5855-47091
    • 3 shown on diagram
    $27.99
  • 19

    SUPPORT, VALVE

    • Part No. TC24-0104B
    • * multiple options for #19
    • 1 shown on diagram
    $51.99
  • 19

    SUPPORT, VALVE

    • Part No. TC24-0104C
    • Compatibility Interchngable
    • * multiple options for #19
    • 1 shown on diagram
    $53.99
  • 20
    • Part No. TC24-0106A
    • 1 shown on diagram
  • 21

    TUBE, EXTERNAL HYD-CA

    • Part No. TC24-0107A
    • 1 shown on diagram
    $139.99
  • 22

    TUBE, EXTERNAL HYD-A

    • Part No. TC24-0108A
    • 1 shown on diagram
    $88.99
  • 23

    TUBE, EXTERNAL HYD-B

    • Part No. TC24-0109A
    • 1 shown on diagram
    $119.99
  • 24
    • Part No. TC24-0110A
    • 1 shown on diagram
  • 25
    • Part No. TC24-0111A
    • 1 shown on diagram
  • 26
    • Part No. TC24-0133A
    • PF3/8
    • 1 shown on diagram
  • 27

    VALVE, DOUBLE ACTING – DS dnr v

    • Part No. TC24-0146A
    • Serial No. Up to WJJ700056
    • * multiple options for #27
    • 1 shown on diagram
    $799.99
  • 27

    ASSY VALVE, DOUBLE ACTING-DS dnr v

    • Part No. TC24-0232A
    • Compatibility Interchngable
    • Serial No. WJJ700057 and up
    • * multiple options for #27
    • 1 shown on diagram
    $694.99
  • 28
    • Part No. TC24-0227A
    • 1 shown on diagram
