ENGINE ELECTRICAL GROUP(1) - TC2-G511001

Kioti TRACTOR | CK Series | CK3510SEB

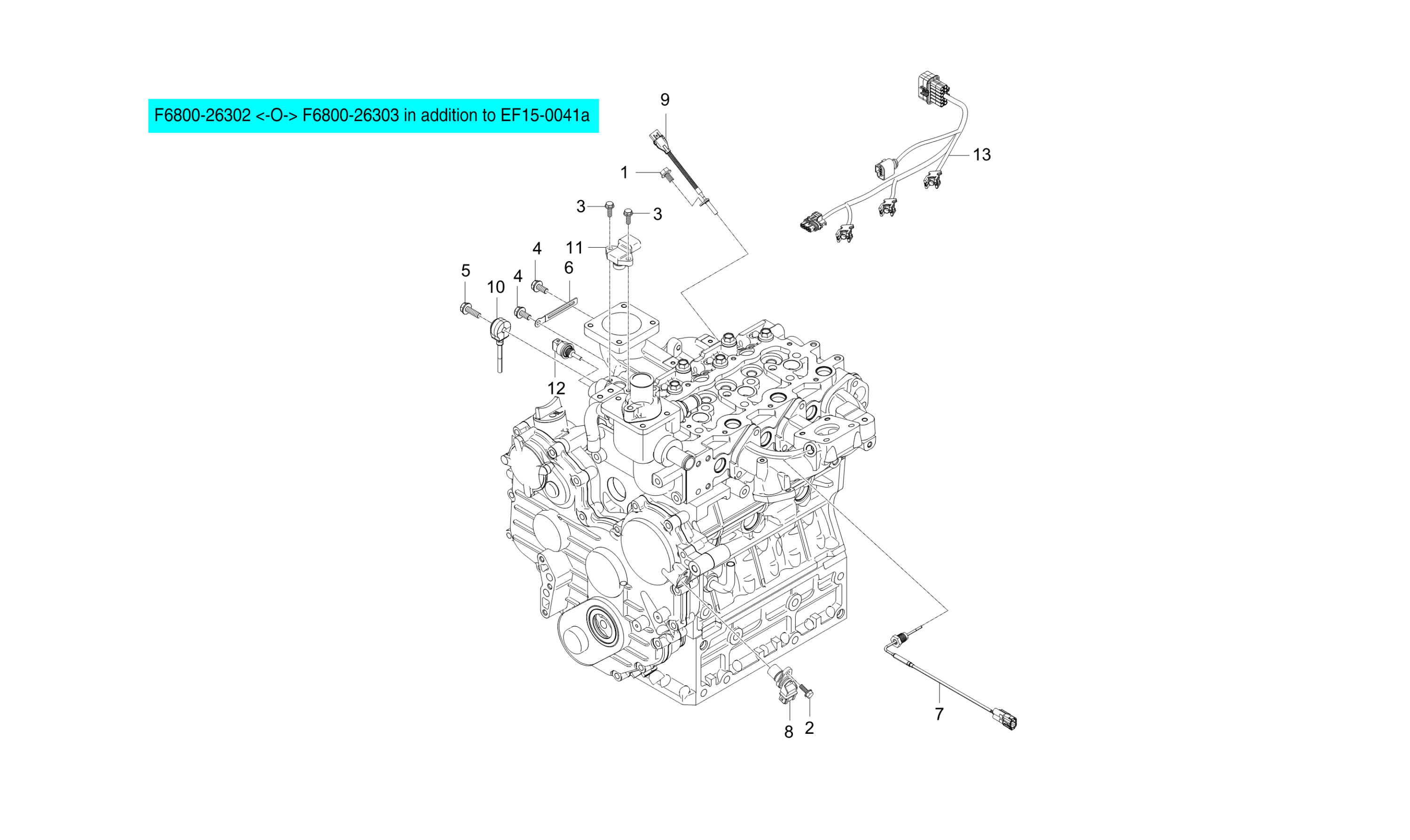

Diagram for ENGINE ELECTRICAL GROUP(1) - TC2-G511001
  • 1 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • Applied Dates 2014-12-20 to 2014-12-19
    • M6XP1.0
    • * multiple options for #1
    • 1 shown on diagram
    $1.89
  • 1

    BOLT, FLANGE

    • Part No. 01754-50610
    • Compatibility New repl old
    • Applied Dates 2019-07-15 to 2014-09-30
    • Serial No. VJJ700017 to VJJ700016
    • M6XP1.0
    • * multiple options for #1
    • 1 shown on diagram
    $1.09
  • 2 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 1 shown on diagram
    $1.89
  • 3 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 2 shown on diagram
    $1.89
  • 4 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 5 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 6

    CLAMP

    • Part No. 37150-3447-1
    • Applied Dates 2014-12-19 to 2014-12-23
    • Serial No. TJJ700003 to WJJ700036
    • T0.5
    • * multiple options for #6
    • 2 shown on diagram
    $4.99
  • 6

    CLAMP

    • Part No. 37150-3447-1
    • Compatibility New repl old
    • T0.5
    • * multiple options for #6
    • 1 shown on diagram
    $4.99
  • 7 Sensor, Exhaust Gas Tempurature

    Sensor, Exhaust Gas Tempurature

    • Part No. F5800-26501
    • Serial No. Up to XJJ700088
    • * multiple options for #7
    • 1 shown on diagram
    $234.99
  • 7 EXHAUST GAS TEMPERATURE SENSOR

    EXHAUST GAS TEMPERATURE SENSOR

    • Part No. F5800-26502
    • Compatibility Interchngable
    • Serial No. XJJ700089 and up
    • * multiple options for #7
    • 1 shown on diagram
    $199.99
  • 8 SENSOR, CAMSHAFT WHEEL

    SENSOR, CAMSHAFT WHEEL

    • Part No. F6800-26201
    • 1 shown on diagram
    $174.99
  • 9 SENSOR, CRANKSHAFT WHEEL (big plug) v, Replaced by EH29-0002A

    SENSOR, CRANKSHAFT WHEEL (big plug) v, Replaced by EH29-0002A

    • Part No. F6800-26303
    • Applied Dates 2016-08-01 to 2020-04-05
    • * multiple options for #9
    • 1 shown on diagram
    $.00
  • 9 ASSY SENSOR, CRANKSHAFT WHEEL v

    ASSY SENSOR, CRANKSHAFT WHEEL v

    • Part No. EH29-0002A
    • Compatibility New repl old
    • Applied Dates 2020-04-06 and up
    • * multiple options for #9
    • 1 shown on diagram
    $169.99
  • 10 SENSOR, KNOCK

    SENSOR, KNOCK

    • Part No. F6800-26401
    • 1 shown on diagram
    $64.99
  • 11

    SENSOR, INTAKE AIR PRESSURE

    • Part No. F6800-26701
    • 1 shown on diagram
    $159.99
  • 12

    SENSOR, INTAKE AIR TEMPERATURE

    • Part No. F6800-26751
    • 1 shown on diagram
    $319.99
  • 13

    INJECTOR CONNECTION WIRE HARNESS ASSAY

    • Part No. T5525-69313
    • 1 shown on diagram
    $249.99
