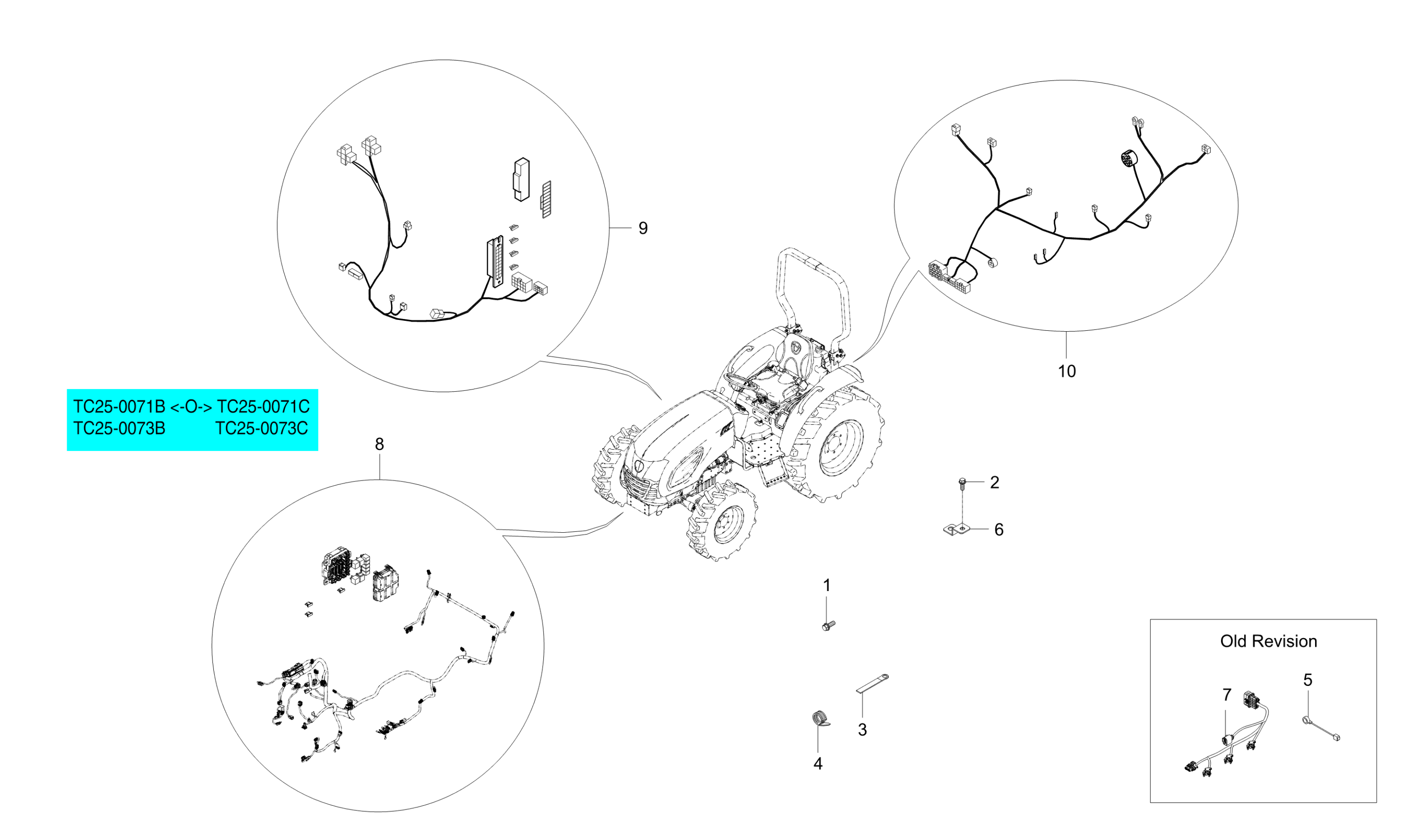

WIRE HARNESS GROUP - TC2-G531030

BOLT, FLANGE M6 P1.00 x 16

• Part No. 01754-50616
• M6XP1.0
• 3 shown on diagram

BOLT, FLANGE

• Part No. 01754-50620
• M6XP1.0
• 2 shown on diagram

CLAMP, CORD v

• Part No. 34150-2939-1
• 1 shown on diagram

BAND v

• Part No. T2198-82571
• 6 shown on diagram

WIRE HARNESS 1

• Part No. T4620-69362
• 1 shown on diagram

BRACKET

• Part No. T5250-68771
• t1.6
• 2 shown on diagram

INJECTOR CONNECTION WIRE HARNESS ASSAY

• Part No. T5525-69313
• 1 shown on diagram

ASSY WIRE HARNESS, ENGINE dnr v

• Part No. TC25-0070A
• * multiple options for #8
• 1 shown on diagram

ASSY WIRE HARNESS, ENGINE v

• Part No. TC25-0070B
• Compatibility New repl old
• Applied Dates 2017-10-02 to 2018-02-23
• Serial No. TJJ700003 to UJJ700116
• * multiple options for #8
• 1 shown on diagram

ASSY WIRE HARNESS, ENGINE

• Part No. TC25-0070C
• Compatibility Call for compat
• Applied Dates 2018-02-23 to 2018-02-23
• * multiple options for #8
• 1 shown on diagram

ASSY WIRE HARNESS, ENGINE

• Part No. TC25-0070D
• Compatibility New repl old
• Applied Dates 2018-02-24 to 2019-06-30
• Serial No. UJJ700117 to UJJ700224
• * multiple options for #8
• 1 shown on diagram

ASSY WIRE HARNESS, ENGINE

• Part No. TC25-0070E
• Compatibility No interchange
• Applied Dates 2019-07-01 and up
• Serial No. VJJ700017 to VJJ700032
• * multiple options for #8
• 1 shown on diagram

• Part No. TC25-0070F
• Compatibility Interchngable
• Applied Dates 2019-08-19 and up
• Serial No. VJJ700033 to WJJ700036
• * multiple options for #8
• 1 shown on diagram

ASSY WIRE HARNESS, PANEL

• Part No. TC25-0071A
• * multiple options for #9
• 1 shown on diagram

ASSY WIRE HARNESS, PANEL

• Part No. TC25-0071B
• Compatibility New repl old
• Applied Dates 2017-10-02 to 2017-12-31
• Serial No. TJJ700003 to TJJ700030
• * multiple options for #9
• 1 shown on diagram

• Part No. TC25-0071C
• Compatibility Call for compat
• Applied Dates 2018-01-01 and up
• Serial No. UJJ700001 to VJJ700016
• * multiple options for #9
• 1 shown on diagram

ASSY WIRE HARNESS, PANEL

• Part No. TC25-0071D
• Compatibility No interchange
• Applied Dates 2019-07-01 and up
• Serial No. VJJ700017 to WJJ700036
• * multiple options for #9
• 1 shown on diagram

ASSY WIRE HARNESS, FENDER obs v

• Part No. TC25-0073A
• * multiple options for #10
• 1 shown on diagram

ASSY WIRE HARNESS, FENDER v

• Part No. TC25-0073B
• Compatibility New repl old
• Applied Dates 2017-10-02 to 2017-12-25
• Serial No. TJJ700003 to TJJ700030
• * multiple options for #10
• 1 shown on diagram

ASSY WIRE HARNESS, FENDER dnr v

• Part No. TC25-0073C
• Compatibility Call for compat
• Applied Dates 2017-12-26 to 2018-03-13
• Serial No. TJJ700031 to UJJ700136
• * multiple options for #10
• 1 shown on diagram

ASSY WIRE HARNESS, FENDER v

• Part No. TC25-0073D
• Compatibility New repl old
• Applied Dates 2018-03-14 and up
• Serial No. UJJ700137 to VJJ700016
• * multiple options for #10
• 1 shown on diagram

• Part No. TC25-0073E
• Compatibility No interchange
• Applied Dates 2019-07-01 and up
• Serial No. VJJ700017 to WJJ700036
• * multiple options for #10
• 1 shown on diagram

CLAMP

• Part No. 37150-3447-1
• T0.5
• 1 shown on diagram
