MODULATE VALVE GROUP - TD2-G421006

Kioti TRACTOR | DK Series | DK5010HS

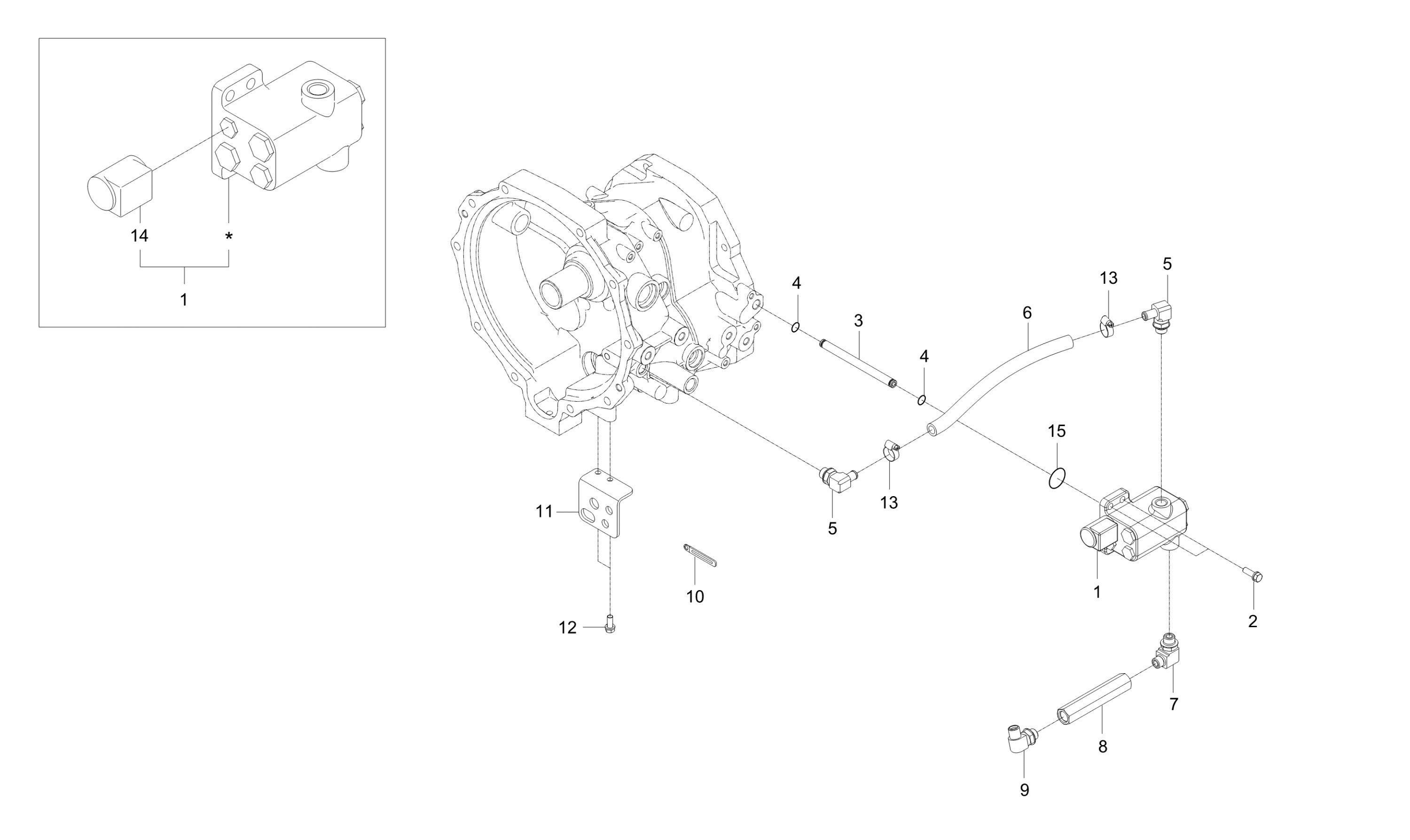

Diagram for MODULATE VALVE GROUP - TD2-G421006
  • 1

    MODULATE VALVE

    • Part No. T5715-35672
    • *multiple options for # 1
    • 1 shown on diagram
    $1,144.99
  • 1

    ASS’Y, MOD. VALVE

    • Part No. T4180-34041
    • Compatibility Call for compatibility
    • *multiple options for # 1
    • 1 shown on diagram
    $959.99
  • 1

    VALVE, MODULATOR

    • Part No. TD24-0249A
    • Compatibility New Replaces Old
    • Applied Dates 2018-12-30 and up
    • Serial No. UR8100033 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $764.99
  • 2

    Bolt With Washer, M8 P1.25 x 80mm

    • Part No. 01123-50880
    • M8XP1.25
    • *multiple options for # 2
    • 3 shown on diagram
    $3.99
  • 2 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • Compatibility Call for compatibility
    • M8XP1.25
    • *multiple options for # 2
    • 3 shown on diagram
    $1.99
  • 3

    TUBE

    • Part No. T5710-31122
    • DIA12
    • 1 shown on diagram
    $81.99
  • 4 O RING

    O RING

    • Part No. 04811-00090
    • DIA8.8
    • 2 shown on diagram
    $0.73
  • 5

    ELBOW

    • Part No. T4810-45761
    • *multiple options for # 5
    • 2 shown on diagram
    $42.99
  • 5 ELBOW

    ELBOW

    • Part No. T4876-45162
    • Compatibility Call for compatibility
    • *multiple options for # 5
    • 2 shown on diagram
    $26.99
  • 6

    TUBE

    • Part No. T5715-38211
    • *multiple options for # 6
    • 1 shown on diagram
    $229.99
  • 6

    HOSE, DRAIN

    • Part No. TD24-0204A
    • Compatibility Call for compatibility
    • *multiple options for # 6
    • 1 shown on diagram
    $22.99
  • 7

    ELBOW

    • Part No. T4810-47212
    • 1 shown on diagram
    $48.99
  • 8

    TUBE, CONNECTING

    • Part No. T5710-38411
    • *multiple options for # 8
    • 1 shown on diagram
    $149.99
  • 8

    CONNECTOR

    • Part No. TD24-0208A
    • Compatibility Call for compatibility
    • *multiple options for # 8
    • 1 shown on diagram
    $46.99
  • 9

    ELBOW

    • Part No. T4850-45161
    • Applied Dates 2014-10-16 to 2014-10-15
    • 1 shown on diagram
    $36.99
  • 10

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 11

    SUPPORT, TUBE

    • Part No. T5710-38313
    • T4.5
    • 1 shown on diagram
    $33.99
  • 12 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 13

    BAND, HOSE

    • Part No. F6800-91851
    • 12-22mm
    • 2 shown on diagram
    $1.89

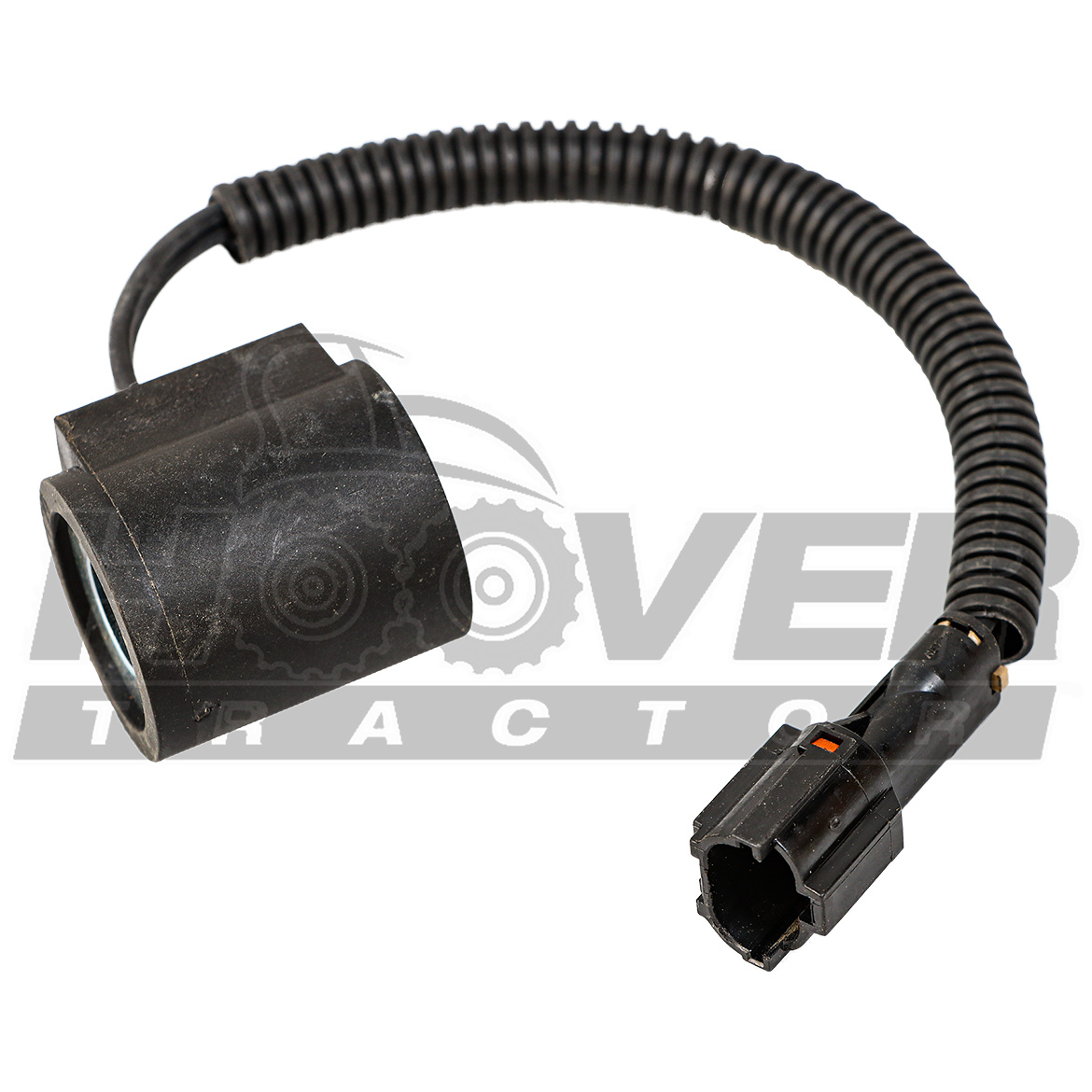

  • 14 SOLENOID

    SOLENOID

    • Part No. M301220
    • *multiple options for # 14
    • 1 shown on diagram
    $114.99
  • 14 SOLENOID COIL

    SOLENOID COIL

    • Part No. M301210
    • Compatibility No Interchange
    • *multiple options for # 14
    • 1 shown on diagram
    $88.99
  • 14 SOLENOID

    SOLENOID

    • Part No. M301220
    • Compatibility No Interchange
    • *multiple options for # 14
    • 1 shown on diagram
    $114.99
  • 15 O RING

    O RING

    • Part No. 04810-00260
    • 1 shown on diagram
    $1.09
