SHUTTLE VALVE GROUP - TD2-G424003

Kioti TRACTOR | DK Series | DK5010HS

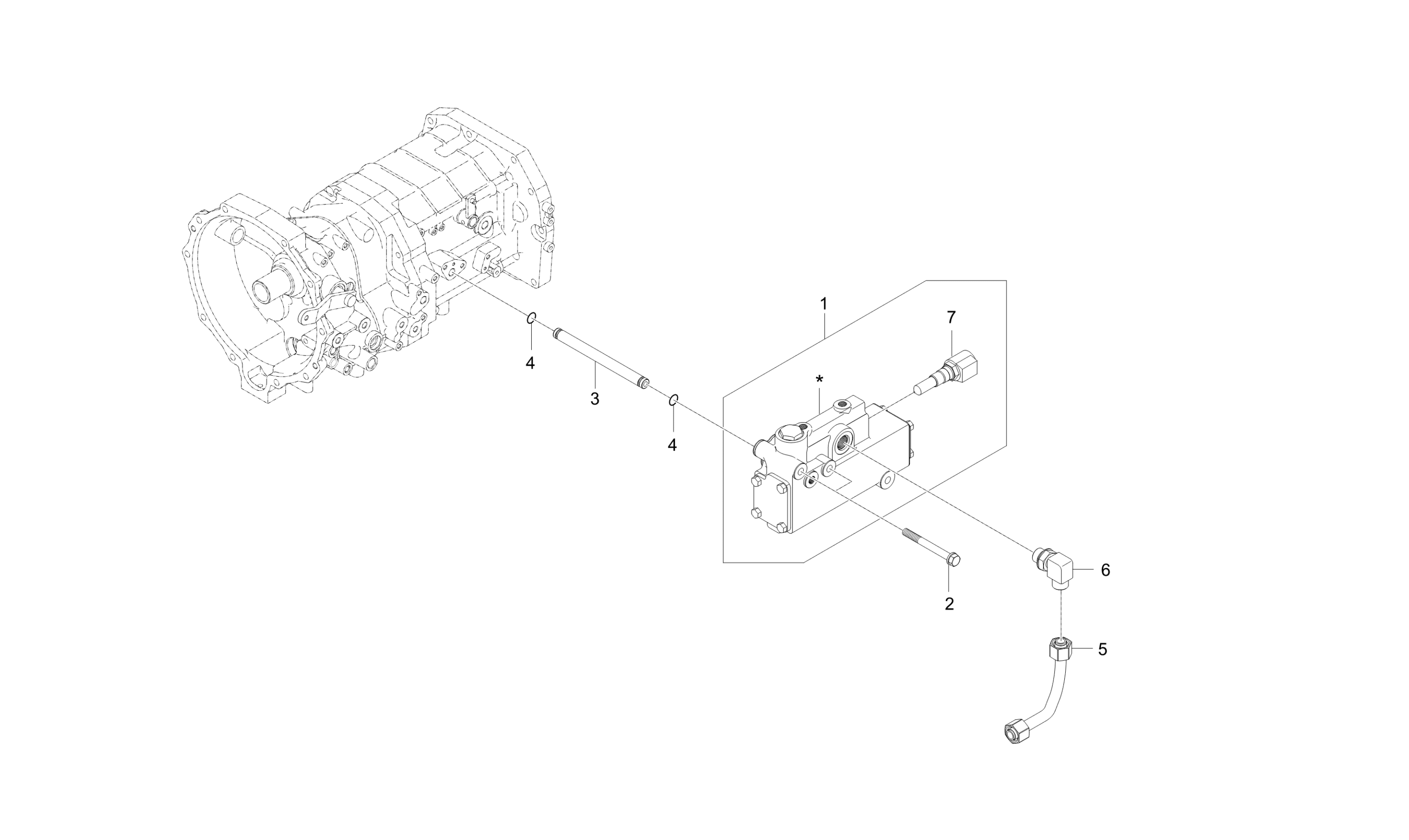

Diagram for SHUTTLE VALVE GROUP - TD2-G424003
  • 1

    SHUTTLE V-V ASSY

    • Part No. T5710-35002
    • Applied Dates 2014-12-29 and up
    • 1 shown on diagram
    $1,399.99
  • 2

    Bolt With Washer, M8 P1.25 x 75mm

    • Part No. 01123-50875
    • Applied Dates Up to 2019-03-19
    • M8XP1.25
    • 3 shown on diagram
    $3.99
  • 3

    TUBE

    • Part No. T5710-31112
    • Applied Dates 2015-03-17 and up
    • DIA12
    • 1 shown on diagram
    $84.99
  • 4 O RING

    O RING

    • Part No. 04811-00090
    • DIA8.8
    • 2 shown on diagram
    $0.73
  • 5

    TUBE, HYD-H

    • Part No. TD24-0205A
    • Applied Dates Up to 2019-03-19
    • *multiple options for # 5
    • 1 shown on diagram
    $0.00
  • 5

    TUBE, HYD-H

    • Part No. TD24-0205B
    • Compatibility New Replaces Old
    • Applied Dates 2019-06-03 and up
    • *multiple options for # 5
    • 1 shown on diagram
    $62.99
  • 6

    ELBOW

    • Part No. T4810-45761
    • Applied Dates 2019-06-03 and up
    • 1 shown on diagram
    $42.99
  • 7 SOLENOID COIL

    SOLENOID COIL

    • Part No. M301210
    • 1 shown on diagram
    $88.99
