MODULATE VALVE GROUP - TD2-G421007

Kioti TRACTOR | DK Series | DK5020

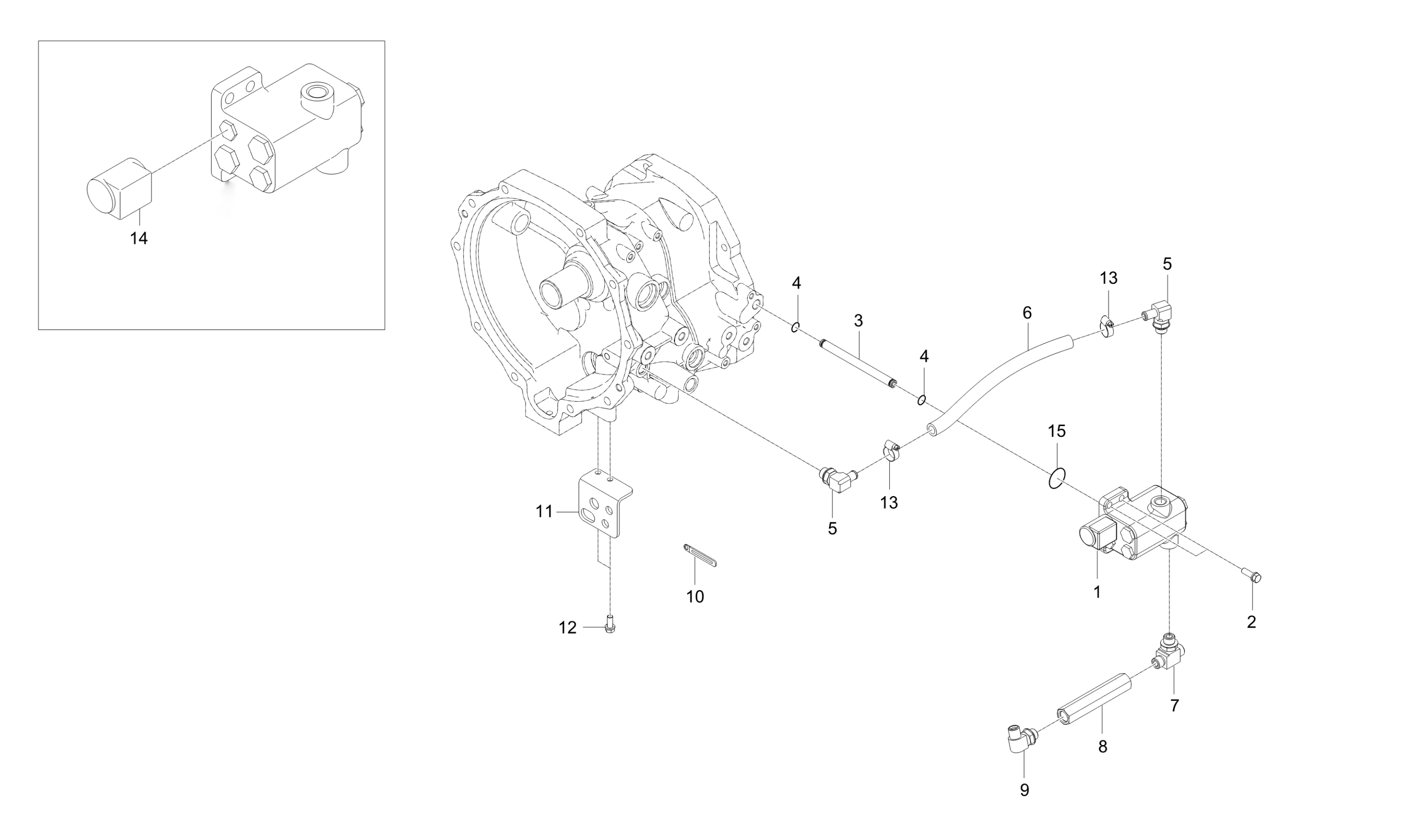

Diagram for MODULATE VALVE GROUP - TD2-G421007
  • 1

    VALVE, MODULATOR

    • Part No. TD24-0249A
    • Serial No. PA4NA0001and up
    • 1 shown on diagram
    $764.99
  • 2 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 3 shown on diagram
    $1.99
  • 3

    TUBE

    • Part No. T5710-31122
    • 1 shown on diagram
    $81.99
  • 4 O RING

    O RING

    • Part No. 04811-00090
    • DIA8.8
    • 2 shown on diagram
    $0.73
  • 5 ELBOW

    ELBOW

    • Part No. T4876-45162
    • 2 shown on diagram
    $26.99
  • 6

    HOSE, DRAIN

    • Part No. TD24-0204A
    • 1 shown on diagram
    $22.99
  • 7

    ELBOW

    • Part No. T5310-42561
    • 1 shown on diagram
    $61.99
  • 8

    CONNECTOR

    • Part No. TD24-0208A
    • 1 shown on diagram
    $46.99
  • 9

    ELBOW

    • Part No. T4850-45161
    • Serial No. PA4NA0143to PA4NA0142
    • 1 shown on diagram
    $36.99
  • 10

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 11

    SUPPORT, TUBE

    • Part No. T5710-38313
    • T4.5
    • 1 shown on diagram
    $33.99
  • 12 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 13

    BAND, HOSE

    • Part No. F6800-91851
    • 12-22mm
    • 2 shown on diagram
    $1.89
  • 14

    SOLENOID COIL (PTO)

    • Part No. M301260
    • 1 shown on diagram
    $114.99
  • 15 O RING

    O RING

    • Part No. 04810-00260
    • DIA25.7
    • 1 shown on diagram
    $1.09
