POWER STEERING UNIT GROUP - TD2-G431001

Kioti TRACTOR | DK Series | DK5020

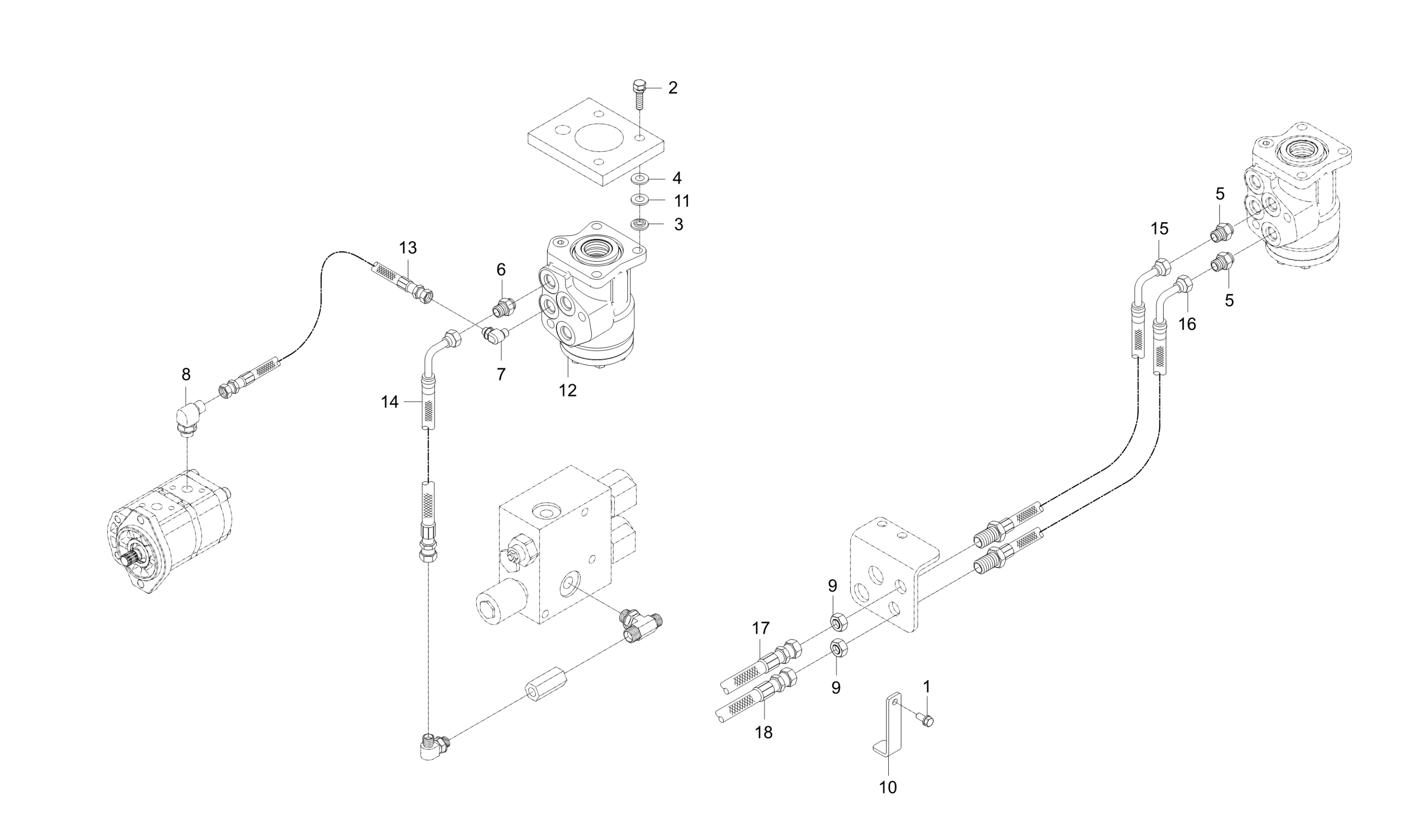

Diagram for POWER STEERING UNIT GROUP - TD2-G431001
  • 1 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 2 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 3 shown on diagram
    $3.49
  • 3

    CAP 2, BEARING

    • Part No. 55611-5711-1
    • T1.0
    • 3 shown on diagram
    $2.99
  • 4

    WASHER

    • Part No. 62411-3313-1
    • 3 shown on diagram
    $4.49
  • 5

    CONNECTOR

    • Part No. T4620-66161
    • PF1/4
    • 2 shown on diagram
    $13.99
  • 6 CONNECTOR

    CONNECTOR

    • Part No. T4810-46971
    • 1 shown on diagram
    $15.99
  • 7

    ELBOW

    • Part No. T4850-45161
    • Serial No. PA4NA0143to PA4NA0142
    • 1 shown on diagram
    $36.99
  • 8

    ELBOW

    • Part No. T4850-45161
    • Serial No. PA4NA0143to PA4NA0142
    • 1 shown on diagram
    $36.99
  • 9

    NUT

    • Part No. T4930-47091
    • 2 shown on diagram
    $2.49
  • 10

    BRACKET

    • Part No. T5270-47072
    • 1 shown on diagram
    $9.99
  • 11

    BUSHING

    • Part No. T5520-80531
    • 4 shown on diagram
    $7.49
  • 12

    TURN SIGNAL CONTROL UNIT

    • Part No. T5710-36001
    • Serial No. PA4NA0143to PA4NA0142
    • 1 shown on diagram
    $1,264.99
  • 13

    HOSE

    • Part No. T5710-36102
    • Serial No. PA4NA0143to PA4NA0142
    • 1 shown on diagram
    $91.99
  • 14

    HOSE ASSEMBLY

    • Part No. T5710-36112
    • Serial No. PA4NA0143to PA4NA0142
    • 1 shown on diagram
    $119.99
  • 15

    HOSE

    • Part No. T5710-36121
    • Serial No. PA4NA0143to PA4NA0142
    • 1 shown on diagram
    $109.99
  • 16

    HOSE

    • Part No. T5710-36131
    • Serial No. PA4NA0143to PA4NA0142
    • 1 shown on diagram
    $109.99
  • 17

    HOSE ASSEMBLY

    • Part No. T5710-39211
    • 1 shown on diagram
    $99.99
  • 18

    HOSE ASSEMBLY

    • Part No. T5710-39221
    • 1 shown on diagram
    $99.99
