HYDRAULIC BLOCK GROUP - TD2-G443001

Kioti TRACTOR | DK Series | DK5010

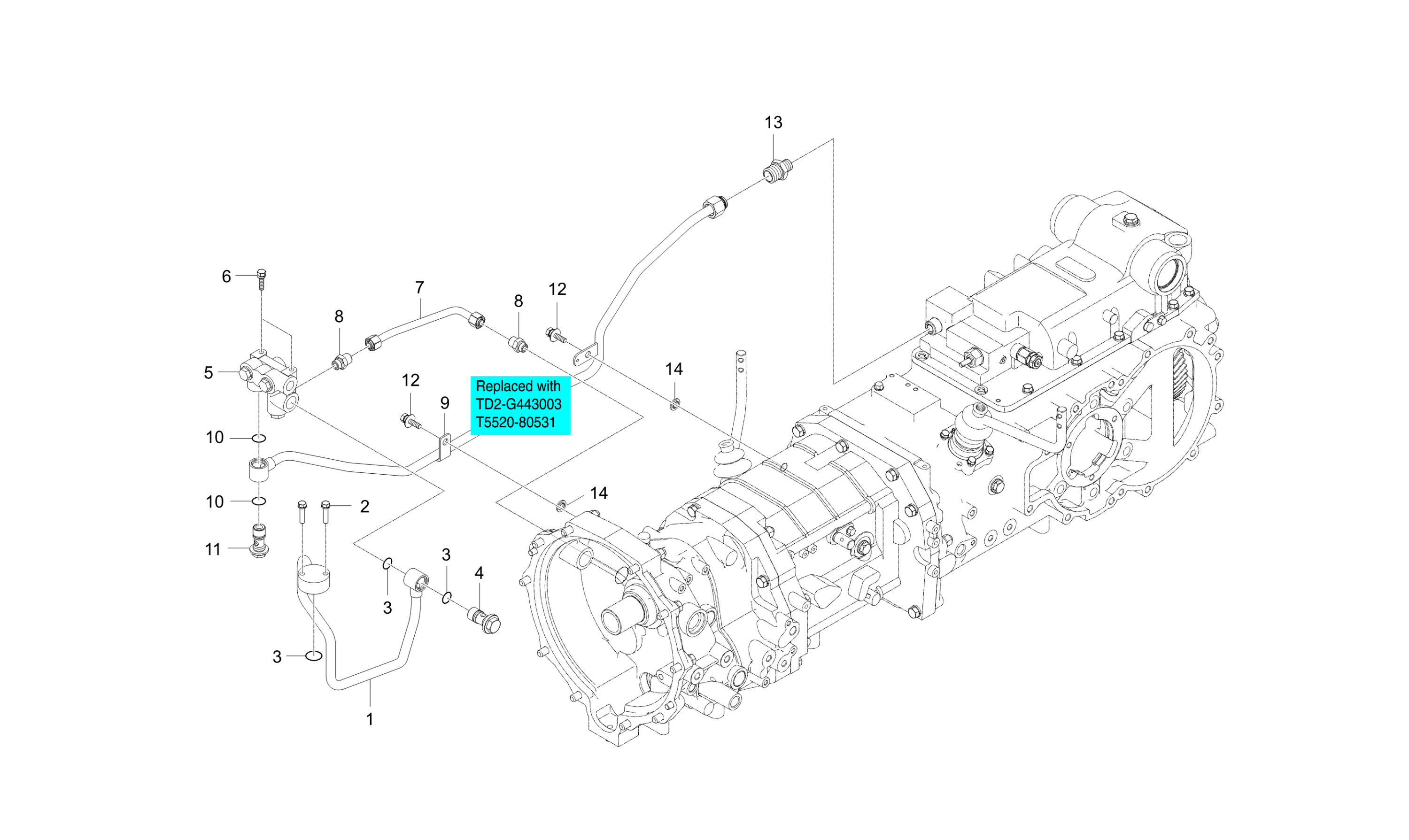

Diagram for HYDRAULIC BLOCK GROUP - TD2-G443001
  • 1

    TUBE J1, HYD. dnr v, Replaced by TD24-0202A

    • Part No. T5710-34202
    • Applied Dates 2014-07-15 to 2018-04-22
    • Serial No. Up to UR8000022
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1 TUBE, HYD-J1

    TUBE, HYD-J1

    • Part No. TD24-0202A
    • Compatibility Call for compatibility
    • Applied Dates 2018-04-23 and up
    • Serial No. UR8000023 to WR8000028
    • *multiple options for # 1
    • 1 shown on diagram
    $139.99
  • 2 Bolt With Washer, M8 P1.25 x 35mm

    Bolt With Washer, M8 P1.25 x 35mm

    • Part No. 01123-50835
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 3 O-ring, 90 Durometer

    O-ring, 90 Durometer

    • Part No. 04816-00220
    • DIA21.8
    • *multiple options for # 3
    • 3 shown on diagram
    $3.99
  • 3

    O-RING

    • Part No. 04817-00220
    • Compatibility Interchangeable
    • Serial No. XR8000001 and up
    • DIA21.8
    • *multiple options for # 3
    • 3 shown on diagram
    $4.49

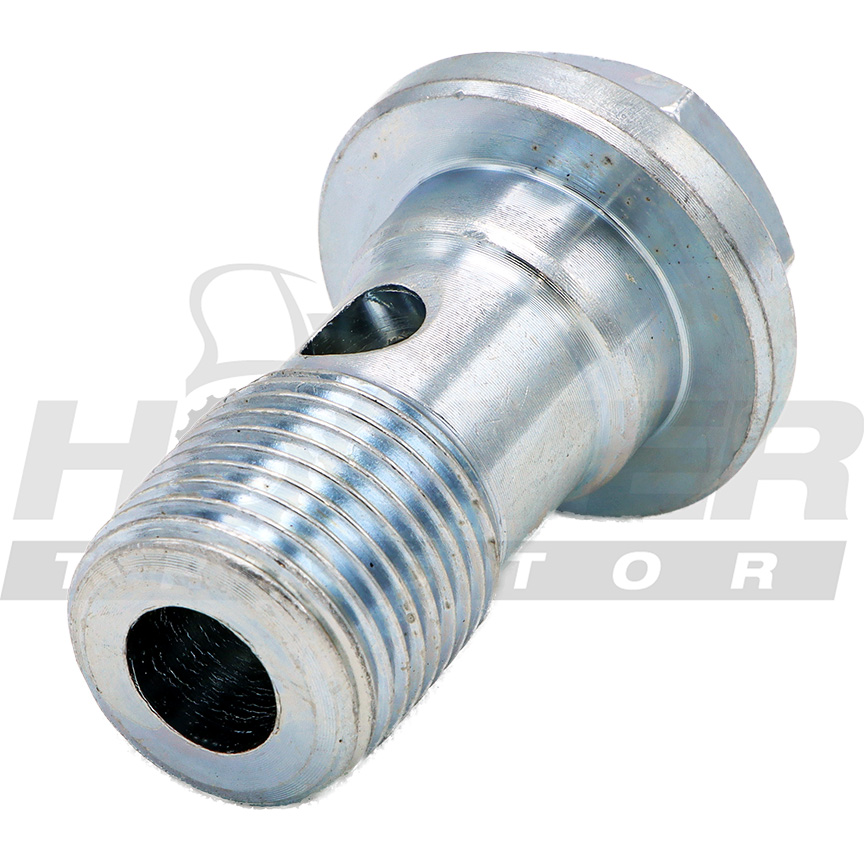

  • 4 BOLT, JOINT

    BOLT, JOINT

    • Part No. T4835-46591
    • *multiple options for # 4
    • 1 shown on diagram
    $28.99
  • 4

    BOLT, JOINT

    • Part No. TD24-0253A
    • Compatibility Interchangeable
    • Serial No. XR8000001 and up
    • *multiple options for # 4
    • 1 shown on diagram
    $27.99
  • 5

    ASSY,HYD.BLOCK

    • Part No. T5710-36601
    • 1 shown on diagram
    $554.99
  • 6 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 2 shown on diagram
    $1.99
  • 7

    TUBE

    • Part No. T5710-36211
    • 1 shown on diagram
    $69.99
  • 8

    CONNECTOR v

    • Part No. T4810-47131
    • 2 shown on diagram
    $23.99
  • 9

    TUBE dnr v

    • Part No. T5710-36022
    • Applied Dates 2014-09-12 to 2018-05-31
    • Serial No. PR8000001 to UR8000022
    • *multiple options for # 9
    • 1 shown on diagram
    $189.99
  • 9

    Hydraulic Tube J2

    • Part No. T5710-36023
    • Compatibility Call for compatibility
    • Applied Dates 2018-06-01 and up
    • Serial No. UR8000023 to WR8000028
    • *multiple options for # 9
    • 1 shown on diagram
    $189.99
  • 10 O-ring, 90 Durometer

    O-ring, 90 Durometer

    • Part No. 04816-00220
    • DIA21.8
    • *multiple options for # 10
    • 2 shown on diagram
    $3.99
  • 10

    O-RING

    • Part No. 04817-00220
    • Compatibility Interchangeable
    • DIA21.8
    • *multiple options for # 10
    • 2 shown on diagram
    $4.49
  • 11 BOLT, JOINT

    BOLT, JOINT

    • Part No. T4835-46591
    • *multiple options for # 11
    • 1 shown on diagram
    $28.99
  • 11

    BOLT, JOINT

    • Part No. TD24-0253A
    • Compatibility Interchangeable
    • *multiple options for # 11
    • 1 shown on diagram
    $27.99
  • 12

    BOLT

    • Part No. 01127-50820
    • 2 shown on diagram
    $2.49
  • 13

    CONNECTION

    • Part No. T4935-46941
    • UNS1-14
    • 1 shown on diagram
    $26.99
  • 14

    BUSHING

    • Part No. T5520-80531
    • 2 shown on diagram
    $7.49
