TIER4 CONTROL GROUP - TD2-G535001

Kioti TRACTOR | DK Series | DK5010

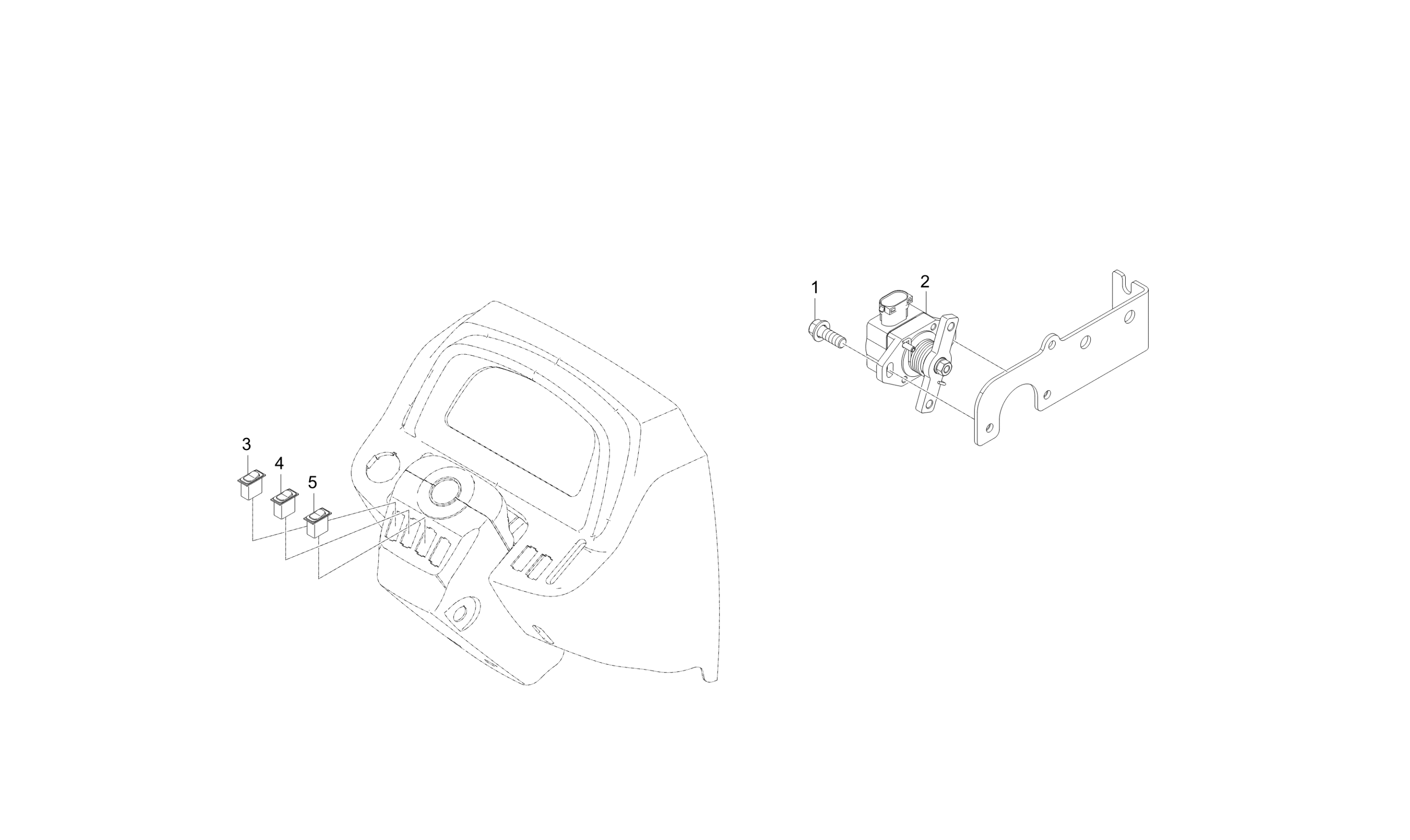

Diagram for TIER4 CONTROL GROUP - TD2-G535001
  • 1

    BOLT, WASHER

    • Part No. 01023-50616
    • M6XP1.0
    • 2 shown on diagram
    $1.19
  • 2

    THROTTLE POSITION SENSOR

    • Part No. F6800-60011
    • Applied Dates Up to 2018-05-13
    • Serial No. Up to WR8000054
    • *multiple options for # 2
    • 1 shown on diagram
    $754.99
  • 2

    ASSY SENSOR, THROTTLE POSITION

    • Part No. TD25-0140A
    • Compatibility Interchangeable
    • Serial No. WR8000055 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $394.99
  • 3 DPF SWITCH

    DPF SWITCH

    • Part No. T5758-69251
    • Applied Dates Up to 2019-12-31
    • 1 shown on diagram
    $71.99
  • 4

    PTO SWITCH

    • Part No. T5758-69471
    • Applied Dates Up to 2019-12-31
    • 1 shown on diagram
    $81.99
  • 5

    CRUISE ADJUST SWITCH

    • Part No. T5758-69491
    • Applied Dates Up to 2019-12-31
    • 1 shown on diagram
    $66.99
