JOYSTICK VALVE GROUP - TD2-G6H1002

Kioti TRACTOR | DK Series | DK5010

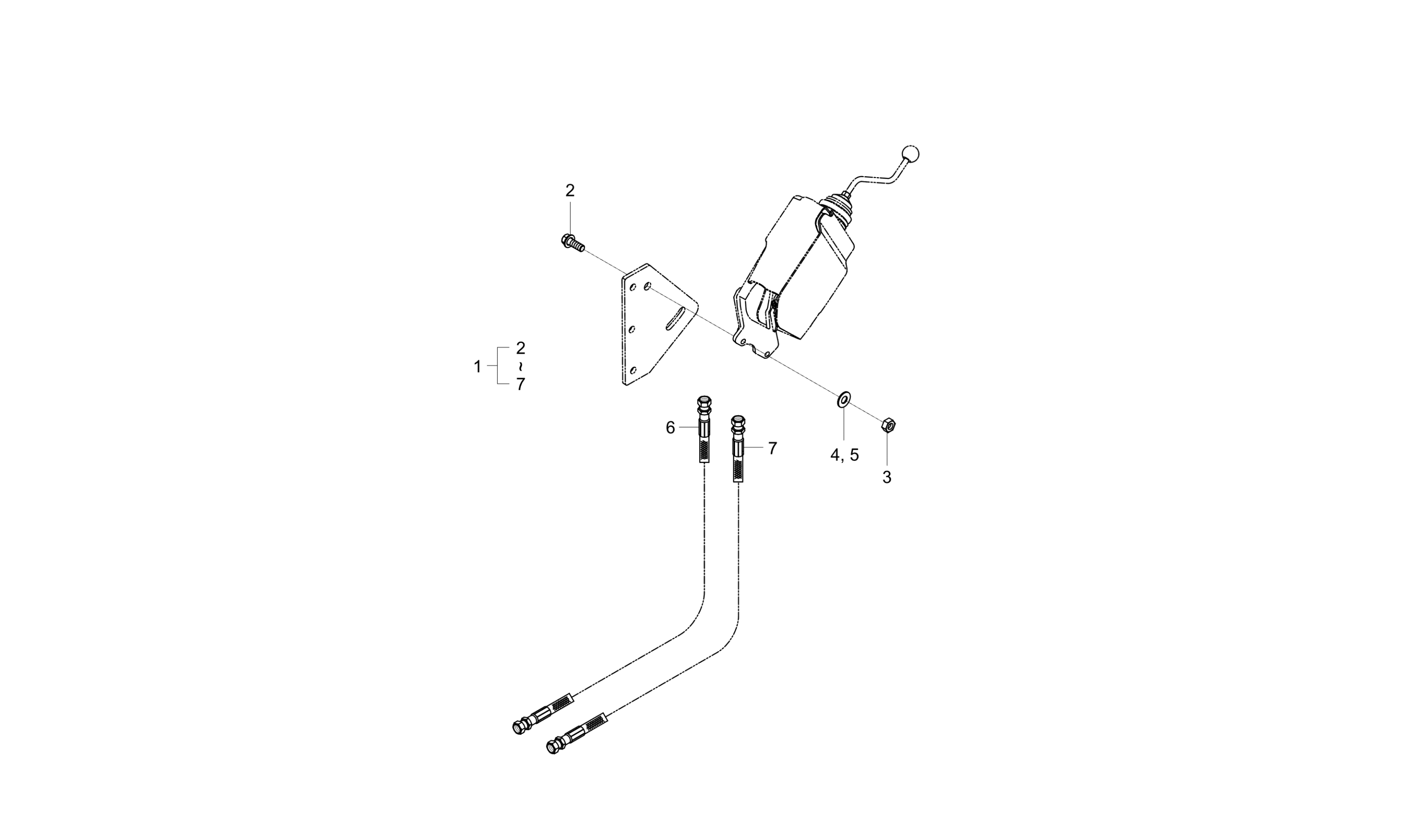

Diagram for JOYSTICK VALVE GROUP - TD2-G6H1002
  • 1 ASSY HOSE, JOYSTICK v

    ASSY HOSE, JOYSTICK v

    • Part No. TD26-0042A
    • 1 shown on diagram
    $499.99
  • 2

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 3 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 4

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 1 shown on diagram
    $0.67
  • 5

    Flat Washer M10

    • Part No. 04015-50100
    • M10
    • 1 shown on diagram
    $1.09
  • 6

    HOSE-1

    • Part No. TD26-0035A
    • 454(3/4-16UNF)x4(3/4
    • 2 shown on diagram
    $85.99
  • 7

    HOSE-2

    • Part No. TD26-0036A
    • 454(3/4-16UNF)x4(3/4
    • 2 shown on diagram
    $83.99
