MOUNTING GROUP - TD200C-G870A

Kioti TRACTOR | DK Series | DK5010

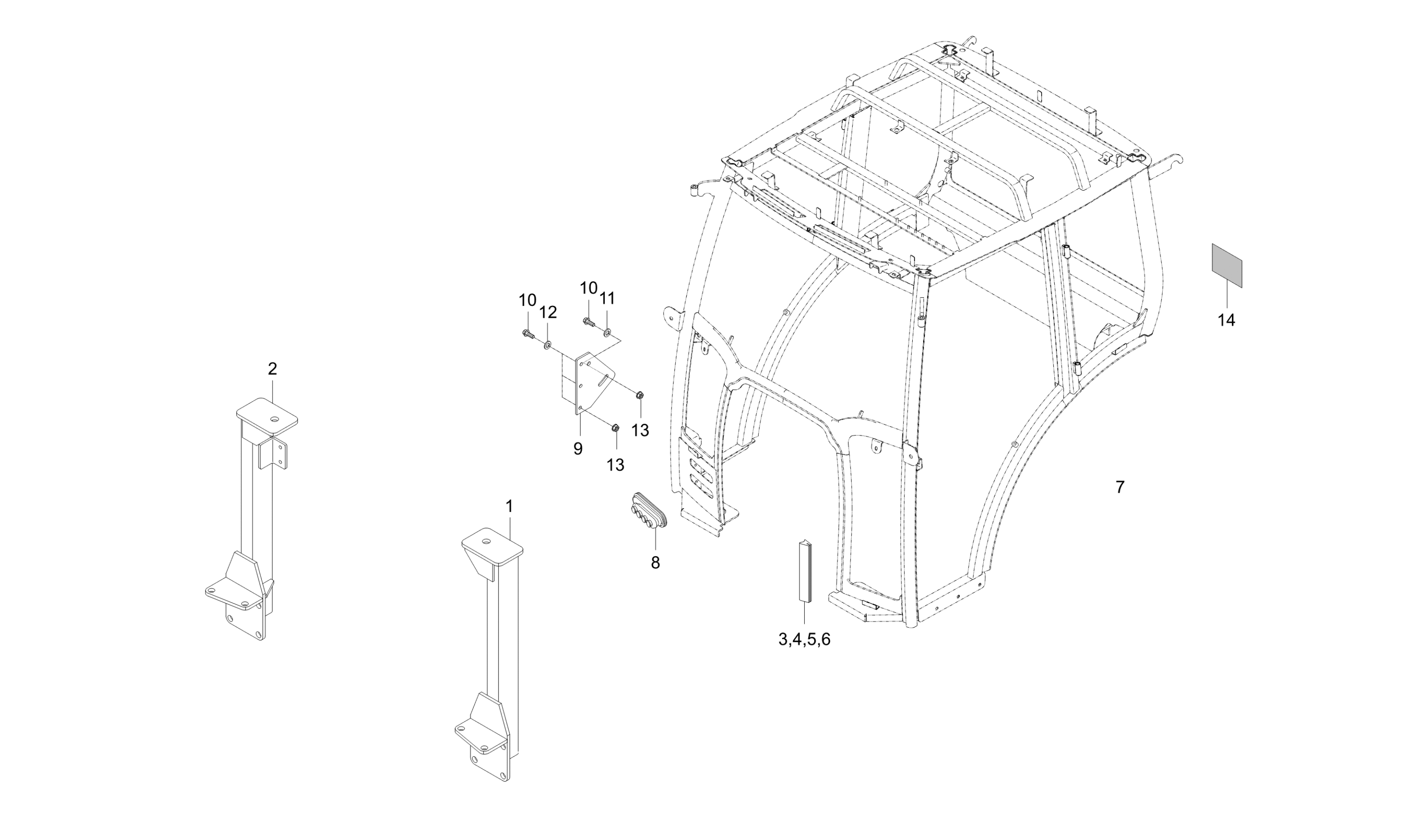

Diagram for MOUNTING GROUP - TD200C-G870A
  • 1

    SUPPORT, CABIN ASSY LH, Replaced by T5715-83012

    • Part No. T5715-83011
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    SUPPORT, CABIN ASSY LH

    • Part No. T5715-83012
    • Compatibility New Replaces Old
    • *multiple options for # 1
    • 1 shown on diagram
    $399.99
  • 2

    SUPPORT, CABIN ASSY RH, Replaced by T5715-83023

    • Part No. T5715-83022
    • *multiple options for # 2
    • 1 shown on diagram
    $325.78
  • 2

    SUPPORT, CABIN ASSY RH

    • Part No. T5715-83023
    • Compatibility New Replaces Old
    • *multiple options for # 2
    • 1 shown on diagram
    $399.99
  • 3

    PAD, SEALING, Replaced by T5715-83112

    • Part No. T5715-83111
    • *multiple options for # 3
    • 2 shown on diagram
    $0.00

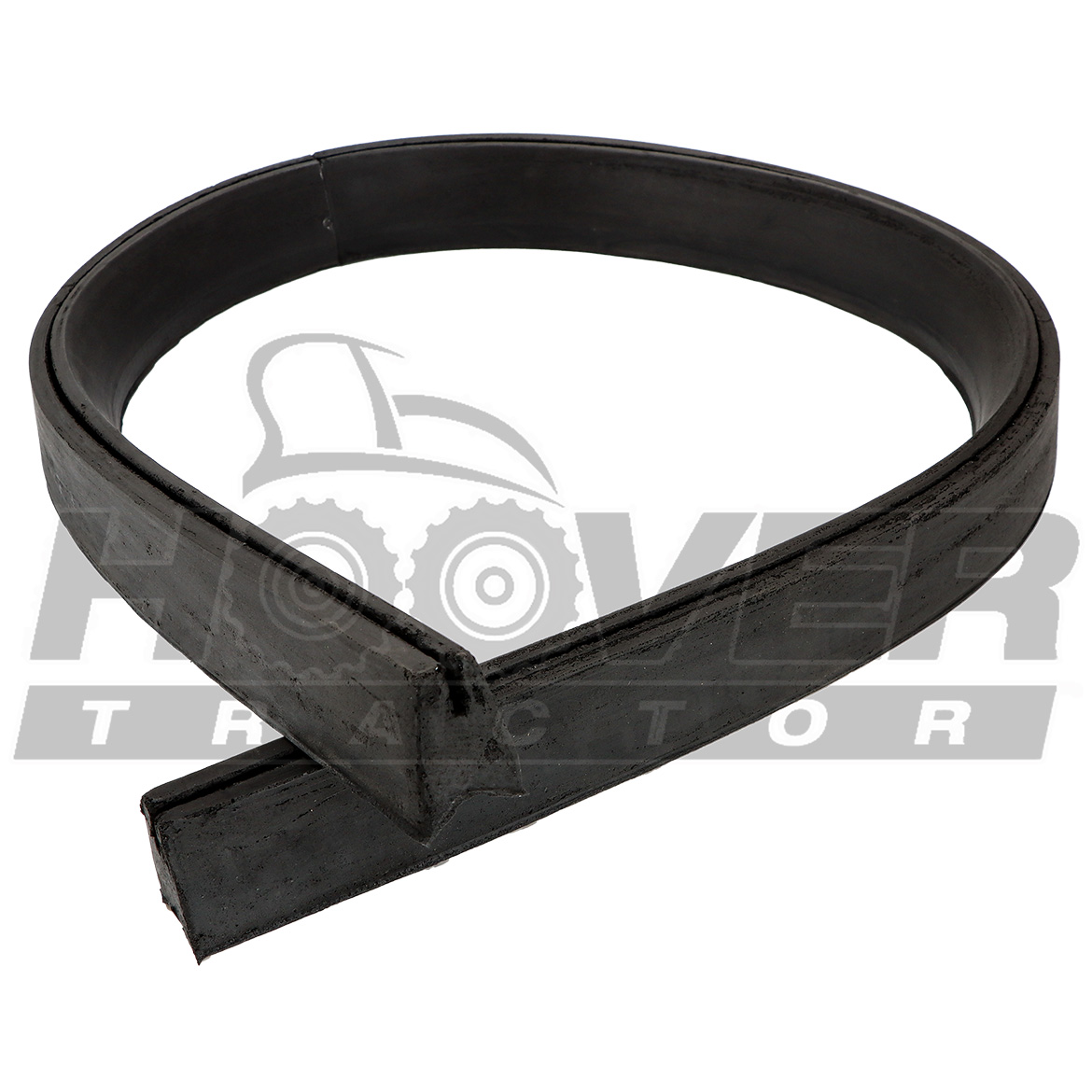

  • 3 PAD, SEALING FENDER

    PAD, SEALING FENDER

    • Part No. T5715-83112
    • Compatibility New Replaces Old
    • *multiple options for # 3
    • 2 shown on diagram
    $79.99
  • 3

    PAD, SEALING

    • Part No. T5715-83113
    • Compatibility Interchangeable
    • *multiple options for # 3
    • 2 shown on diagram
    $66.99
  • 4

    PAD, SEALING, Replaced by T5715-83122

    • Part No. T5715-83121
    • *multiple options for # 4
    • 1 shown on diagram
    $0.00

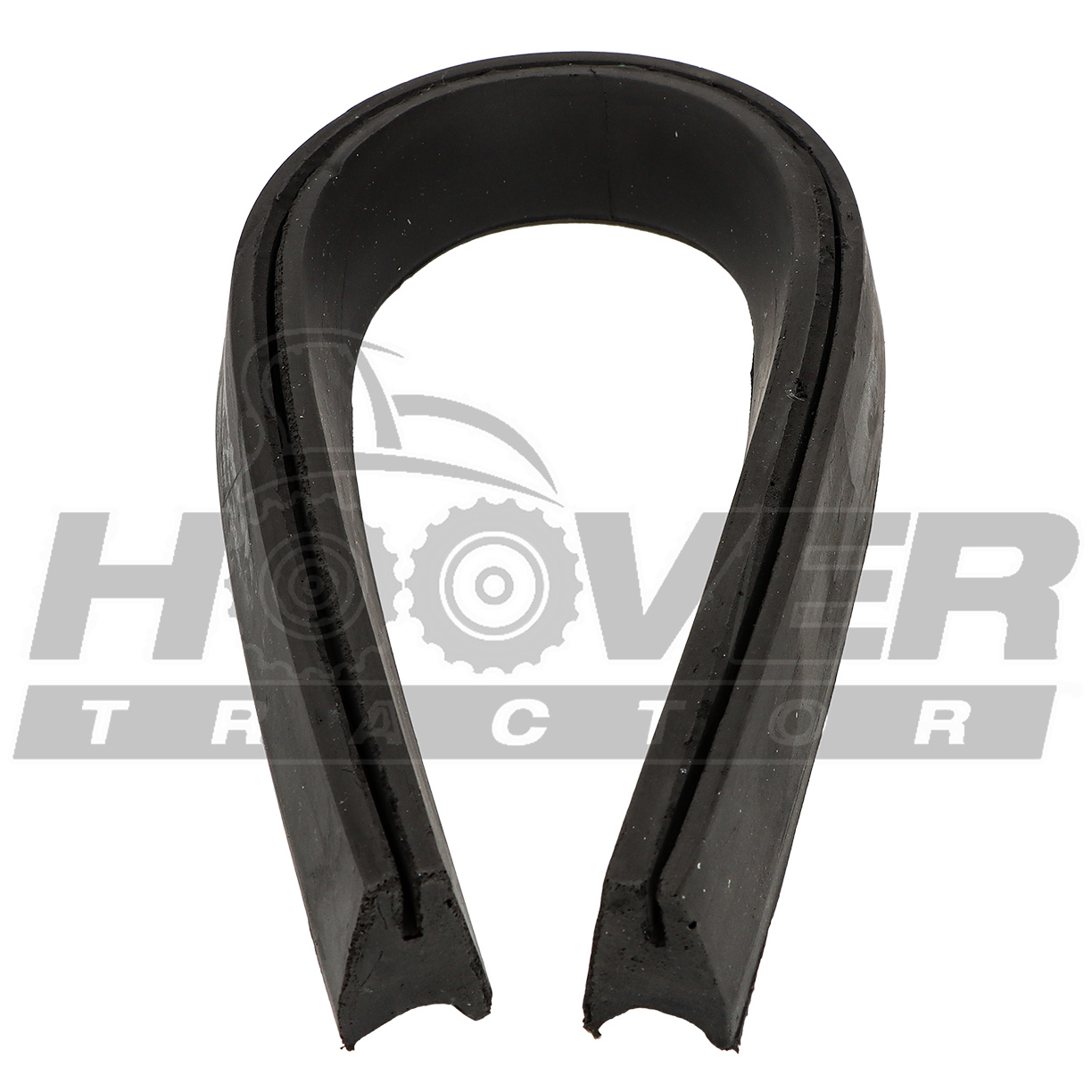

  • 4 PAD, SEALING REAR

    PAD, SEALING REAR

    • Part No. T5715-83122
    • Compatibility New Replaces Old
    • *multiple options for # 4
    • 1 shown on diagram
    $83.99
  • 4

    PAD, SEALING

    • Part No. T5715-83123
    • Compatibility Interchangeable
    • *multiple options for # 4
    • 1 shown on diagram
    $71.99
  • 5

    PAD, SEALING dnr v, Replaced by T5715-83132

    • Part No. T5715-83131
    • *multiple options for # 5
    • 1 shown on diagram
    $90.75
  • 5 PAD, SEALING FRONT

    PAD, SEALING FRONT

    • Part No. T5715-83132
    • Compatibility New Replaces Old
    • *multiple options for # 5
    • 1 shown on diagram
    $109.99
  • 5

    PAD, SEALING

    • Part No. T5715-83133
    • Compatibility Interchangeable
    • *multiple options for # 5
    • 1 shown on diagram
    $93.99
  • 6

    PAD, SEALING, Replaced by T5715-83142

    • Part No. T5715-83141
    • *multiple options for # 6
    • 2 shown on diagram
    $0.00
  • 6 PAD, SEALING REAR EDGE

    PAD, SEALING REAR EDGE

    • Part No. T5715-83142
    • Compatibility New Replaces Old
    • *multiple options for # 6
    • 2 shown on diagram
    $24.99
  • 6

    PAD, SEALING

    • Part No. T5715-83143
    • Compatibility Interchangeable
    • *multiple options for # 6
    • 2 shown on diagram
    $19.99
  • 7 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 8

    JOYSTICK JAVARA

    • Part No. T5715-83241
    • 2 shown on diagram
    $41.99
  • 9

    BRACKET, CONNECTING

    • Part No. T5715-83251
    • 1 shown on diagram
    $74.99
  • 10

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 11

    Flat Washer M10

    • Part No. 04015-50100
    • M10
    • *multiple options for # 11
    • 1 shown on diagram
    $1.09
  • 11

    BOLT

    • Part No. 01133-51045
    • Compatibility New Replaces Old
    • *multiple options for # 11
    • 1 shown on diagram
    $3.99
  • 12

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 3 shown on diagram
    $0.67
  • 13 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 3 shown on diagram
    $0.98
  • 14

    LABEL, CABIN CERTIFICATE

    • Part No. TD26-0009A
    • *multiple options for # 14
    • 1 shown on diagram
    $0.00
  • 14

    LABEL, CABIN CERTIFICATE-ISO 5700

    • Part No. TD26-0967A
    • Compatibility New Replaces Old
    • T0.5
    • *multiple options for # 14
    • 1 shown on diagram
    $0.00
