SPEED CONTROL LEVER GROUP - 3C093A-E150

Kioti TRACTOR | CK Series | CK20J

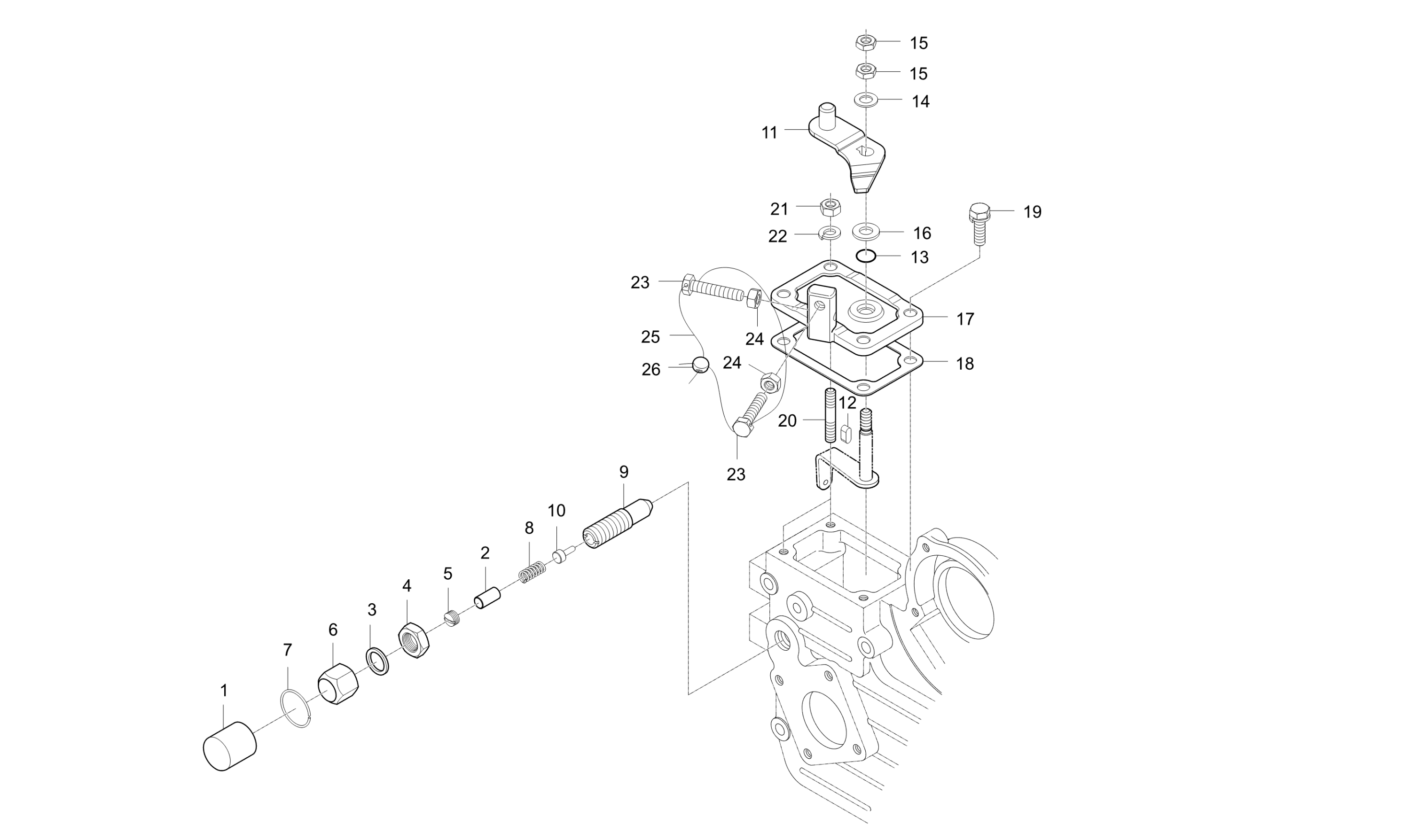

Diagram for SPEED CONTROL LEVER GROUP - 3C093A-E150
  • 1

    CAP

    • Part No. E5753-54421
    • Applied Dates 2003-02-24 and up
    • 1 shown on diagram
    $8.99
  • 2

    SPACER

    • Part No. 15221-5419-2
    • DIA8*13
    • 1 shown on diagram
    $1.49
  • 3

    GASKET

    • Part No. E5205-33671
    • Applied Dates 1992-12-08 and up
    • T1.5
    • 2 shown on diagram
    $1.19
  • 4

    NUT

    • Part No. E5753-54371
    • Applied Dates 2003-02-24 and up
    • 1 shown on diagram
    $11.99
  • 5

    SCREW, SET

    • Part No. 14301-5443-1
    • DIA10*10,M8*0.75
    • 1 shown on diagram
    $4.99
  • 6

    NUT,CAP

    • Part No. E5753-54221
    • Applied Dates 2003-02-24 and up
    • 1 shown on diagram
    $13.99
  • 7

    SNAP RING

    • Part No. E5753-54281
    • Applied Dates 2003-02-24 and up
    • D=1.0
    • 1 shown on diagram
    $1.49
  • 8

    SPRING, FUEL CONTROL

    • Part No. E5700-54232
    • Applied Dates 2003-01-03 and up
    • 1 shown on diagram
    $1.09
  • 9

    MAIN BODY

    • Part No. E5205-54133
    • 1 shown on diagram
    $13.99
  • 10

    PIN (E5700-54173)

    • Part No. E5700-54173
    • Applied Dates 2003-01-03 to 2003-04-22
    • Serial No. Up to 319400190
    • * multiple options for #10
    • 1 shown on diagram
    $4.99
  • 10

    PIN (E5700-54174)

    • Part No. E5700-54174
    • Compatibility Call for compat
    • Applied Dates 2003-04-23 and up
    • Serial No. 319400191 and up
    • * multiple options for #10
    • 1 shown on diagram
    $4.99
  • 11

    OB LEVER,SPEED CONTROL v

    • Part No. E5752-57152
    • Applied Dates 2002-05-07 and up
    • 1 shown on diagram
    $31.99
  • 12 KEY

    KEY

    • Part No. 05712-00410
    • W4XL10
    • 1 shown on diagram
    $2.49
  • 13

    O RING

    • Part No. 04811-00070
    • 1 shown on diagram
    $0.68
  • 14 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73

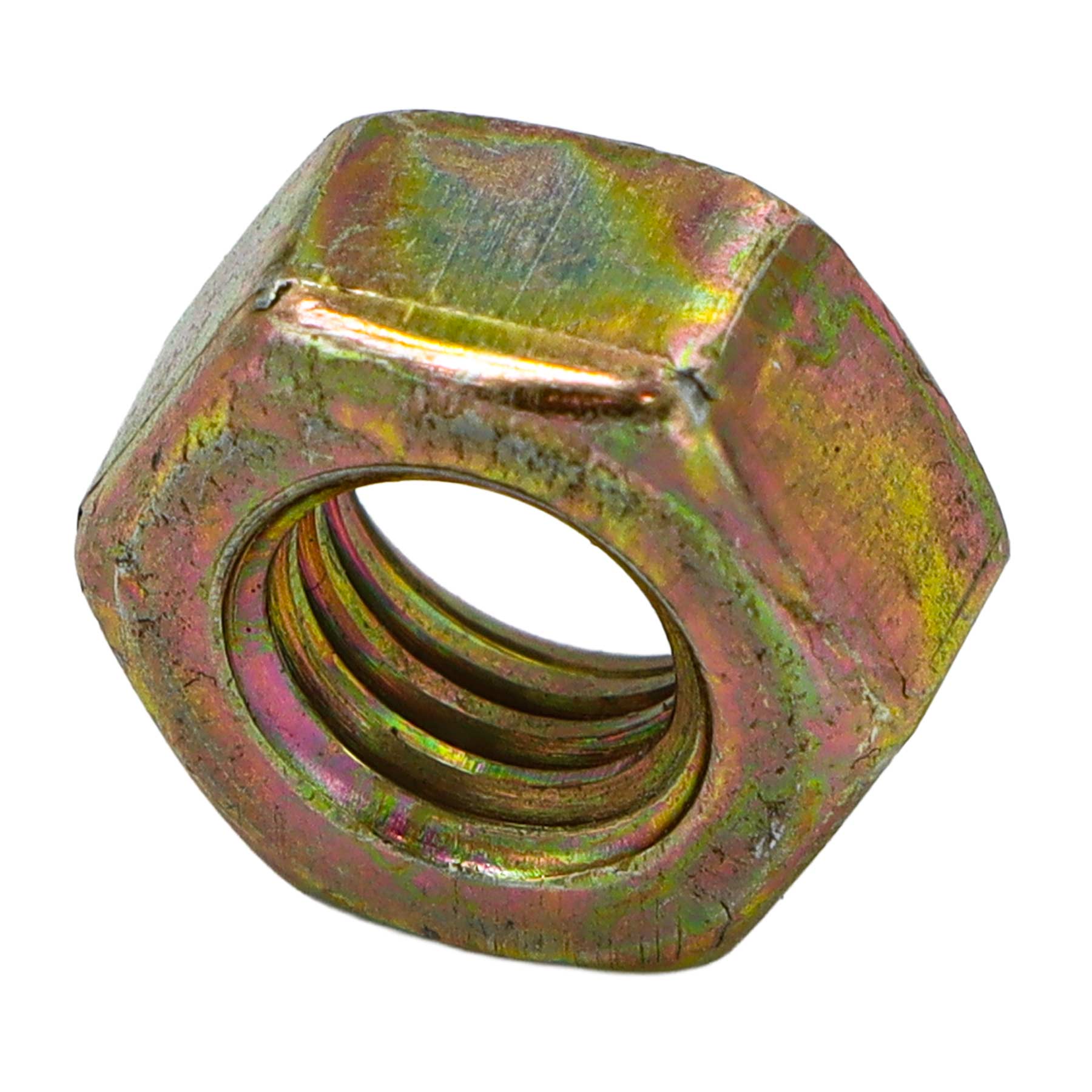

  • 15 NUT

    NUT

    • Part No. 02012-50060
    • 2 shown on diagram
    $0.61
  • 16

    WASHER,PLAIN

    • Part No. E5205-94011
    • T1.6*18*18
    • 1 shown on diagram
    $1.89
  • 17

    PLATE,SPEED CONTROL

    • Part No. E5205-57112
    • 1 shown on diagram
    $22.99
  • 18

    GASKET

    • Part No. 15261-5721-1
    • Applied Dates Up to 2003-09-21
    • T1.0
    • * multiple options for #18
    • 1 shown on diagram
    $0.00
  • 18

    GASKET v

    • Part No. E5700-57211
    • Compatibility Interchngable
    • Applied Dates 2003-09-22 to 2006-08-25
    • T1.0
    • * multiple options for #18
    • 1 shown on diagram
    $1.49
  • 19

    BOLT, WASHER

    • Part No. 01023-50620
    • Applied Dates 2003-02-20 and up
    • M6XP1.0
    • 2 shown on diagram
    $1.39
  • 20

    STUD (01518-50622)

    • Part No. 01518-50622
    • Applied Dates 2003-02-20 and up
    • 2 shown on diagram
    $3.49
  • 21 NUT

    NUT

    • Part No. 02056-50060
    • Applied Dates 2003-02-20 and up
    • M6XP1.0
    • 2 shown on diagram
    $0.49
  • 22 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • Applied Dates 2003-02-20 and up
    • M06
    • 2 shown on diagram
    $0.61
  • 23

    STOPPER (15108-5728-4)

    • Part No. 15108-5728-4
    • HEX10,M6*1.0
    • 2 shown on diagram
    $5.99
  • 24 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.49
  • 25

    WIRE (07811-11210)

    • Part No. 07811-11210
    • Applied Dates Up to 2005-03-17
    • DIA1.2*110
    • * multiple options for #25
    • 1 shown on diagram
    $0.88
  • 25

    WIRE

    • Part No. 07811-10820
    • Compatibility New repl old
    • Applied Dates 2005-03-18 and up
    • * multiple options for #25
    • 1 shown on diagram
    $2.99
  • 26

    LEAD, SEALING

    • Part No. 07918-00001
    • 1 shown on diagram
    $0.96
