WATER HOSE GROUP - 3C093A-E190

Kioti TRACTOR | CK Series | CK20J

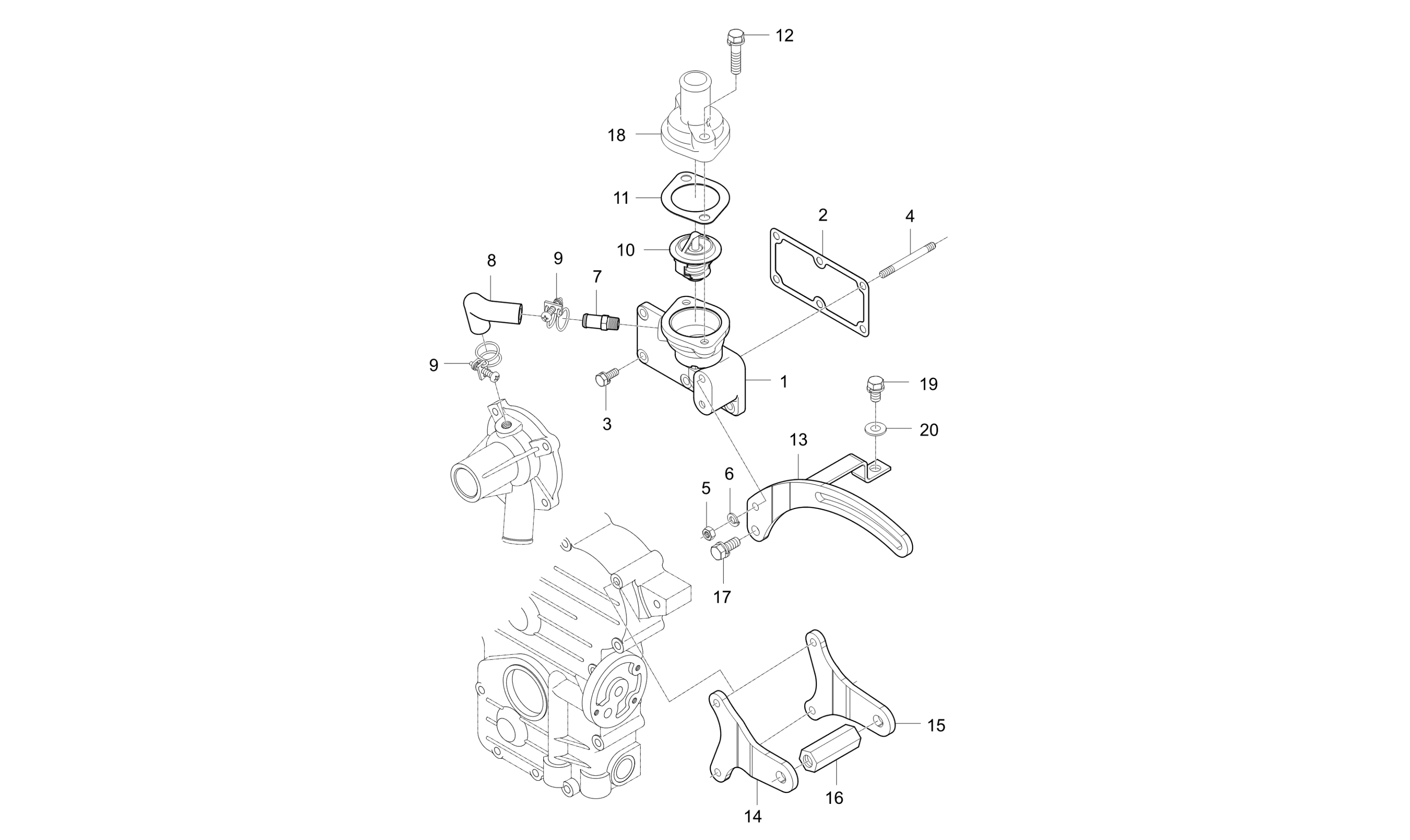

Diagram for WATER HOSE GROUP - 3C093A-E190
  • 1

    WATER FLANGE

    • Part No. E5700-72914
    • 1 shown on diagram
    $82.99
  • 2

    GASKET,FLANGE v

    • Part No. E5700-72921
    • Applied Dates Up to 2006-08-25
    • T1.0*123*64
    • 1 shown on diagram
    $1.39
  • 3

    BOLT, WASHER

    • Part No. 01023-50616
    • M6XP1.0
    • 5 shown on diagram
    $1.19
  • 4

    STUD

    • Part No. 01513-50655
    • 1 shown on diagram
    $3.99
  • 5 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.49
  • 6 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 1 shown on diagram
    $0.61
  • 7

    HOSE, WATER RETURN

    • Part No. E5700-73342
    • DIA12*31
    • 1 shown on diagram
    $11.99
  • 8

    HOSE, WATER PUMP, Replaced by E5700-73353

    • Part No. E5700-73352
    • * multiple options for #8
    • 1 shown on diagram
    $0.00
  • 8 HOSE, WATER PUMP v

    HOSE, WATER PUMP v

    • Part No. E5700-73353
    • Compatibility Interchngable
    • * multiple options for #8
    • 1 shown on diagram
    $11.99
  • 9

    BAND, HOSE

    • Part No. E5205-73361
    • Wire #18
    • 2 shown on diagram
    $2.99
  • 10 Thermostat 180°F 82°C 44mm

    Thermostat 180°F 82°C 44mm

    • Part No. E5500-73012
    • 1 shown on diagram
    $39.99
  • 11

    Thermostat Gasket, Replaced by E5500-73272

    • Part No. 15321-7327-1
    • Applied Dates 2002-11-18 to 2006-08-25
    • T1*60*82
    • 1 shown on diagram
    $0.00
  • 12 Bolt With Washer, M8 P1.25 x 35mm

    Bolt With Washer, M8 P1.25 x 35mm

    • Part No. 01123-50835
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 13

    SUPPORT 1 ALTERNATOR

    • Part No. E5752-64421
    • Applied Dates 2003-01-13 and up
    • 1 shown on diagram
    $16.99
  • 14

    SUPPORT 2, ANTERNATOR

    • Part No. E5752-64431
    • 1 shown on diagram
    $9.99
  • 15

    SUPPORT 3, ALTERNATOR

    • Part No. E5752-64441
    • 1 shown on diagram
    $16.99
  • 16

    SPACER

    • Part No. E5752-64451
    • Applied Dates 2003-01-13 to 2003-02-13
    • * multiple options for #16
    • 1 shown on diagram
    $4.99
  • 16

    SPACER dnr v

    • Part No. E5752-64452
    • Compatibility New repl old
    • Applied Dates 2003-02-13 and up
    • Serial No. 319400001 and up
    • * multiple options for #16
    • 1 shown on diagram
    $13.99
  • 17 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • Applied Dates 2001-10-27 and up
    • M8XP1.25
    • 1 shown on diagram
    $2.49

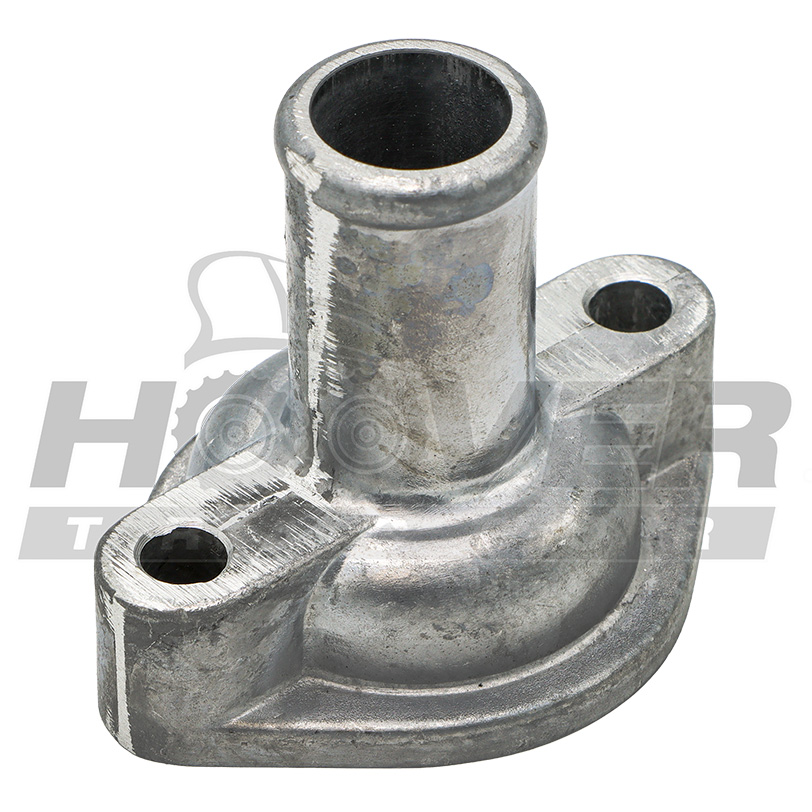

  • 18 COVER,THERMOSTAT

    COVER,THERMOSTAT

    • Part No. E5700-73262
    • * multiple options for #18
    • 1 shown on diagram
    $17.99
  • 18

    COVER, THERMOSTAT

    • Part No. E5700-73263
    • Compatibility Interchngable
    • * multiple options for #18
    • 1 shown on diagram
    $18.99
  • 19

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 20 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • Applied Dates 2003-01-13 and up
    • 1 shown on diagram
    $0.79
