RADIATOR GROUP - CK20-T030A

Kioti TRACTOR | CK Series | CK20H

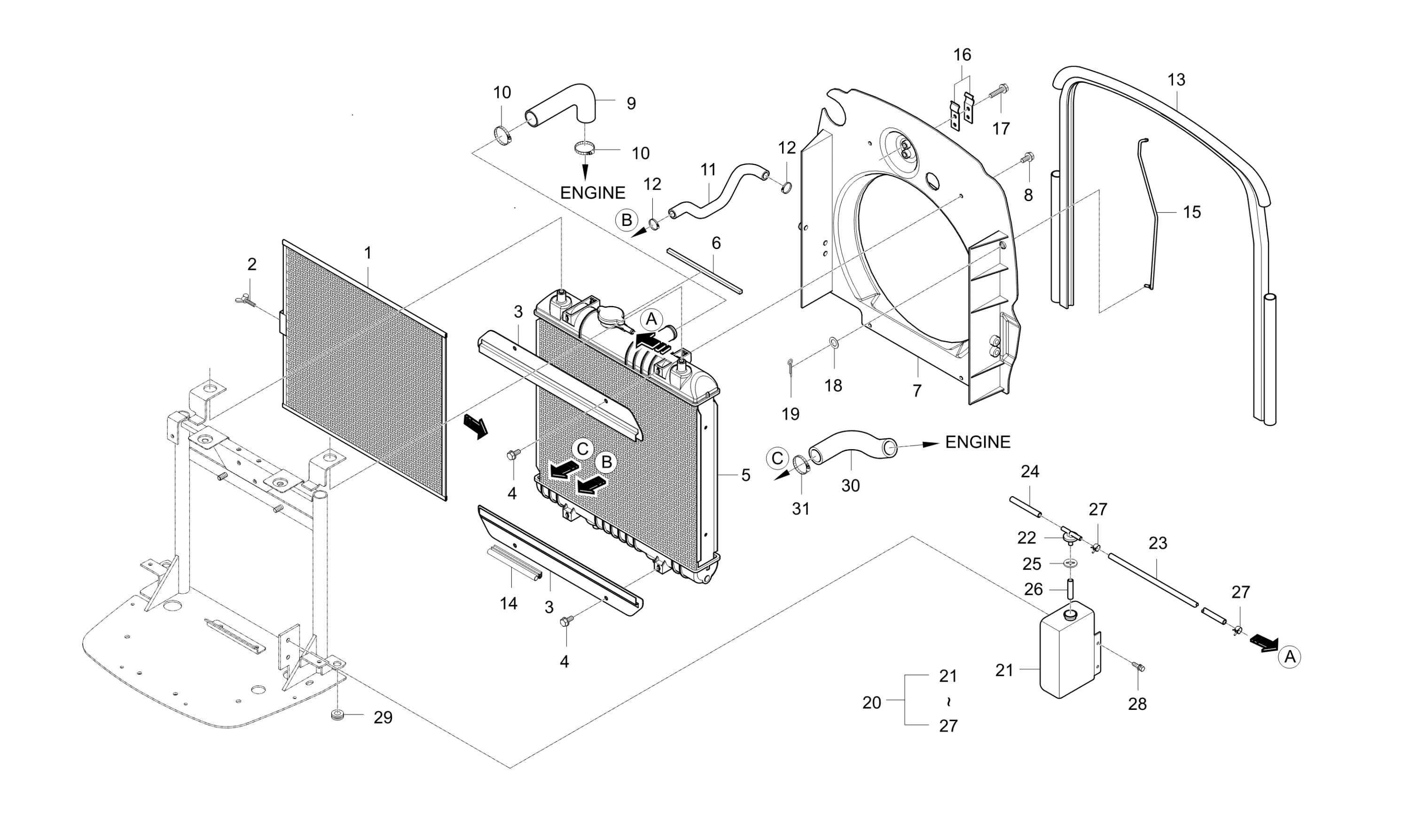

Diagram for RADIATOR GROUP - CK20-T030A
  • 1

    NET, RADIATOR dnr v

    • Part No. T2380-13111
    • 1 shown on diagram
    $119.99
  • 2

    BOLT, WING

    • Part No. 01811-50612
    • M6P1.0
    • 1 shown on diagram
    $2.49
  • 3

    Radiator Screen Guide

    • Part No. T2380-13531
    • 2 shown on diagram
    $58.99
  • 4 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 4 shown on diagram
    $1.09
  • 5

    RADIATOR ASSEMBLY

    • Part No. T2380-72162
    • 1 shown on diagram
    $619.99
  • 6

    SPONGE

    • Part No. T2380-13651
    • 2 shown on diagram
    $5.49
  • 7

    SHIRAOUD

    • Part No. T2380-13522
    • 1 shown on diagram
    $71.99
  • 8 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 4 shown on diagram
    $1.09
  • 9 HOSE, COOLING WATER UPR

    HOSE, COOLING WATER UPR

    • Part No. T2381-13571
    • 1 shown on diagram
    $21.99
  • 10

    BAND HOSE v

    • Part No. E5205-72781
    • Wire #35
    • 2 shown on diagram
    $3.49
  • 11 WATER RETURN HOSE

    WATER RETURN HOSE

    • Part No. T2381-73341
    • 1 shown on diagram
    $16.99
  • 12

    CLAMP, HOSE dnr v

    • Part No. E5700-73361
    • 2 shown on diagram
    $3.49
  • 13

    RUBBER 1

    • Part No. T2380-13673
    • * multiple options for #13
    • 1 shown on diagram
    $31.99
  • 13

    RUBBER 1

    • Part No. T2380-13674
    • Compatibility Interchngable
    • * multiple options for #13
    • 1 shown on diagram
    $24.99
  • 14

    RUBBER(RADIATOR)

    • Part No. T2380-13692
    • 1 shown on diagram
    $14.99
  • 15

    Rod (T2350-50622)

    • Part No. T2350-50622
    • 1 shown on diagram
    $32.99
  • 16

    PLATE,LOOK

    • Part No. T2350-50641
    • T1.0
    • 2 shown on diagram
    $2.99
  • 17 Flange Bolt (T4625-55431)

    Flange Bolt (T4625-55431)

    • Part No. T4625-55431
    • 2 shown on diagram
    $1.09
  • 18

    Flat Washer M6

    • Part No. 04014-50060
    • 1 shown on diagram
    $0.67
  • 19

    Split Pin (05511-51615)

    • Part No. 05511-51615
    • DIA1.4XL15
    • 1 shown on diagram
    $0.56
  • 20

    WATER TANK ASSY

    • Part No. T2350-13601
    • * multiple options for #20
    • 1 shown on diagram
    $69.99
  • 20

    WATER TANK ASSY

    • Part No. T2350-13602
    • Compatibility New repl old
    • * multiple options for #20
    • 1 shown on diagram
    $55.99
  • 20

    ASSY RESERVOIR, RADIATOR v

    • Part No. T2350-13603
    • Compatibility Interchngable
    • * multiple options for #20
    • 1 shown on diagram
    $69.99
  • 21

    TANK, WATER dnr v

    • Part No. T2350-13611
    • * multiple options for #21
    • 1 shown on diagram
    $37.99
  • 21 TANK, WATER

    TANK, WATER

    • Part No. T2350-13612
    • Compatibility New repl old
    • * multiple options for #21
    • 1 shown on diagram
    $37.99
  • 22

    CAP dnr v

    • Part No. 15531-7242-2
    • 1 shown on diagram
    $5.99
  • 23 Over Flow Hose 1

    Over Flow Hose 1

    • Part No. E5800-72711
    • OD13*ID8*L580
    • 1 shown on diagram
    $14.99
  • 24 Hose, 1 (T2350-13601004)

    Hose, 1 (T2350-13601004)

    • Part No. T2350-13601004
    • 1 shown on diagram
    $5.99
  • 25

    PACKING

    • Part No. 15532-7243-2
    • 1 shown on diagram
    $3.49
  • 26

    Hose, 2 (T2350-13601006)

    • Part No. T2350-13601006
    • 1 shown on diagram
    $3.99
  • 27

    CLIP, TUBE

    • Part No. 14911-4275-1
    • T0.8*#12
    • * multiple options for #27
    • 2 shown on diagram
    $1.49
  • 27

    Hose Clamp (14971-4275-1)

    • Part No. 14971-4275-1
    • Compatibility New repl old
    • DIA1.0*ID7.8
    • * multiple options for #27
    • 1 shown on diagram
    $1.59
  • 28 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • Applied Dates Up to 2005-06-17
    • M8XP1.25
    • * multiple options for #28
    • 2 shown on diagram
    $2.49
  • 28

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • Compatibility New repl old
    • Applied Dates 2002-12-15 to 2003-09-20
    • Serial No. 219500001 to 319500100
    • M8XP1.25
    • * multiple options for #28
    • 2 shown on diagram
    $2.49
  • 29 GROMMET

    GROMMET

    • Part No. T4682-50251
    • 2 shown on diagram
    $1.89
  • 30 HOSE, COOLING WATER LWR

    HOSE, COOLING WATER LWR

    • Part No. T2380-13581
    • 1 shown on diagram
    $19.99
  • 31

    CLAMP, STAINLESS HOSE

    • Part No. E5752-18171
    • 1 shown on diagram
    $4.49
