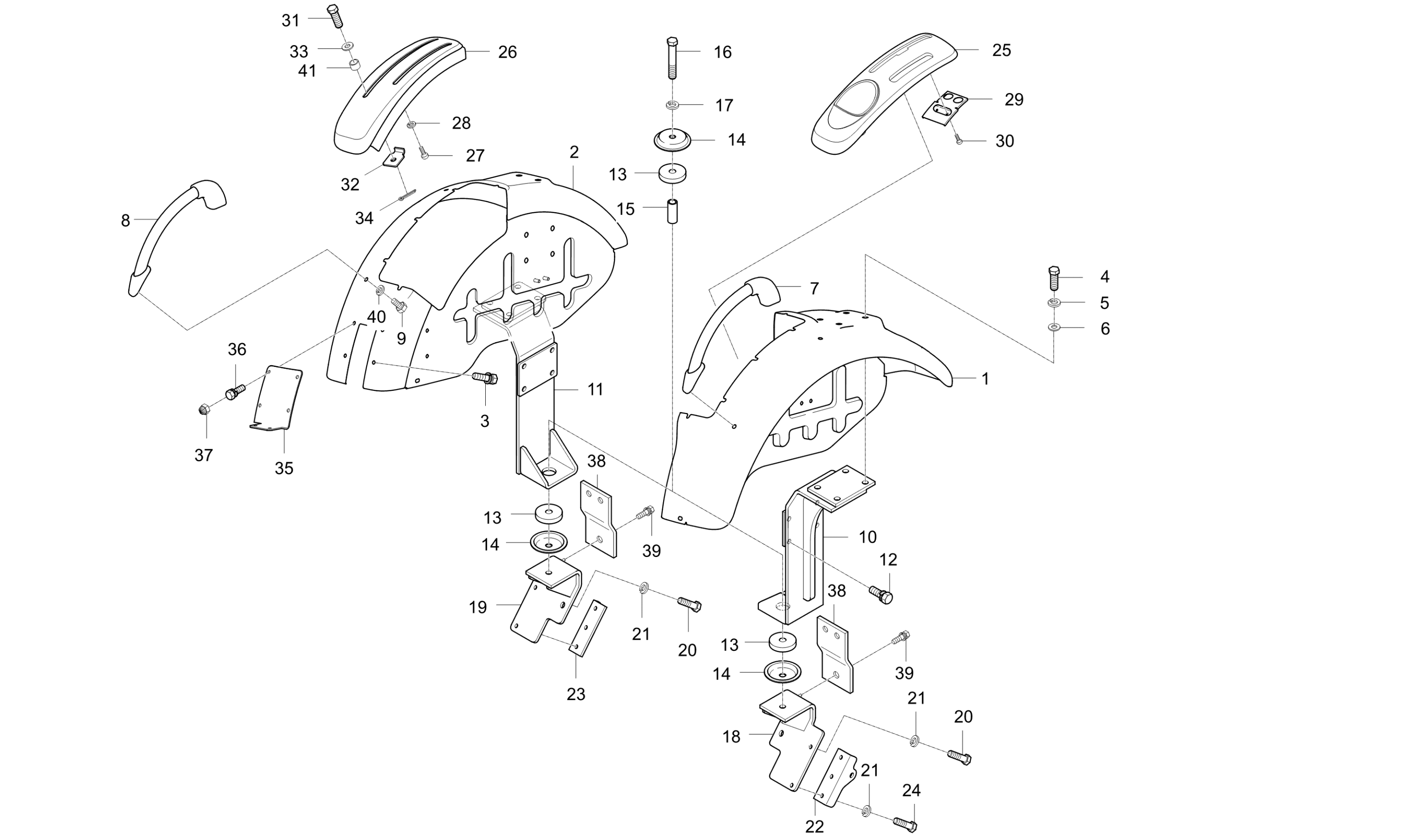

FENDER GROUP - CK20H-T820-2A
Kioti TRACTOR | CK Series | CK20H
-
Fender (LH), Replaced by T2350-95016
- Part No. T2350-95013
- Applied Dates Up to 2003-03-14
- * multiple options for #1
- 1 shown on diagram
$0.00 -
Fender (LH), Replaced by T2350-95016
- Part No. T2350-95014
- Compatibility Interchngable
- Applied Dates 2003-03-15 to 2003-05-28
- * multiple options for #1
- 1 shown on diagram
$0.00 -
Fender (LH), Replaced by T2350-95016
- Part No. T2350-95015
- Compatibility Interchngable
- Applied Dates 2003-05-29 to 2003-06-18
- * multiple options for #1
- 1 shown on diagram
$0.00 -
TRK (LH) Fender (T2350-95016)
- Part No. T2350-95016
- Compatibility Interchngable
- Applied Dates 2003-06-19 to 2007-11-12
- Serial No. 319500021 and up
- * multiple options for #1
- 1 shown on diagram
$909.99 -
TRK (LH) Fender Replaced by T2350-95016 (T2350-95017)
- Part No. T2350-95017
- Compatibility Interchngable
- Applied Dates 2007-11-13 and up
- * multiple options for #1
- 1 shown on diagram
$694.99 -
FENDER ASSY LH CK2510 (T2350-95018)
- Part No. T2350-95018
- Compatibility Call for compat
- * multiple options for #1
- 1 shown on diagram
$399.99 -
ASSY, FENDER(RH) (T2350-95023)
- Part No. T2350-95023
- Applied Dates Up to 2003-03-14
- * multiple options for #2
- 1 shown on diagram
$679.99 -
ASSY FENDER(RH) (T2350-95024)
- Part No. T2350-95024
- Compatibility Interchngable
- Applied Dates 2003-03-15 to 2003-05-28
- * multiple options for #2
- 1 shown on diagram
$679.99 -
ASSY FENDER(RH) (T2350-95025)
- Part No. T2350-95025
- Compatibility Interchngable
- Applied Dates 2003-05-29 to 2003-06-18
- * multiple options for #2
- 1 shown on diagram
$674.99 -
ASSY, FENDER RH (T2350-95026)
- Part No. T2350-95026
- Compatibility Interchngable
- Applied Dates 2003-06-19 to 2007-11-12
- Serial No. 319500021 and up
- * multiple options for #2
- 1 shown on diagram
$769.99 -
ASSY, FENDER (RH) v
- Part No. T2350-95027
- Compatibility Interchngable
- Applied Dates 2007-11-13 and up
- * multiple options for #2
- 1 shown on diagram
$369.99 -
FENDER ASSY, RH
- Part No. T2350-95028
- Compatibility Call for compat
- * multiple options for #2
- 1 shown on diagram
$919.99 -
TRK (RH) Fender (T2350-95029)
- Part No. T2350-95029
- Compatibility New repl old
- * multiple options for #2
- 1 shown on diagram
$359.99 -
Bolt With Washers, M8 P1.25 x 16mm (01125-50816)
- Part No. 01125-50816
- M8XP1.25
- 7 shown on diagram
$2.49 -
BOLT (01173-51450)
- Part No. 01173-51450
- M14*P1.5*50
- 8 shown on diagram
$5.99 -
M14 Spring Lock Washer 04512-50140
- Part No. 04512-50140
- M14
- 8 shown on diagram
$0.90 -
Flat Washer M14
- Part No. 04013-50140
- M14
- 8 shown on diagram
$1.19 -
GRIP FENDER (T2350-95081)
- Part No. T2350-95081
- Applied Dates Up to 2003-05-06
- * multiple options for #7
- 1 shown on diagram
$34.99 -
GRIP FENDER LH (T2350-95082)
- Part No. T2350-95082
- Compatibility Interchngable
- Applied Dates 2003-05-13 and up
- Serial No. 319500021 and up
- * multiple options for #7
- 1 shown on diagram
$89.99 -
GRIP FENDER (T2360-95081)
- Part No. T2360-95081
- Compatibility Call for compat
- * multiple options for #7
- 1 shown on diagram
$59.99 -
GRIP FENDER RH (T2350-95091)
- Part No. T2350-95091
- Applied Dates Up to 2003-05-06
- * multiple options for #8
- 1 shown on diagram
$53.99 -
GRIP-FENDER RH dnr v (T2350-95092)
- Part No. T2350-95092
- Compatibility Interchngable
- Applied Dates 2003-05-13 and up
- Serial No. 319500021 and up
- * multiple options for #8
- 1 shown on diagram
$59.99 -
(RH) Fender Grip (T2360-95091)
- Part No. T2360-95091
- Compatibility Call for compat
- * multiple options for #8
- 1 shown on diagram
$61.99 -
Bolt With Washer, M10 P1.50 x 16mm (01123-51016)
- Part No. 01123-51016
- Applied Dates Up to 2003-05-06
- Serial No. Up to 319500020
- M10XP1.5
- * multiple options for #9
- 4 shown on diagram
$2.99 -
Bolt M10 P1.25x16mm W/Lock Washer
- Part No. 01133-51016
- Compatibility New repl old
- Applied Dates 2003-05-07 to 2005-02-03
- Serial No. 319500021 to 319500020
- M10*P1.25
- * multiple options for #9
- 4 shown on diagram
$2.49 -
BOLT (76KP-1308-1)
- Part No. 76KP-1308-1
- Compatibility New repl old
- Applied Dates 2005-02-14 and up
- Serial No. E19500001 and up
- DIA10*37
- * multiple options for #9
- 4 shown on diagram
$2.99 -
Bolt, Washer
- Part No. 01135-51020
- Compatibility Call for compat
- M10*1.25
- * multiple options for #9
- 4 shown on diagram
$1.99 -
Flange Bolt M10 P1.25 x16 (01774-51016)
- Part No. 01774-51016
- Compatibility Call for compat
- M10XP1.25
- * multiple options for #9
- 4 shown on diagram
$2.49 -
Fender Support (LH) (T2350-95312)
- Part No. T2350-95312
- Applied Dates Up to 2003-03-14
- * multiple options for #10
- 1 shown on diagram
$209.99 -
Fender Support (LH) (T2350-95313)
- Part No. T2350-95313
- Compatibility Interchngable
- Applied Dates 2003-03-15 to 2004-10-28
- Serial No. 319500021 and up
- * multiple options for #10
- 1 shown on diagram
$184.99 -
(LH) Fender Support (T2351-95312)
- Part No. T2351-95312
- Compatibility No interchange
- Applied Dates 2004-10-29 to 2006-02-14
- Serial No. E19500001 and up
- * multiple options for #10
- 1 shown on diagram
$259.99 -
(LH) Fender Support, Replaced by T2351-95313BB
- Part No. T2351-95313
- Compatibility Interchngable
- * multiple options for #10
- 1 shown on diagram
$0.00 -
(RH) Fender Support T2350-95322
- Part No. T2350-95322
- Applied Dates Up to 2003-03-14
- * multiple options for #11
- 1 shown on diagram
$209.99 -
SUPPORT, FENDER(RH) T2350-95323
- Part No. T2350-95323
- Compatibility Interchngable
- Applied Dates 2003-03-15 to 2004-10-28
- Serial No. 319500021 and up
- * multiple options for #11
- 1 shown on diagram
$184.99 -
SUPPORT, FENDER (RH) T2351-95322
- Part No. T2351-95322
- Compatibility No interchange
- Applied Dates 2004-10-29 to 2006-02-14
- Serial No. E19500001 and up
- * multiple options for #11
- 1 shown on diagram
$209.99 -
SUPPORT-FENDER RH v T2351-95323
- Part No. T2351-95323
- Compatibility Interchngable
- * multiple options for #11
- 1 shown on diagram
$344.99 -
Bolt With Washer, M12 P1.25×40
- Part No. 01133-51240
- M12XP1.25
- 8 shown on diagram
$4.49 -
CUSHION T2670-74431
- Part No. T2670-74431
- Applied Dates Up to 2007-03-12
- * multiple options for #13
- 4 shown on diagram
$13.99 -
CUSHION T2670-74432
- Part No. T2670-74432
- Compatibility New repl old
- * multiple options for #13
- 4 shown on diagram
$19.99 -
STOPPER dnr v T2350-85151
- Part No. T2350-85151
- T2.6
- 4 shown on diagram
$16.99 -
Spacer (T2350-85171)
- Part No. T2350-85171
- DIA22.4*T4.0
- 2 shown on diagram
$12.99 -
BOLT 01173-51485
- Part No. 01173-51485
- Applied Dates Up to 2004-02-12
- M12*1.25
- * multiple options for #16
- 2 shown on diagram
$7.99 -
BOLT 01173-51490
- Part No. 01173-51490
- Compatibility New repl old
- Applied Dates 2004-03-16 and up
- Serial No. D19500001 and up
- M14XP1.5
- * multiple options for #16
- 2 shown on diagram
$9.99 -
M14 Spring Lock Washer 04512-50140
- Part No. 04512-50140
- M14
- 2 shown on diagram
$0.90 -
BRACKET,CHCK CHAIN(LH) T2350-85183
- Part No. T2350-85183
- Applied Dates Up to 2004-10-28
- * multiple options for #18
- 1 shown on diagram
$77.99 -
(LH) Check Chain Bracket (T2351-85181)
- Part No. T2351-85181
- Compatibility Call for compat
- Applied Dates 2005-01-01 and up
- Serial No. E19500001 and up
- * multiple options for #18
- 1 shown on diagram
$99.99 -
BRACKET,CHCK CHAIN(RH)
- Part No. T2350-85193
- Applied Dates Up to 2004-10-28
- * multiple options for #19
- 1 shown on diagram
$77.99 -
BRACKET, CHECK CHAIN(R)
- Part No. T2351-85191
- Compatibility Call for compat
- Applied Dates 2005-01-01 and up
- Serial No. E19500001 and up
- * multiple options for #19
- 1 shown on diagram
$99.99 -
Bolt (01173-51430)
- Part No. 01173-51430
- M14P1.5*30
- 2 shown on diagram
$4.49 -
M14 Spring Lock Washer 04512-50140
- Part No. 04512-50140
- M14
- 6 shown on diagram
$0.90 -
HOLDER, CHECK CHAIN(LH)
- Part No. T2350-85212
- T9.0
- 1 shown on diagram
$37.99 -
HOLDER, CHECK CHAIN(RH)
- Part No. T2350-85222
- T9.0
- 1 shown on diagram
$36.99 -
Hex Head Cap Screw M14 P1.5×40
- Part No. 01173-51440
- M14XP1.5
- 4 shown on diagram
$3.49 -
GUIDE, LEVER(LH) dnr v
- Part No. T2360-95414
- Applied Dates 2003-03-25 to 2003-07-07
- Serial No. 319500021 to 319500120
- * multiple options for #25
- 1 shown on diagram
$54.99 -
GUIDE-LEVER LH dnr v
- Part No. T2360-95415
- Compatibility Interchngable
- Applied Dates 2003-10-16 and up
- Serial No. 319500121 and up
- * multiple options for #25
- 1 shown on diagram
$69.99 -
GUIDE, LEVER LH
- Part No. T2360-95416
- Compatibility No interchange
- * multiple options for #25
- 1 shown on diagram
$0.00 -
GUIDE LEVER RH V
- Part No. T2350-95424
- 1 shown on diagram
$71.99 -
TAPPING SCREW v
- Part No. 38240-1883-1
- M4X16
- 10 shown on diagram
$0.79 -
WASHER, SPRING
- Part No. 04512-50040
- M04
- 10 shown on diagram
$0.55 -
PLATE, GUIDE dnr v
- Part No. T2350-95432
- 1 shown on diagram
$46.99 -
Bolt With Washer, M8 P1.25 x 16mm 01123-50816
- Part No. 01123-50816
- M8XP1.25
- 2 shown on diagram
$1.09 -
BOLT, Replaced by 55571-32381
- Part No. 55571-3238-1
- 1 shown on diagram
$0.00 -
Lever Stopper Replaced by T2350-95472
- Part No. T2350-95471
- Applied Dates Up to 2005-01-18
- * multiple options for #32
- 1 shown on diagram
$3.99 -
Lever Stopper (T2350-95472)
- Part No. T2350-95472
- Compatibility Interchngable
- Applied Dates 2005-04-04 and up
- Serial No. E19500001 and up
- * multiple options for #32
- 1 shown on diagram
$3.49 -
Flat Washer M6, Replaced by 04012-50060
- Part No. 04015-50060
- M6
- 1 shown on diagram
$0.00 -
Split Pin (05511-50215)
- Part No. 05511-50215
- DIA1.8XL15
- 1 shown on diagram
$0.62 -
COVER
- Part No. T2350-95062
- T3.2
- 1 shown on diagram
$34.99 -
Bolt With Washers, M8 P1.25 x 16mm (01125-50816)
- Part No. 01125-50816
- M8XP1.25
- 6 shown on diagram
$2.49 -
Cap Nut, M8 T4815-93211
- Part No. T4815-93211
- M8
- 4 shown on diagram
$1.49 -
STOPPER-ROPS dnr v
- Part No. T2351-97211
- T9*65
- 2 shown on diagram
$19.99 -
BOLT
- Part No. 01133-51020
- Applied Dates 2004-10-29 to 2004-11-08
- M10XP1.25
- * multiple options for #39
- 4 shown on diagram
$2.99 -
BOLT
- Part No. 01133-51025
- Compatibility New repl old
- Applied Dates 2003-02-17 to 2003-02-16
- Serial No. 319500001 to 319500100
- M10XP1.25
- * multiple options for #39
- 4 shown on diagram
$3.49 -
WASHER, SPRING
- Part No. 04512-50100
- Applied Dates 2005-02-04 and up
- M10
- 4 shown on diagram
$0.79 -
SPACER
- Part No. T4520-83301
- DIA10.5*T2.0
- 1 shown on diagram
$4.99
Related Diagrams
-
FUEL TANK GROUP - CK20M-T790A
-
THREE POINT LINKAGE GROUP - CK20M-T730A
-
STEP GROUP - CK20H-T840A
-
SEAT GROUP - CK20ME-T850B
-
SEAT FLOOR GROUP - CK20HE-T830A
-
ROPS GROUP - CK20M-T920A
-
RADIATOR GROUP - CK20-T030A
-
PTO LEVER GROUP - CK20M-T350-1A
-
POSITION CONTROL LEVER GROUP - CK20M-T710A
-
MUFFLER GROUP - CK20M-T020A
-
LABEL GROUP - CK20H-T910A
-
INSTRUMENT COVER GROUP - CK20H-T810A
-
FRONT DRIVE LEVER GROUP - CK20H-T370A
-
ACCELERATOR GROUP - CK20H-T800A
-
FRAME GROUP - CK20M-T780A
-
FENDER GROUP - CK20H-T820-2A
-
DRAWBAR GROUP - CK20M-T740A
-
CLUTCH PEDAL GROUP - CK20M-T120A
-
BRAKE PEDAL GROUP - CK20H-T410A
-
BONNET 3 GROUP - CK22-T770A
-
BONNET 2 GROUP - CK22M-T760A
-
BONNET 1 GROUP - CK20M-T750A
-
AUX SPEED SHIFT LEVER GROUP - CK20M-T300A
-
AIR CLEANER GROUP - CK20M-T010A
