FUEL TANK GROUP - CK20M-T790A

Kioti TRACTOR | CK Series | CK20H

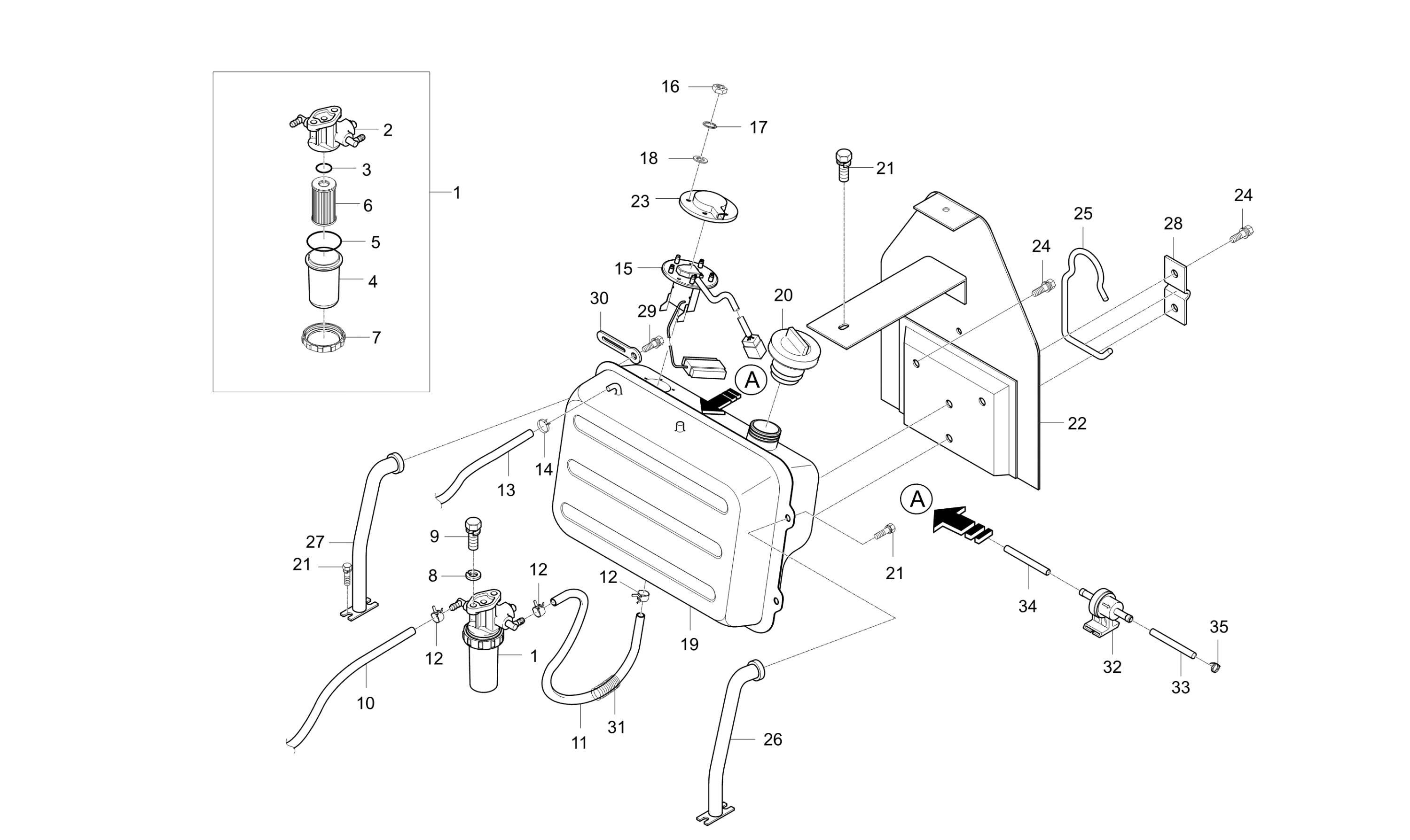

Diagram for FUEL TANK GROUP - CK20M-T790A

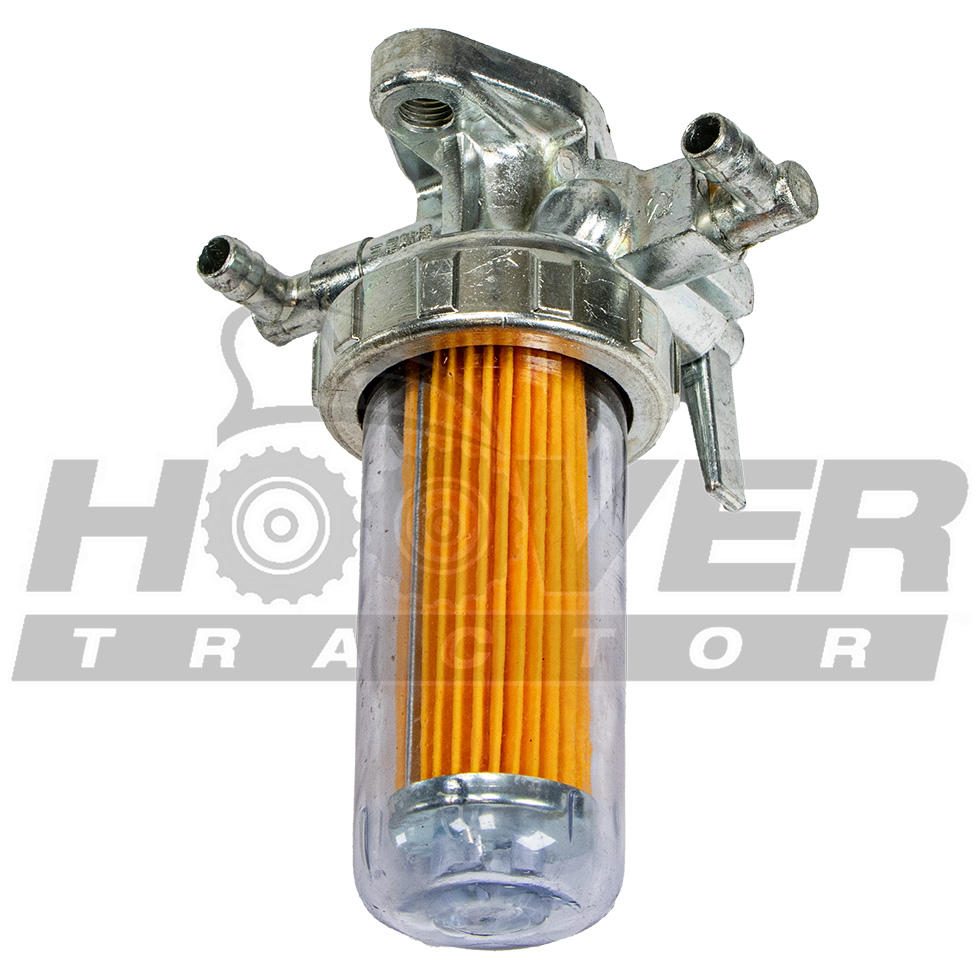

  • 1 ASSY,FUEL FILTER V

    ASSY,FUEL FILTER V

    • Part No. T2350-35011
    • 1 shown on diagram
    $72.99
  • 2

    BODY,FUEL FILTER

    • Part No. 76KD-1025-1
    • 1 shown on diagram
    $35.99
  • 3 O-Ring, Fuel Filter Inner, for 76KD-1033-1

    O-Ring, Fuel Filter Inner, for 76KD-1033-1

    • Part No. 76KD-1038
    • DIA1.9
    • 2 shown on diagram
    $0.40
  • 4 Bowl, Fuel Filter

    Bowl, Fuel Filter

    • Part No. 76KD-1031-1
    • 1 shown on diagram
    $11.99
  • 5 O-ring for 76KD-1033-1 fuel filter bowl

    O-ring for 76KD-1033-1 fuel filter bowl

    • Part No. 76KD-1032
    • DIA3.5
    • 1 shown on diagram
    $1.89
  • 6 Fuel Filter Cartridge

    Fuel Filter Cartridge

    • Part No. 76KD-1033-1
    • 1 shown on diagram
    $7.49

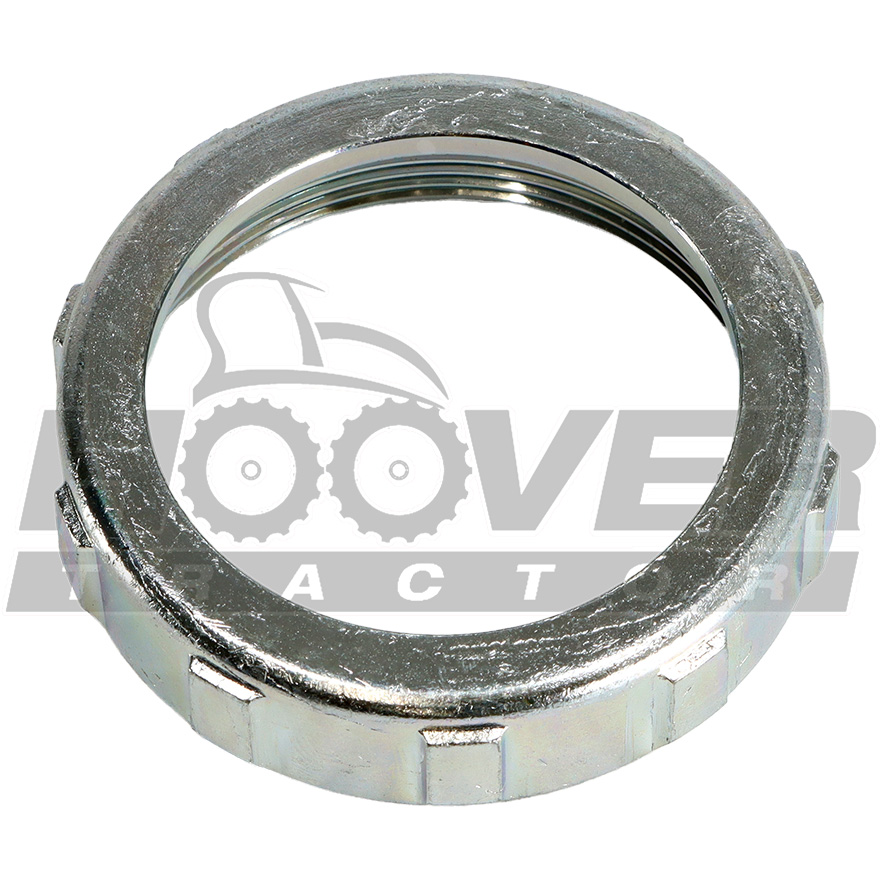

  • 7 NUT

    NUT

    • Part No. 76KD-1039
    • 1 shown on diagram
    $12.99
  • 8 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 9 Bolt M10 P1.25x16mm W/Lock Washer

    Bolt M10 P1.25x16mm W/Lock Washer

    • Part No. 01133-51016
    • M10*P1.25
    • 2 shown on diagram
    $2.49
  • 10

    HOSE 1, FUEL

    • Part No. T2350-35512
    • 1 shown on diagram
    $26.99
  • 11

    Fuel Hose 2 (T2350-35521)

    • Part No. T2350-35521
    • 1 shown on diagram
    $9.49
  • 12

    CLIP, TUBE

    • Part No. 14911-4275-1
    • T0.8*#12
    • 4 shown on diagram
    $1.49
  • 13

    HOSE 3,FUEL

    • Part No. T2350-35531
    • 1 shown on diagram
    $16.99
  • 14

    Hose Clamp (14971-4275-1)

    • Part No. 14971-4275-1
    • DIA1.0*ID7.8
    • 2 shown on diagram
    $1.59
  • 15

    ASS’Y FUEL SENDER v

    • Part No. T2350-69211
    • Applied Dates Up to 2003-04-29
    • * multiple options for #15
    • 1 shown on diagram
    $89.99
  • 15

    FUEL SENDER ASS’Y v

    • Part No. T2350-69212
    • Compatibility No interchange
    • Applied Dates 2003-04-30 to 2003-07-07
    • Serial No. 319500021 to 319500100
    • * multiple options for #15
    • 1 shown on diagram
    $78.99
  • 15

    FUEL SENDER ASS’Y v

    • Part No. T2350-69213
    • Compatibility New repl old
    • Applied Dates 2003-07-08 to 2007-09-03
    • Serial No. 319500101 and up
    • * multiple options for #15
    • 1 shown on diagram
    $81.99
  • 15

    UNIT,FUEL v

    • Part No. T2368-69212
    • Compatibility Interchngable
    • Applied Dates 2007-10-31 and up
    • * multiple options for #15
    • 1 shown on diagram
    $59.99
  • 15

    FUEL SENDER ASSY

    • Part No. T2368-69213
    • Compatibility New repl old
    • Applied Dates 2012-10-31 and up
    • * multiple options for #15
    • 1 shown on diagram
    $109.99
  • 16

    Nut M4XP0.7 (02054-50040)

    • Part No. 02054-50040
    • M4XP0.7
    • 5 shown on diagram
    $0.61
  • 17

    WASHER, SPRING

    • Part No. 04512-50040
    • M04
    • 5 shown on diagram
    $0.55
  • 18

    Flat Washer M4

    • Part No. 04012-50040
    • 5 shown on diagram
    $1.89
  • 19

    ASSY, TANK FUEL v

    • Part No. T2350-81113
    • Applied Dates 2003-03-11 to 2003-06-30
    • * multiple options for #19
    • 1 shown on diagram
    $364.99
  • 19

    Fuel Tank Assembly (T2350-81114)

    • Part No. T2350-81114
    • Compatibility New repl old
    • Applied Dates 2003-07-01 and up
    • Serial No. 319500021 and up
    • * multiple options for #19
    • 1 shown on diagram
    $654.99
  • 20

    ASSY,FUEL CAP v, Replaced by T2611-54825

    • Part No. T2611-54821
    • Applied Dates Up to 2003-06-30
    • Serial No. Up to 319500020
    • * multiple options for #20
    • 1 shown on diagram
    $0.00
  • 20

    FUEL CAP ASSY, Replaced by T2611-54825

    • Part No. T2611-54822
    • Compatibility New repl old
    • Applied Dates 2003-07-01 and up
    • Serial No. 319500021 and up
    • * multiple options for #20
    • 1 shown on diagram
    $41.83
  • 20

    Fuel Cap Assy Replaced by T2611-54825

    • Part No. T2611-54823
    • Compatibility New repl old
    • Applied Dates 2013-04-15 and up
    • * multiple options for #20
    • 1 shown on diagram
    $0.00
  • 21 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • Applied Dates Up to 2005-06-17
    • M8XP1.25
    • * multiple options for #21
    • 4 shown on diagram
    $2.49
  • 21 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • Compatibility New repl old
    • Applied Dates 2005-06-18 and up
    • Serial No. E19500001 and up
    • M8XP1.25
    • * multiple options for #21
    • 11 shown on diagram
    $1.79
  • 22

    SUPPORT

    • Part No. T2350-81131
    • * multiple options for #22
    • 1 shown on diagram
    $62.99
  • 22

    SUPPORT, ROOF dnr v

    • Part No. T2350-81132
    • Compatibility New repl old
    • Applied Dates 2003-03-11 and up
    • Serial No. 319500021 and up
    • * multiple options for #22
    • 1 shown on diagram
    $92.99
  • 23

    Fuel Sender Cover, Replaced by T2350-81142

    • Part No. T2350-81141
    • * multiple options for #23
    • 1 shown on diagram
    $0.00
  • 23

    Fuel Sender Cover (T2350-81142)

    • Part No. T2350-81142
    • Compatibility New repl old
    • Applied Dates 2007-05-11 and up
    • * multiple options for #23
    • 1 shown on diagram
    $6.99
  • 24 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • M8XP1.25
    • 4 shown on diagram
    $2.49

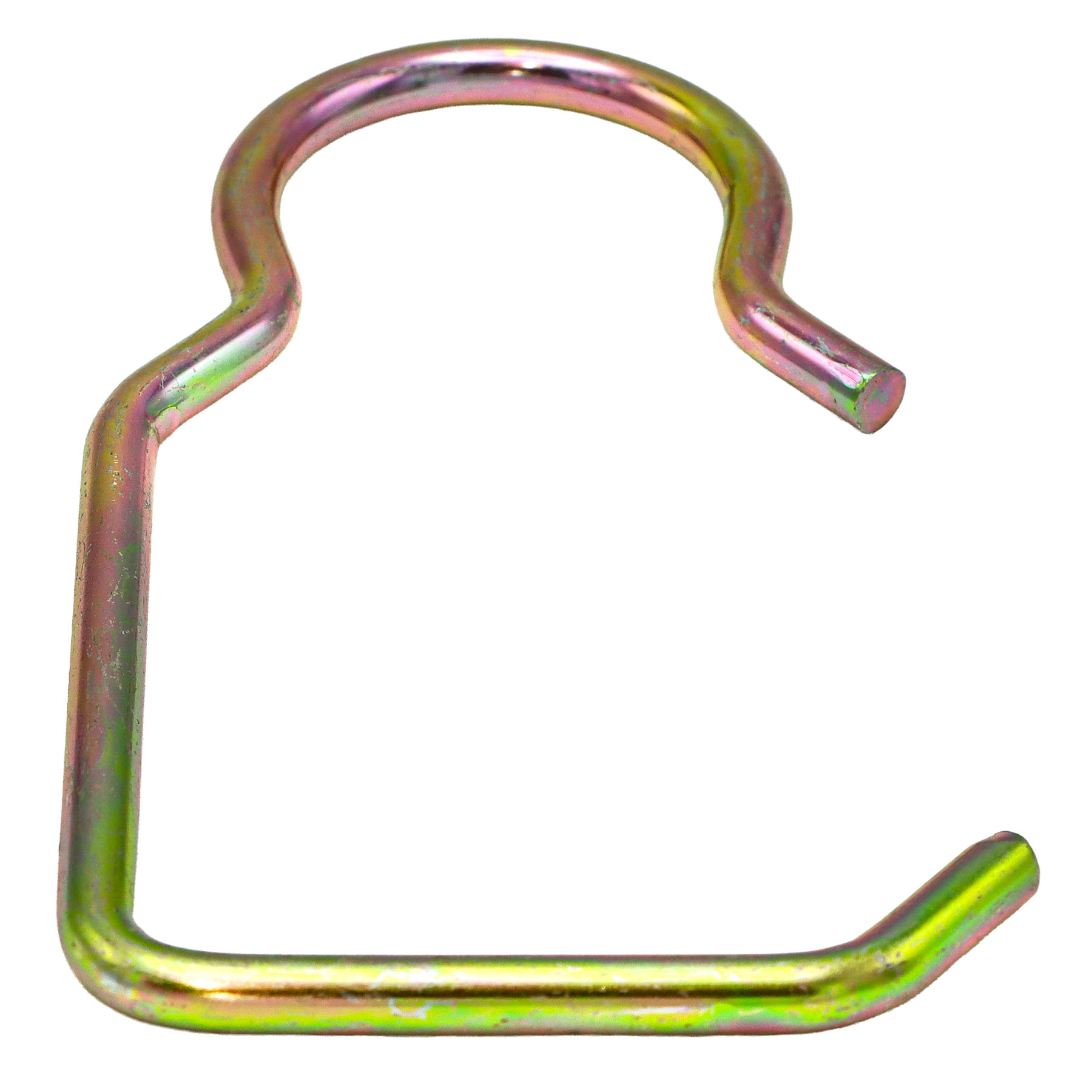

  • 25 RING

    RING

    • Part No. T2350-81151
    • DIA6
    • 1 shown on diagram
    $14.99
  • 26

    SUPPORT-TANK LH v

    • Part No. T2350-81161
    • * multiple options for #26
    • 1 shown on diagram
    $38.99
  • 26

    SUPPORT, TANK(LH)

    • Part No. T2350-81161BB
    • Compatibility No interchange
    • * multiple options for #26
    • 1 shown on diagram
    $27.99
  • 27

    SUPPORT-TANK RH v

    • Part No. T2350-81171
    • * multiple options for #27
    • 1 shown on diagram
    $26.99
  • 27

    SUPPORT, TANK(RH)

    • Part No. T2350-81171BB
    • Compatibility No interchange
    • * multiple options for #27
    • 1 shown on diagram
    $27.99
  • 28

    HOOK, TOP LINK dnr v

    • Part No. T2350-81191
    • T3.2
    • 1 shown on diagram
    $8.99
  • 29

    WASHER BOLT v

    • Part No. 01025-50616
    • M6*P1
    • 1 shown on diagram
    $2.49
  • 30

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 31

    PROTECTOR SPRING v

    • Part No. 67111-5832-3
    • 1 shown on diagram
    $13.99
  • 32 Fuel Filter, In-line

    Fuel Filter, In-line

    • Part No. T2611-54831
    • Applied Dates Up to 2003-04-02
    • 1 shown on diagram
    $27.99
  • 33

    Fuel Hose OB (09661-40070)

    • Part No. 09661-40070
    • Applied Dates Up to 2003-04-02
    • 1 shown on diagram
    $0.82
  • 34

    FUEL TUBE v

    • Part No. 09661-40300
    • Applied Dates Up to 2003-05-06
    • Serial No. Up to 319500020
    • * multiple options for #34
    • 1 shown on diagram
    $6.99
  • 34

    HOSE 1, FUEL v

    • Part No. E1400-54731
    • Compatibility Interchngable
    • Applied Dates 2003-05-07 to 2004-12-05
    • * multiple options for #34
    • 1 shown on diagram
    $6.99
  • 35

    CLIP HOSE

    • Part No. 15271-4271-1
    • Applied Dates Up to 2003-04-02
    • DIA0.8*50
    • 1 shown on diagram
    $1.49
