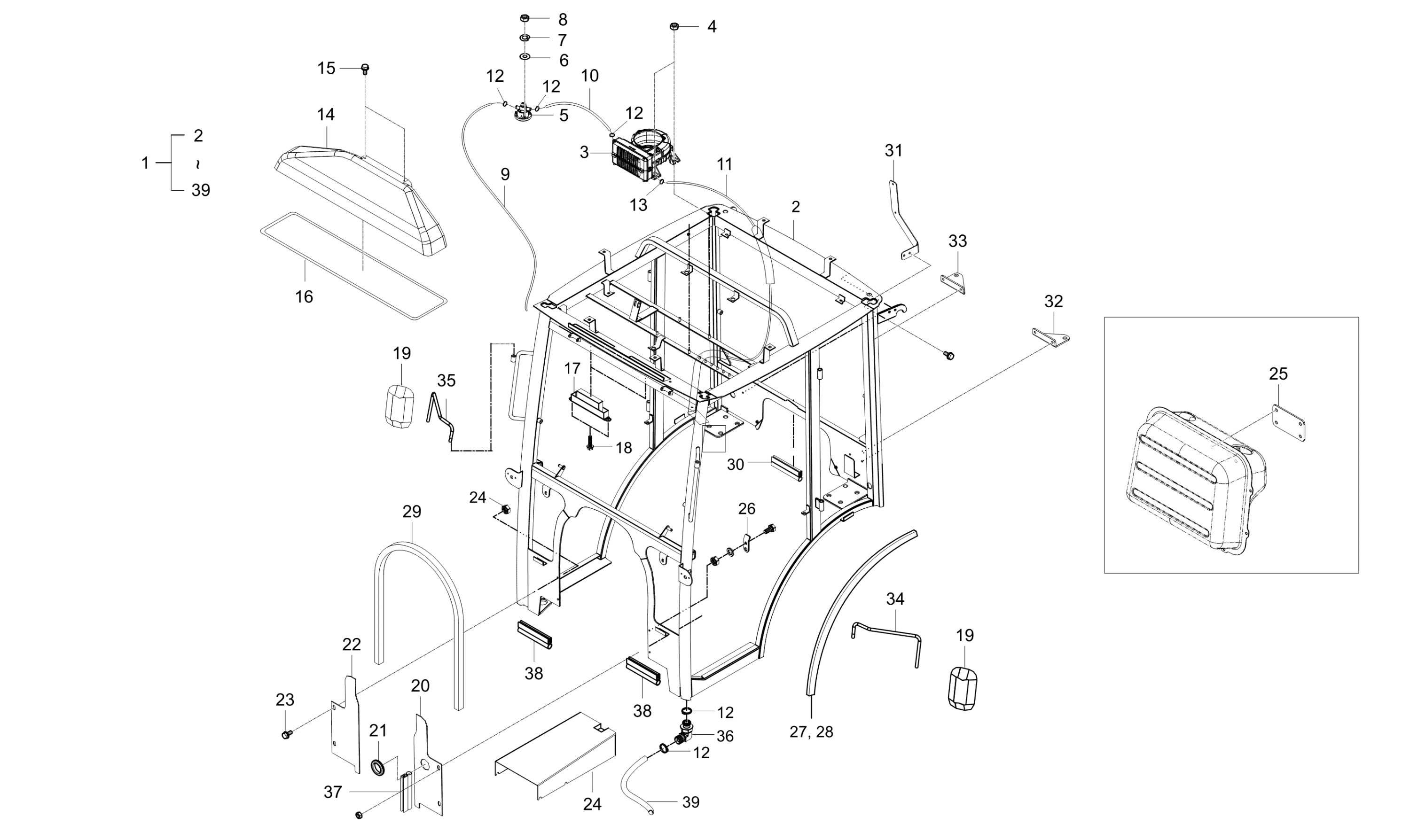

CABIN GROUP - CK20C-T9000A
Kioti TRACTOR | CK Series | CK20J
-
Kioti CABIN ASSY
- Part No. T2395-80011
- 1 shown on diagram
$5,549.99 -
Kioti Cabin Frame Assy
- Part No. T2391-80021
- 1 shown on diagram
$1,549.99 -
Kioti Heater Assembly
- Part No. T2131-86401
- 1 shown on diagram
$759.99 -
Kioti Flange Nut, M8 P1.25
- Part No. 02751-50080
- M8XP1.25
- 4 shown on diagram
$0.67 -
CONTROLLER HEATER v
- Part No. T2131-86501
- 1 shown on diagram
$92.99 -
Flat Washer M4
- Part No. 04013-50040
- M4
- 3 shown on diagram
$0.79 -
WASHER, SPRING
- Part No. 04512-50040
- M04
- 3 shown on diagram
$0.55 -
Nut M4XP0.7 (02054-50040)
- Part No. 02054-50040
- M4XP0.7
- 3 shown on diagram
$0.61 -
HOSE A HEATER
- Part No. T2391-87021
- 1 shown on diagram
$65.99 -
HEATER HOSE B
- Part No. T2391-87031
- 1 shown on diagram
$68.99 -
HOSE C HEATER
- Part No. T2391-87041
- 1 shown on diagram
$22.99 -
BAND HOSE
- Part No. T4340-38241
- Stainless steel #27
- 4 shown on diagram
$4.49 -
BAND HOSE
- Part No. T4340-38241
- Stainless steel #27
- 2 shown on diagram
$4.49 -
DUCT
- Part No. T2131-82211
- 1 shown on diagram
$66.99 -
BOLT, SCREW obs
- Part No. 84612-1823-0
- M6X16
- 2 shown on diagram
$0.79 -
RUBBER DUCT SEALING
- Part No. T2131-82221
- 1 shown on diagram
$26.99 -
CAB FILTER 10.75″ CC bolt pattern
- Part No. T4145-82052
- 2 shown on diagram
$61.99 -
BOLT FLANGE
- Part No. T4625-55441
- 4 shown on diagram
$2.49 -
MIRROR REARVIEW
- Part No. T4818-83001
- 1 shown on diagram
$69.99 -
PLATE FR LWR BLOCKING LH
- Part No. T2391-85131
- 1 shown on diagram
$49.99 -
GROMMET
- Part No. 31355-2949-1
- 2 shown on diagram
$4.99 -
PLATE FR LWR BLOCKING RH
- Part No. T2391-85141
- 1 shown on diagram
$49.99 -
BOLT, FLANGE
- Part No. 01754-50620
- M6XP1.0
- 4 shown on diagram
$1.29 -
Transmission Cover
- Part No. T2391-85151
- T2.0
- 1 shown on diagram
$174.99 -
PLATE SMV BRACKET TAG
- Part No. T2391-86211
- 1 shown on diagram
$26.99 -
Clutch Stopper
- Part No. T2391-86221
- 1 shown on diagram
$12.99 -
PAD SEALING 1 FENDER
- Part No. T2391-86231
- 1 shown on diagram
$38.99 -
Fender Pad Sealing 2 Replaced by T2131-84571
- Part No. T2391-86241
- 1 shown on diagram
$0.00 -
PAD SEALING FRONT BLOCKING PLATE dnr v
- Part No. T2391-86251
- 1 shown on diagram
$54.99 -
PAD SEALING REAR BLOCKING PLATE
- Part No. T2391-86261
- 1 shown on diagram
$16.99 -
SMV Bracket
- Part No. T2391-86281
- 1 shown on diagram
$44.99 -
BRACKET TURN SIGNAL LAMP RR LH (USA)
- Part No. T2395-68111
- 1 shown on diagram
$18.99 -
BRACKET, TURN SIGNAL LAMP RR RH (USA)
- Part No. T2395-68121
- 1 shown on diagram
$18.99 -
SUPPORT REARVIEW MIRROR LH v
- Part No. T2131-83511
- 1 shown on diagram
$0.00 -
SUPPORT REARVIEW MIRROR RH v
- Part No. T2131-83521
- 1 shown on diagram
$0.00 -
HOSE HEATER AIR BREATHER
- Part No. T2391-87061
- D15XD13 Elbow
- 2 shown on diagram
$36.99 -
RUBBER 1 FR LWR SEALING
- Part No. T2131-85411
- Type I, No. 2, 300L * 2
- 2 shown on diagram
$11.99 -
RUBBER 2 FR LWR SEALING
- Part No. T2131-85421
- 170L * 2EA
- 2 shown on diagram
$29.99 -
HEATER HOSE D (CK20)
- Part No. T2391-87051
- D18 * d11
- 2 shown on diagram
$64.99 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- M6XP1.0
- 1 shown on diagram
$0.73
