REAR GLASS GROUP - CK20C-T9030A

Kioti TRACTOR | CK Series | CK20J

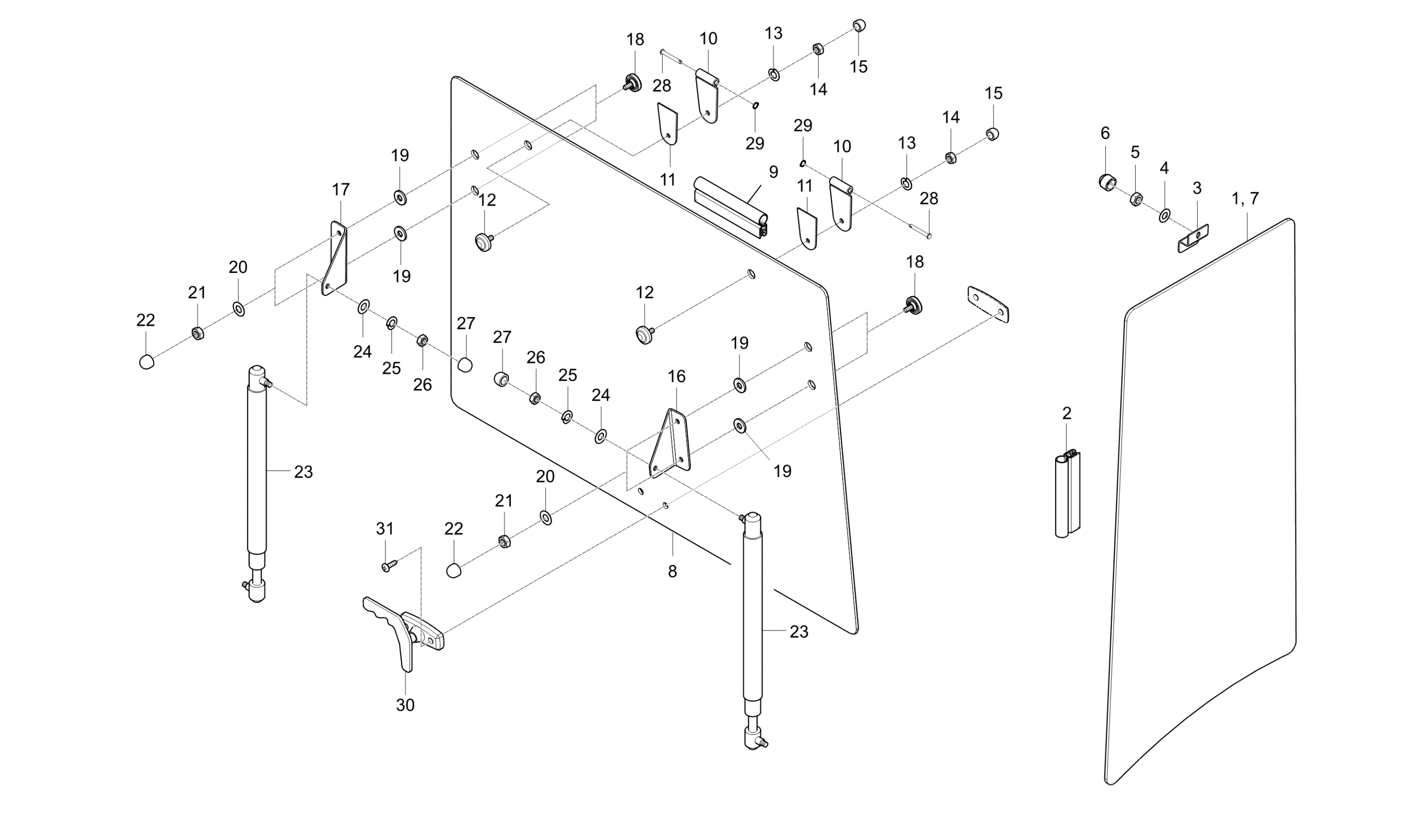

Diagram for REAR GLASS GROUP - CK20C-T9030A
  • 1

    GLASS OUTSIDE LH v

    • Part No. T2391-86111
    • 1 shown on diagram
    $159.99
  • 2

    RUBBER GLASS

    • Part No. T2391-87121
    • 2 shown on diagram
    $52.99
  • 3

    BRACKET WINDOW A, Replaced by T4681-85011BB

    • Part No. T4681-85011
    • 2 shown on diagram
    $7.99
  • 4 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 2 shown on diagram
    $0.73
  • 5

    NUT, Replaced by 02014-50060

    • Part No. 02114-50060
    • 2 shown on diagram
    $0.00
  • 6 NUT CAP M6

    NUT CAP M6

    • Part No. T4680-93211
    • 2 shown on diagram
    $1.29
  • 7

    TRK (RH) Glass (T2391-87111)

    • Part No. T2391-87111
    • 1 shown on diagram
    $159.99
  • 8

    TRK – GLASS RR v

    • Part No. T2391-88111
    • 1 shown on diagram
    $519.99
  • 9

    Rear Glass Weather Stripping (T2391-88121)

    • Part No. T2391-88121
    • 1 shown on diagram
    $59.99
  • 10

    Hinge (T4624-84511)

    • Part No. T4624-84511
    • T3.0
    • 2 shown on diagram
    $21.99
  • 11

    PACKING

    • Part No. T4681-90911
    • 2 shown on diagram
    $5.49
  • 12 BOLT,CUSHION (interchanges w/ T4620-81841)

    BOLT,CUSHION (interchanges w/ T4620-81841)

    • Part No. T4620-81842
    • 2 shown on diagram
    $6.99
  • 13 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $0.79
  • 14 NUT

    NUT

    • Part No. 02114-50080
    • M8*P1.25
    • 2 shown on diagram
    $0.67
  • 15 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 2 shown on diagram
    $1.49
  • 16

    BRACKET, DOOR RR LH

    • Part No. T4681-85321
    • 1 shown on diagram
    $12.99
  • 17

    BRACKET, DOOR RR RH

    • Part No. T4681-85331
    • 1 shown on diagram
    $12.99
  • 18 BOLT,CUSHION (interchanges w/ T4620-81841)

    BOLT,CUSHION (interchanges w/ T4620-81841)

    • Part No. T4620-81842
    • 4 shown on diagram
    $6.99
  • 19 PACKING

    PACKING

    • Part No. T4520-88401
    • 4 shown on diagram
    $3.49
  • 20 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 4 shown on diagram
    $0.79
  • 21 NUT

    NUT

    • Part No. 02114-50080
    • M8*P1.25
    • 4 shown on diagram
    $0.67
  • 22 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 4 shown on diagram
    $1.49
  • 23

    CYLINDER

    • Part No. T4835-87621
    • 2 shown on diagram
    $99.99
  • 24 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $0.79
  • 25 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 4 shown on diagram
    $0.61
  • 26 NUT

    NUT

    • Part No. 02114-50080
    • M8*P1.25
    • 2 shown on diagram
    $0.67
  • 27 Cap Nut, M8 T4815-93211

    Cap Nut, M8 T4815-93211

    • Part No. T4815-93211
    • M8
    • 2 shown on diagram
    $1.49
  • 28

    PIN

    • Part No. 05112-50855
    • 2 shown on diagram
    $3.49
  • 29 RING SNAP

    RING SNAP

    • Part No. 04613-50060
    • DIA06
    • 2 shown on diagram
    $0.67
  • 30

    ASSY GRIP v

    • Part No. C7280-89541
    • 1 shown on diagram
    $62.99
  • 31

    BOLT SCREW v

    • Part No. 03054-50614
    • 2 shown on diagram
    $0.56
