FRONT AXLE FRAME GROUP - CK20H-T440A

Kioti TRACTOR | CK Series | CK20HJ

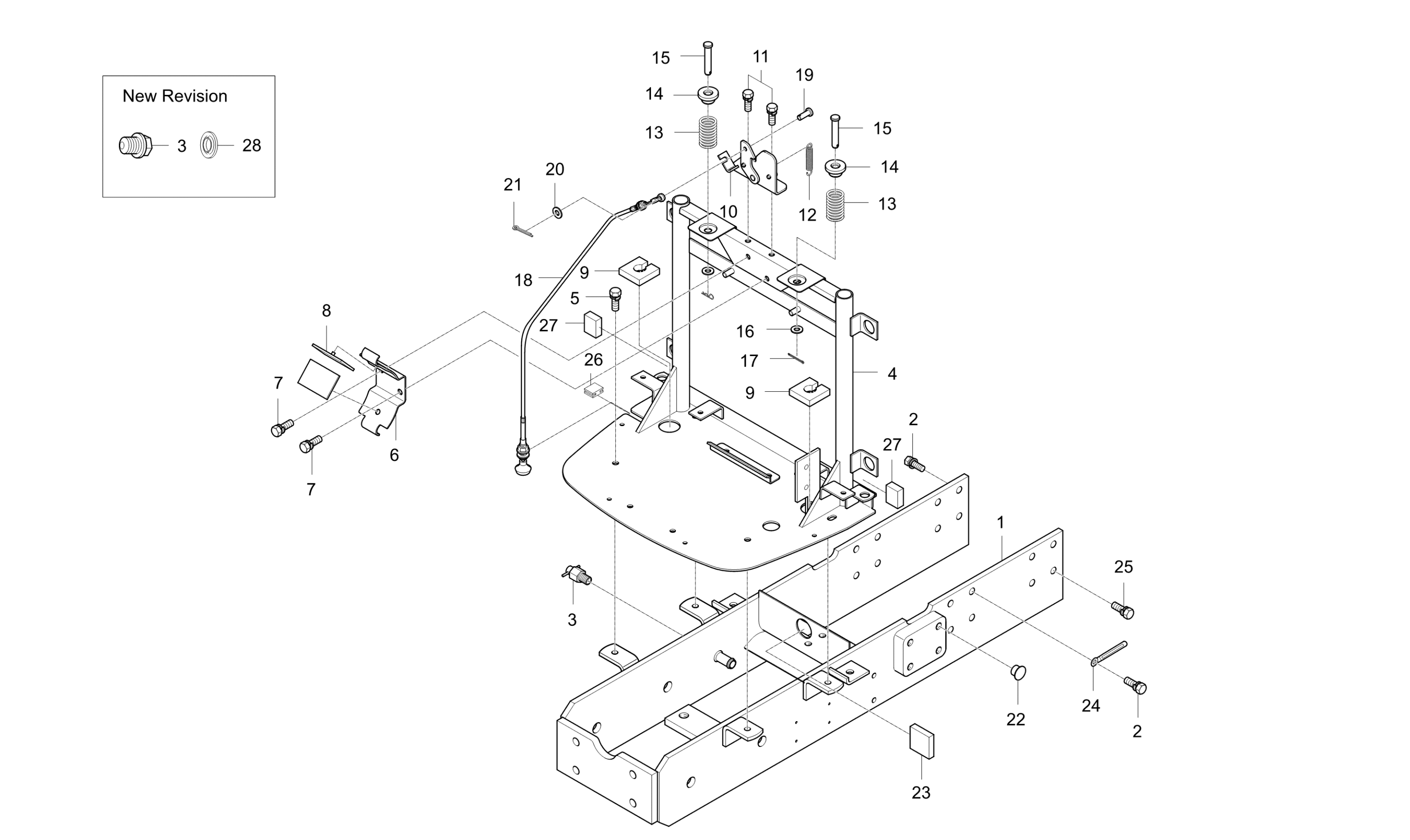

Diagram for FRONT AXLE FRAME GROUP - CK20H-T440A
  • 1

    FRAME,FRONT AXLE

    • Part No. T2350-50014
    • Applied Dates Up to 2003-05-06
    • * multiple options for #1
    • 1 shown on diagram
    $279.99
  • 1

    FRAME, FRONT AXLE

    • Part No. T2350-50015
    • Compatibility New repl old
    • Applied Dates 2003-05-07 to 2003-08-18
    • Serial No. 319600081 to 319600820
    • * multiple options for #1
    • 1 shown on diagram
    $279.99
  • 1

    FRAME, FRONT AXLE

    • Part No. T2350-50016
    • Compatibility Interchngable
    • Applied Dates 2003-08-19 to 2005-06-29
    • Serial No. 319600821 to E19600260
    • * multiple options for #1
    • 1 shown on diagram
    $364.99
  • 1

    FRAME,FRONT AXLE

    • Part No. T2350-50017
    • Compatibility No interchange
    • Applied Dates 2005-06-30 to 2005-08-17
    • Serial No. E19600261 to E19600440
    • * multiple options for #1
    • 1 shown on diagram
    $354.99
  • 1

    FRAME,FRONT AXLE

    • Part No. T2350-50018
    • Compatibility New repl old
    • Applied Dates 2005-08-18 to 2007-02-26
    • Serial No. E19600441 to G19600060
    • * multiple options for #1
    • 1 shown on diagram
    $399.99
  • 2 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 12 shown on diagram
    $3.49
  • 3

    COCK, DRAIN

    • Part No. 76KD-0121-2
    • Applied Dates Up to 2005-06-09
    • Serial No. Up to E19600260
    • * multiple options for #3
    • 1 shown on diagram
    $43.99
  • 3

    PLUG

    • Part No. 06311-45030
    • Compatibility New repl old
    • Applied Dates 2005-06-10 to 2007-10-05
    • Serial No. E19600161 to G19600060
    • * multiple options for #3
    • 1 shown on diagram
    $6.99
  • 4

    SUPPORT, RADIATOR

    • Part No. T2350-50212
    • Applied Dates Up to 2003-05-06
    • * multiple options for #4
    • 1 shown on diagram
    $174.99
  • 4

    SUPPORT, RADIATOR

    • Part No. T2350-50213
    • Compatibility Interchngable
    • Applied Dates 2003-05-07 to 2007-10-05
    • Serial No. 319600281 to G19600060
    • * multiple options for #4
    • 1 shown on diagram
    $119.99
  • 5 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 4 shown on diagram
    $1.99
  • 6

    SUPPORT,AIRCLEANER

    • Part No. T2350-50311
    • T2.3
    • 1 shown on diagram
    $124.99
  • 7 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 8

    CUSHION

    • Part No. T2350-50321
    • 2 shown on diagram
    $3.49
  • 9

    SPONGE

    • Part No. T2360-37551
    • 2 shown on diagram
    $1.59
  • 10

    CATCH ASSY v

    • Part No. T4682-50681
    • Applied Dates Up to 2004-12-01
    • * multiple options for #10
    • 1 shown on diagram
    $27.99
  • 10

    CATCH ASS`Y

    • Part No. T4682-50682
    • Compatibility Interchngable
    • Applied Dates 2004-12-02 and up
    • Serial No. E19600001 and up
    • * multiple options for #10
    • 1 shown on diagram
    $27.99
  • 11 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 12

    FRICTION SPRING

    • Part No. 57781-5121-1
    • DIA1.2
    • 1 shown on diagram
    $3.49
  • 13

    SPRING

    • Part No. T4682-50351
    • Applied Dates Up to 2007-05-15
    • 2 shown on diagram
    $4.99
  • 14

    RUBBER, CUSHION

    • Part No. T4682-50361
    • Applied Dates Up to 2007-05-15
    • 2 shown on diagram
    $1.99
  • 15 Pin, Joint M10x55mm

    Pin, Joint M10x55mm

    • Part No. 05122-51055
    • Applied Dates Up to 2007-05-15
    • DIA10XL55
    • 2 shown on diagram
    $3.99
  • 16 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • Applied Dates Up to 2007-05-15
    • M10
    • 2 shown on diagram
    $0.73
  • 17 Pin, Split

    Pin, Split

    • Part No. 05511-50320
    • Applied Dates Up to 2007-05-15
    • DIA2.7XL20
    • 2 shown on diagram
    $0.46
  • 18

    CABLE,BONNET OPEN

    • Part No. T2350-50691
    • 1 shown on diagram
    $33.99
  • 19

    Pin, Joint M6x14mm

    • Part No. 05122-50614
    • 1 shown on diagram
    $2.49
  • 20

    Flat Washer M6

    • Part No. 04014-50060
    • 1 shown on diagram
    $0.67
  • 21

    Split Pin (05511-51615)

    • Part No. 05511-51615
    • DIA1.4XL15
    • 1 shown on diagram
    $0.56
  • 22

    PLUG

    • Part No. 32210-2758-1
    • M12
    • 8 shown on diagram
    $1.59
  • 23

    SPONGE

    • Part No. T2350-50021
    • 1 shown on diagram
    $6.49
  • 24

    CLAMP,CORD obs v

    • Part No. 34260-2938-1
    • 1 shown on diagram
    $1.39
  • 25

    BOLT

    • Part No. 01133-51028
    • M10*1.25
    • 4 shown on diagram
    $3.49
  • 26

    PLUG

    • Part No. T2350-29291
    • Applied Dates 2004-05-31 and up
    • 1 shown on diagram
    $4.99
  • 27

    SPONGE

    • Part No. T2350-50031
    • Applied Dates 2004-05-31 and up
    • 2 shown on diagram
    $5.49
  • 28

    WASHER, SEAL

    • Part No. 04717-01700
    • Applied Dates 2005-06-10 and up
    • 1 shown on diagram
    $3.49
