FRONT AXLE BRACKET GROUP - CK20M-T530A

Kioti TRACTOR | CK Series | CK20HJ

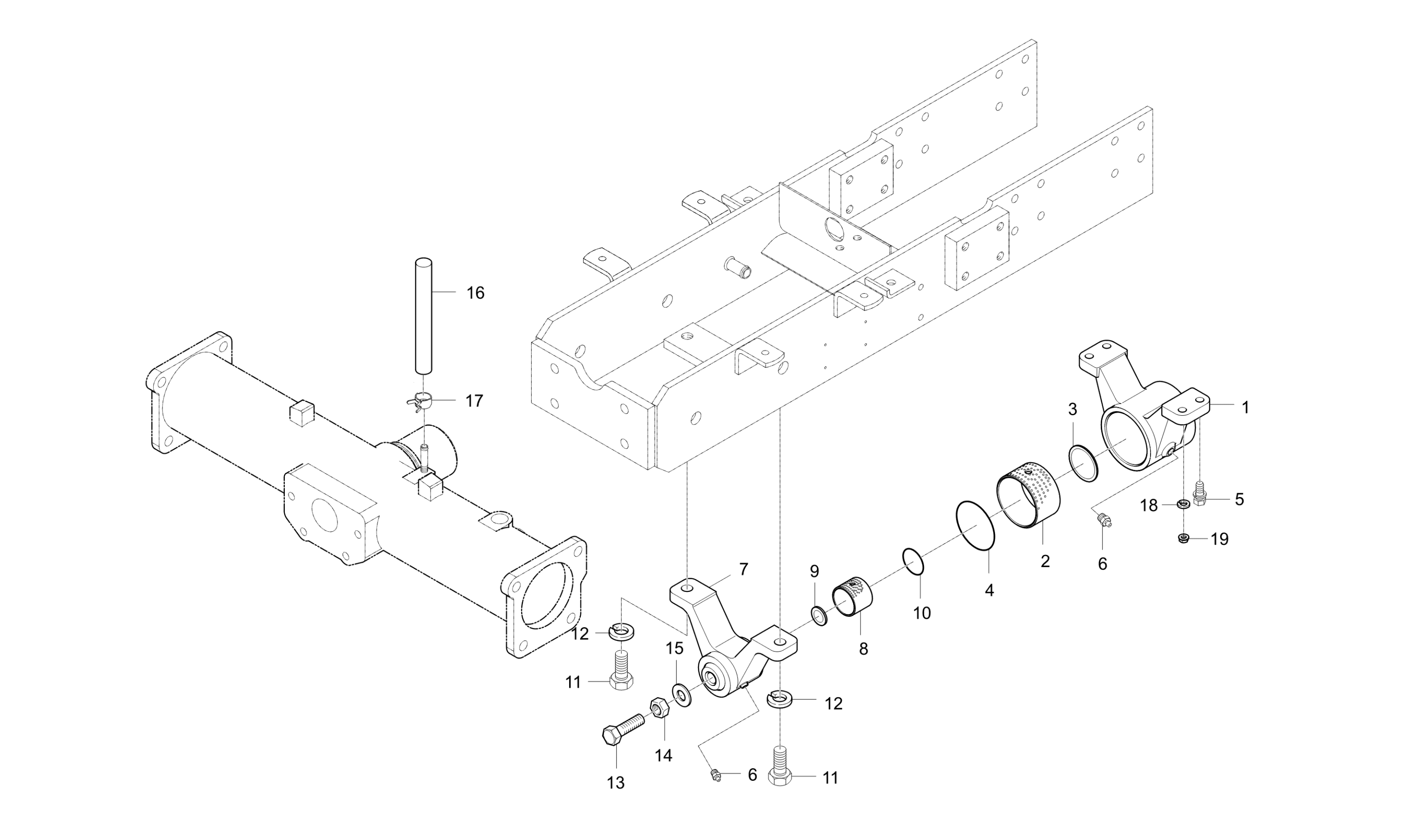

Diagram for FRONT AXLE BRACKET GROUP - CK20M-T530A
  • 1

    BRACKET,REAR v

    • Part No. T2350-41621
    • * multiple options for #1
    • 1 shown on diagram
    $79.99
  • 1

    BRACKET,REAR v

    • Part No. T2350-41622
    • Compatibility Interchngable
    • Applied Dates 2003-08-16 to 2003-09-20
    • Serial No. 319600678 to 319600820
    • * multiple options for #1
    • 1 shown on diagram
    $109.99
  • 2

    BUSHING

    • Part No. T4520-41681
    • 65-40DX
    • 1 shown on diagram
    $43.99
  • 3

    COLLAR,THRUST

    • Part No. T2350-44641
    • 1 shown on diagram
    $9.99
  • 4 O-ring, Fuel Filter Bowl

    O-ring, Fuel Filter Bowl

    • Part No. 04811-50650
    • 1 shown on diagram
    $1.69
  • 5 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • Applied Dates 2008-05-06 to 2003-09-20
    • M10XP1.25
    • 4 shown on diagram
    $2.99
  • 6 Grease Zerk, Brass 1/8″ BSPT

    Grease Zerk, Brass 1/8″ BSPT

    • Part No. 06613-10010
    • PT1/8
    • 2 shown on diagram
    $3.49
  • 7

    BRACKET,FRONT

    • Part No. T2350-41611
    • Applied Dates Up to 2003-09-20
    • Serial No. Up to 319600820
    • * multiple options for #7
    • 1 shown on diagram
    $99.99
  • 7

    Front Bracket Assembly

    • Part No. T2350-41602
    • Compatibility New repl old
    • Applied Dates 2015-07-01 and up
    • * multiple options for #7
    • 1 shown on diagram
    $129.99
  • 8

    DX BUSH

    • Part No. T2350-41681
    • 1 shown on diagram
    $17.99
  • 9

    Thrust Washer 2.6mm

    • Part No. T2305-44751
    • T2.6
    • 1 shown on diagram
    $3.99

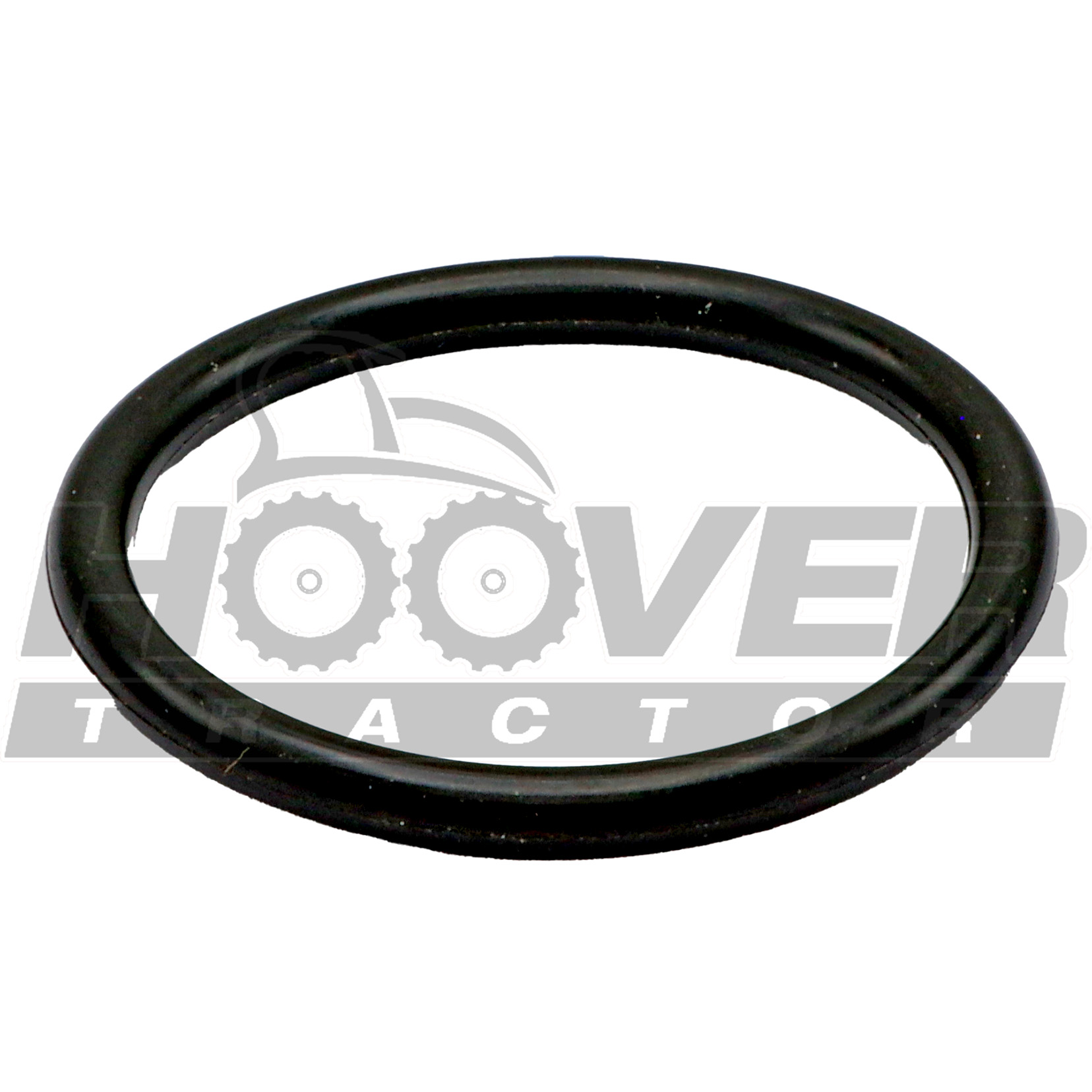

  • 10 O RING

    O RING

    • Part No. 04811-00340
    • P34
    • 1 shown on diagram
    $1.79
  • 11

    BOLT 01176-51430

    • Part No. 01176-51430
    • 2 shown on diagram
    $5.99
  • 12

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 2 shown on diagram
    $0.90
  • 13

    BOLT v

    • Part No. 38630-4476-1
    • DIA16
    • 1 shown on diagram
    $7.99
  • 14

    NUT

    • Part No. 02172-50160
    • Applied Dates Up to 2007-09-03
    • Serial No. Up to 319600820
    • M16*P1.5
    • * multiple options for #14
    • 1 shown on diagram
    $1.29
  • 14

    NUT, M16 P1.50

    • Part No. 02174-50160
    • Compatibility Interchngable
    • Applied Dates 2007-12-31 to 2010-02-25
    • Serial No. G19600061 and up
    • M16XP1.5
    • * multiple options for #14
    • 1 shown on diagram
    $1.49
  • 15

    WASHER SEAL 38440-4475-1

    • Part No. 38440-4475-1
    • 1 shown on diagram
    $4.99
  • 16

    HOSE, OVER FLOW

    • Part No. T2350-42171
    • 1 shown on diagram
    $9.49
  • 17

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Applied Dates Up to 2008-12-04
    • Serial No. Up to 319600820
    • Stan16#
    • * multiple options for #17
    • 1 shown on diagram
    $2.49
  • 17

    CLIP, TUBE

    • Part No. 14911-4275-1
    • Compatibility Call for compat
    • Applied Dates 2008-12-11 and up
    • Serial No. H19600001 and up
    • T0.8*#12
    • * multiple options for #17
    • 1 shown on diagram
    $1.49
  • 18 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 19 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
