COUNTER SHAFT GROUP - CK20M-T200A

Kioti TRACTOR | CK Series | CK20S

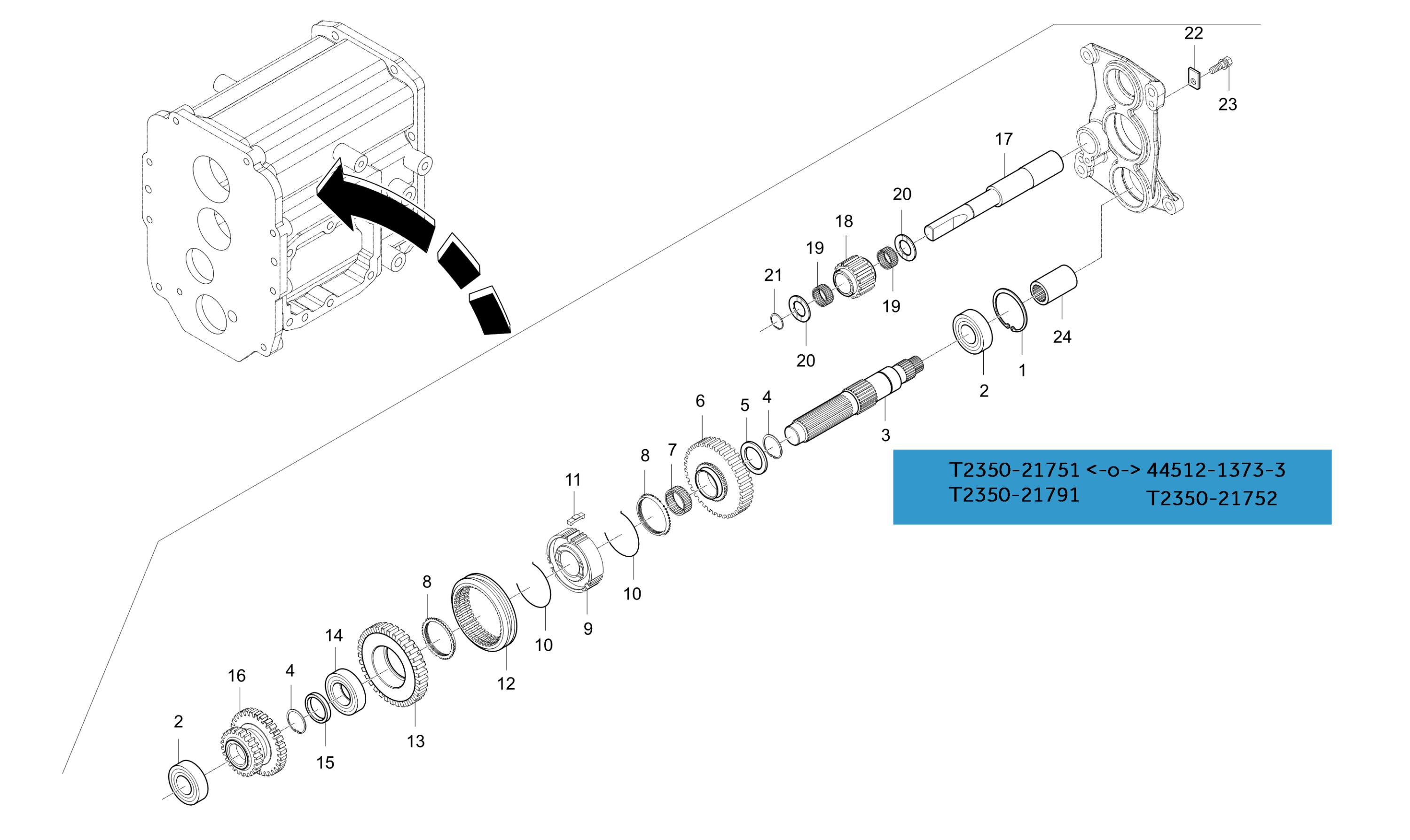

Diagram for COUNTER SHAFT GROUP - CK20M-T200A
  • 1 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • DIA52
    • 1 shown on diagram
    $2.49
  • 2 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 2 shown on diagram
    $17.99
  • 3

    SHAFT,COUNTER

    • Part No. T2350-21751
    • * multiple options for #3
    • 1 shown on diagram
    $124.99
  • 3

    SHAFT, COUNTER

    • Part No. T2350-21752
    • Compatibility Call for compat
    • * multiple options for #3
    • 1 shown on diagram
    $92.99
  • 4 Snap Ring 30mm

    Snap Ring 30mm

    • Part No. 04612-00300
    • DIA30
    • 2 shown on diagram
    $1.59
  • 5

    SPACER

    • Part No. T2305-21661
    • T3.0
    • 1 shown on diagram
    $7.99
  • 6

    GEAR 37

    • Part No. T2350-21711
    • 1 shown on diagram
    $174.99
  • 7

    BEARING,NEEDLE

    • Part No. 08823-03522
    • 30*35*22
    • 1 shown on diagram
    $25.99
  • 8 RING, SYNCHRONIZER

    RING, SYNCHRONIZER

    • Part No. T4240-21792
    • 2 shown on diagram
    $52.99
  • 9

    HUB,SYNCHRONIZER

    • Part No. T2350-21741
    • 1 shown on diagram
    $85.99
  • 10

    SYNCHRONIZER SPRING [NLA]

    • Part No. 38360-2178-1
    • DIA1.2
    • 2 shown on diagram
    $3.99
  • 11 SYNCHRONIZER KEY

    SYNCHRONIZER KEY

    • Part No. T2610-21812
    • 3 shown on diagram
    $6.99
  • 12

    SHIFTER

    • Part No. T2610-21754
    • 1 shown on diagram
    $144.99
  • 13

    GEAR 40

    • Part No. T2350-21731
    • 1 shown on diagram
    $209.99
  • 14 BEARING, BALL 30x55x13

    BEARING, BALL 30x55x13

    • Part No. 08101-06006
    • DIA30
    • 1 shown on diagram
    $23.99
  • 15

    SPACER

    • Part No. T2350-21771
    • DIA38.1*T7
    • 1 shown on diagram
    $6.49
  • 16

    GEAR, 22-32

    • Part No. T2350-21722
    • 1 shown on diagram
    $209.99
  • 17

    SHAFT,REAR

    • Part No. T2350-23111
    • 1 shown on diagram
    $99.99
  • 18

    GEAR 16

    • Part No. T2350-21811
    • 1 shown on diagram
    $76.99
  • 19

    BEARING,NEEDLE

    • Part No. 08822-02620
    • KT202617
    • 2 shown on diagram
    $24.99
  • 20 COLLAR, THRUST

    COLLAR, THRUST

    • Part No. T2305-25241
    • T2
    • 2 shown on diagram
    $16.99
  • 21 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 1 shown on diagram
    $1.09
  • 22

    STOPPER

    • Part No. T2350-23132
    • T3.2
    • 1 shown on diagram
    $6.49
  • 23 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 24

    COUPLING

    • Part No. T2350-21791
    • * multiple options for #24
    • 1 shown on diagram
    $36.99
  • 24 COUPLING

    COUPLING

    • Part No. 44512-1373-3
    • Compatibility Call for compat
    • Applied Dates 2004-09-08 to 2004-09-08
    • * multiple options for #24
    • 1 shown on diagram
    $39.99
