PTO SHAFT GROUP - CT120-T230A

Kioti TRACTOR | CK Series | CK20S

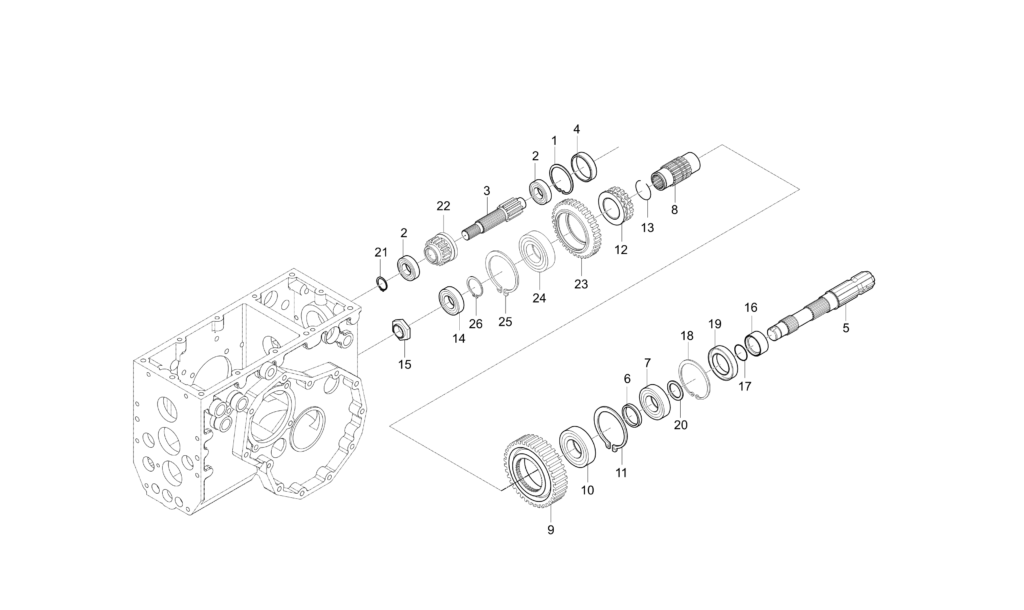

Diagram for PTO SHAFT GROUP - CT120-T230A
  • 1 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • DIA52
    • 1 shown on diagram
    $2.49
  • 2

    BALL BEARING

    • Part No. 08101-06304
    • #6304
    • 2 shown on diagram
    $18.99
  • 3

    SHAFT3,PTO DRIVING

    • Part No. T2350-25282
    • Applied Dates 2005-04-04 and up
    • 1 shown on diagram
    $134.99
  • 4 SEAL CAP 52

    SEAL CAP 52

    • Part No. T2350-25421
    • 1 shown on diagram
    $7.99
  • 5

    SHAFT dnr v

    • Part No. T2350-25212
    • Applied Dates Up to 2007-06-15
    • 1 shown on diagram
    $124.99
  • 6

    SPACER

    • Part No. T2350-25381
    • DIA42.7*T4.9
    • 1 shown on diagram
    $11.99
  • 7 Ball Bearing 30x62x16

    Ball Bearing 30x62x16

    • Part No. 08101-06206
    • #6206
    • 1 shown on diagram
    $19.99
  • 8

    SPOOL LINE BOSS

    • Part No. T2350-25241
    • 1 shown on diagram
    $94.99
  • 9

    GEAR 49

    • Part No. T2350-25121
    • 1 shown on diagram
    $244.99
  • 10 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 1 shown on diagram
    $28.99
  • 11 RING,SNAP

    RING,SNAP

    • Part No. 04611-00720
    • DIA72
    • 1 shown on diagram
    $7.99
  • 12

    SHIFTER, PTO

    • Part No. T2350-25132
    • 1 shown on diagram
    $99.99
  • 13

    RING

    • Part No. T2350-25151
    • DIA1.6
    • 1 shown on diagram
    $5.49
  • 14

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 1 shown on diagram
    $24.99
  • 15 NUT, 24

    NUT, 24

    • Part No. T2350-25361
    • 1 shown on diagram
    $18.99
  • 16

    SLEEVE

    • Part No. T2350-25372
    • 1 shown on diagram
    $58.99
  • 17

    O RING

    • Part No. 04811-00300
    • P30
    • 1 shown on diagram
    $1.19
  • 18 CIR CLIP, INTERNAL

    CIR CLIP, INTERNAL

    • Part No. 04611-00620
    • DIA62
    • 1 shown on diagram
    $3.99
  • 19

    SEAL,OIL

    • Part No. T2350-25391
    • 1 shown on diagram
    $13.99
  • 20

    SHIM

    • Part No. K1200-14171
    • 1 shown on diagram
    $3.99
  • 21 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 1 shown on diagram
    $1.09
  • 22

    GEAR 17

    • Part No. T2350-25251
    • 1 shown on diagram
    $83.99
  • 23

    GEAR 42

    • Part No. T2350-25141
    • 1 shown on diagram
    $169.99
  • 24 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 1 shown on diagram
    $28.99
  • 25 RING,SNAP

    RING,SNAP

    • Part No. 04611-00720
    • DIA72
    • 1 shown on diagram
    $7.99
  • 26 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 1 shown on diagram
    $1.89
